Wheelhouse Inner (Front Section)

Correction code: 10102101402 10102101502 NOTE: Unless explicitly stated in the procedure, the above correction code includes all Collision Repair work required to perform this procedure, including the linked Collision Repair procedures. Do not stack Collision Repair correction codes unless explicitly told to do so. Add any associated mechanical procedures needed to perform this procedure.

Parts List

Quantity Description Image / Notes

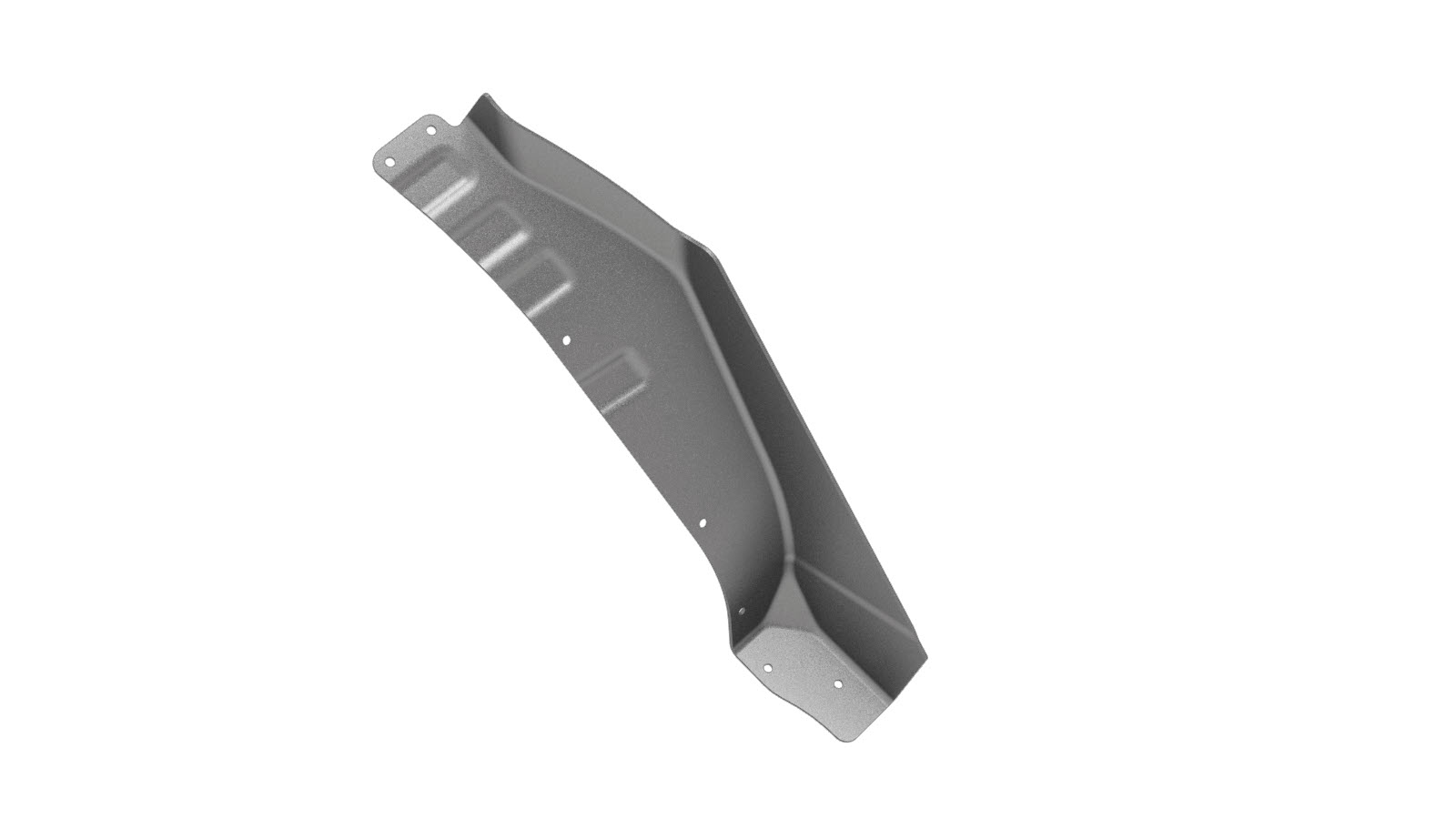

1 MY RUB FRONT WHEELHOUSE SERVICE PANEL (Wheelhouse Inner – Front Section)
7 High Strength Structural Rivet, 6.5 mm
1 Flow Form Rivet S38

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

  1. Remove the Wheelhouse Extension (Front).
  2. Remove the original component.
    • Reference Line/Point

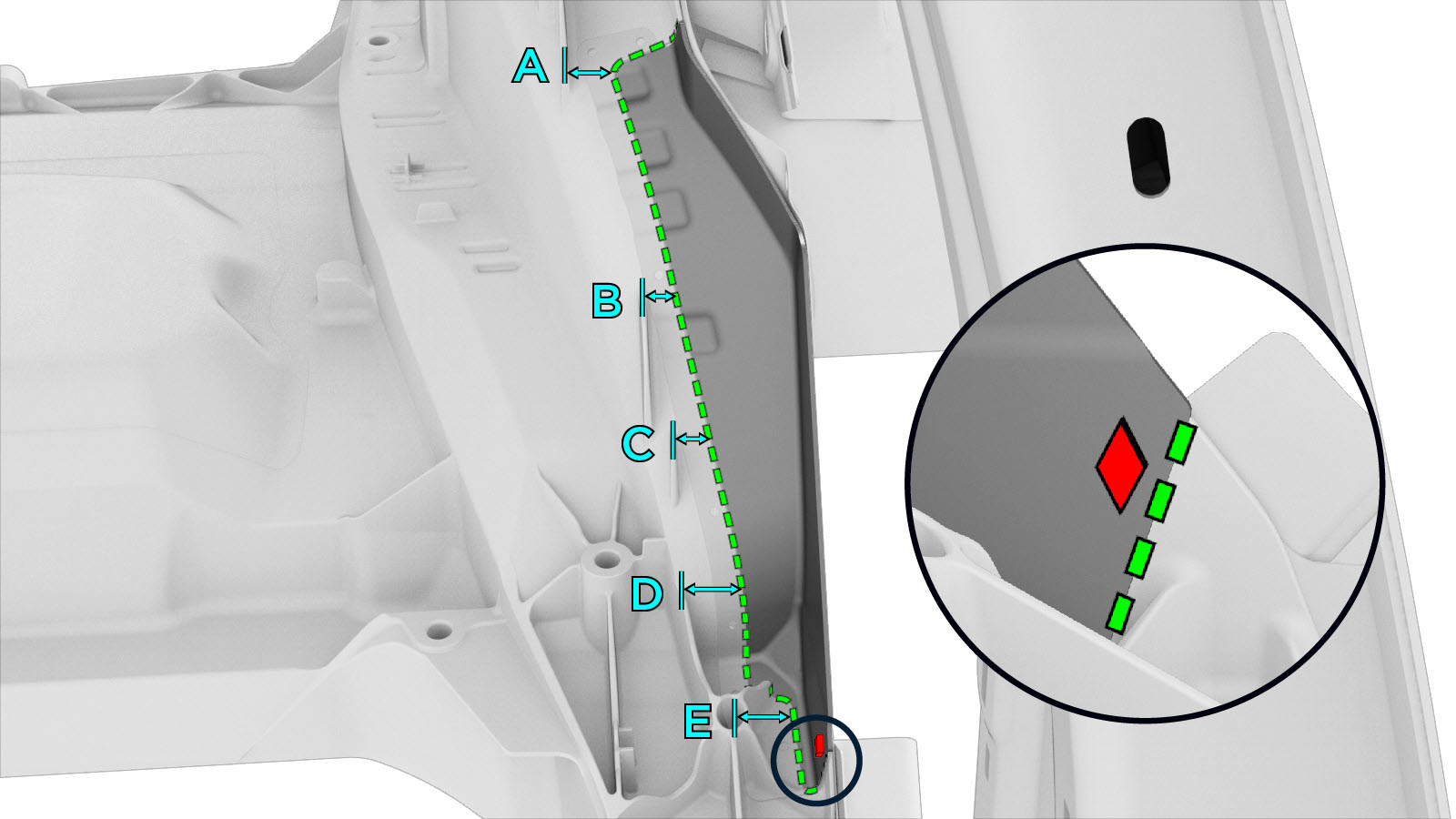

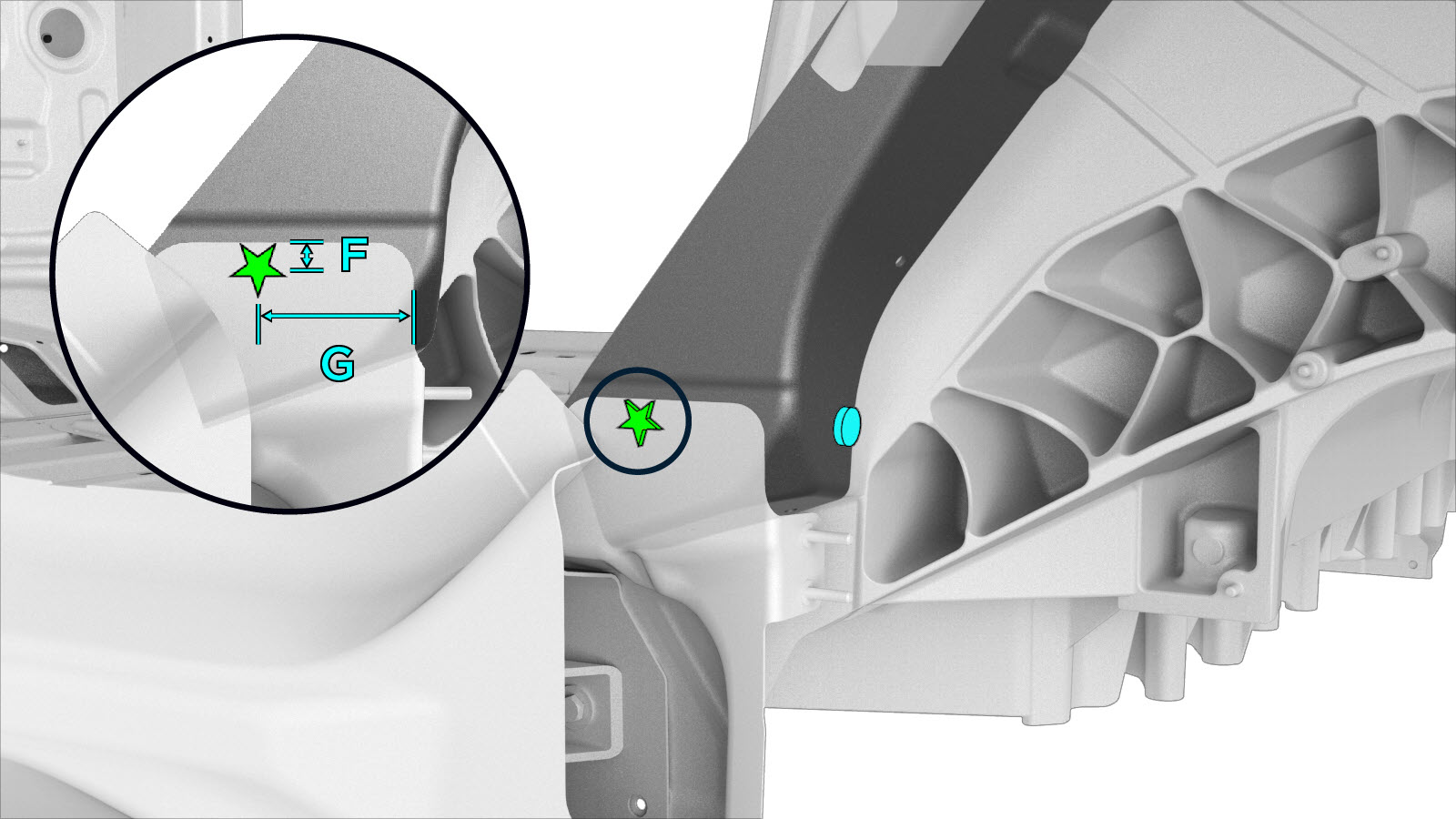

    • Cut Line A = 36 mm B = 26 mm C = 28 mm D = 45 mm E = 44 mm
    • or Factory SPRs
    Informational PurposesAn informational icon, calling your attention
    Note
    The measurements shown indicate the outer boundaries (maximum size) of the repair area. If damage extends beyond this area, contact Tesla Collision Repair for assistance.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use the service part as an additional reference for material removal from the Cast Rear Under Body. Bulk cut areas as needed until the service part fits the necessary repair area.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    The remaining portion of the Cast Rear Under Body on the inboard side of the repair area must overlap the service part by a minimum of 25 mm.
  3. Prepare for installation.
    Informational PurposesAn informational icon, calling your attention
    Note
    The service part is installed from the underside of the Wheelhouse area.
    Informational PurposesAn informational icon, calling your attention
    Note

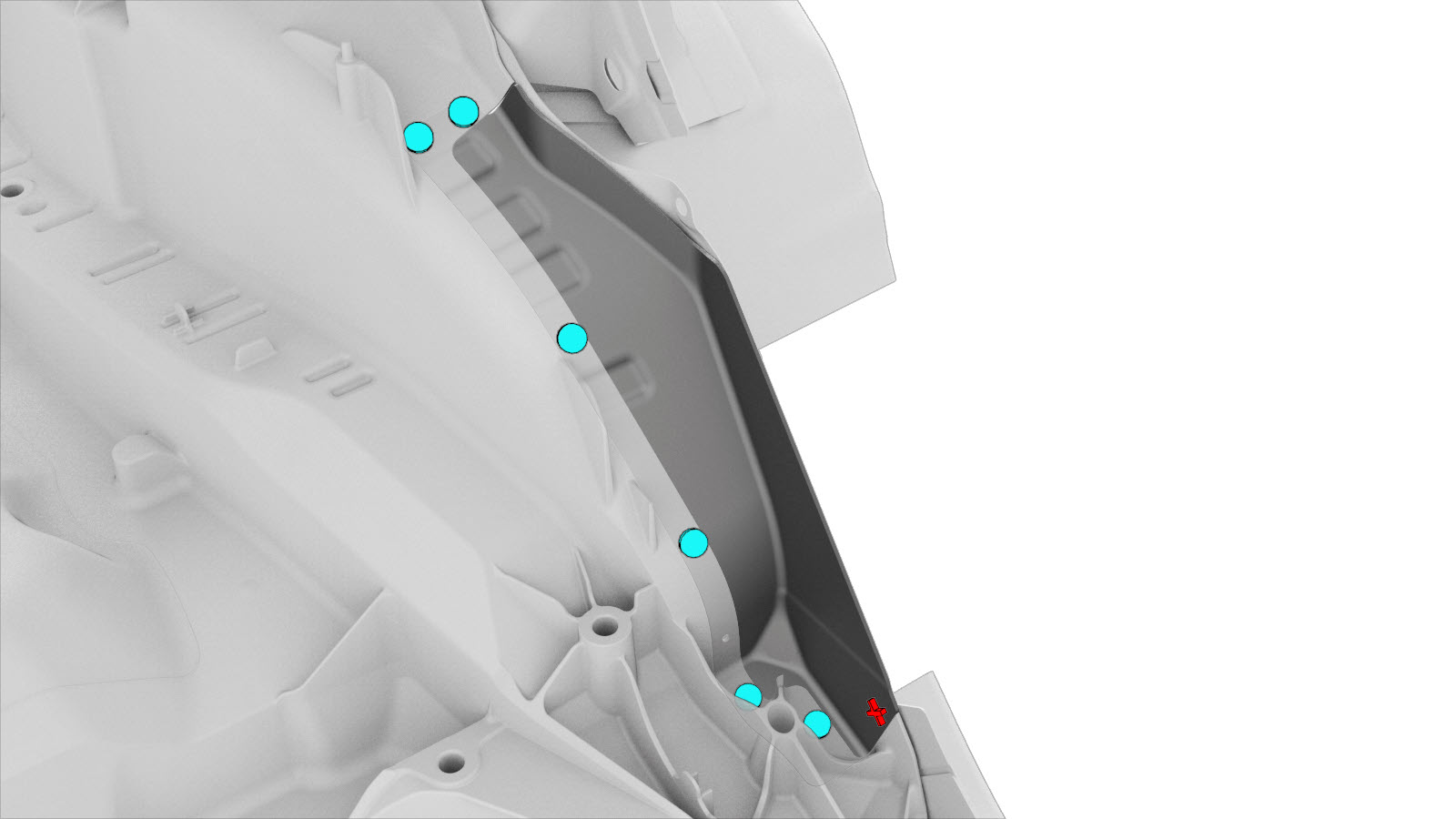

    A red X indicates a location where a factory-installed fastener is not being replaced.
  4. Prepare for installation.
  5. Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
  6. Install the new component or components.
  7. Install the Wheelhouse Extension (Front).
  8. Perform any necessary post-repair operations.
