Rear Quarter Inner
Repair Information
- Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
- Properly mount the vehicle on a frame bench when performing this procedure.
Parts List
| Quantity | Description | Image / Notes |
|---|---|---|

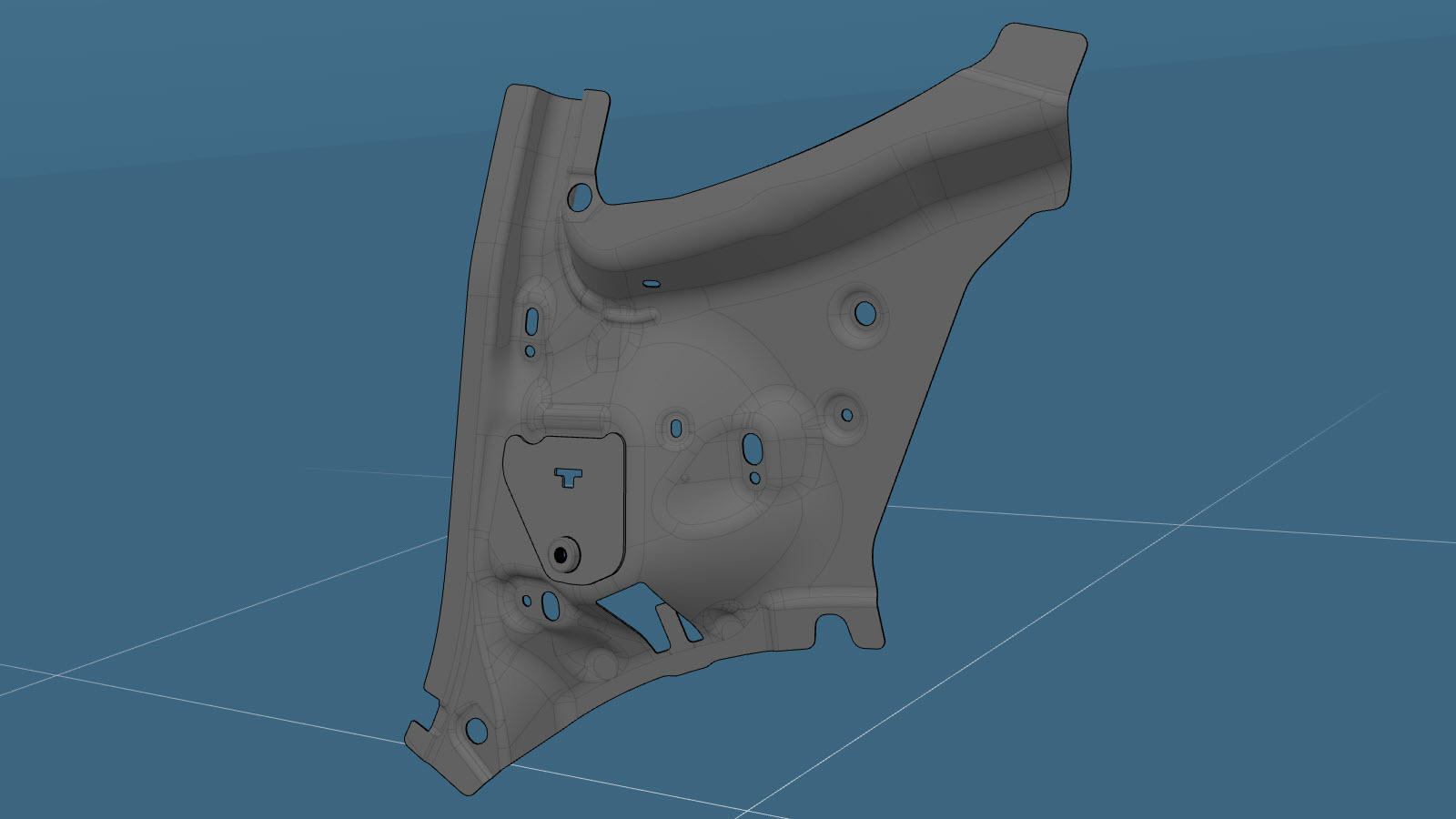

| 1 | ASSEMBLY - REAR QUARTER INNER (Rear Quarter Inner) |
|
| 9 |
When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.
Repair Procedure
-
Remove the necessary portion
of the Body Side Outer to expose the underlying component being replaced.
-
Remove the Rear Quarter Outer.
-

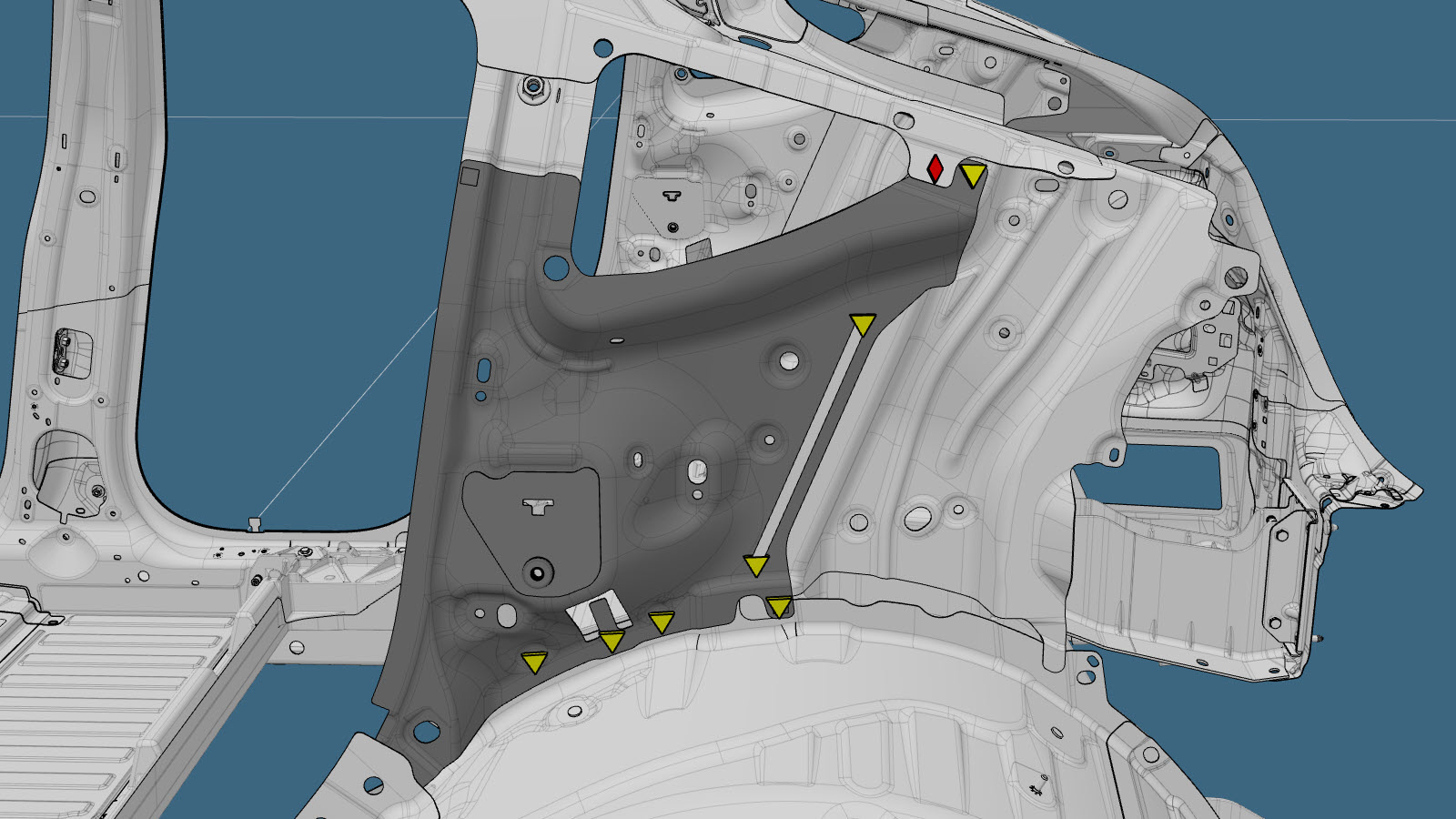

Remove the original component.
-
or
Factory Spot Welds
-
or
Factory SPRs
-
- Prepare for installation.
- Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
- Install the new component or components.
-
Install the Rear Quarter Outer.
-
Install the necessary portion of the
Body Side Outer that was
removed to expose the component being replaced.
- Perform any necessary post-repair operations.
