• Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
• Properly mount the vehicle on a frame bench when performing this procedure.

Quantity	Description	Image / Notes

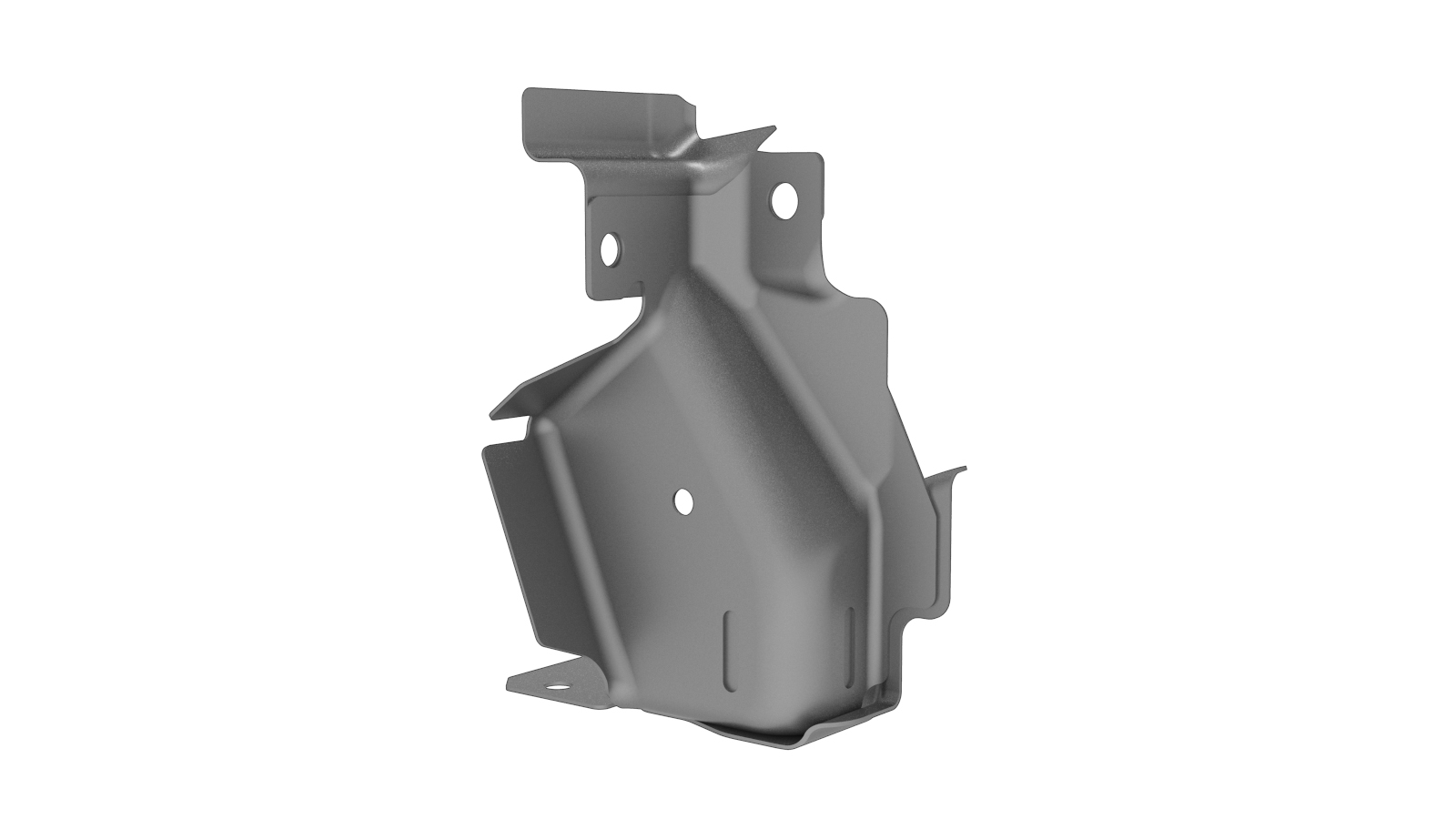

1	ASSEMBLY - FRONT SUBFRAME MOUNT REAR (Front Subframe Rear Mount)
10	High Strength Structural Rivet, 6.5 mm

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.
