Front Frame Rail Inner (Small Section)

Correction code: 10101027402 10101027302 NOTE: Unless explicitly stated in the procedure, the above correction code includes all Collision Repair work required to perform this procedure, including the linked Collision Repair procedures. Do not stack Collision Repair correction codes unless explicitly told to do so. Add any associated mechanical procedures needed to perform this procedure.

Parts List

Quantity Description Image / Notes

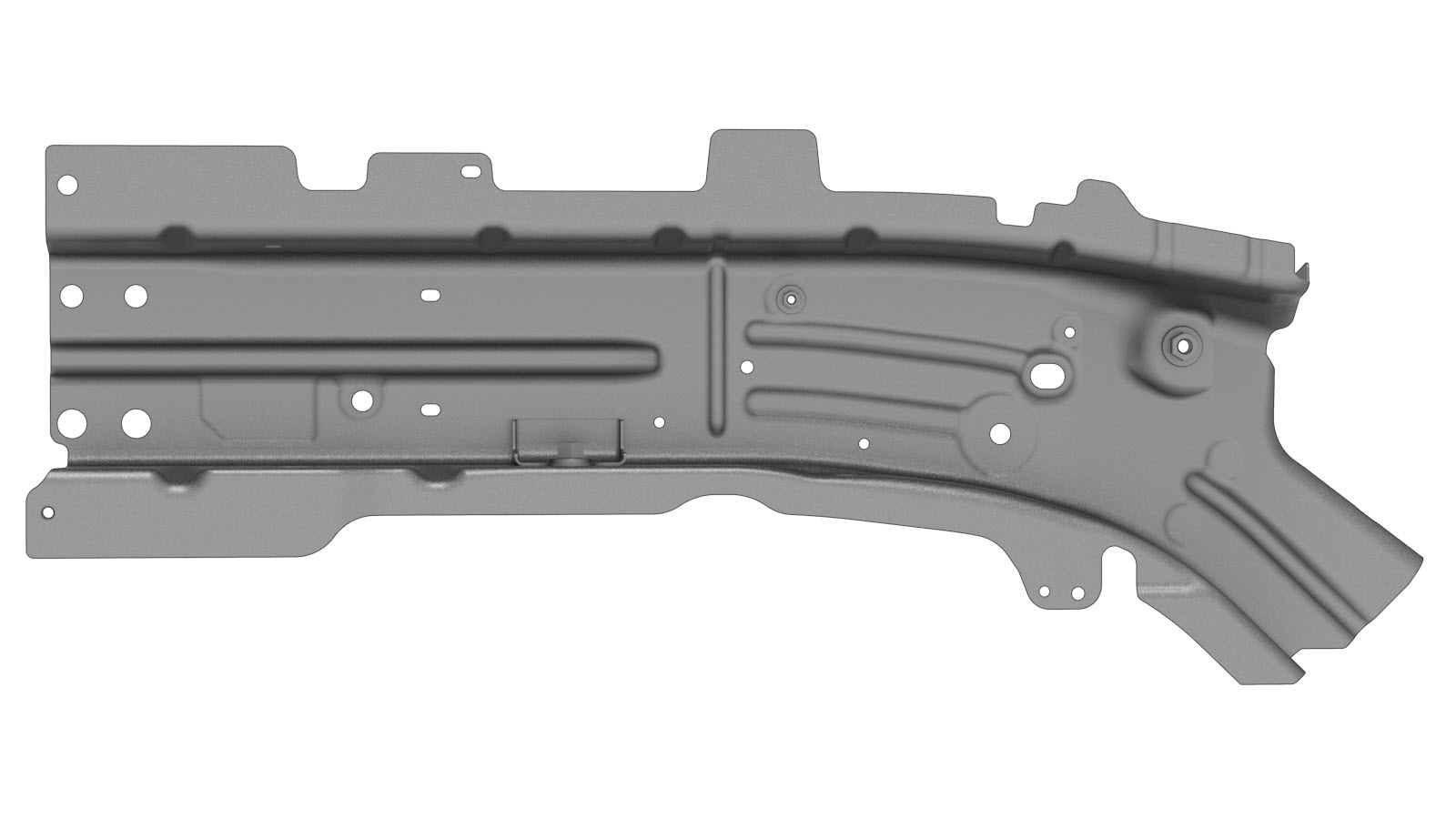

2 ASSEMBLY - FRONT RAIL INNER WITH BRACKET (Front Frame Rail Inner)

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

  1. Remove the Front Trunk Bracket.
  2. Remove the Front Frame Rail Inner Reinforcement (Section).

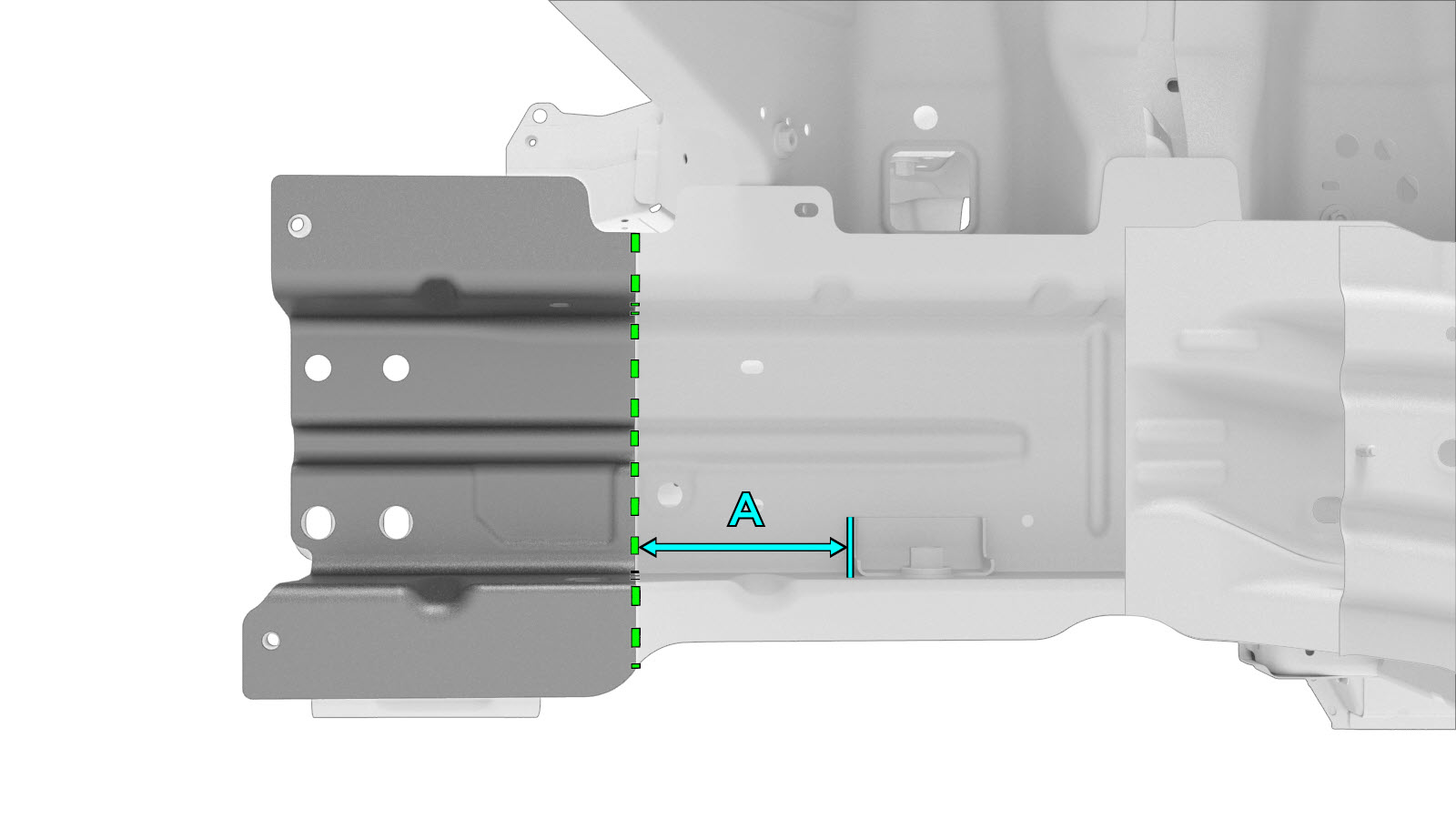

  3. Cut the original component at the indicated locations.
    • Reference Line/Point
    • Cut Line A = 113 mm

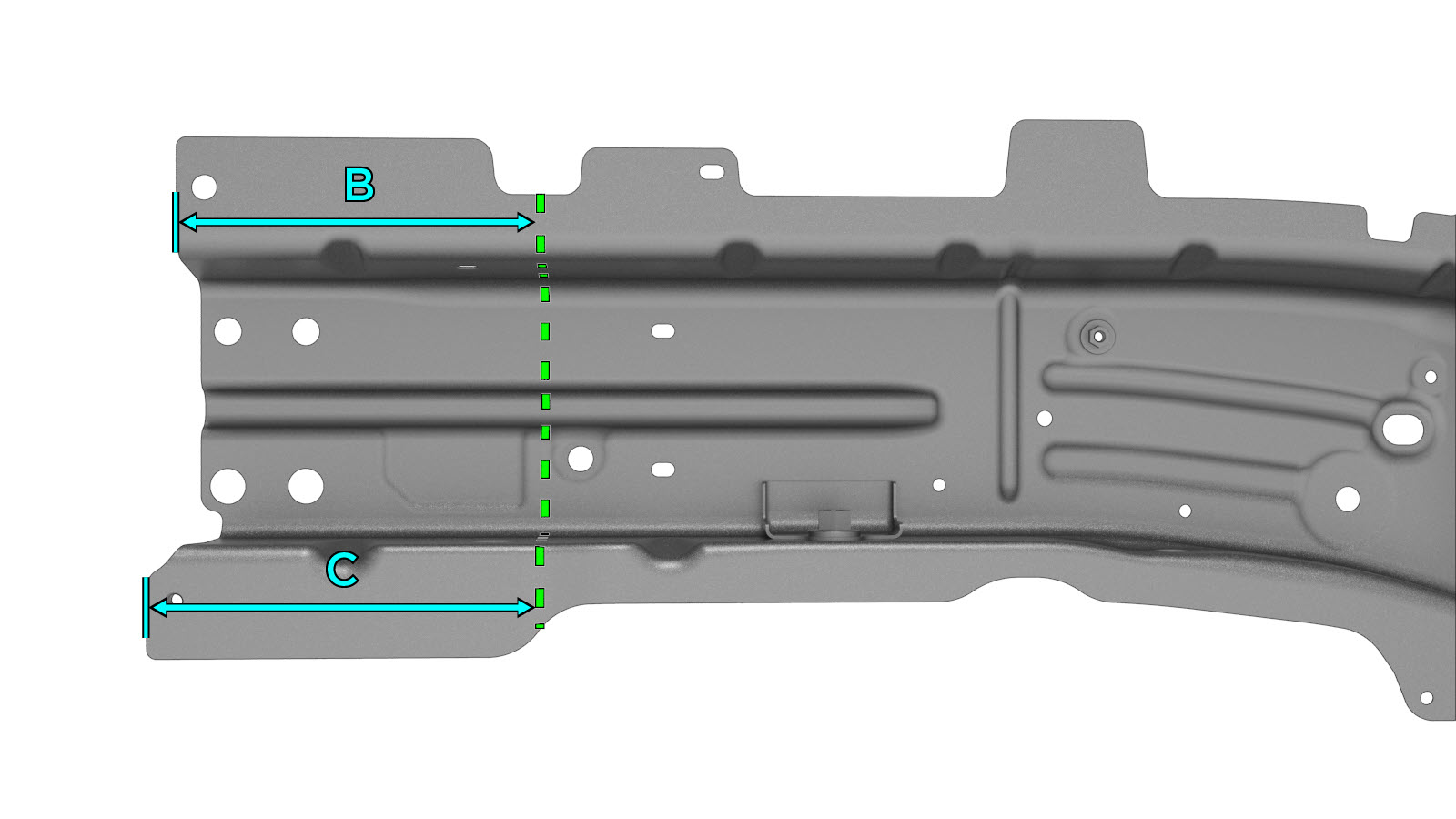

  4. Cut the new Front Frame Rail Inner as indicated below to make the new component.
    • Reference Line/Point
    • Cut Line B = 177 mm C = 189 mm
  5. Cut the new Front Frame Rail Inner as indicated below to create a reinforcement plate.
    • Reference Line/Point
    • Cut Line D = 137 mm E = 217 mm
    Informational PurposesAn informational icon, calling your attention
    Note
    Trim the lower portion of the reinforcement plate at an angle to clear the Front Frame Rail Inner Reinforcement when it is installed after this procedure.

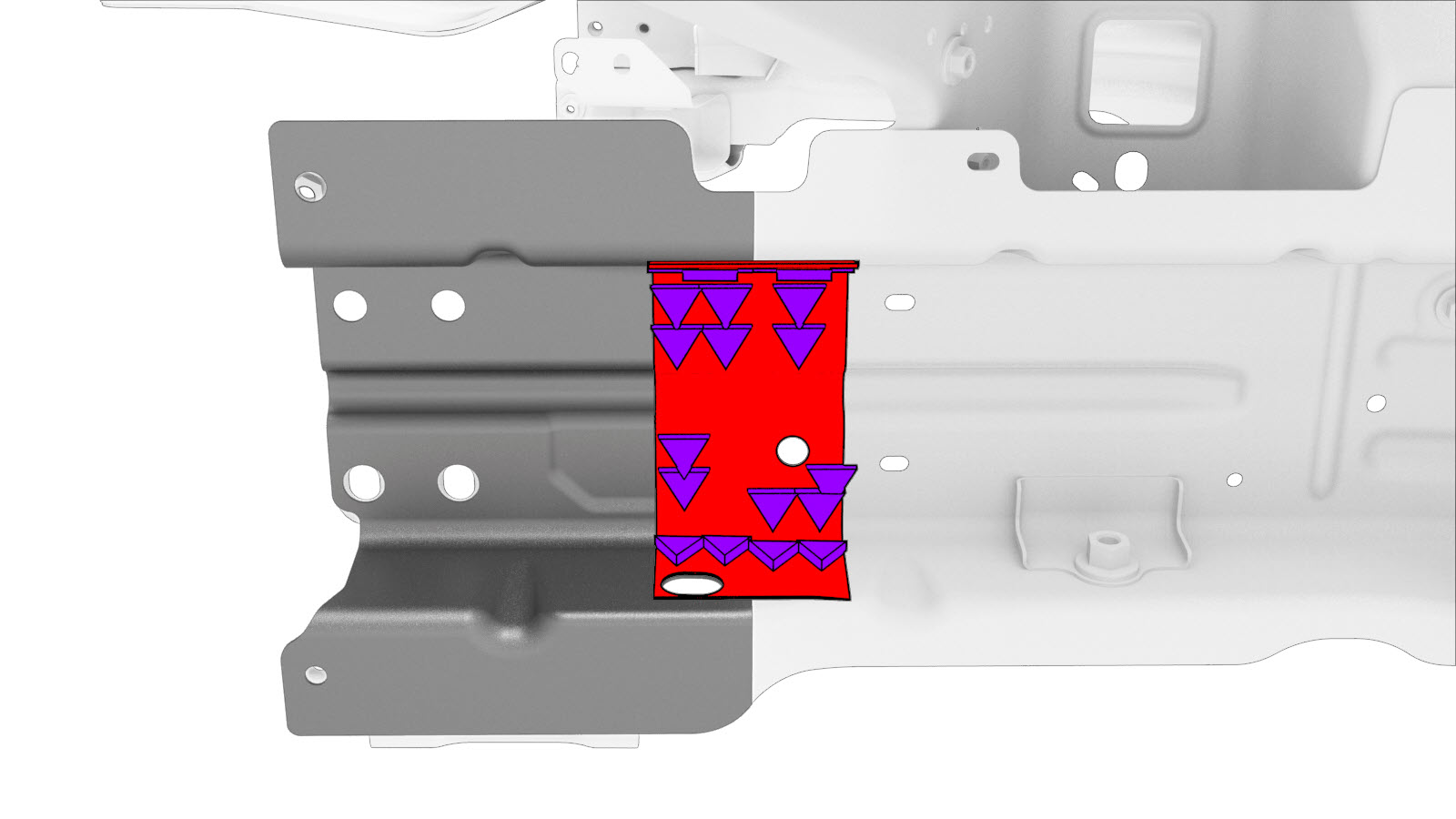

  6. Prepare for installation.
    • or Installation Spot Welds

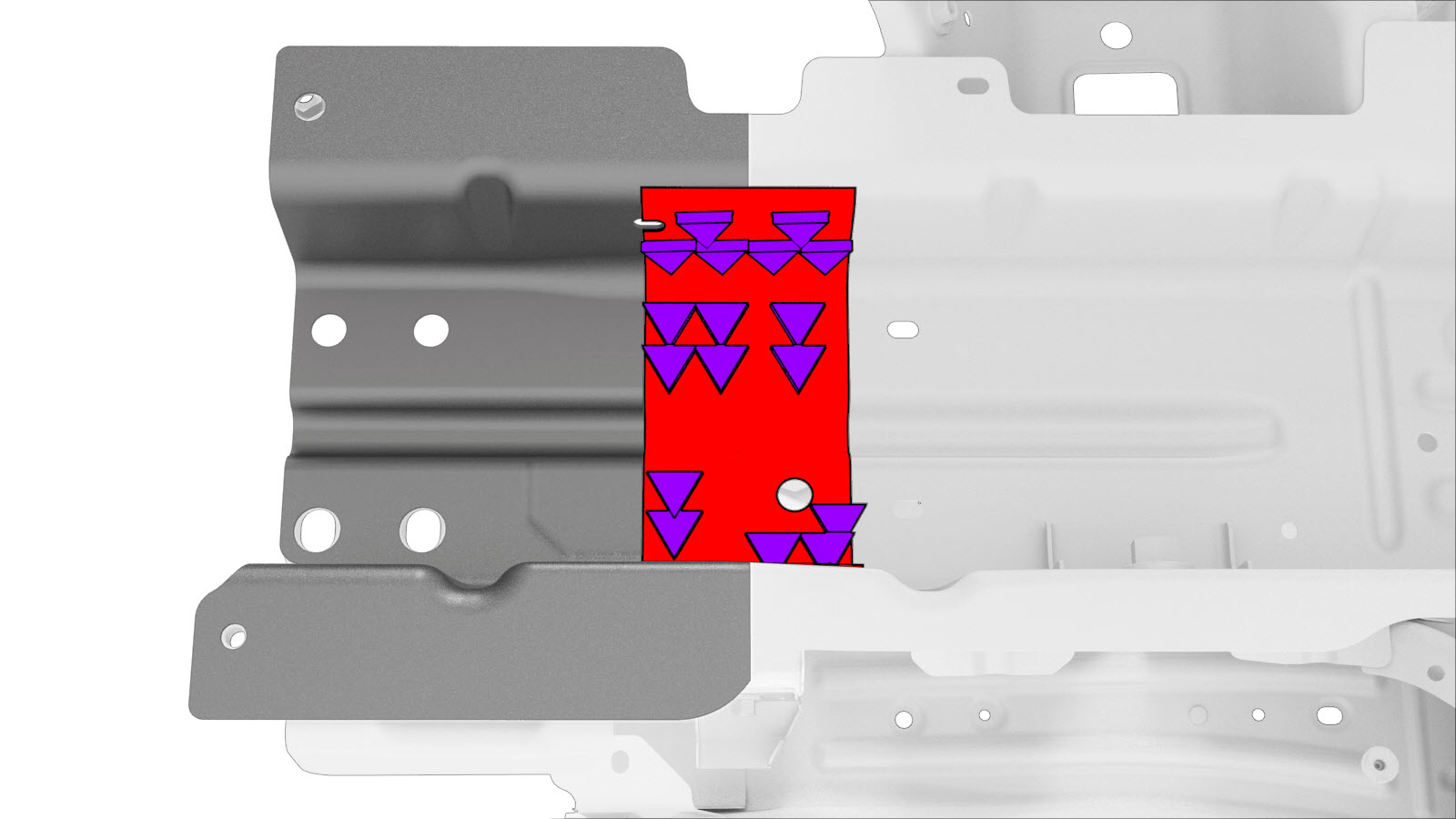

  7. Prepare for installation.
    • or Installation Spot Welds
  8. Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
  9. Install the new component or components.
  10. Perform resistance spot welding.
    or Installation Spot Welds
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    Failure to follow all welding safety precautions, including the use of personal protective equipment, could result in serious injury or property damage. Only technicians who have completed Tesla’s approved welding training are authorized to weld structural components on Tesla vehicles.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Do not weld on a Tesla vehicle before performing the Vehicle Electrical Isolation Procedure (refer to the vehicle-specific Service Manual for more information on the Vehicle Electrical Isolation Procedure). Welding on a Tesla vehicle with an energized high or low voltage system might damage vehicle components.
  11. Install the Front Subframe Mount (Inner).
  12. Install the Front Frame Rail Inner Reinforcement (Section).
  13. Install the Front Trunk Bracket.
  14. Perform any necessary post-repair operations.
