Rear Rail End Plate
Correction code:
10102100402
10102100502
NOTE:
Unless explicitly stated in the procedure, the above
correction code includes all Collision Repair work required
to perform this procedure, including the linked Collision
Repair procedures. Do not stack Collision Repair
correction codes unless explicitly told to do
so. Add any associated mechanical procedures
needed to perform this procedure.
Repair Information
- Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
- Properly mount the vehicle on a frame bench when performing this procedure.
Parts List
| Quantity | Description | Image / Notes |
|---|---|---|

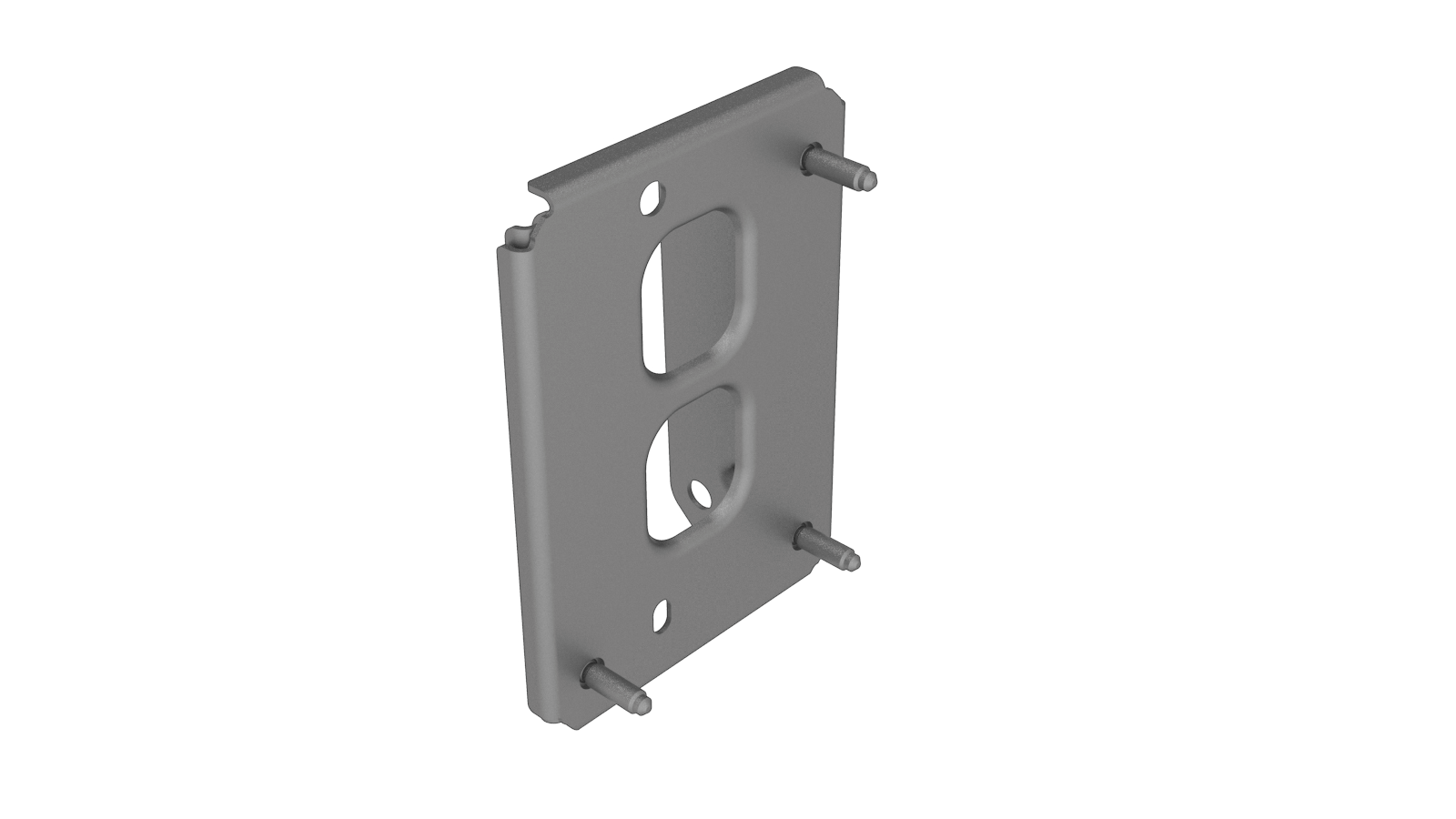

| 1 | ASSEMBLY - REAR PLATE - ONE PIECE REAR UNDERBODY (Rear Rail End Plate) |
|
| 4 |
|
Tesla part number 1523544-00-A. |
When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.
Repair Procedure
-
Remove the Rear Panel Side Assembly.
-
Remove the original component.
-
or
Bolts
-
-
Remove the original component.
-
or Bolts
-
-

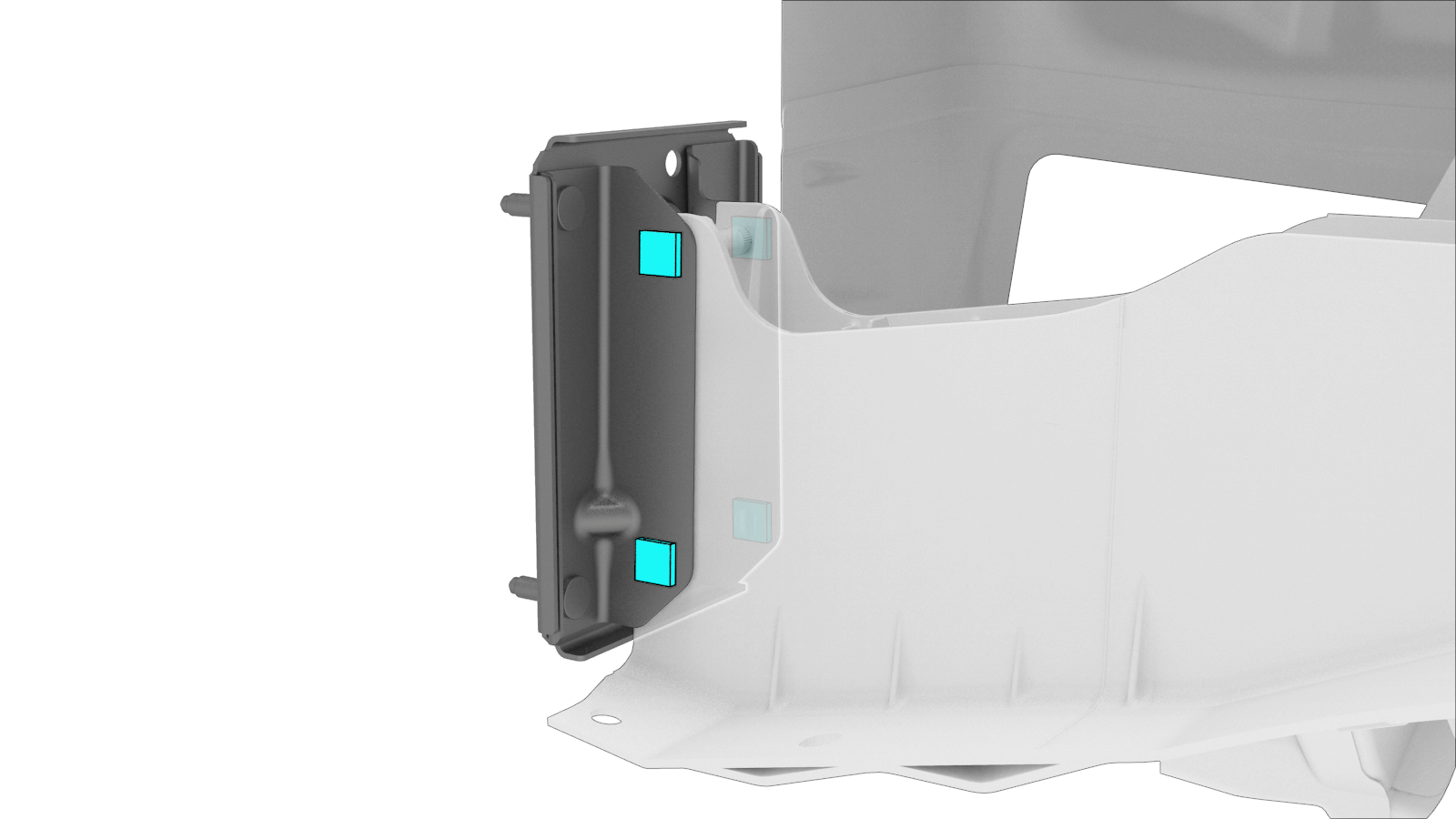

Prepare for installation.
-
or Bolts
-
-
Prepare for installation.
-
or Bolts
-

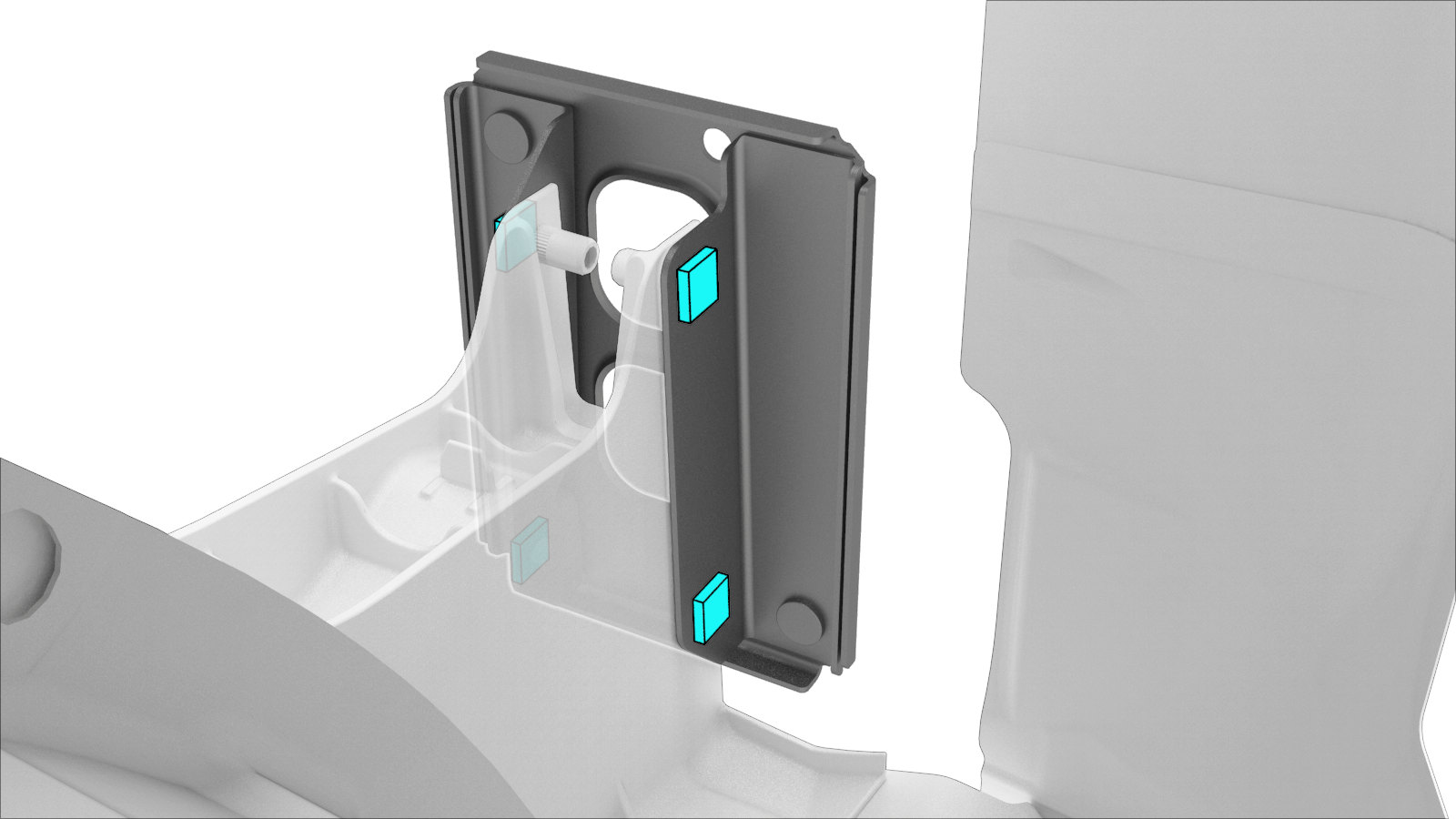

- Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
-
Install the new component or components.
Torque the bolts to 35 Nm.
-
Install the Rear Panel Side Assembly.
- Perform any necessary post-repair operations.
