Door Ring Inner with Header Reinforcement

Repair Information

  1. Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
  2. Properly mount the vehicle on a frame bench when performing this procedure.
  3. Any individual section or any combination of sections of the Door Ring Inner can be replaced so long as the referenced cut lines from the Door Ring Inner Section Descriptions portion of this document are used.

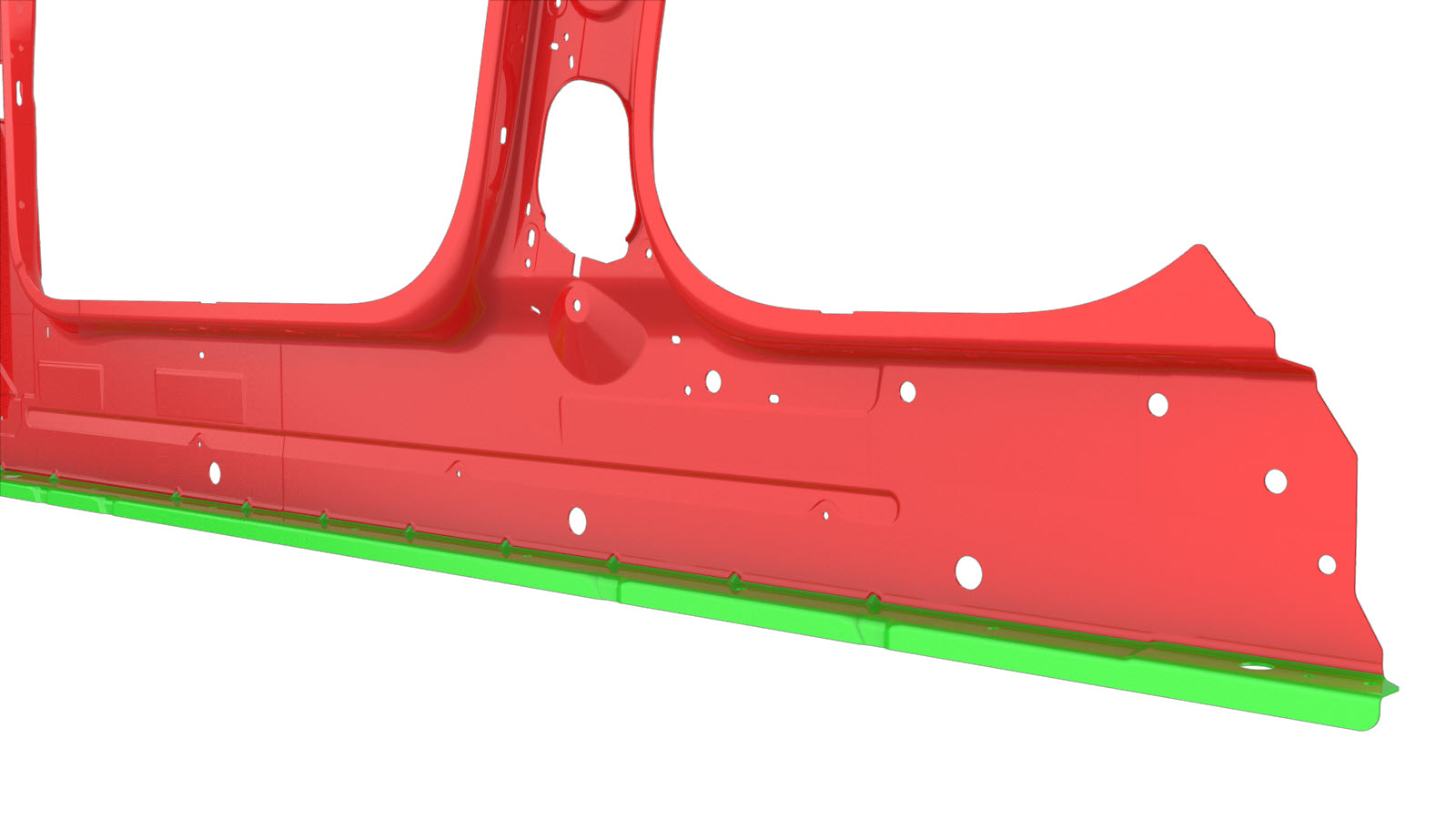

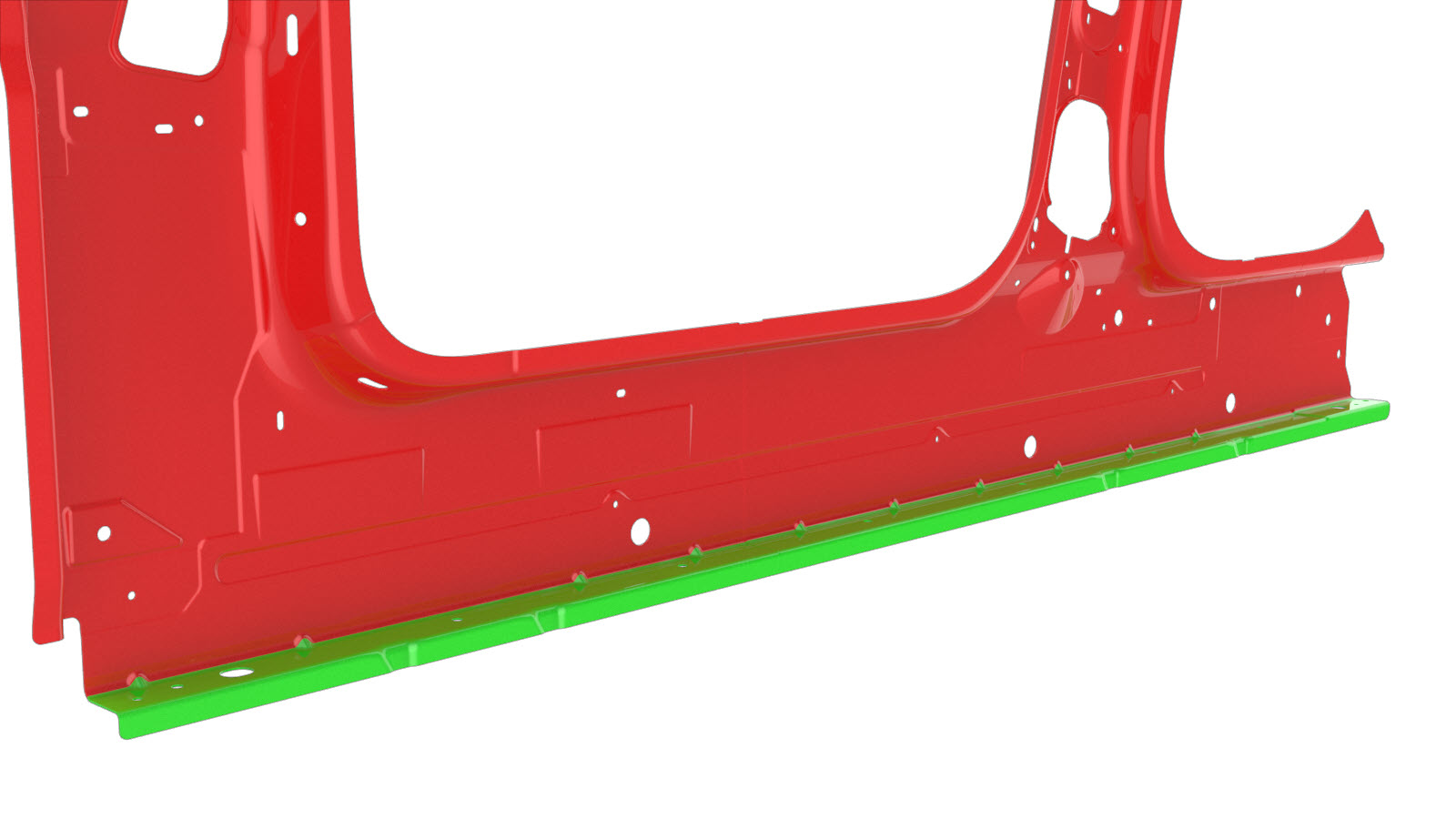

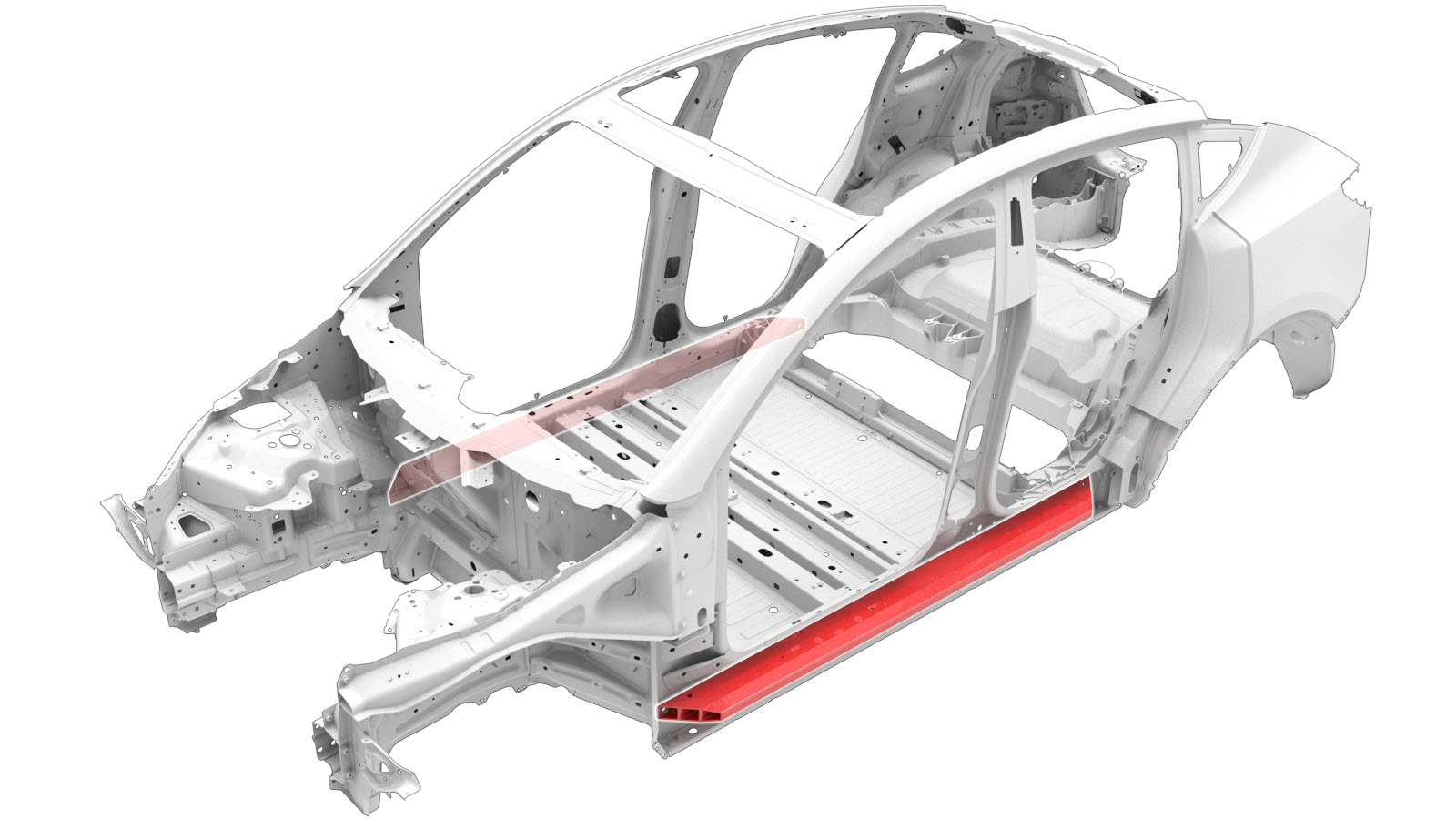

  4. In the area shown in green below, bent sections may be repaired using cold methods only.

    If the component is damaged in the area shown in red, the component should be replaced. If necessary, contact Tesla Collision Repair for assistance.

Parts List

Quantity Description Image / Notes
1 ASSEMBLY- DOOR RING INNER (Door Ring Inner)

27 Structural Bulb Rivet, 6.5 mm
21 High Strength Structural Rivet, 6.5 mm
1 or 11 Rivet, 4.8 mm
9 Flow Form Rivet S28
11 Flow Form Rivet S48
4 Bolt , M8-1.25x37,[109],G1009,CM Tesla part number 1629418-00-A.
Informational PurposesAn informational icon, calling your attention
Note
Rivet quantities listed above are for the complete repair. Refer to the Door Ring Inner Section Descriptions for fasteners required for section repairs.

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Door Ring Inner Section Descriptions

Door Ring Inner, Subassemblies, and Subassembly Sectioning

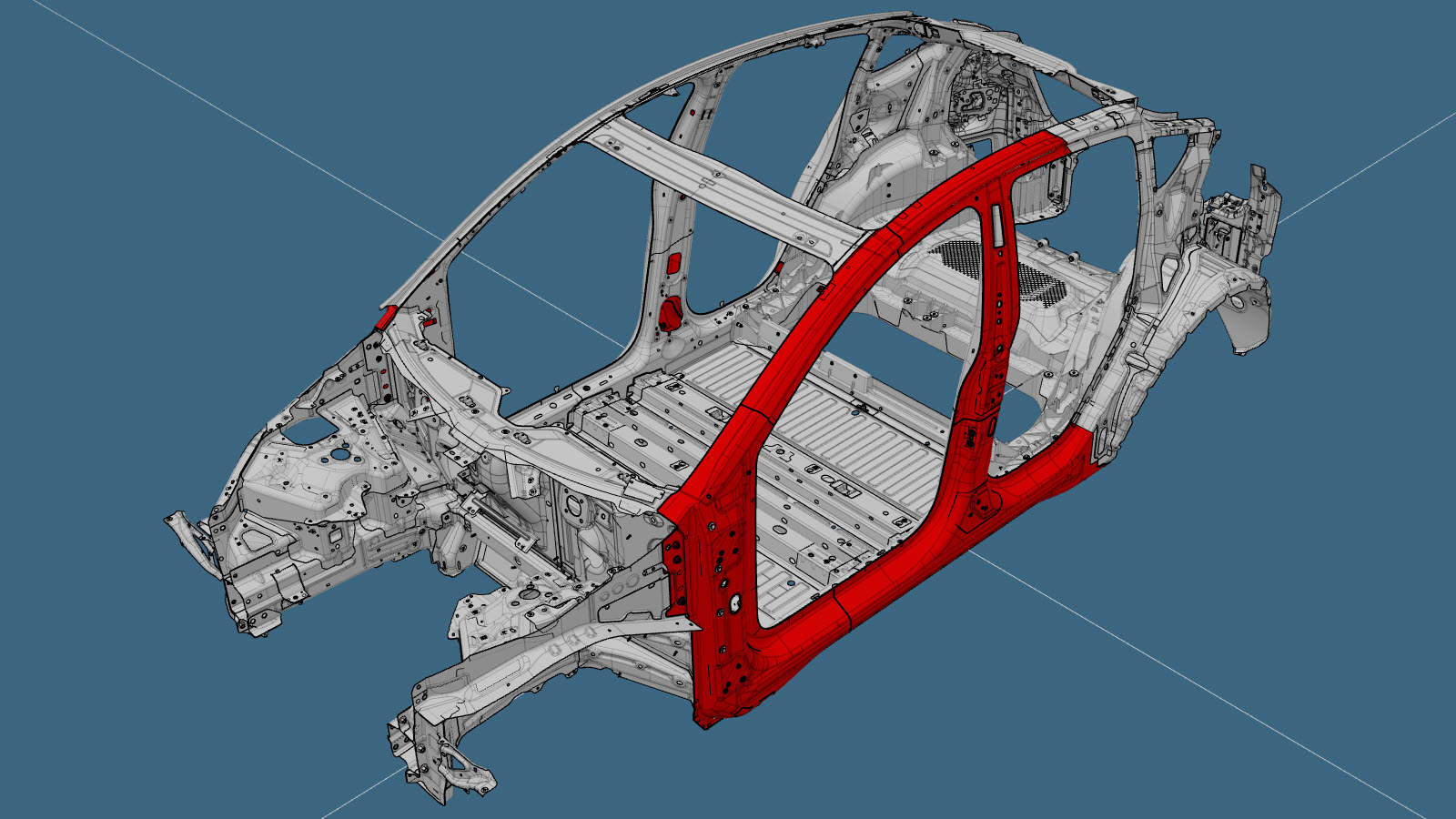

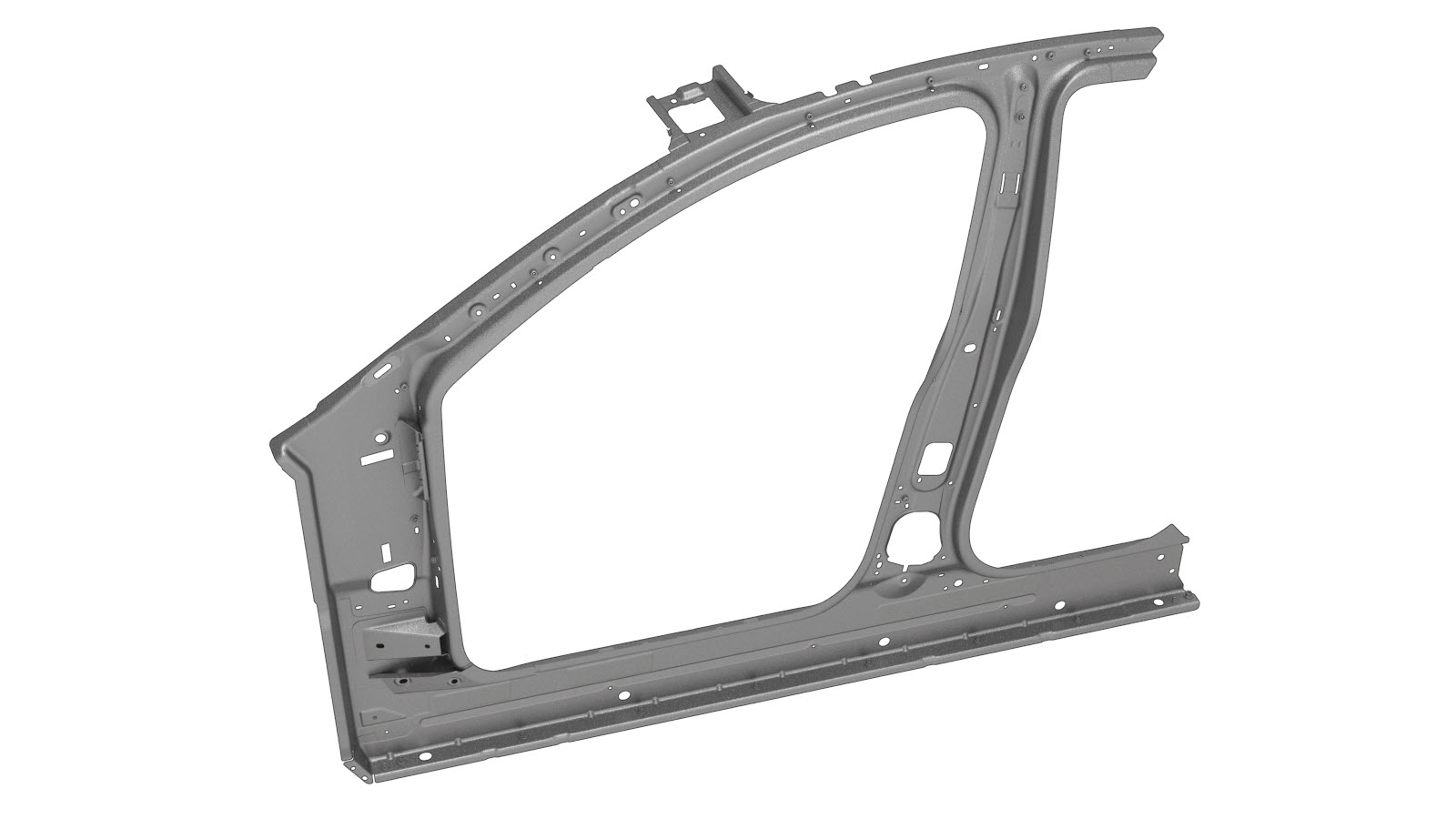

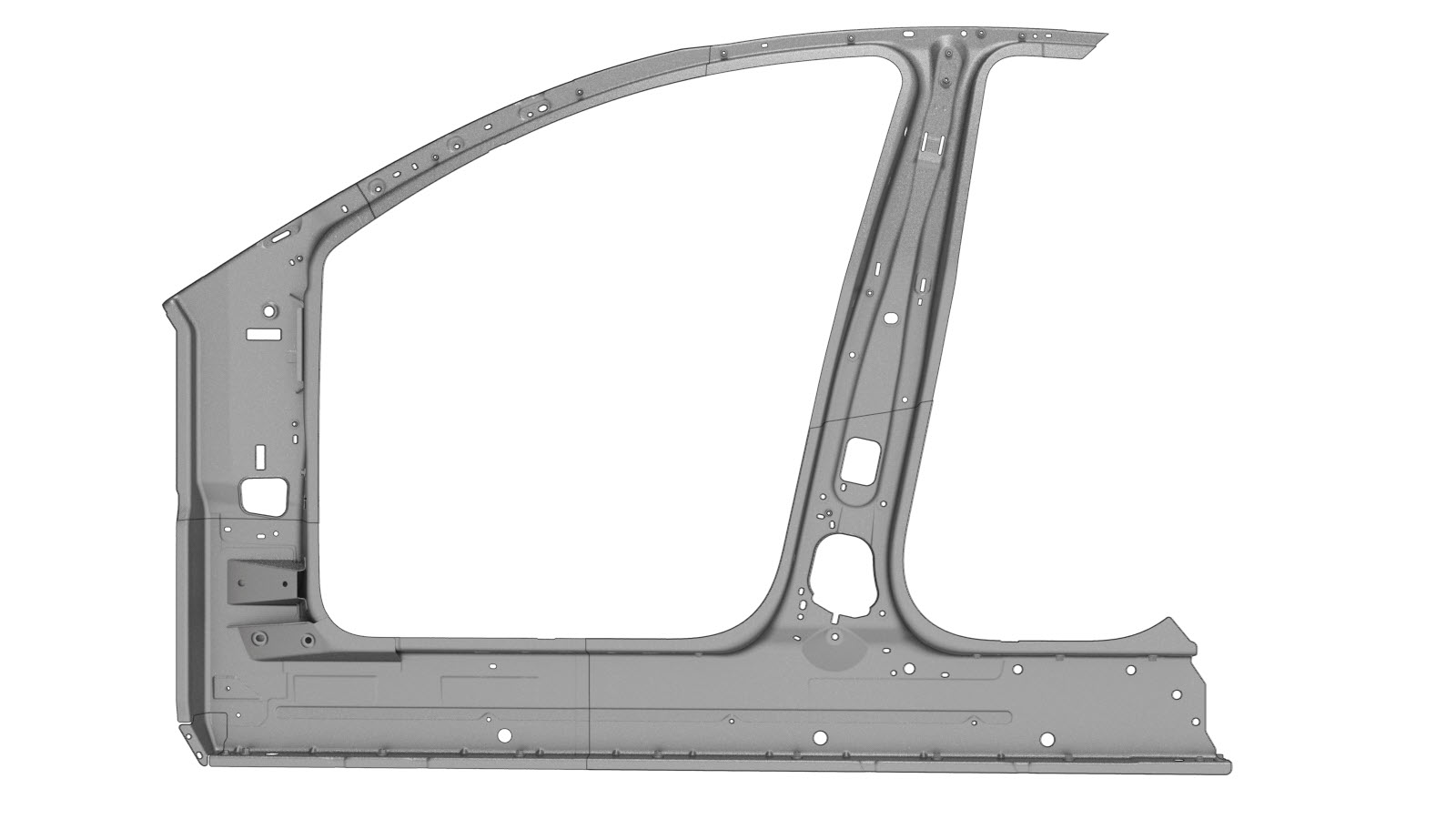

The Door Ring Inner (shown below) is a single component, and can be replaced as a single repair:

Alternatively, instead of replacing the complete Door Ring Inner, areas of the Door Ring Inner can be replaced using portions of the Door Ring Inner using the cut lines described in this document.

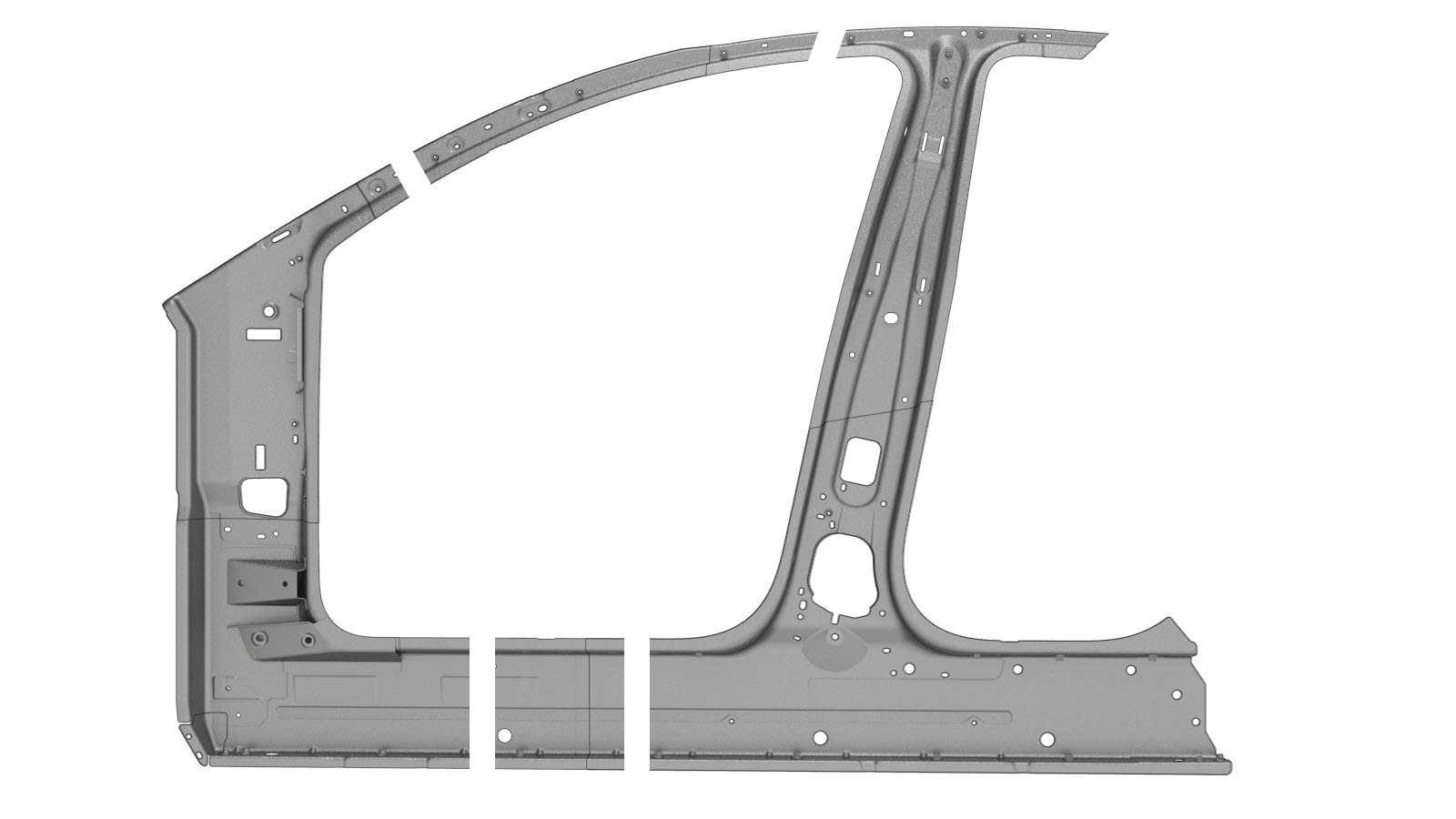

Door Ring Inner Sections



Door Ring Inner Section Descriptions Parts Required

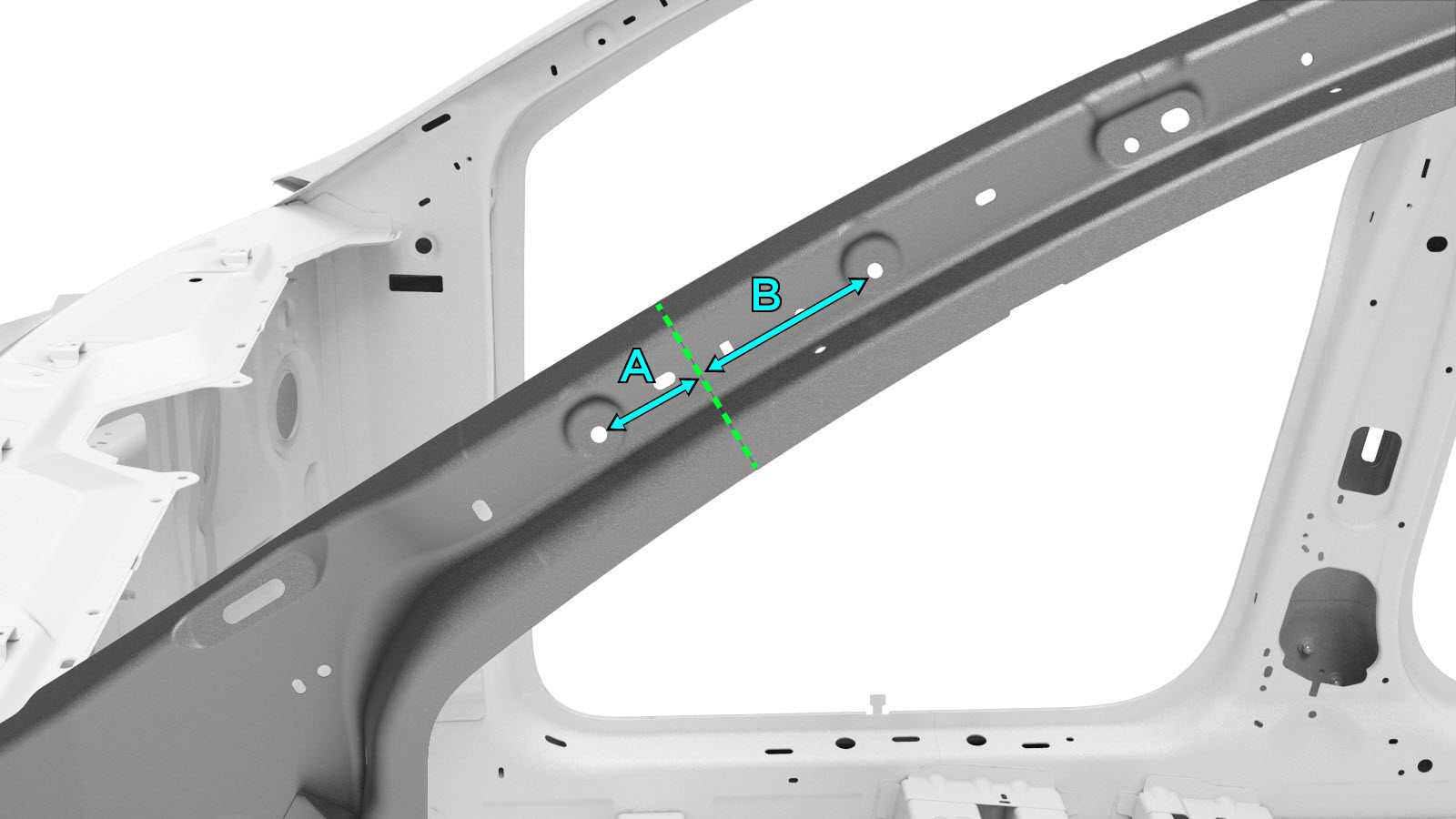

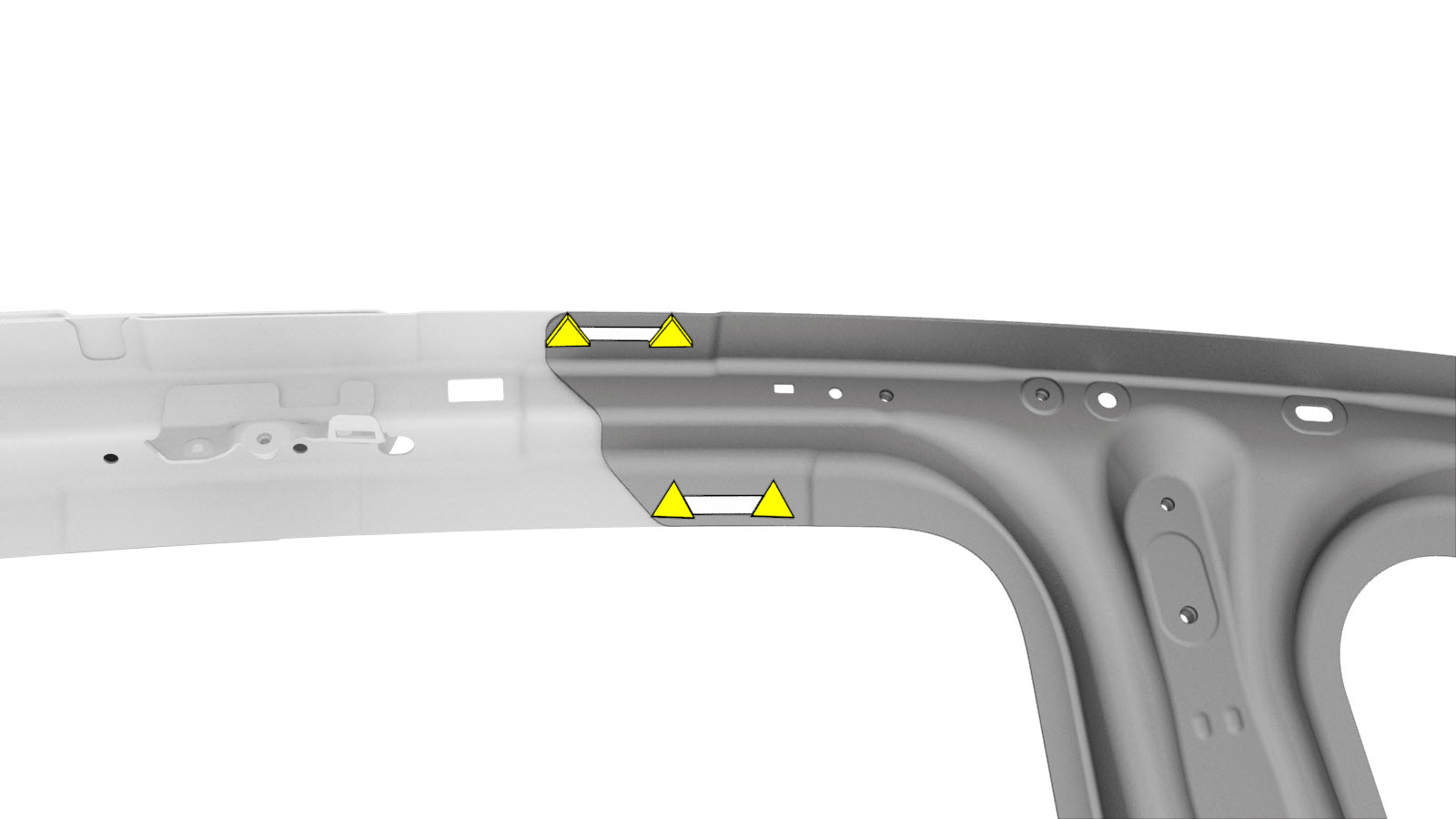

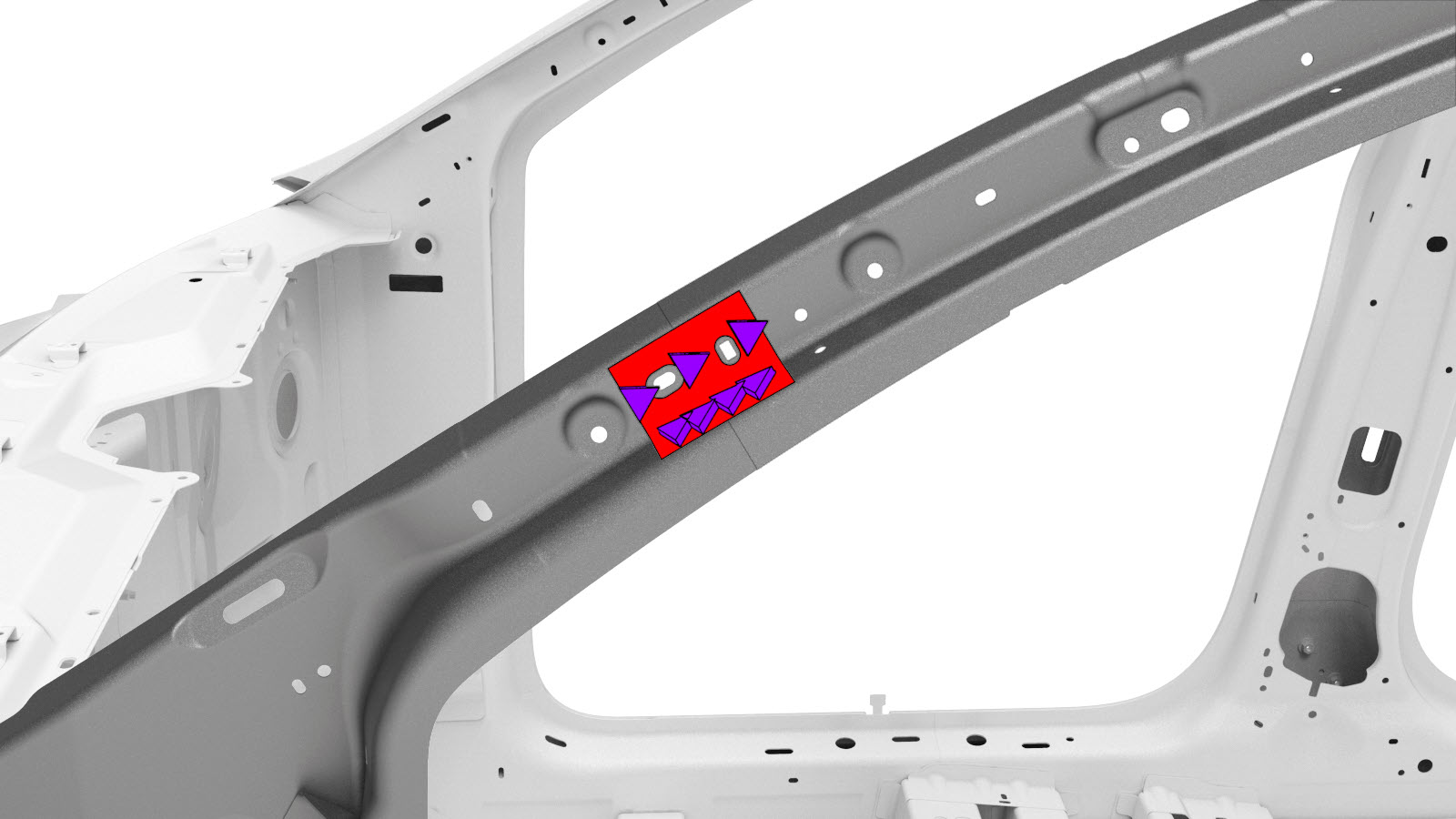

A–Pillar Section

Cut Line

  • A = 57 mm.
  • B = 102 mm.
Informational PurposesAn informational icon, calling your attention
Note
Create a reinforcement plate 80 mm wide, and install it as indicated.

or Installation Spot Welds (x7)

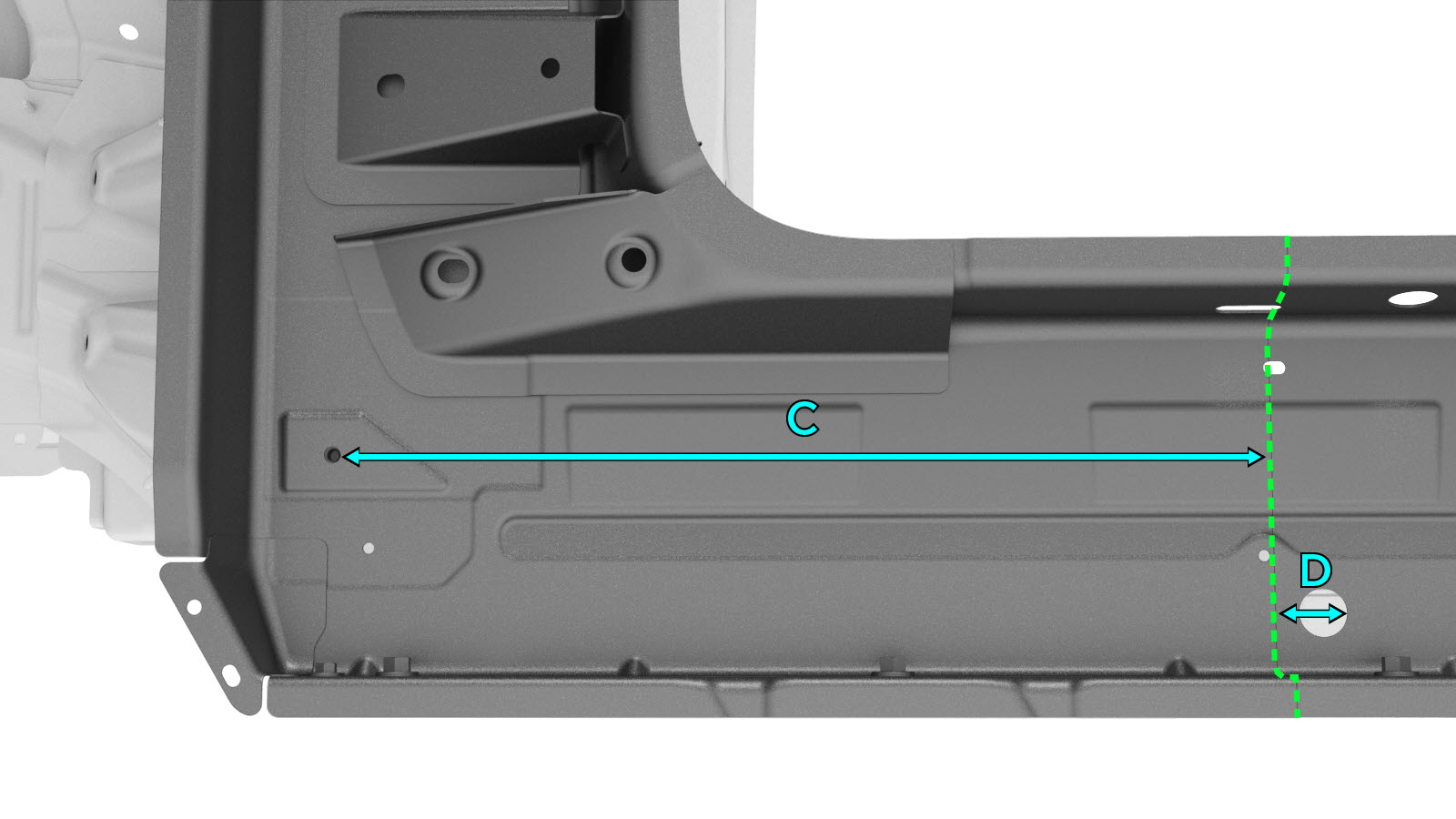

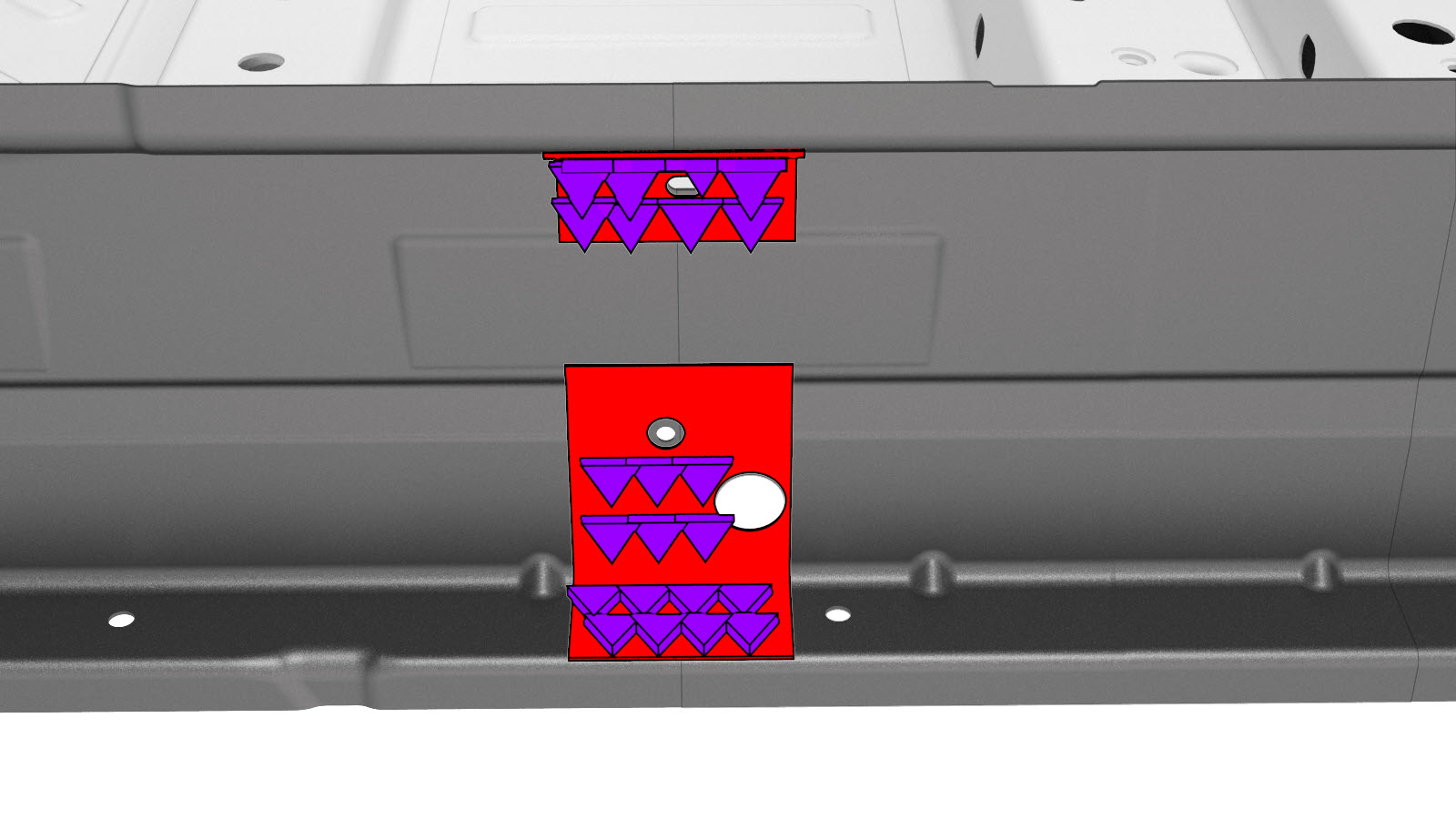

Front Sill Section

Cut Line

Reference Line/Point

  • C = 494 mm.
  • D = 37 mm.
Informational PurposesAn informational icon, calling your attention
Note

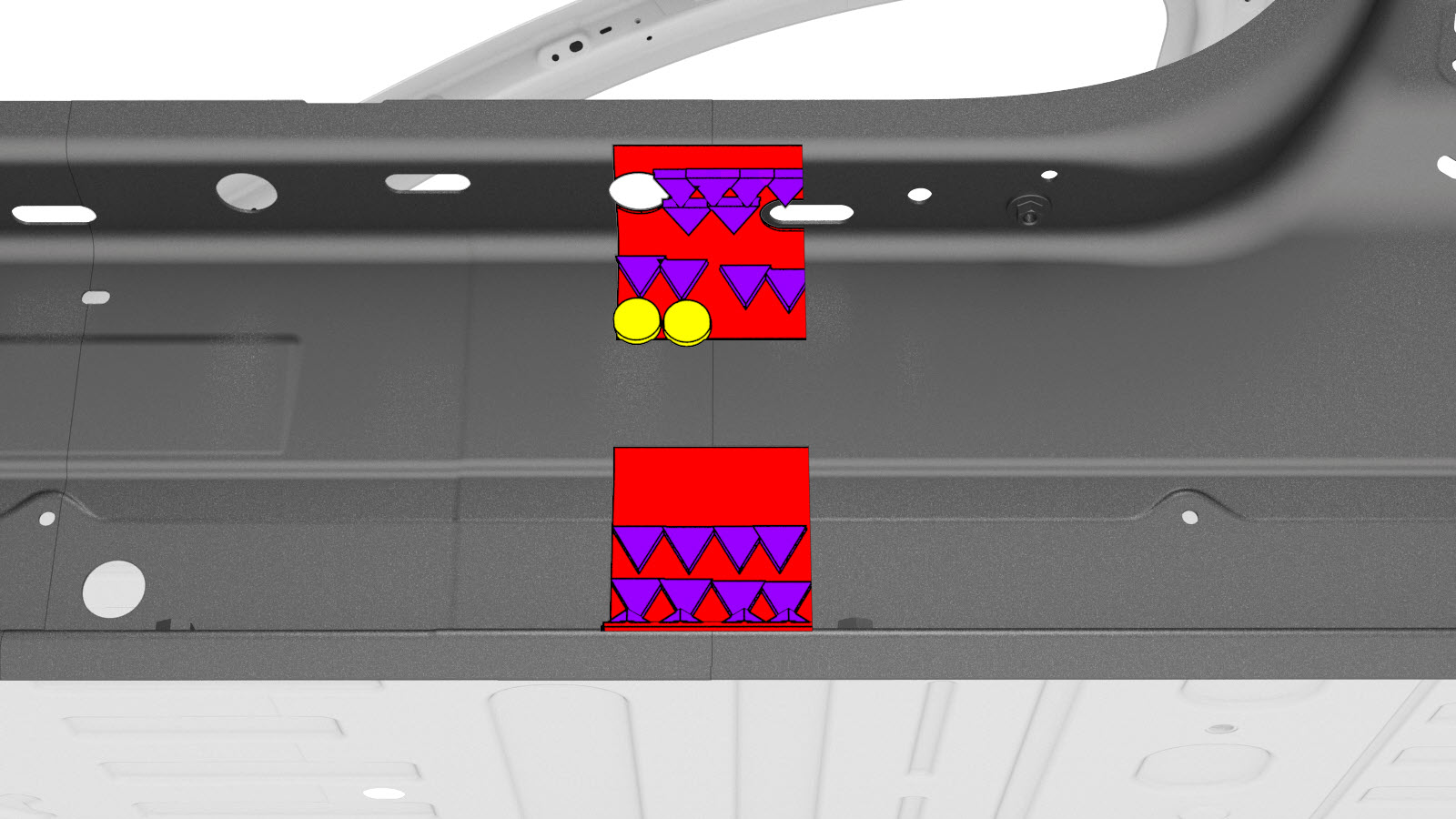

Create and install reinforcement plates and install them as indicated.
Informational PurposesAn informational icon, calling your attention
Note
Each reinforcement plate should be 80 mm wide.

or Installation Spot Welds (x25)

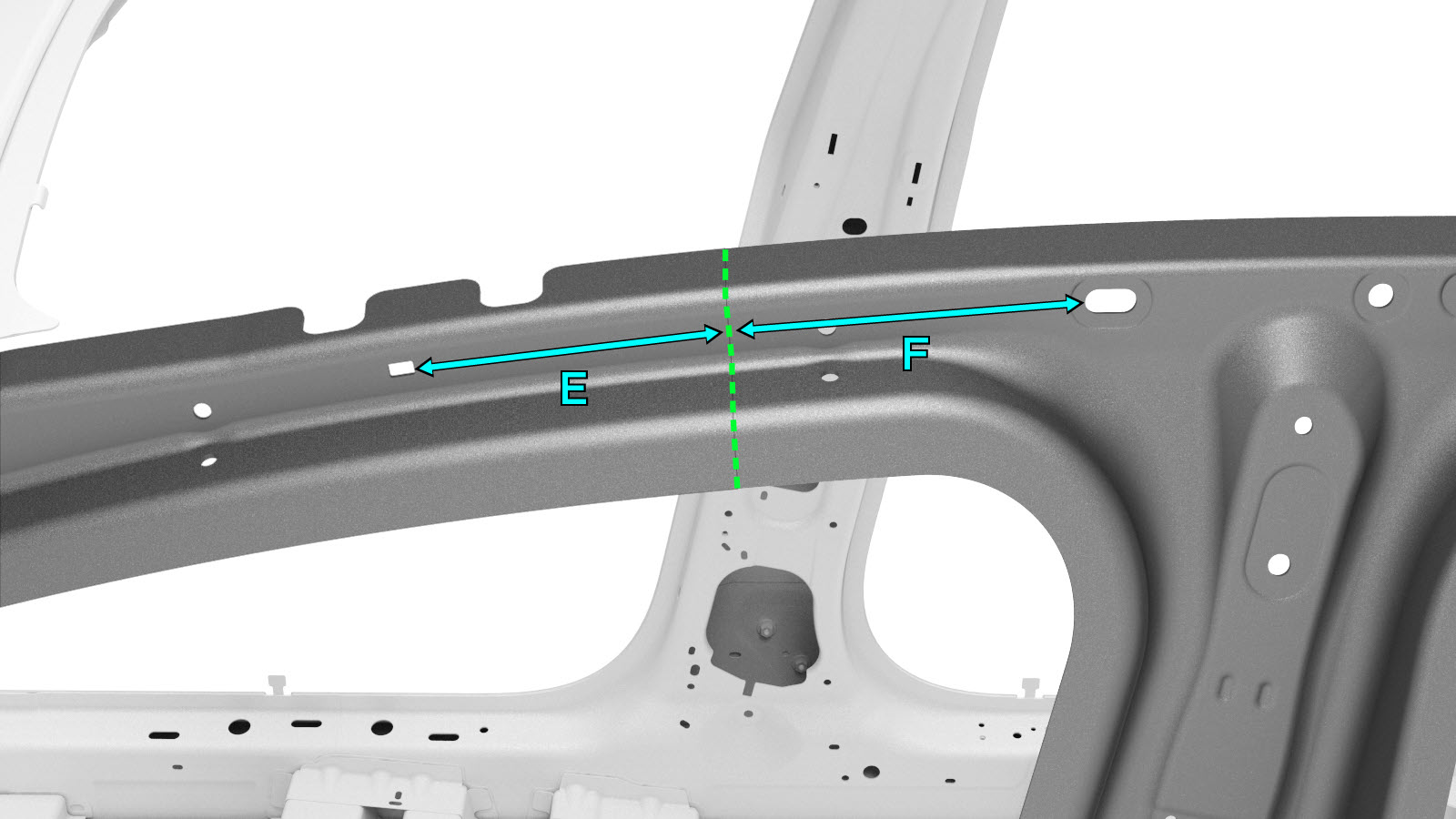

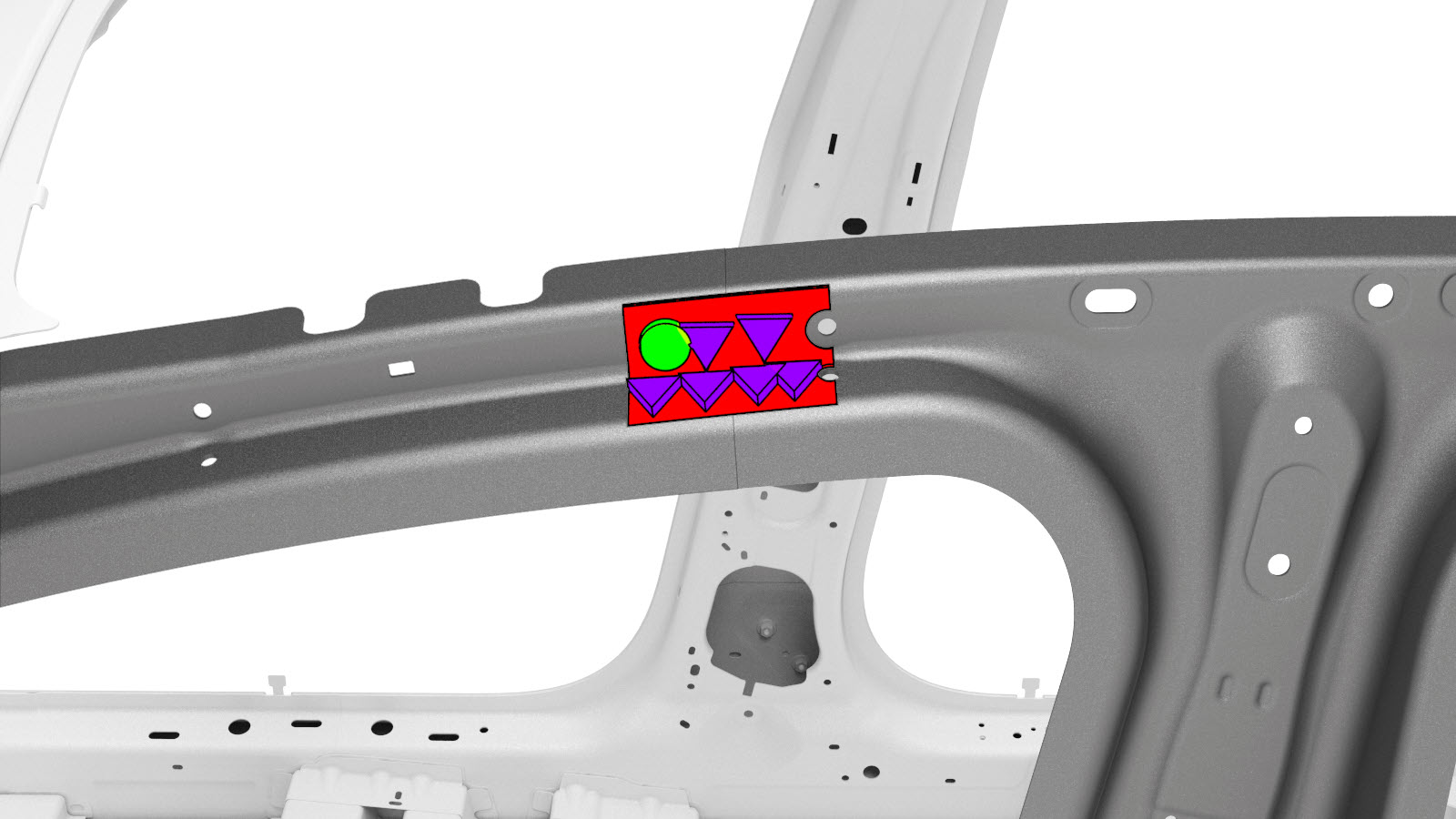

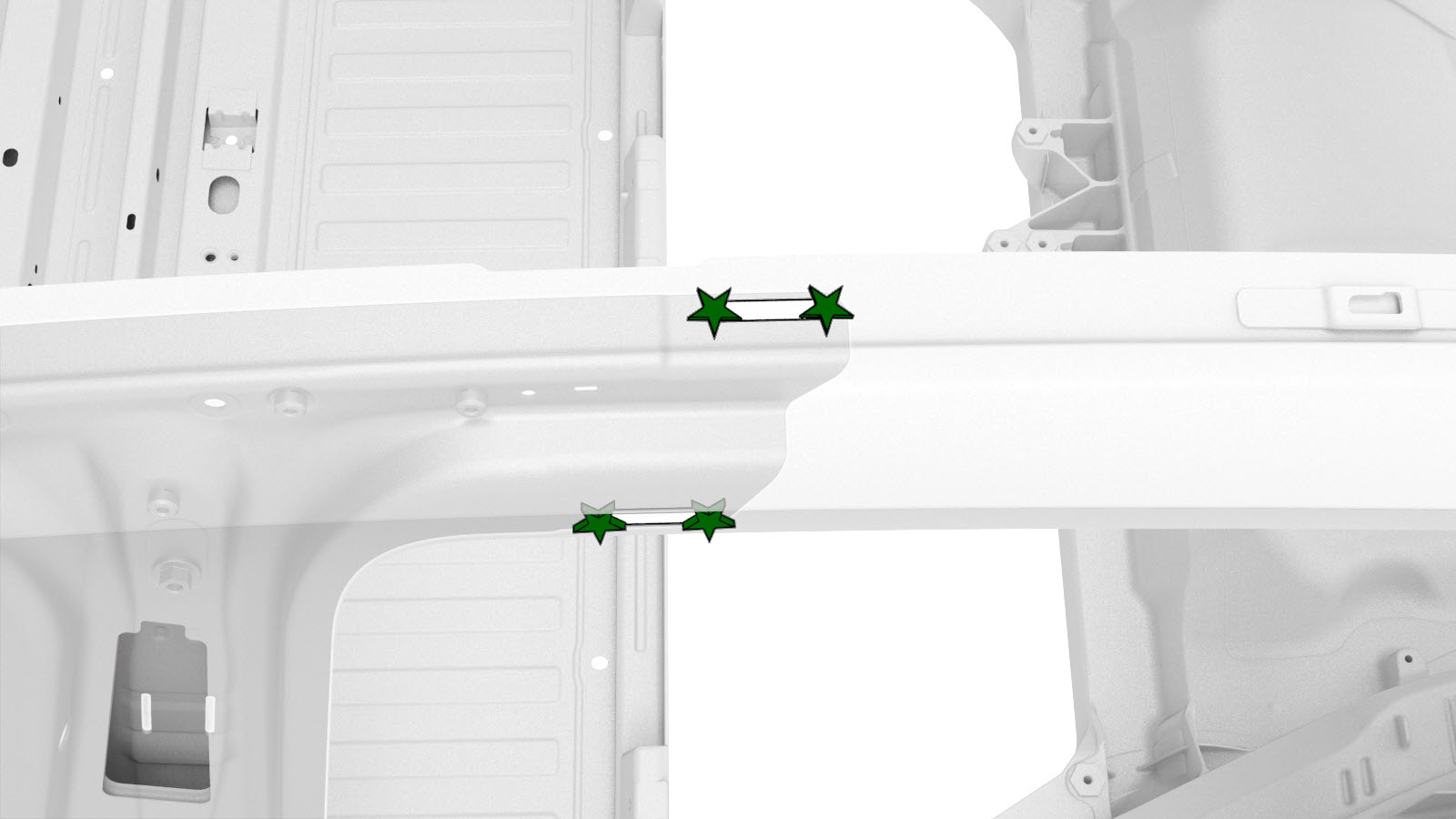

B–Pillar Section

Cut Line

Reference Line/Point

  • E = 122 mm.
  • F = 138 mm.
Informational PurposesAn informational icon, calling your attention
Note
Create a reinforcement plate 80 mm wide, and install it as indicated.

or Installation Spot Welds (x6)

or Rivets, 4.8 mm (x1)

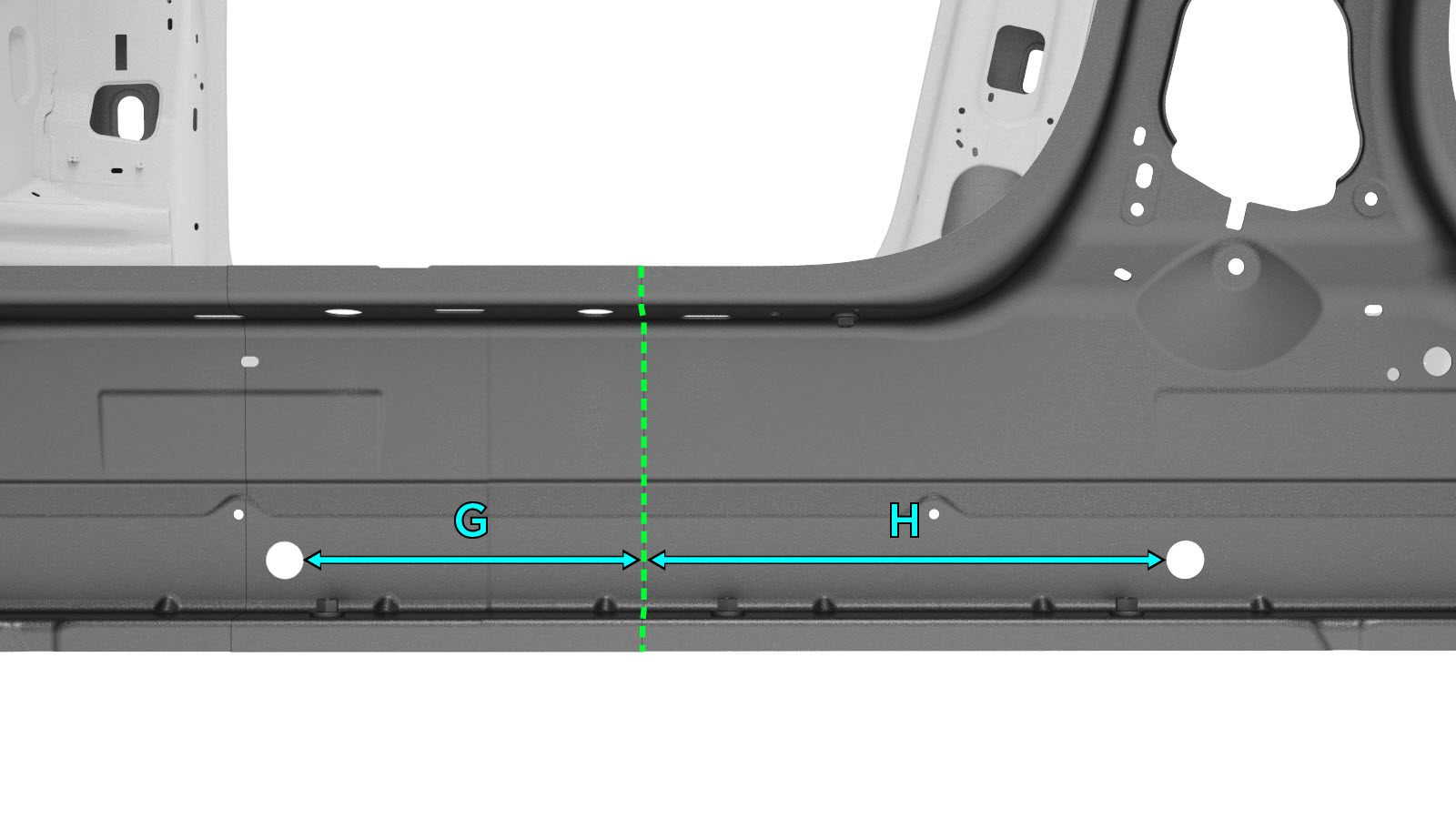

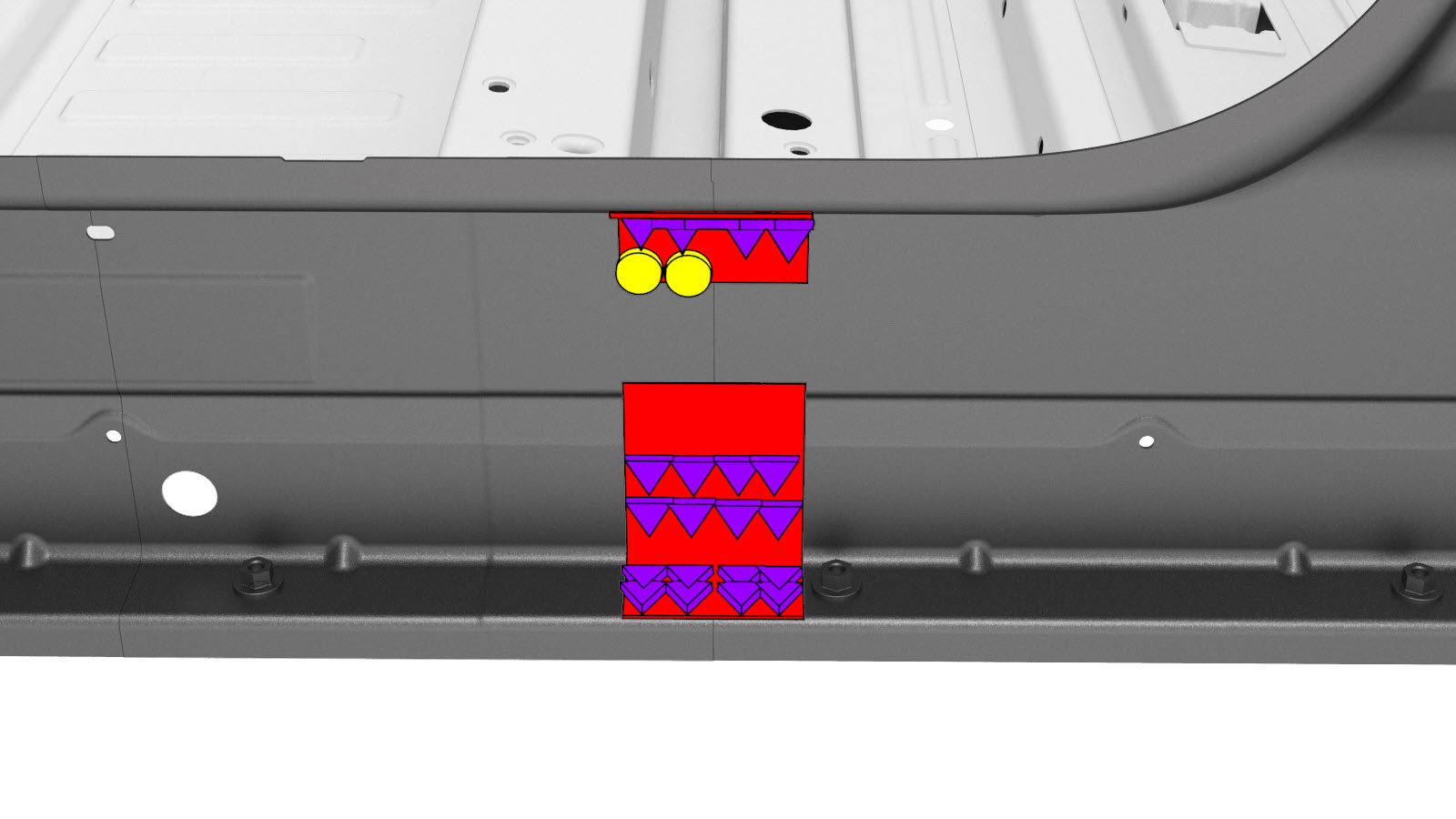

Rear Sill Section

Cut Line

Reference Line/Point

  • G = 222 mm.
  • H = 342 mm.
Informational PurposesAn informational icon, calling your attention
Note

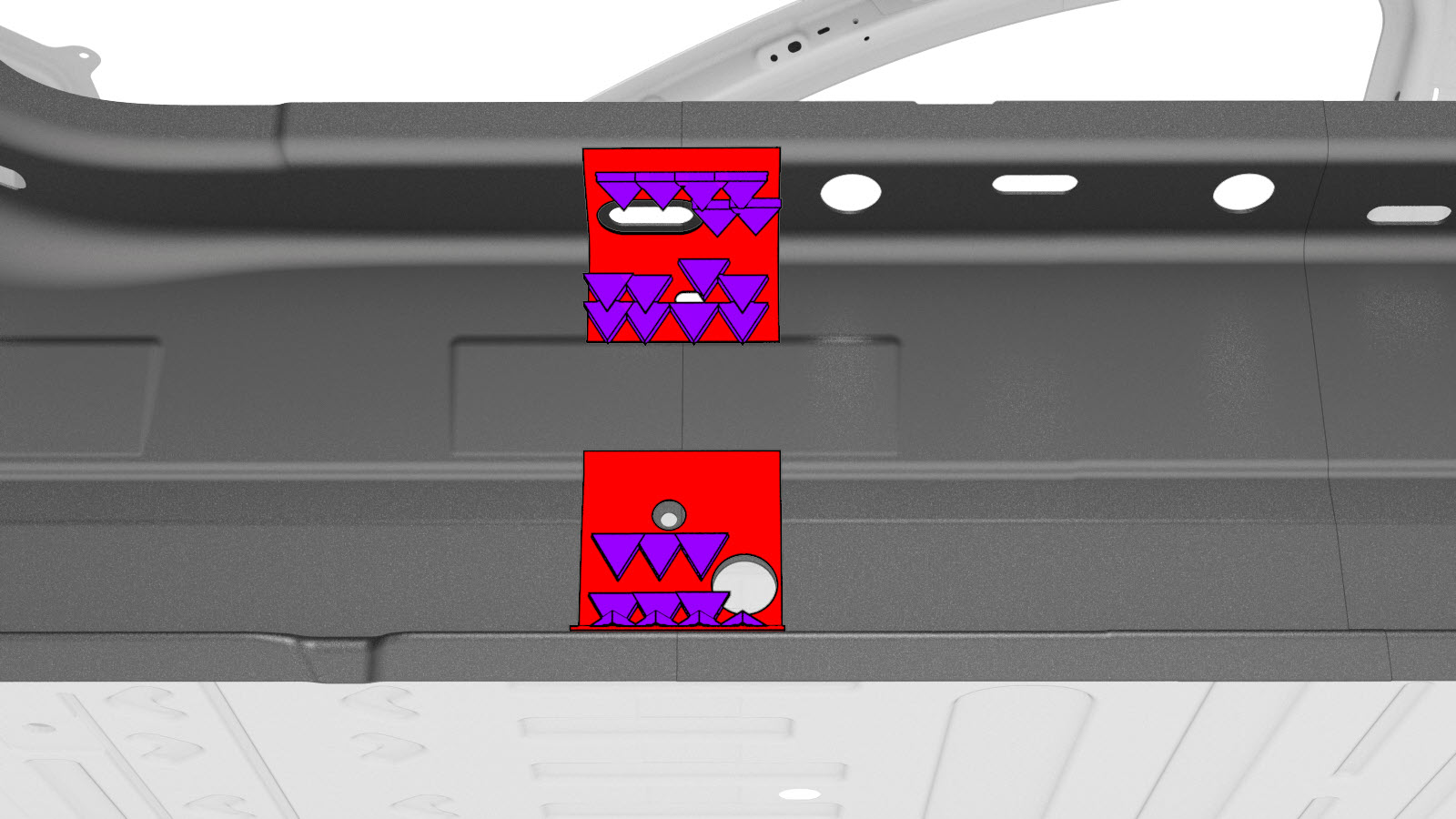

Create and install reinforcement plates and install them as indicated.
Informational PurposesAn informational icon, calling your attention
Note
Each reinforcement plate should be 80 mm wide.

or Installation Spot Welds (x25).

or Countersunk Rivets, 4.8 mm Long (x2)

Repair Procedure

  1. Remove the necessary portion of the Door Ring Outer.
  2. Remove the Side Sill Insert (Complete).
  3. If replacing a section of the Door Ring Inner: Mark the Door Ring Inner at the section cut line locations described in the Door Ring Inner Section Descriptions.

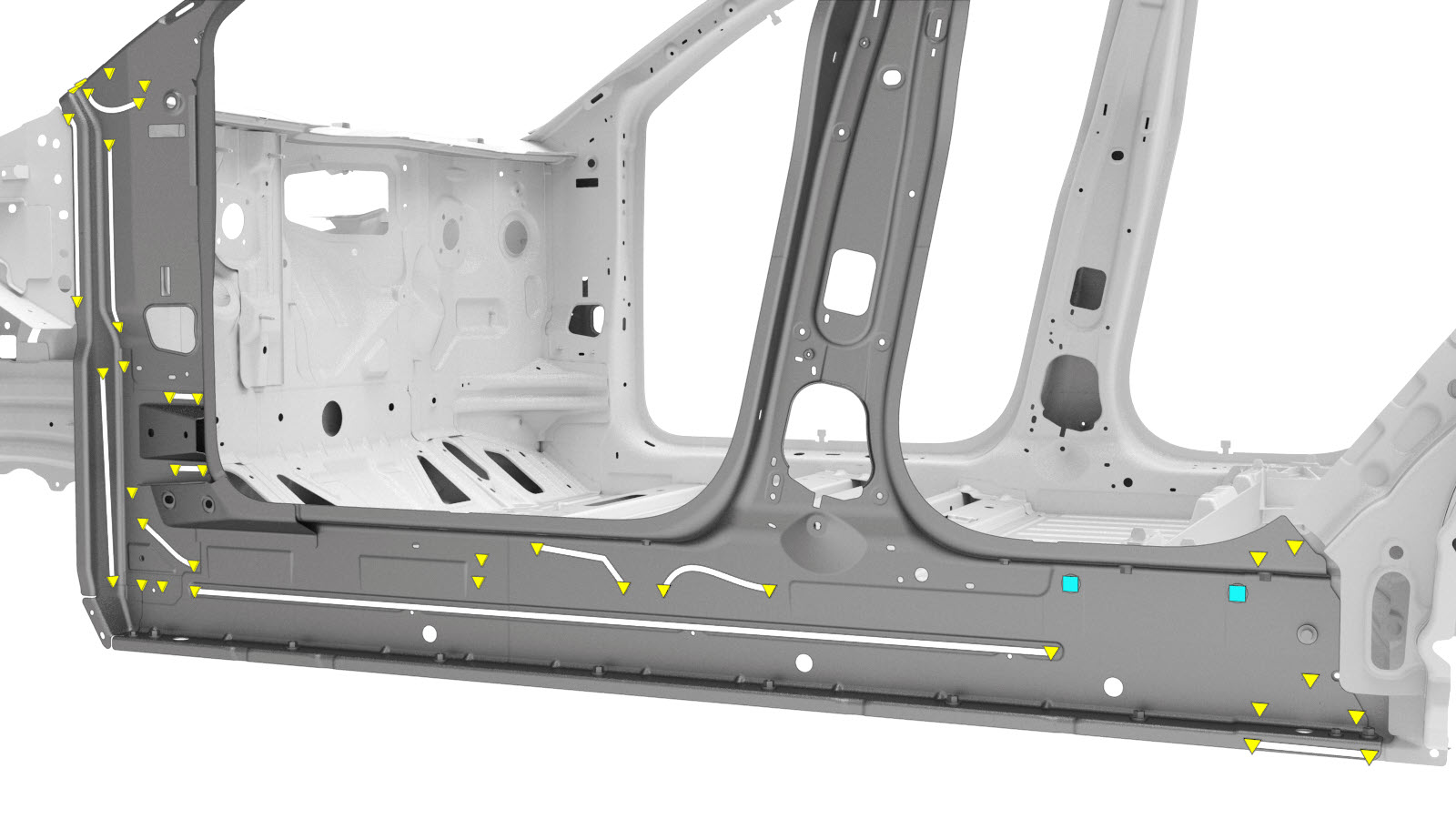

  4. Remove the original component.
    • or Factory Spot Welds
    • or Bolts
    Informational PurposesAn informational icon, calling your attention
    Note
    Retain the bolts for re-installation in a later step.

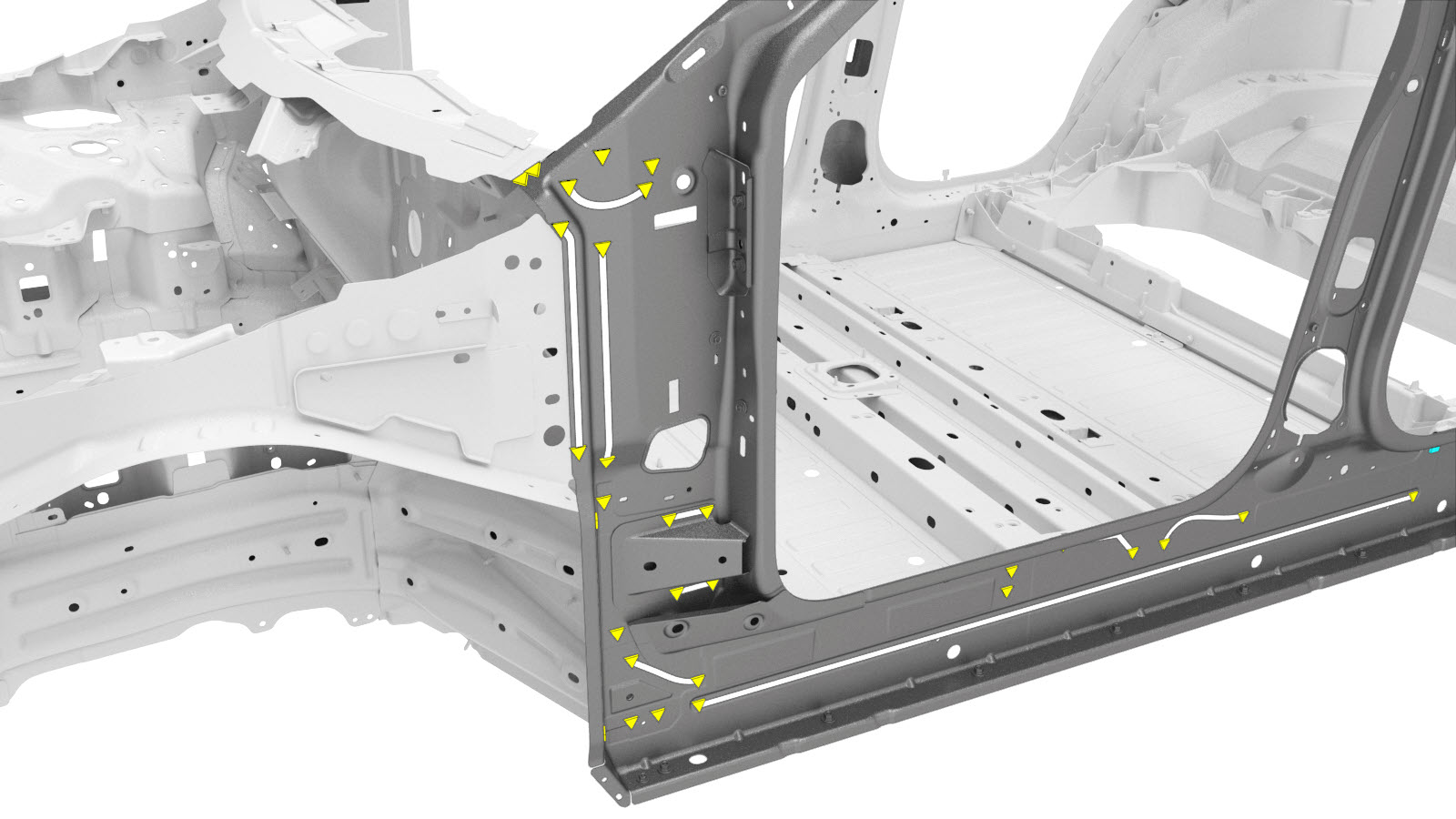

  5. Remove the original component.
    • or Factory Spot Welds
    • or Bolts
    Informational PurposesAn informational icon, calling your attention
    Note
    Retain the bolts for re-installation in a later step.

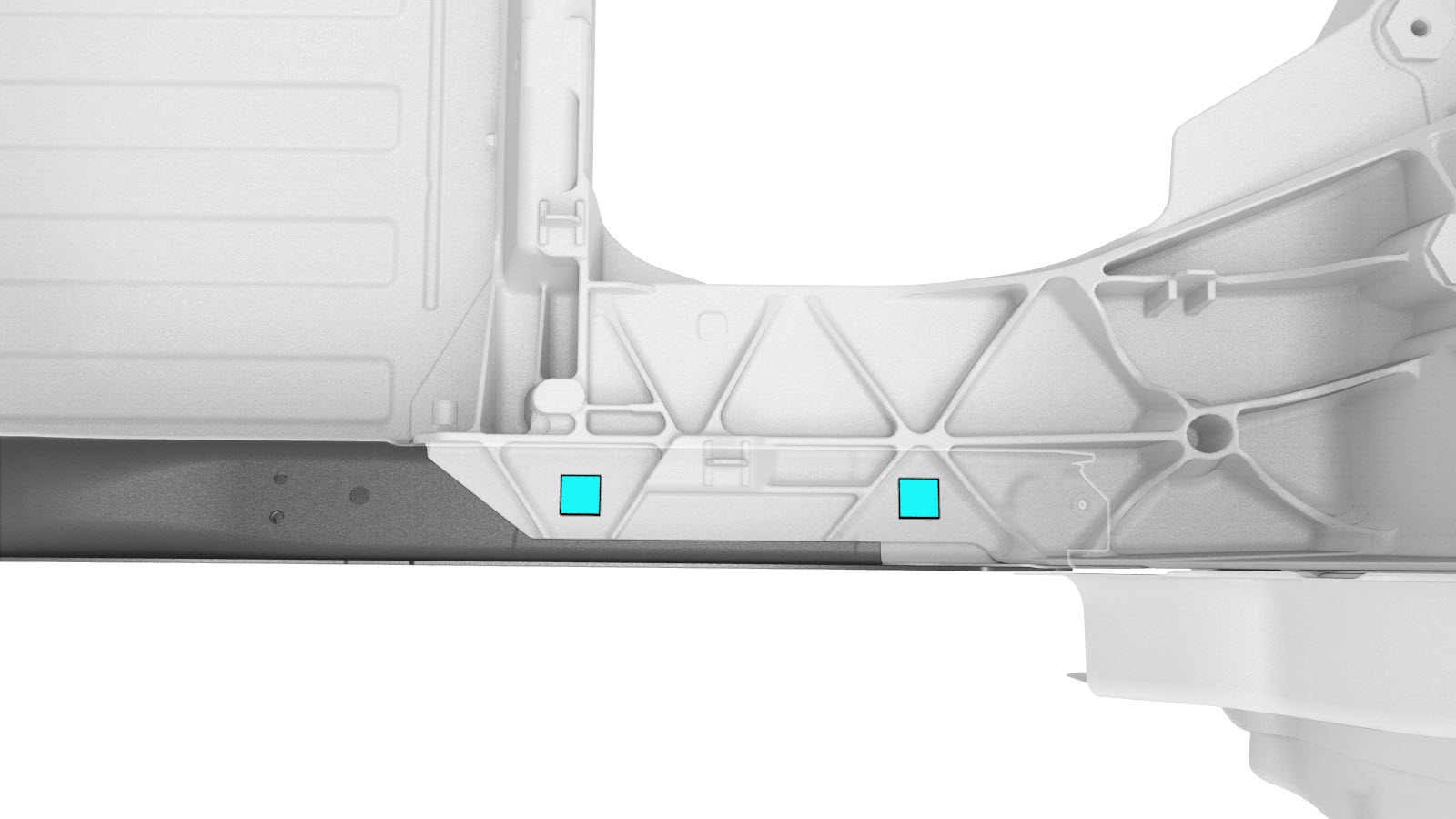

  6. Remove the original component.
    • or Factory Spot Welds
    • or Bolts
    Informational PurposesAn informational icon, calling your attention
    Note
    Retain the bolts for re-installation in a later step.

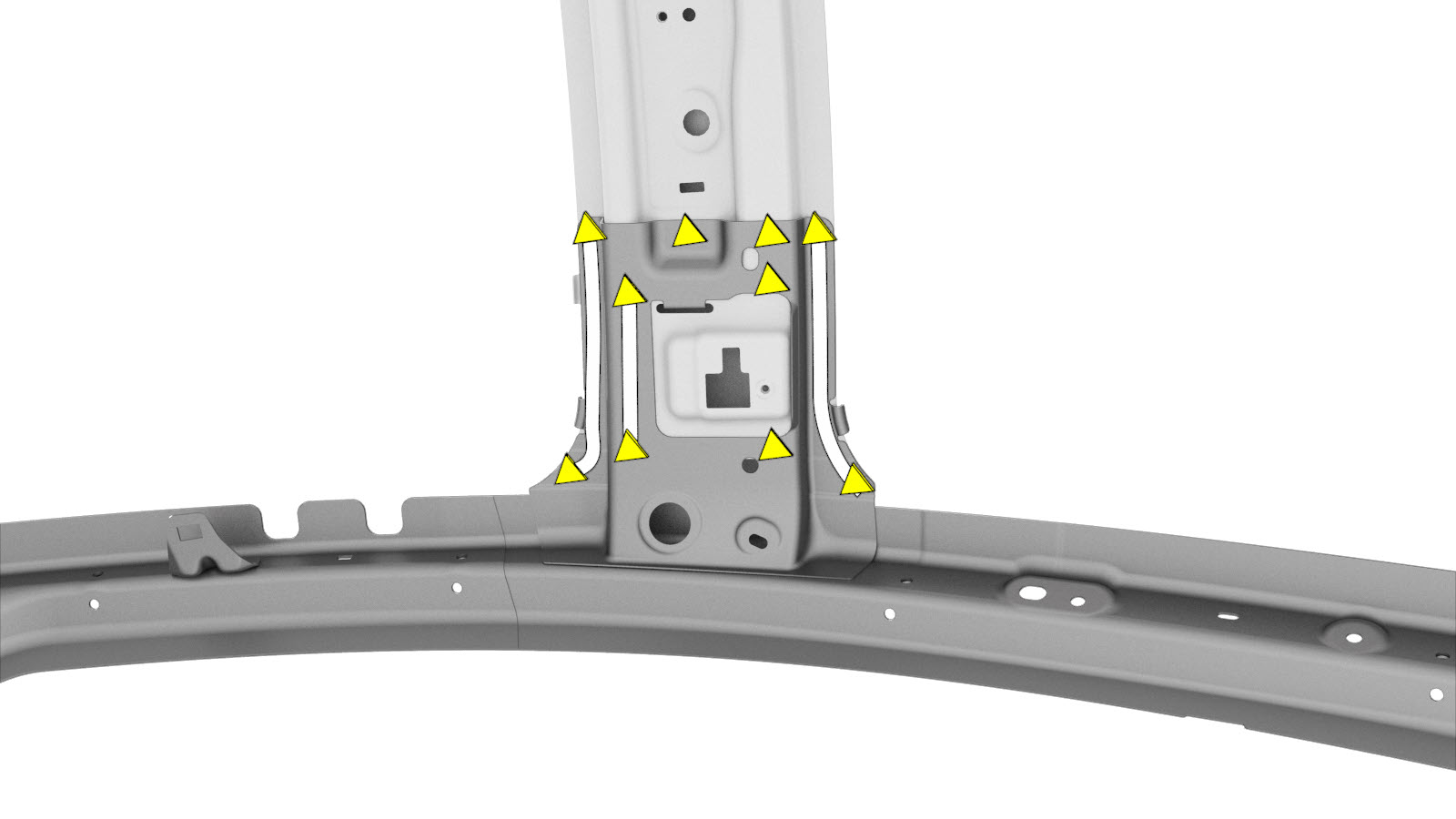

  7. Remove the original component.
    • or Factory Spot Welds
  8. Remove the original component.
    • or Factory Spot Welds
  9. For section repairs only: Create backing plates or reinforcement plates as described in the Door Ring Inner Section Descriptions.

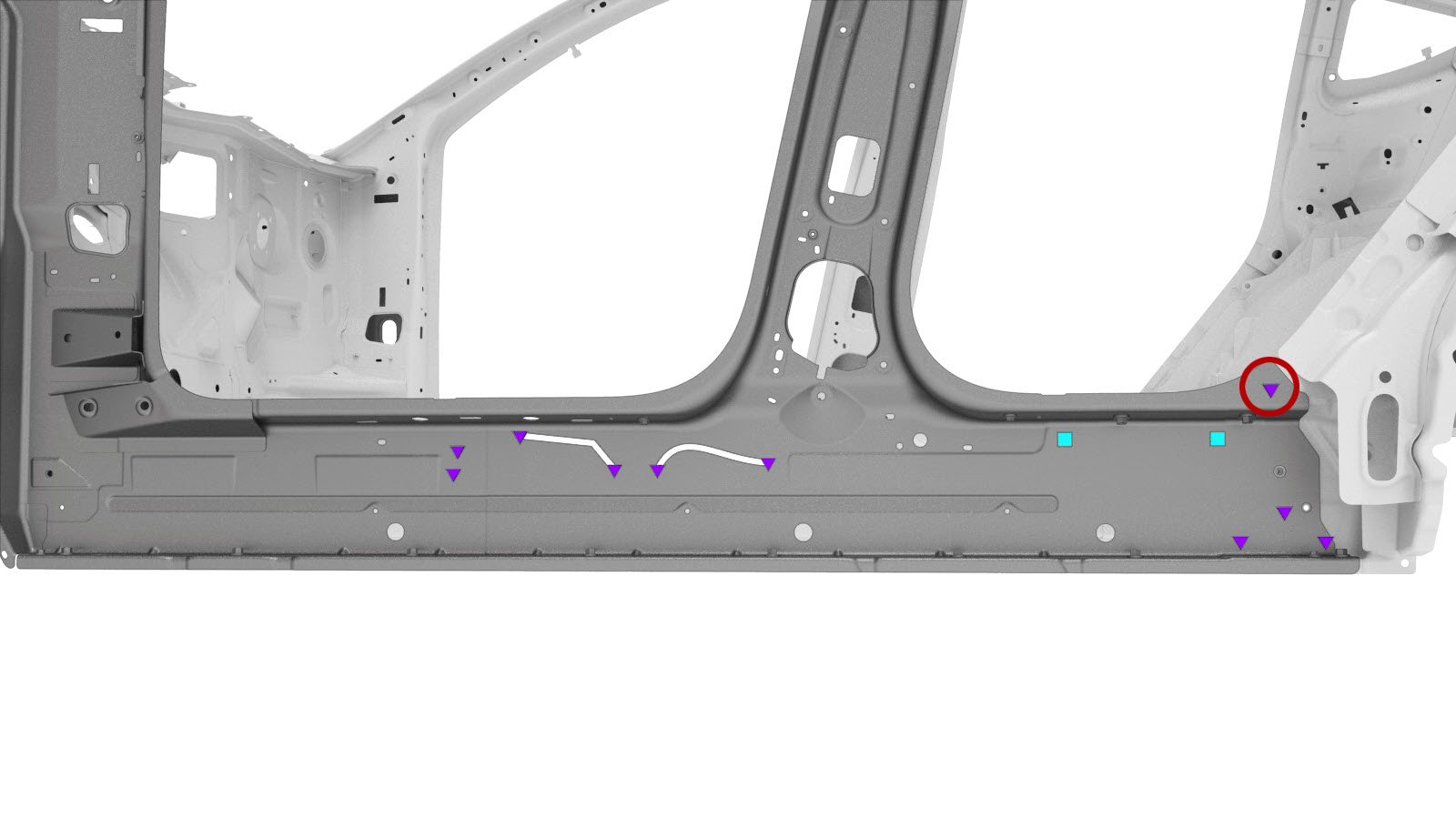

  10. Prepare for installation.
    Informational PurposesAn informational icon, calling your attention
    Note

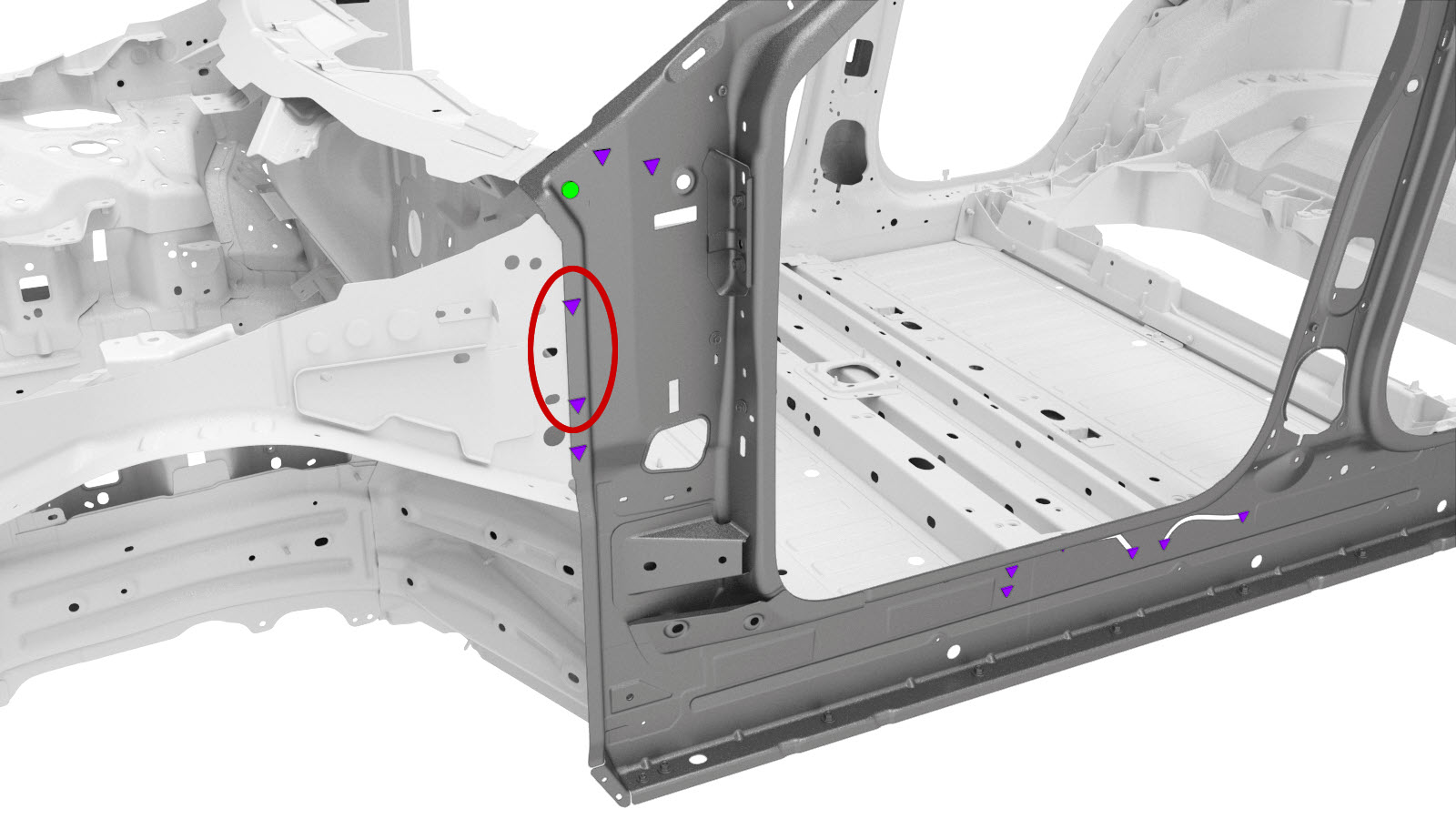

    Installation Spot Welds circled in red must be relocated 20 mm. from the original Factory Spot Weld location.

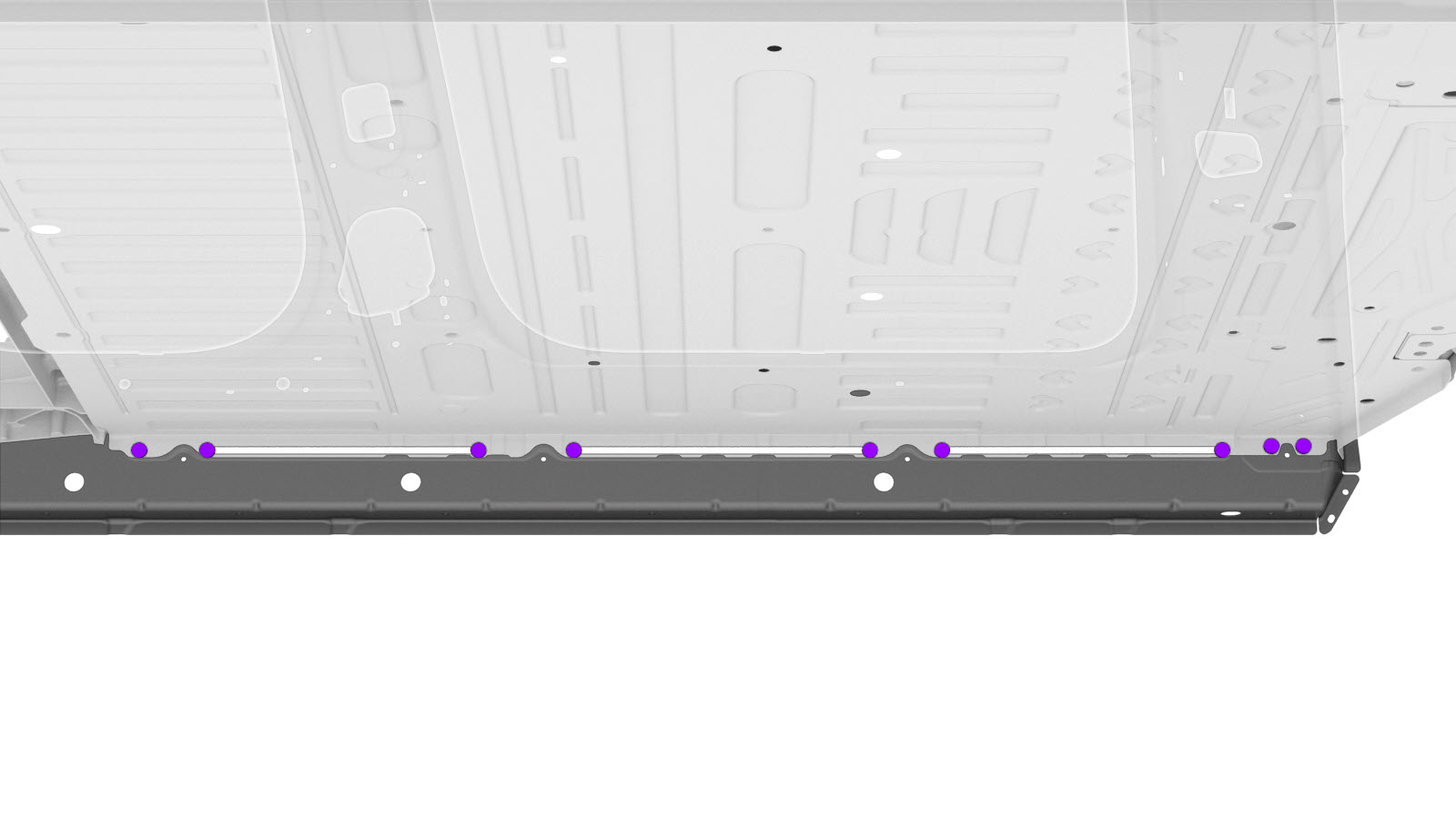

  11. Prepare for installation.
    • or Bolts
    • or Installation Spot Welds
    Informational PurposesAn informational icon, calling your attention
    Note
    Installation Spot Welds circled in red must be relocated 20 mm. from the original Factory Spot Weld location.

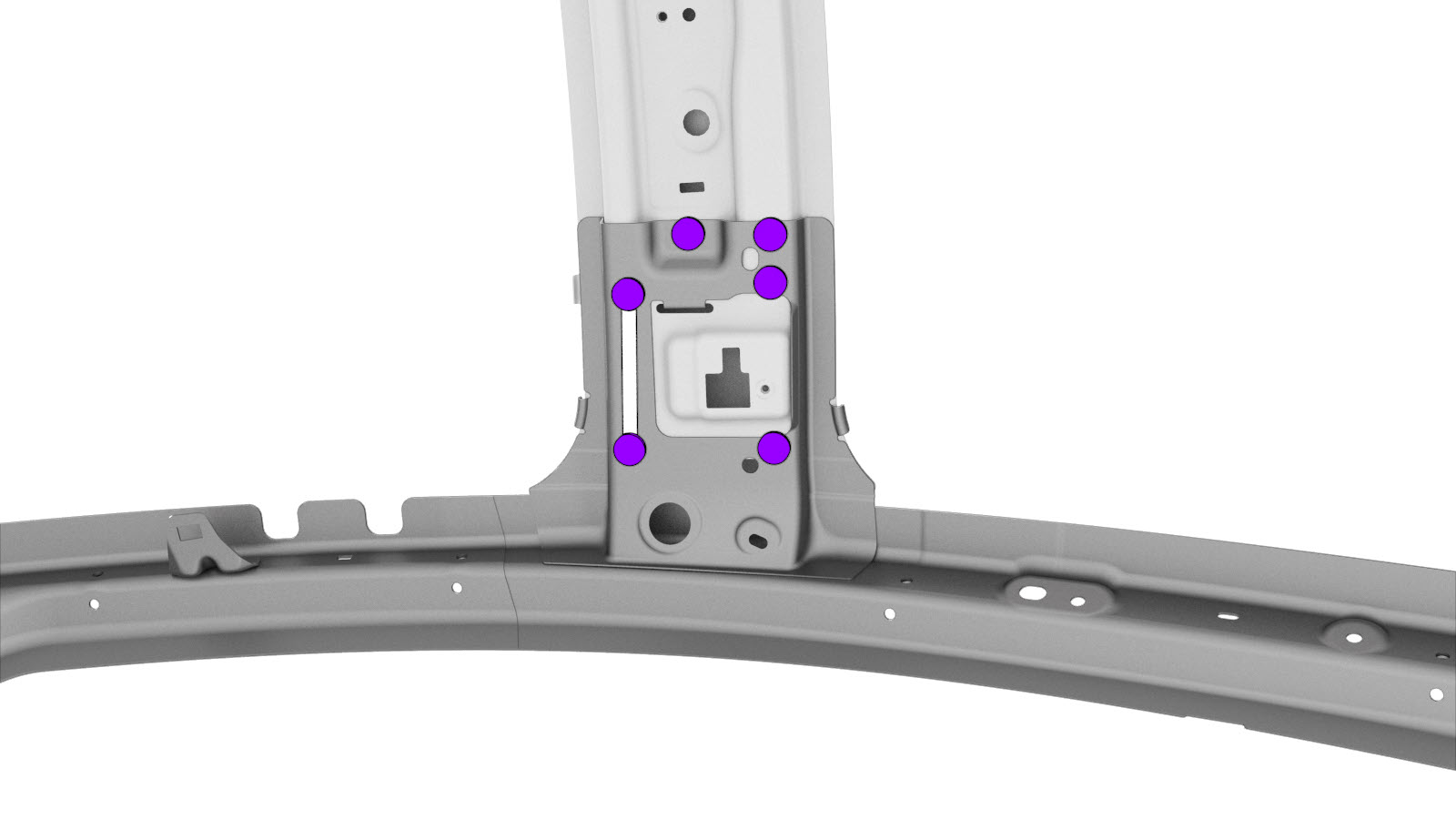

  12. Prepare for installation.
    Informational PurposesAn informational icon, calling your attention
    Note
    Installation Spot Welds circled in red must be relocated 20 mm. from the original Factory Spot Weld location.
  13. Prepare for installation.
    Informational PurposesAn informational icon, calling your attention
    Note

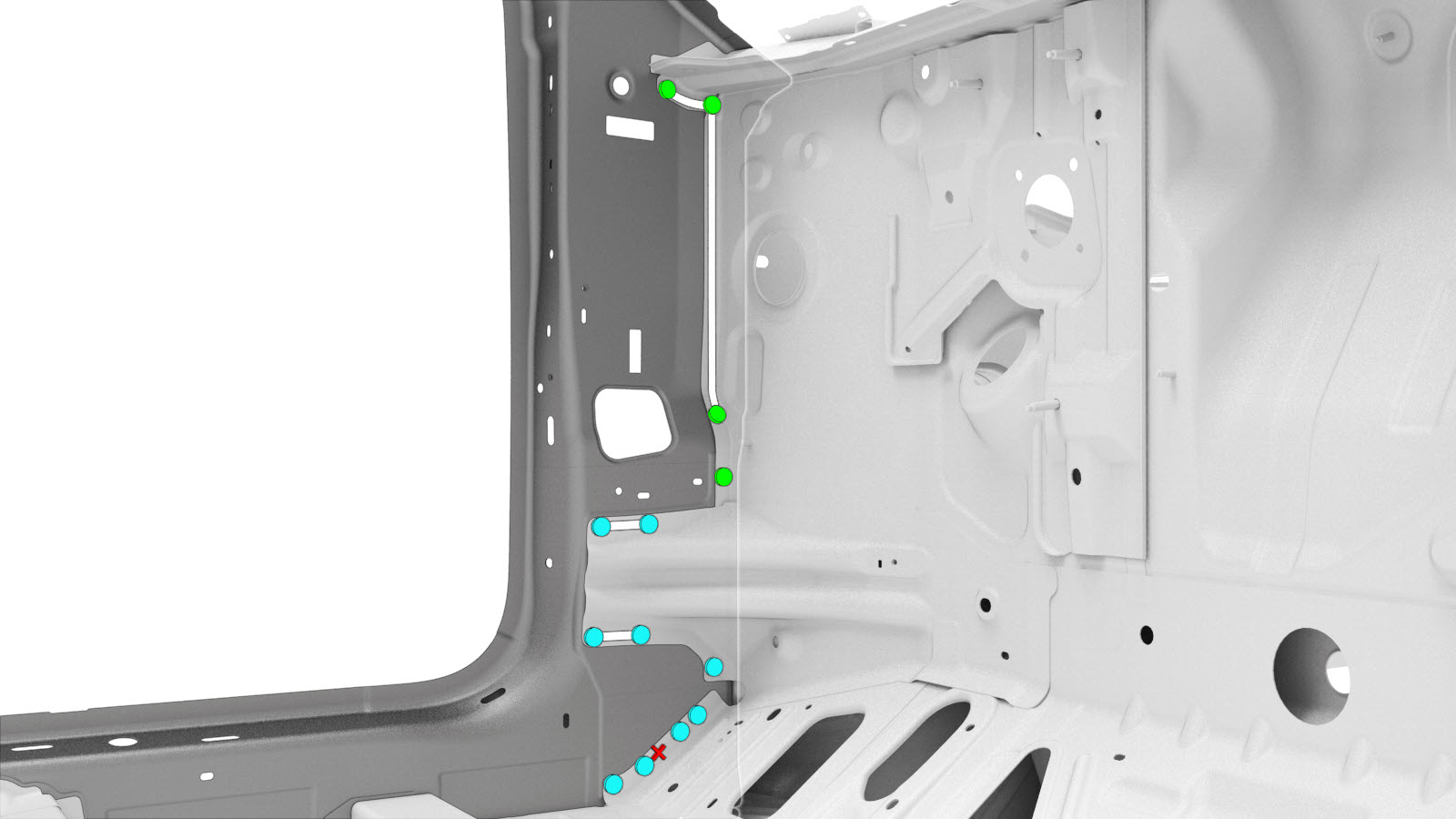

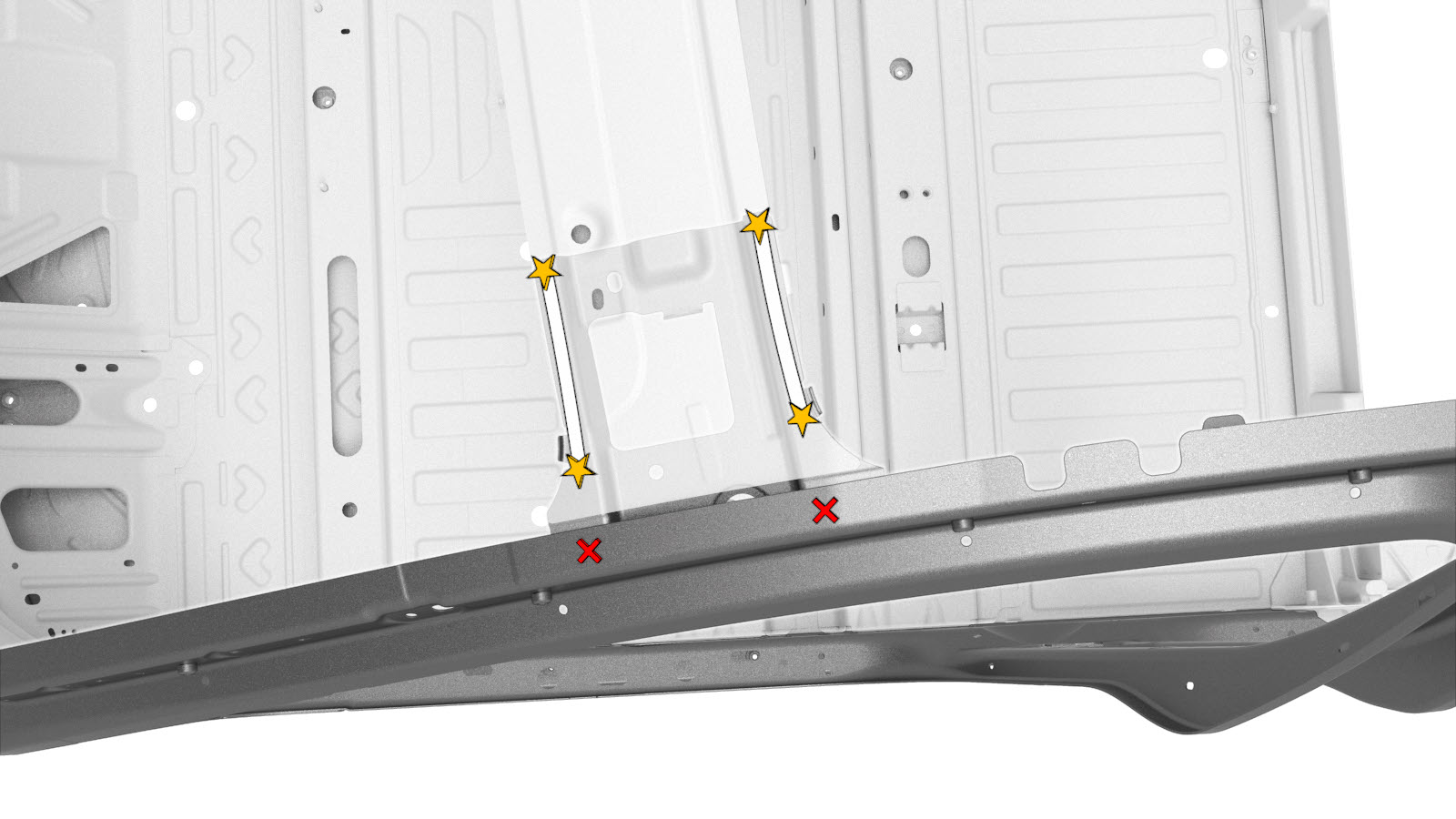

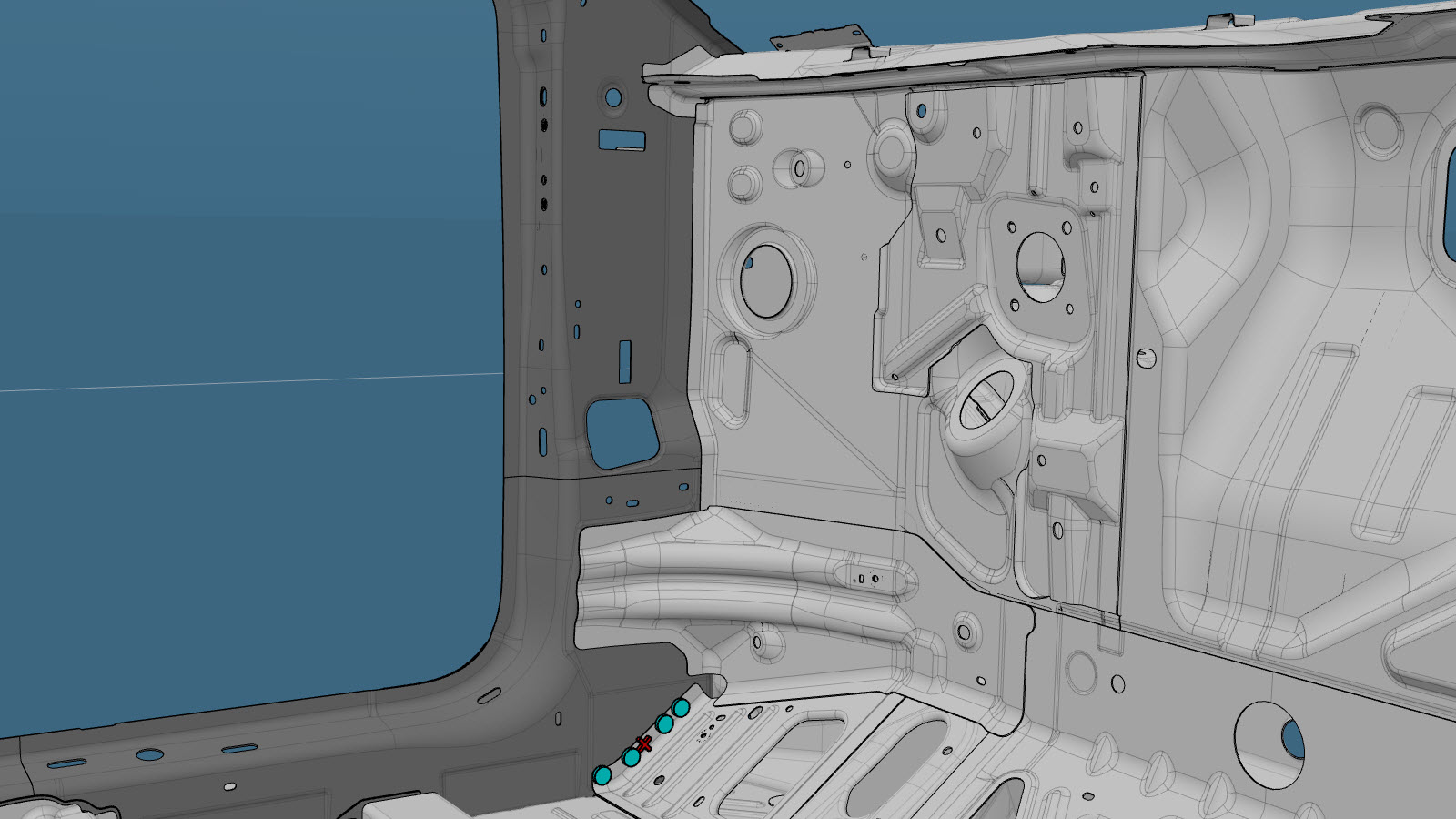

    A red X indicates a location where a factory-installed fastener is not being replaced.

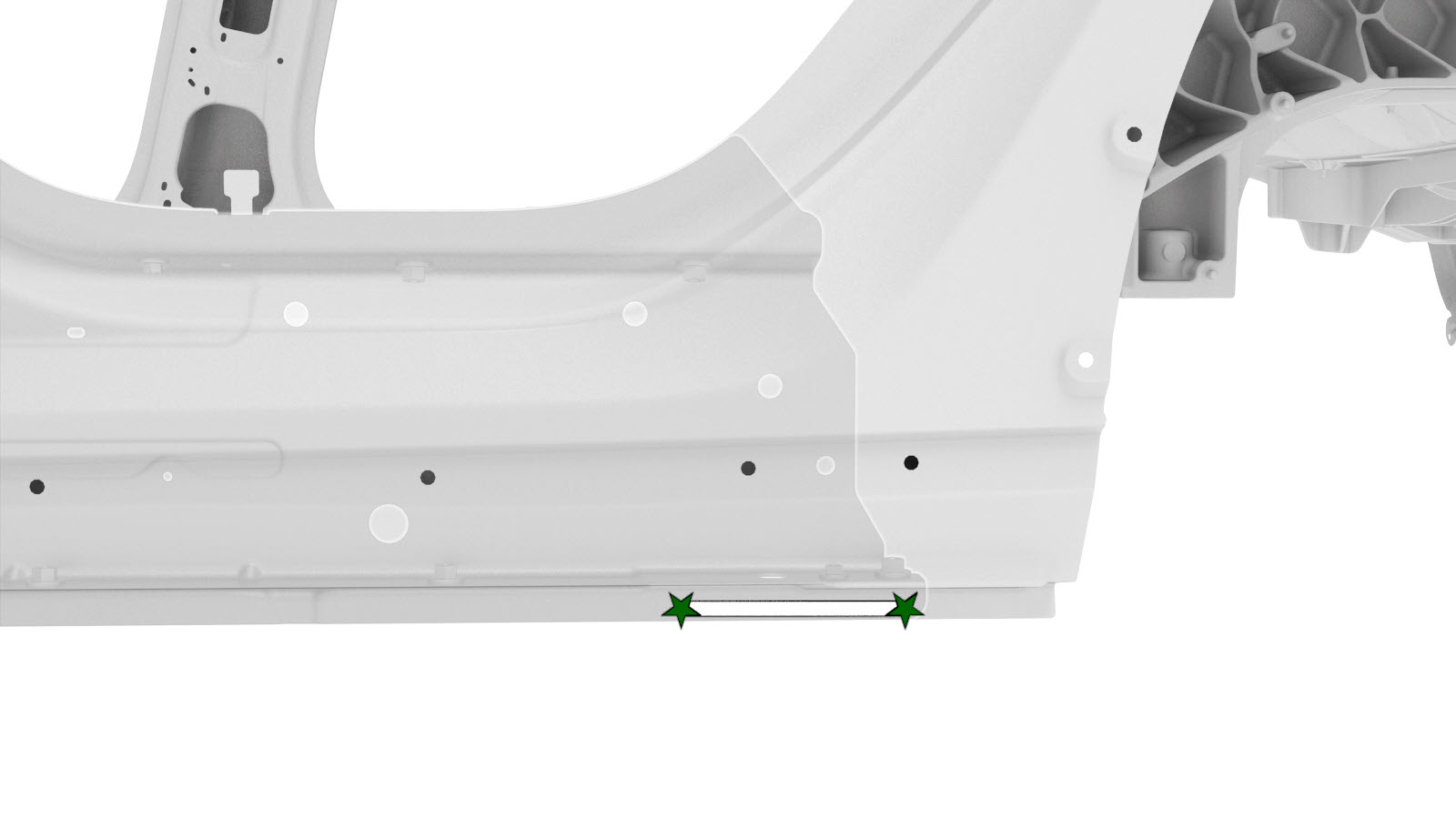

  14. Prepare for installation.
  15. Prepare for installation.
    Informational PurposesAn informational icon, calling your attention
    Note
    A red X indicates a location where a factory-installed fastener is not being replaced.
  16. Prepare for installation.
  17. Prepare for installation.
  18. Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
  19. For section repairs only: Install backing plates or reinforcement plates as described in the Door Ring Inner Section Descriptions.
  20. Install the new component or components.

    Torque bolts installed horizontally to 31 Nm. and torque bolts installed vertically to 31 Nm.

  21. Perform resistance spot welding.
    or Installation Spot Welds
    Warning IconA warning icon, calling your attention to a possibly risky situation
    Warning
    Failure to follow all welding safety precautions, including the use of personal protective equipment, could result in serious injury or property damage. Only technicians who have completed Tesla’s approved welding training are authorized to weld structural components on Tesla vehicles.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Do not weld on a Tesla vehicle before performing the Vehicle Electrical Isolation Procedure (refer to the vehicle-specific Service Manual for more information on the Vehicle Electrical Isolation Procedure). Welding on a Tesla vehicle with an energized high or low voltage system might damage vehicle components.
  22. Install the Side Sill Insert (Complete).
  23. Install the necessary portion of the Door Ring Outer.

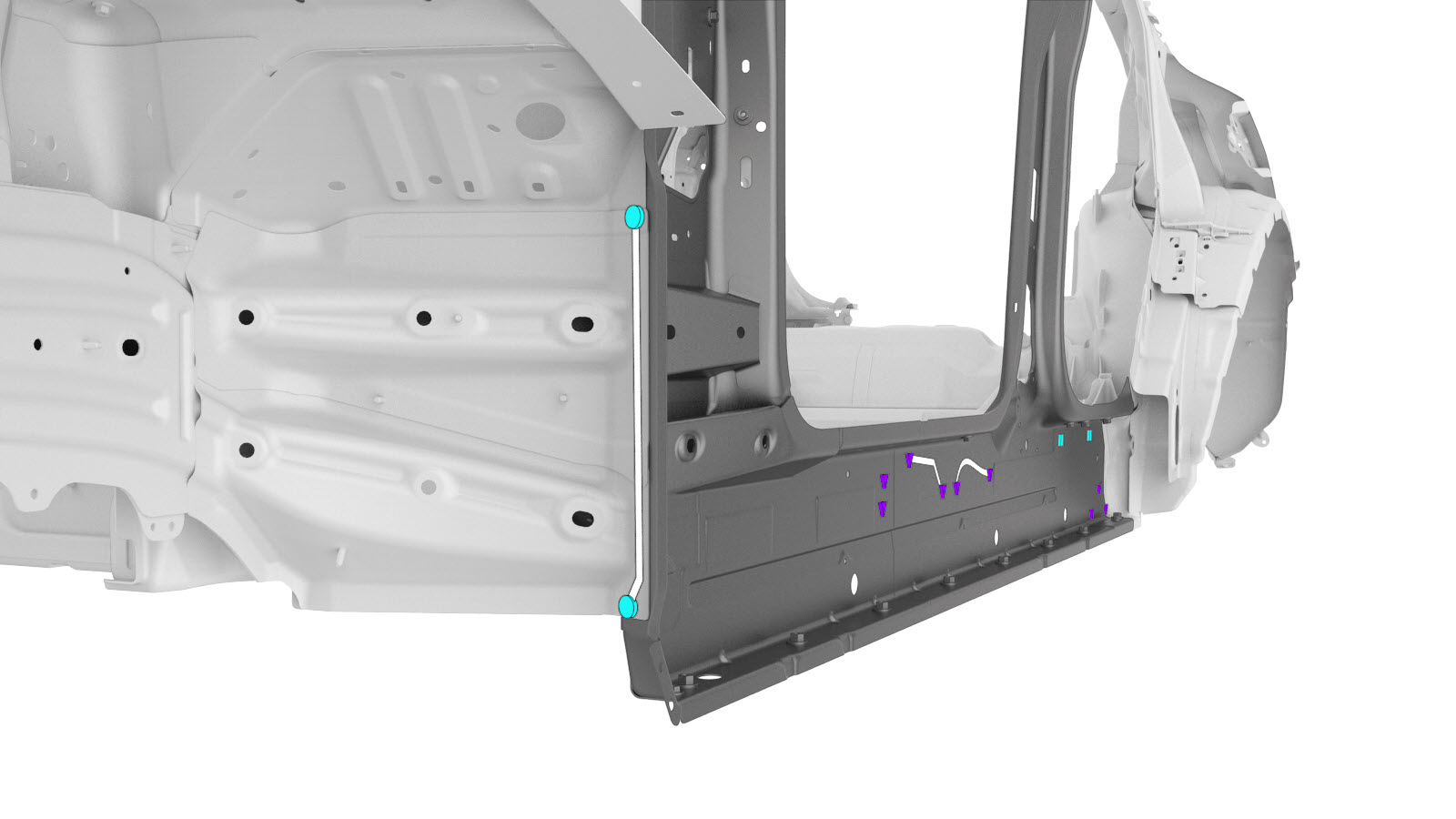

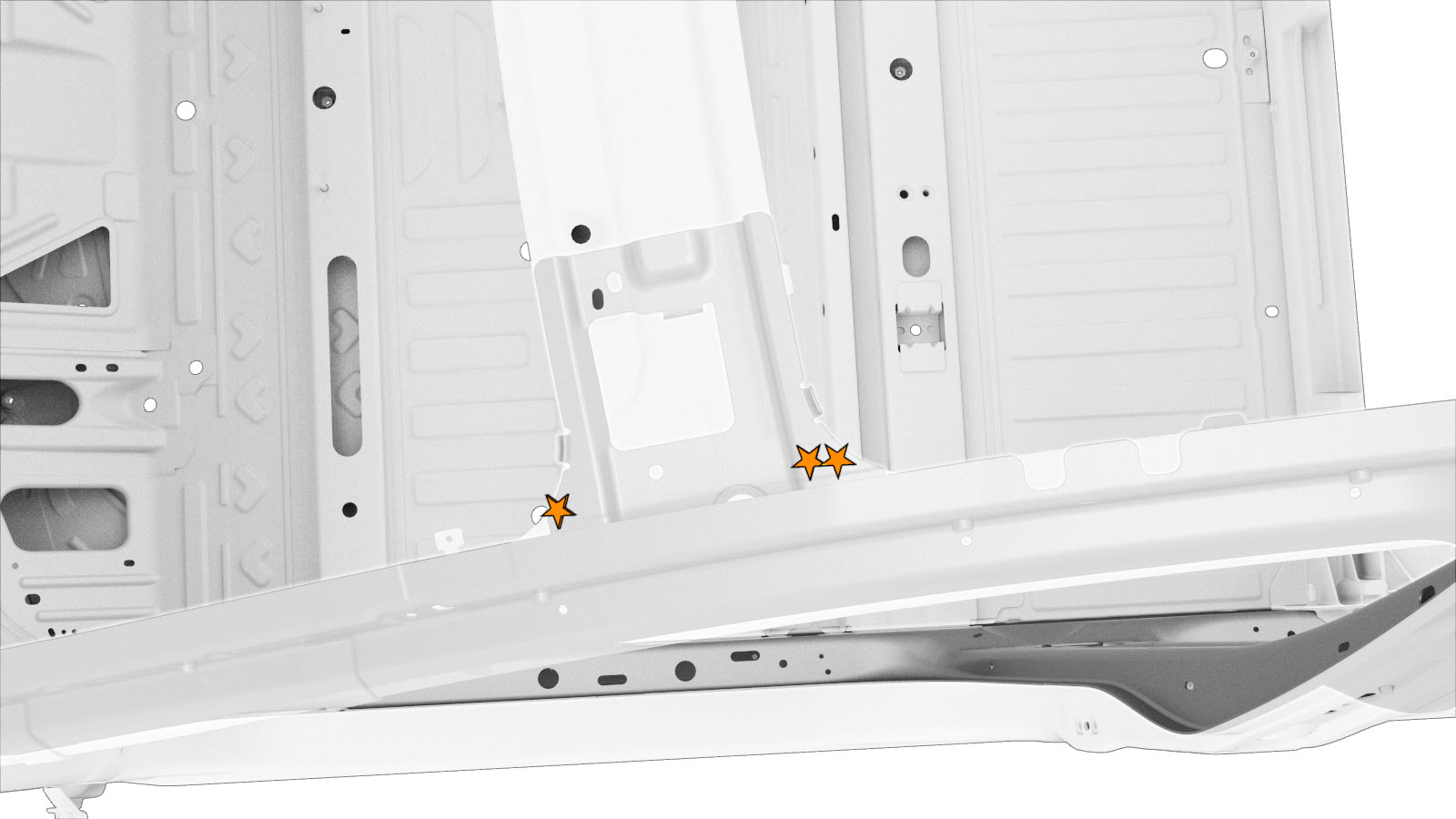

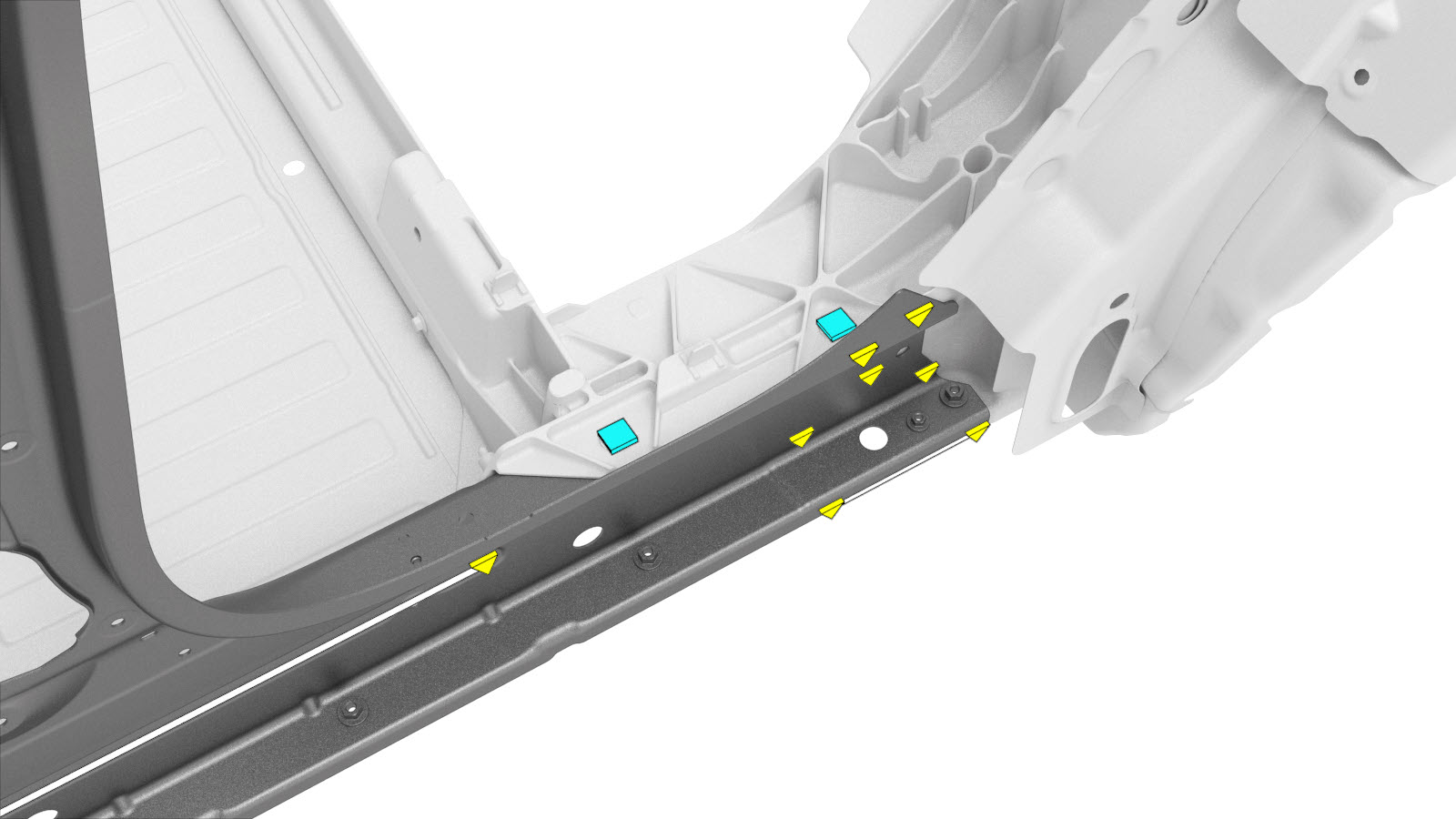

  24. Install the fasteners as indicated.
  25. Install the fasteners as indicated.
  26. Install the fasteners as indicated.
  27. Perform any necessary post-repair operations.
