Longitudinal Upper

Correction code: 10101004002 10101004102 NOTE: Unless explicitly stated in the procedure, the above correction code includes all Collision Repair work required to perform this procedure, including the linked Collision Repair procedures. Do not stack Collision Repair correction codes unless explicitly told to do so. Add any associated mechanical procedures needed to perform this procedure.

Repair Information

Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
This procedure can be completed without using a frame bench.

Parts List


Quantity	Description	Image / Notes

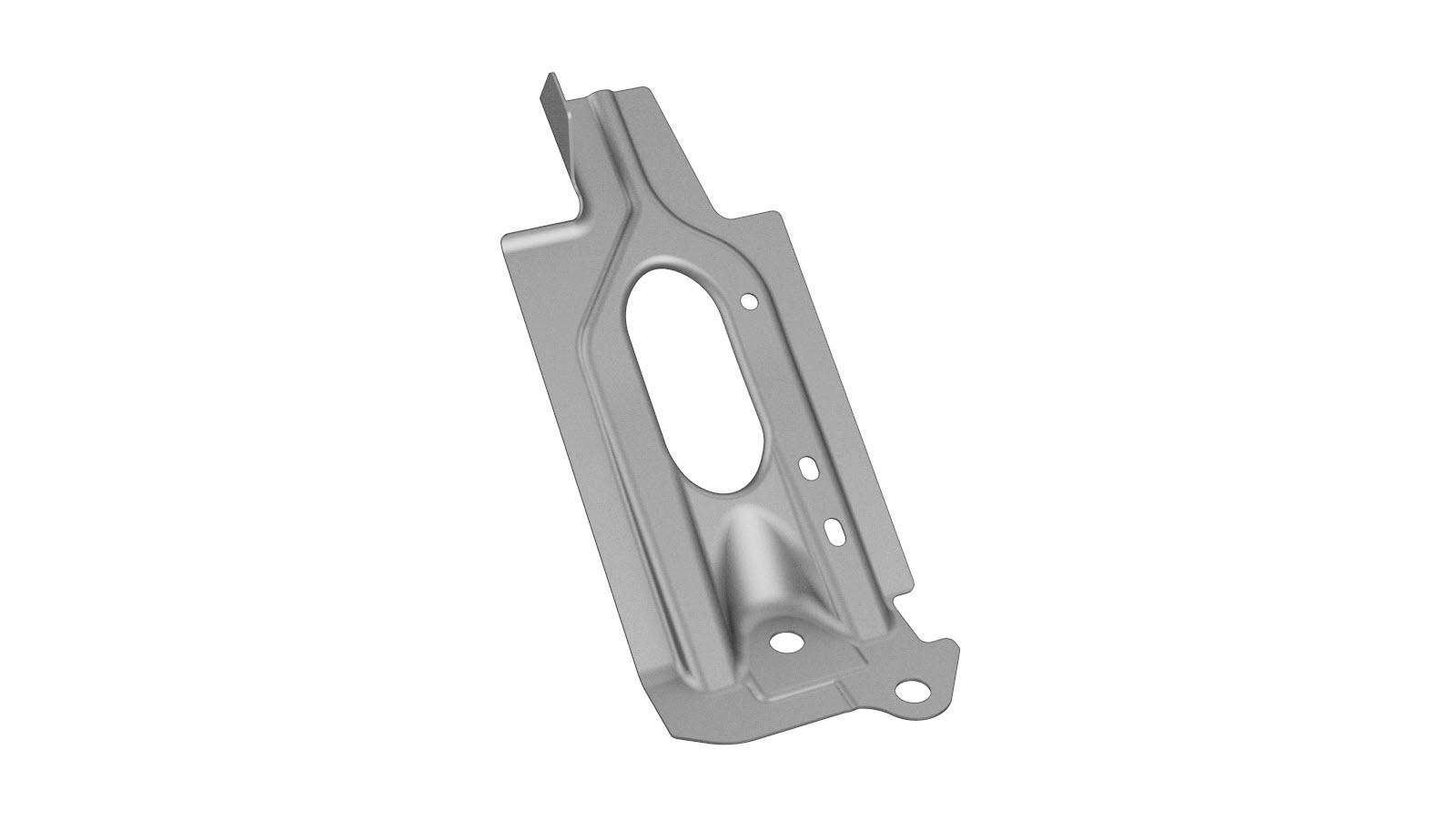

1	PNL, LONGITUDINAL UPPER (Longitudinal Upper)
14	High Strength Structural Rivet, 6.5 mm
1	Rivet, 4.8 mm
4	Countersunk Rivet, 4.8 mm Long

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

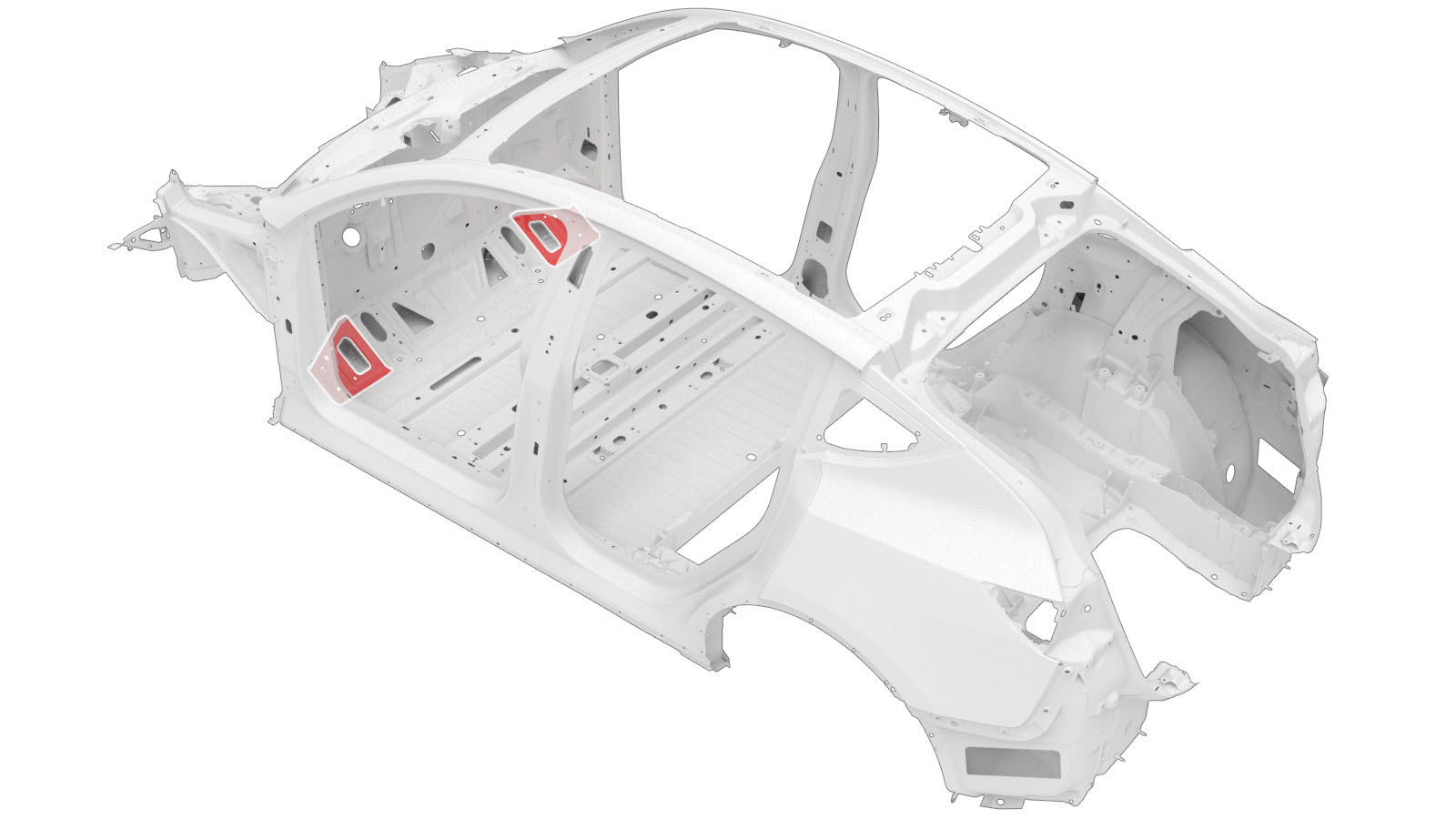

Remove the Torque Box Rear Upper.

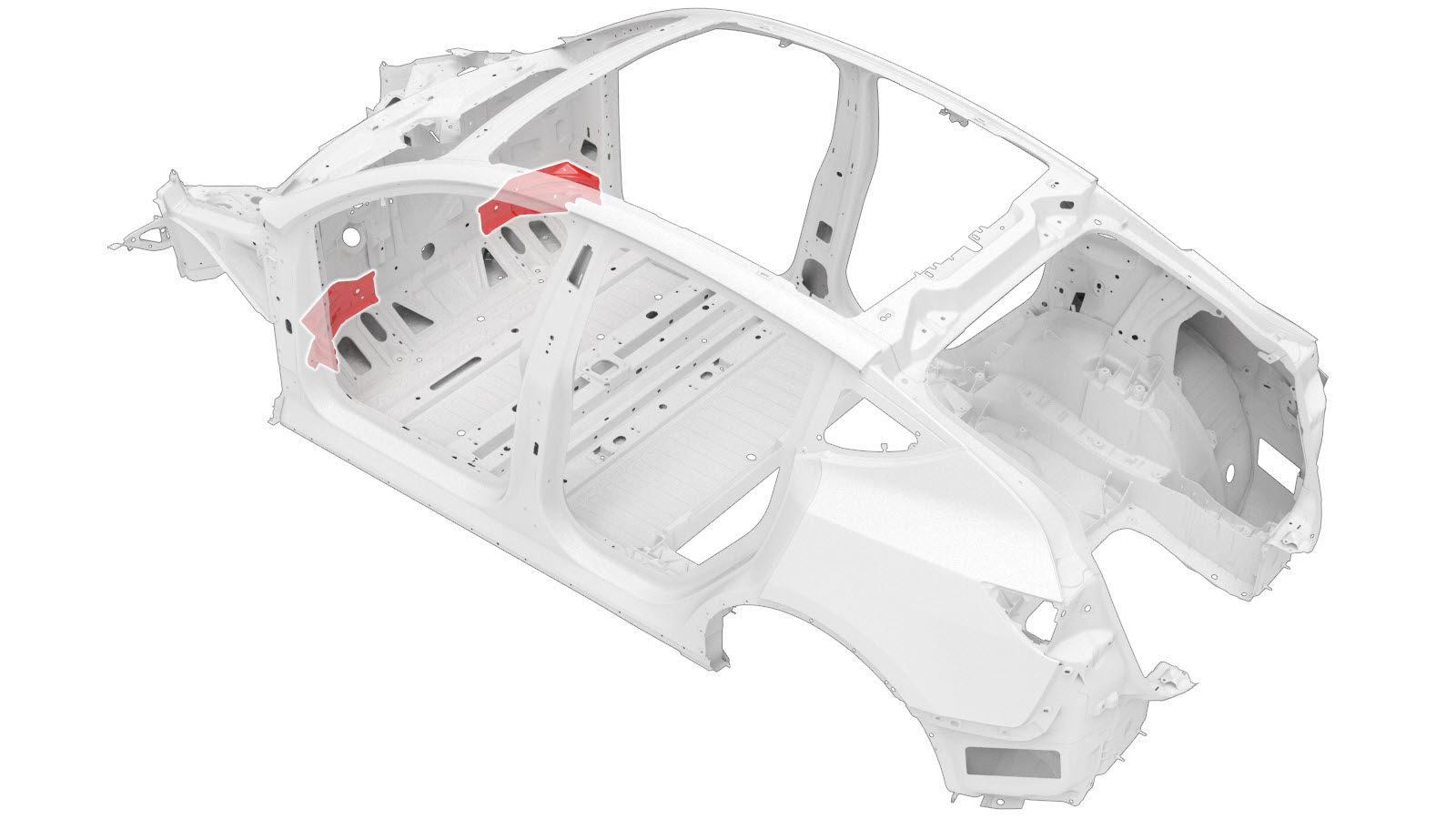

Remove the Toeboard Outer.

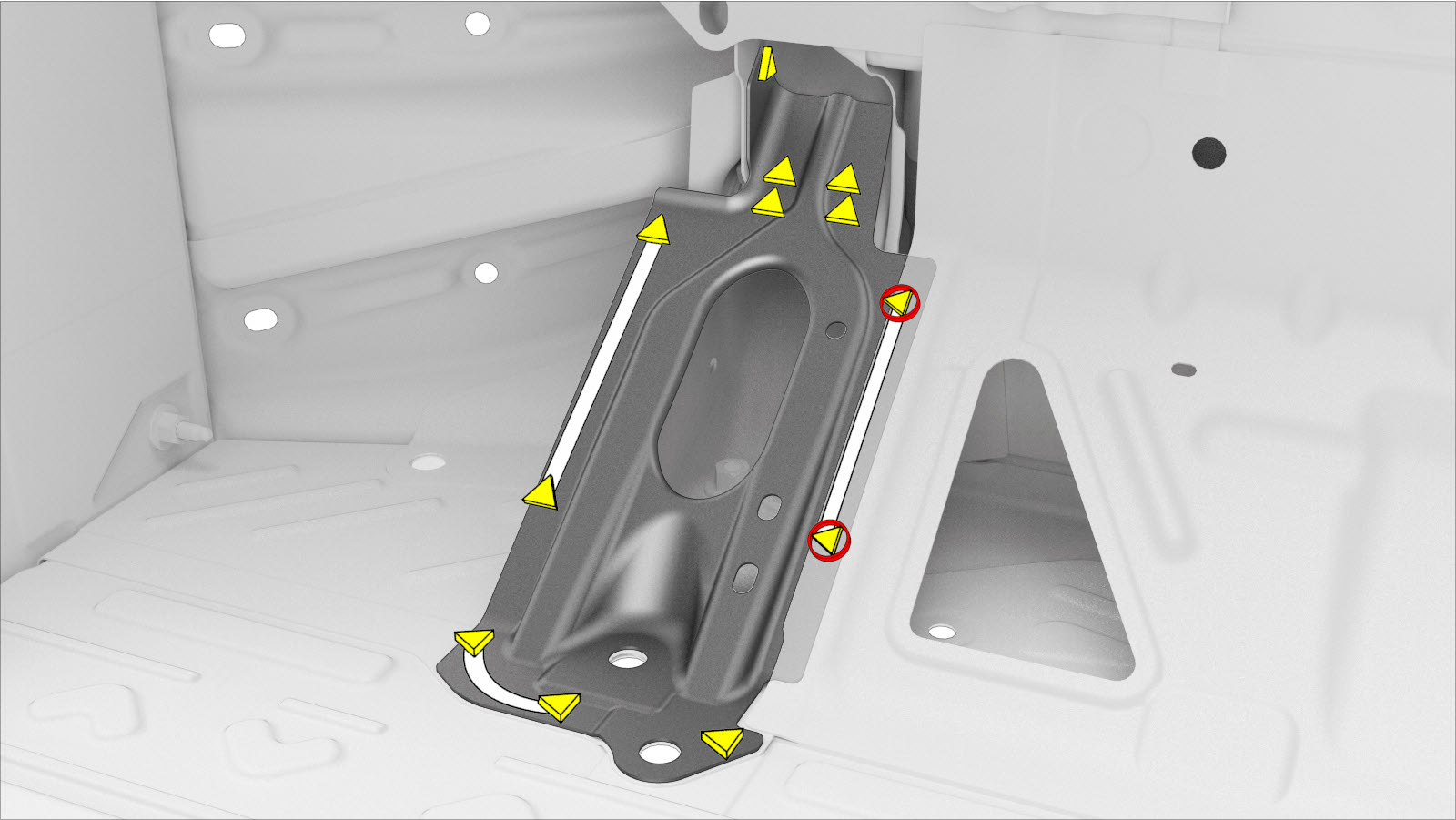

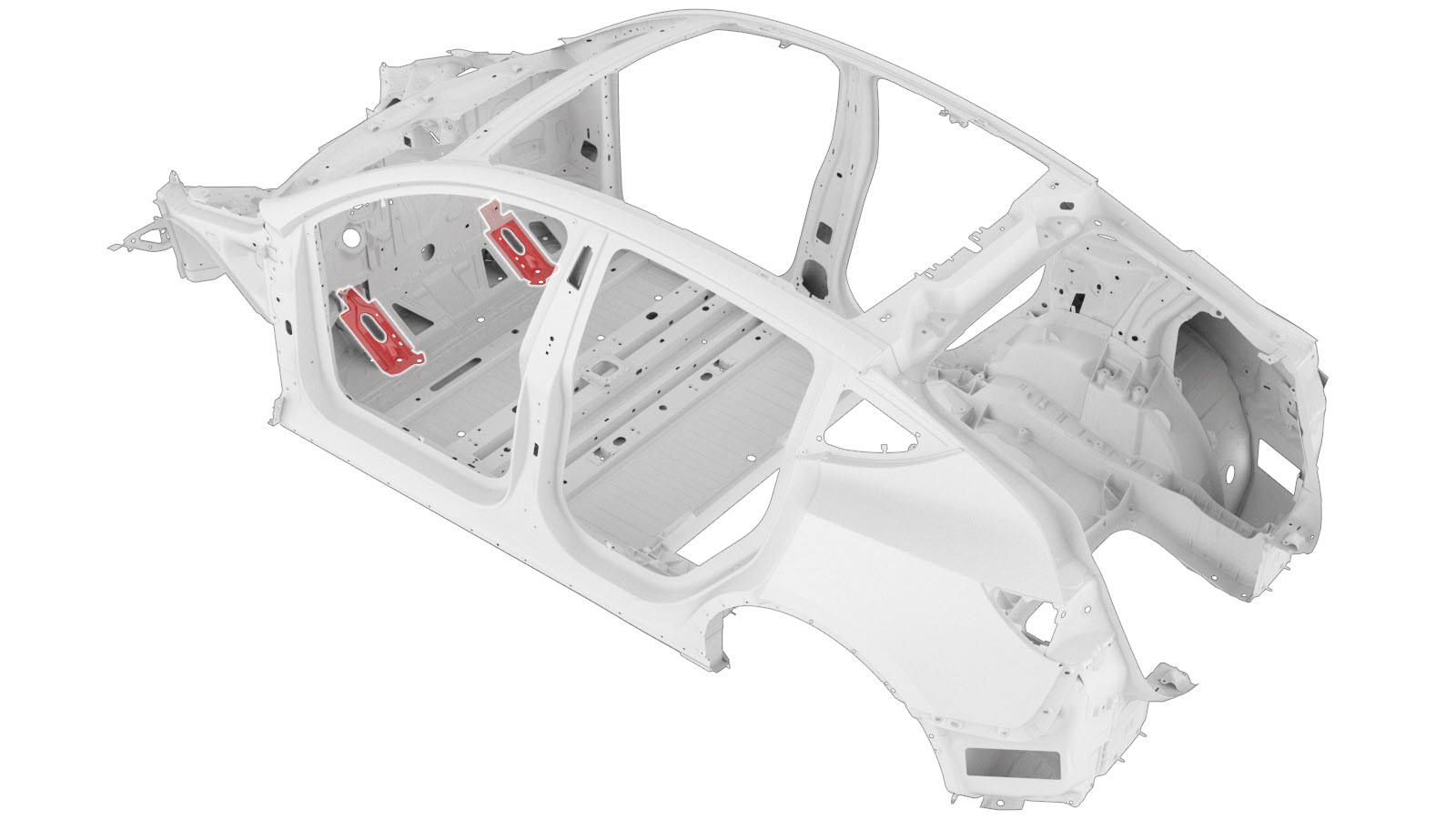

Remove the original component.
- or Factory Spot Welds
- or Drill through factory spot welds
Note
Use the access hole in the Dash Complete panel to locate and drill through the drill-through spot welds from the back side of the Longitudinal Upper.

Note
When drilling out spot welds, use a drill bit that creates a hole correctly sized for the fastener that will replace the spot weld.
Prepare for installation.
- Reference Line/Point
- or High Strength Structural Rivets, 6.5 mm A = 74 mm B = 63 mm

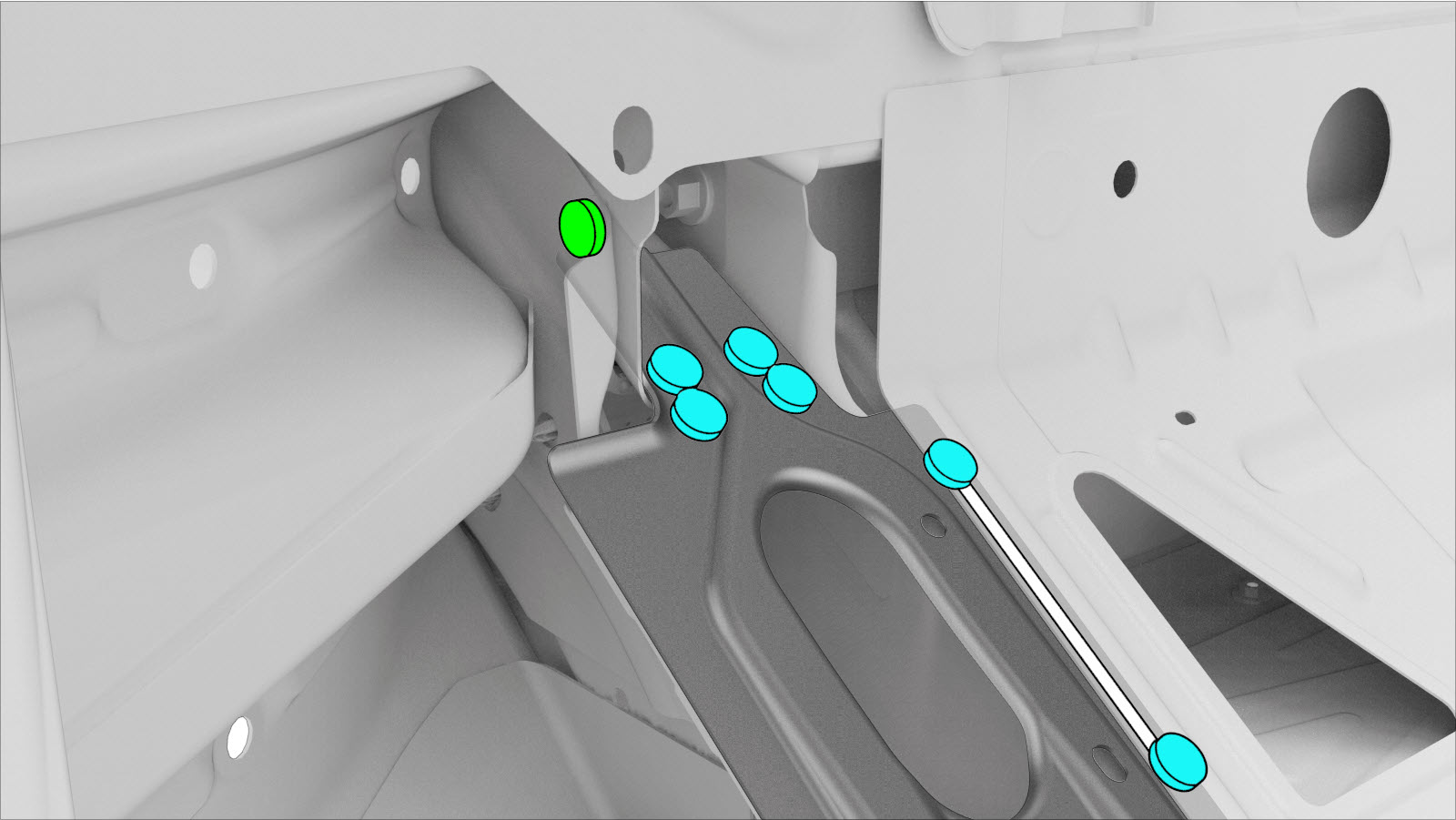

Prepare for installation.
- or High Strength Structural Rivets, 6.5 mm
- or Rivets, 4.8 mm

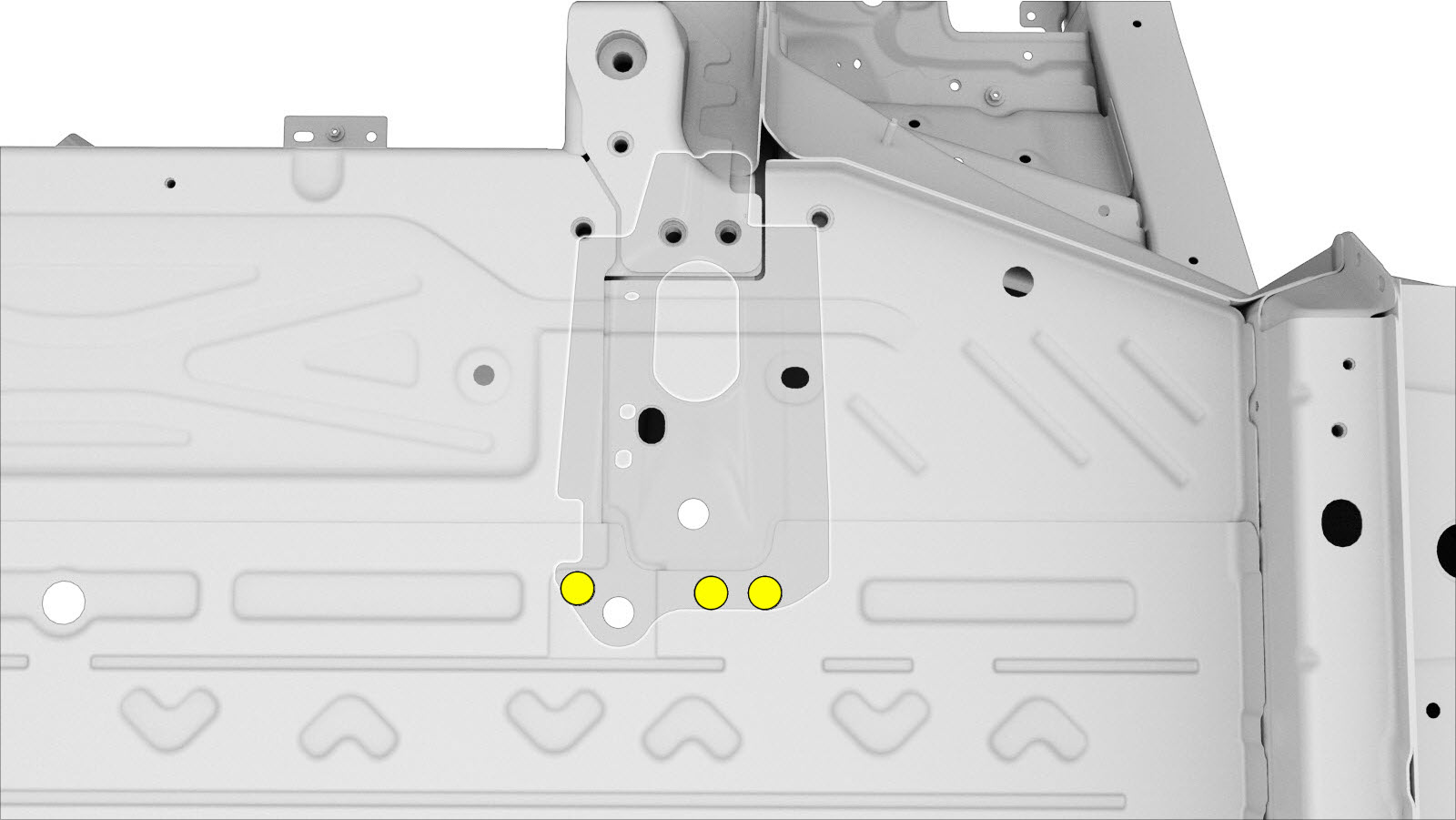

Prepare for installation.
- or Countersunk Rivets, 4.8 mm Long
Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
Install the new component or components.
Install the Toeboard Outer.
Install the fasteners as indicated.

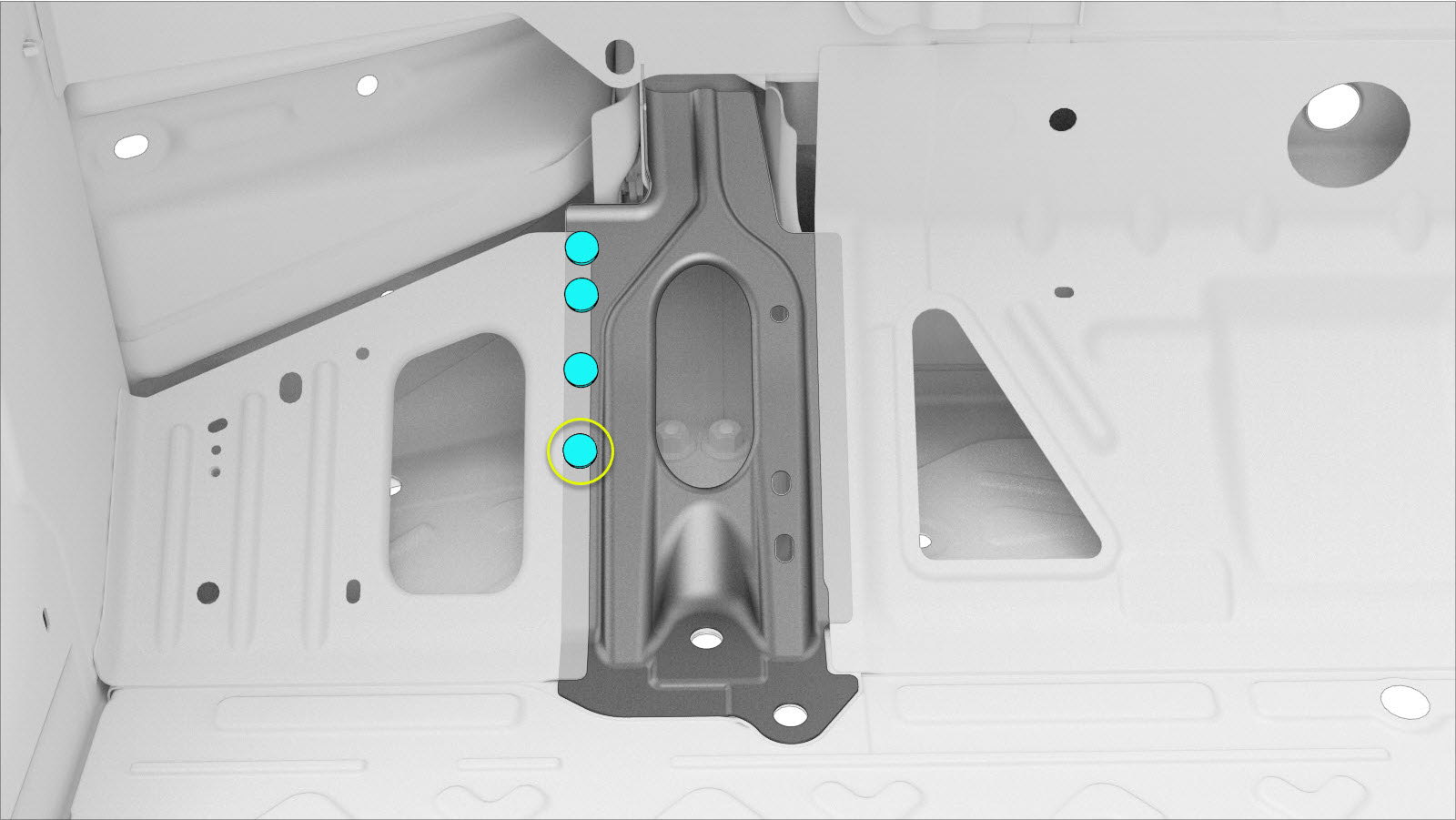

- or High Strength Structural Rivets, 6.5 mm
Note

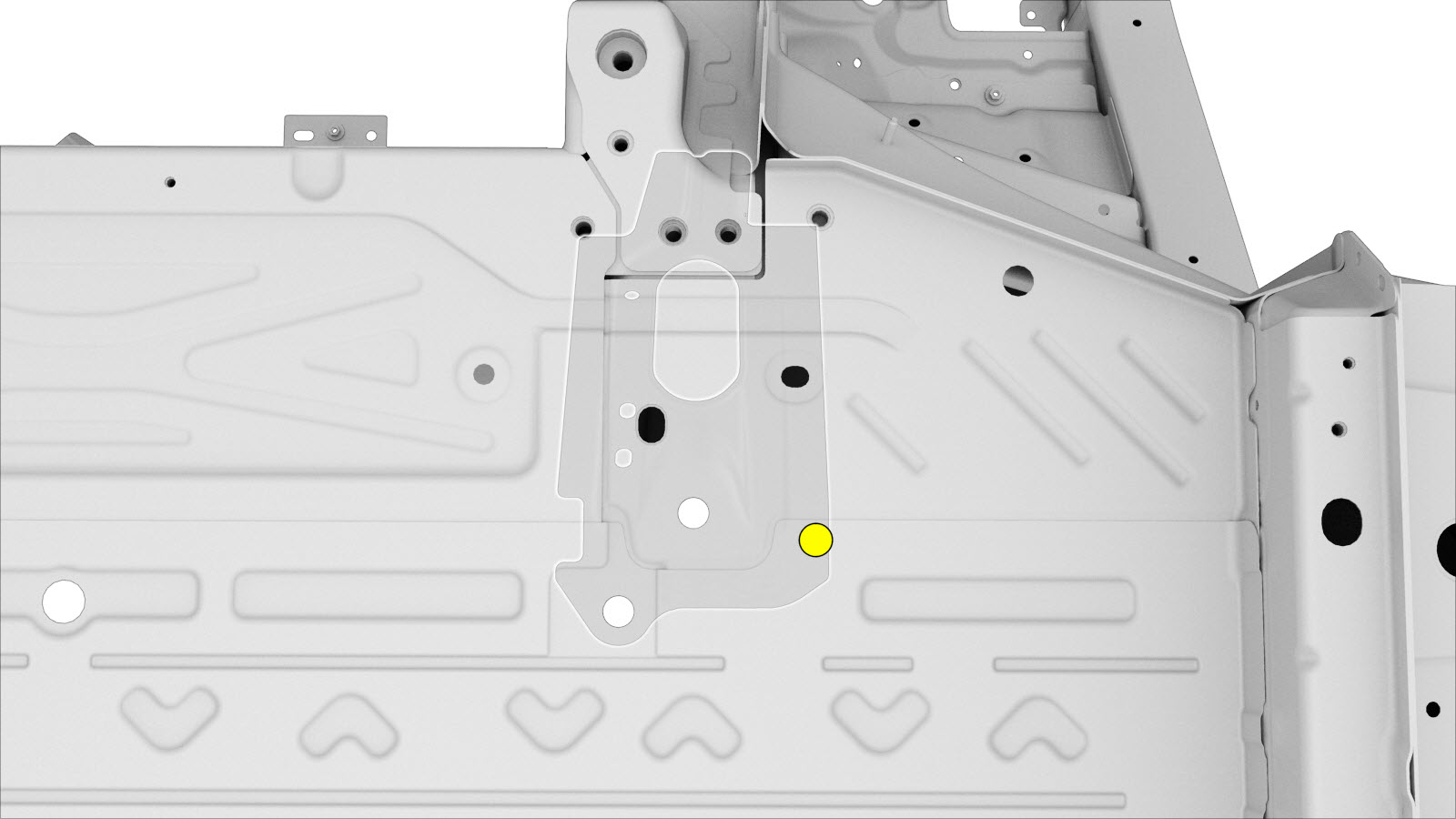

During removal, if there was not a fastener in the location circled in yellow, do not install a fastener in this location.
Install the fasteners as indicated.
- or Countersunk Rivets, 4.8 mm Long
Install the Torque Box Rear Upper.
Perform any necessary post-repair operations.
