Cantrail Inner Extension

Repair Information

Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
This procedure can be completed without using a frame bench.

Parts List


Quantity	Description	Image / Notes

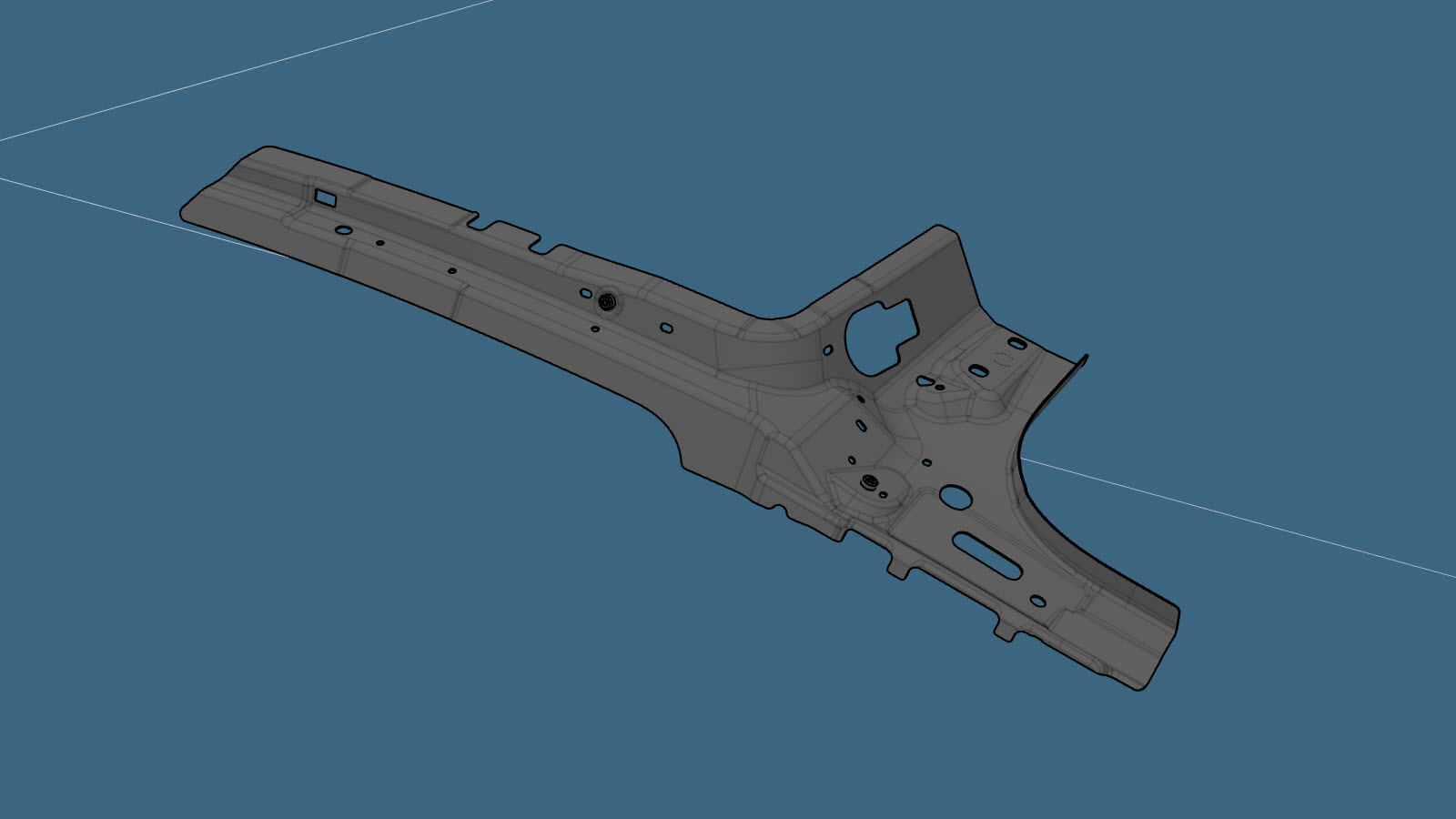

1	ASSEMBLY - CANTRAIL INNER EXTENSION (Cantrail Inner Extension)
10	Structural Bulb Rivet, 6.5 mm
7	Flow Form Rivet S18
9	Flow Form Rivet S28
6	Flow Form Rivet S58

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

Remove the Roof Rail Extension.

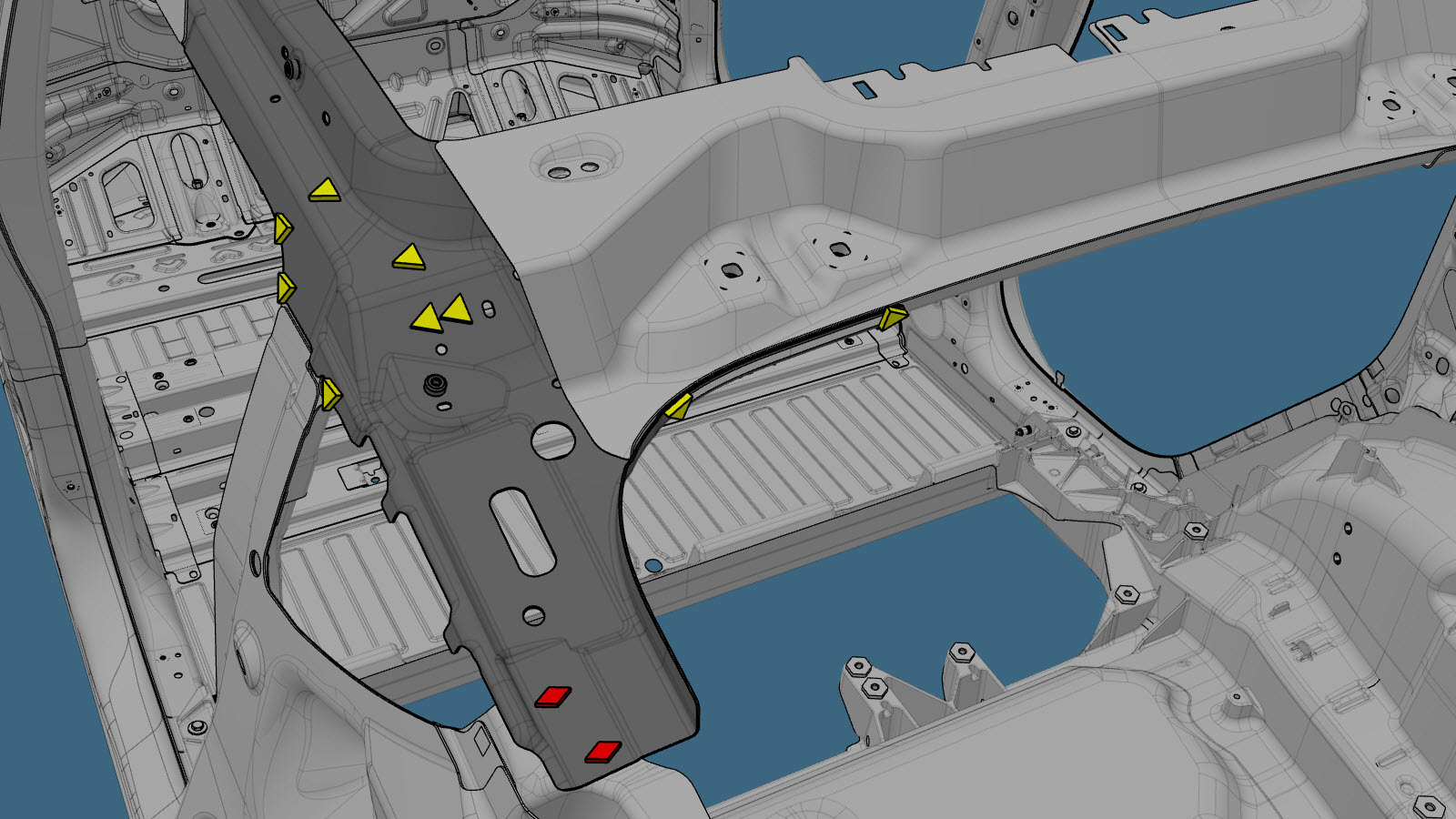

Remove the original component.
- or Factory Spot Welds

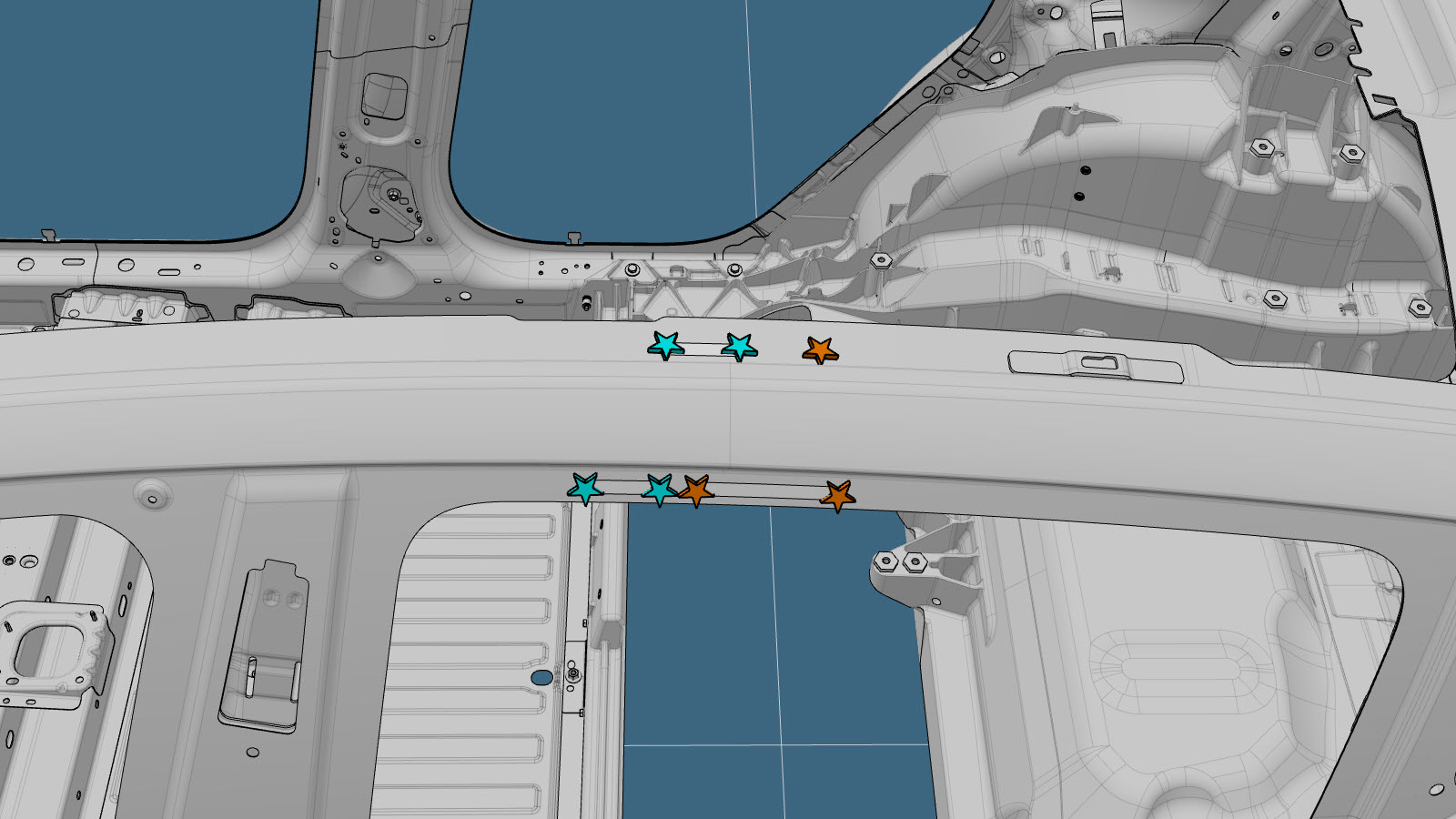

Remove the original component.
- or Factory Spot Welds
- or Factory SPRs
Prepare for installation.
Note
A red X indicates a location where a factory-installed fastener is not being replaced.
- or Structural Bulb Rivets, 6.5 mm

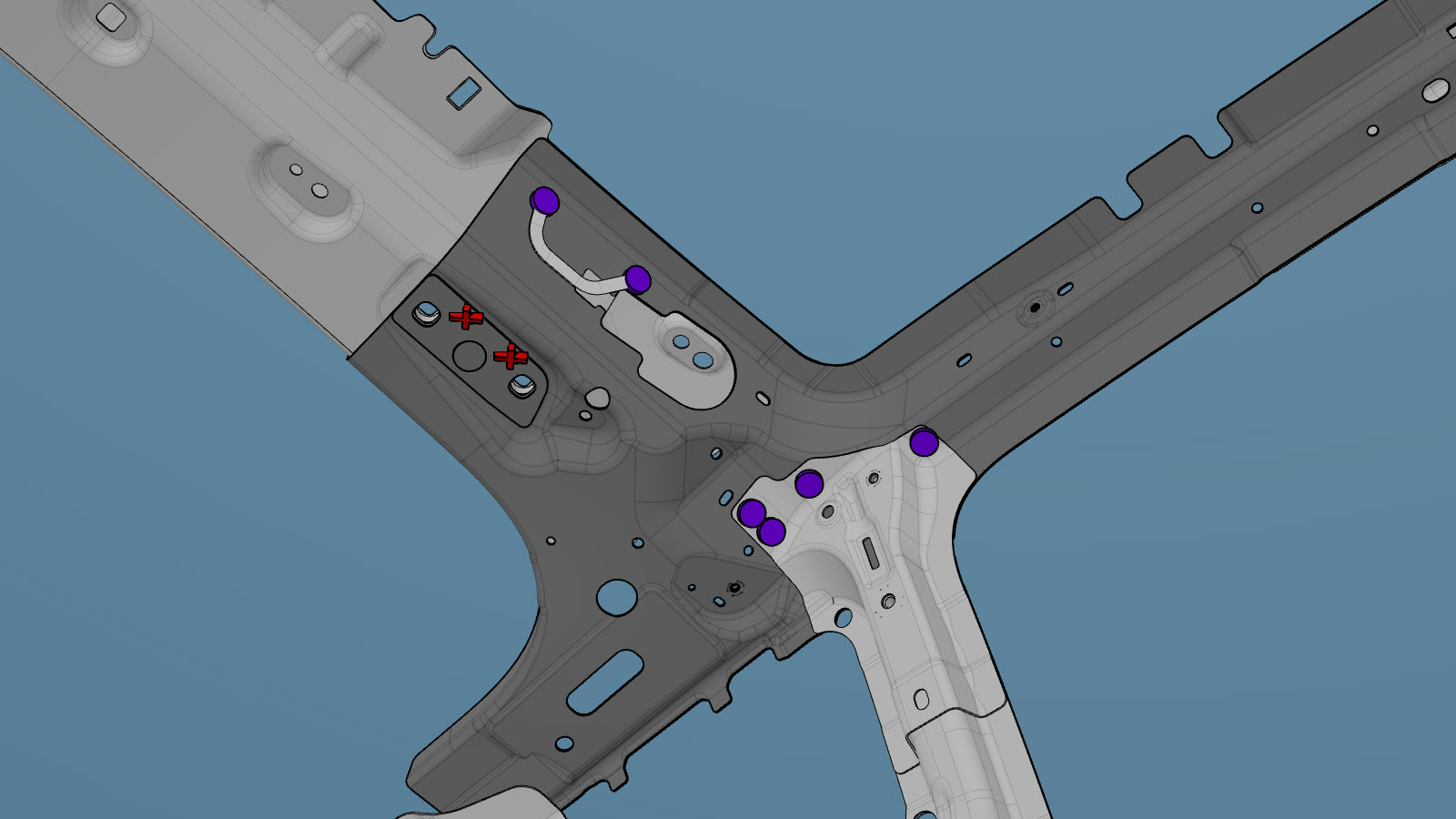

Prepare for installation.
- Reference Line/Point

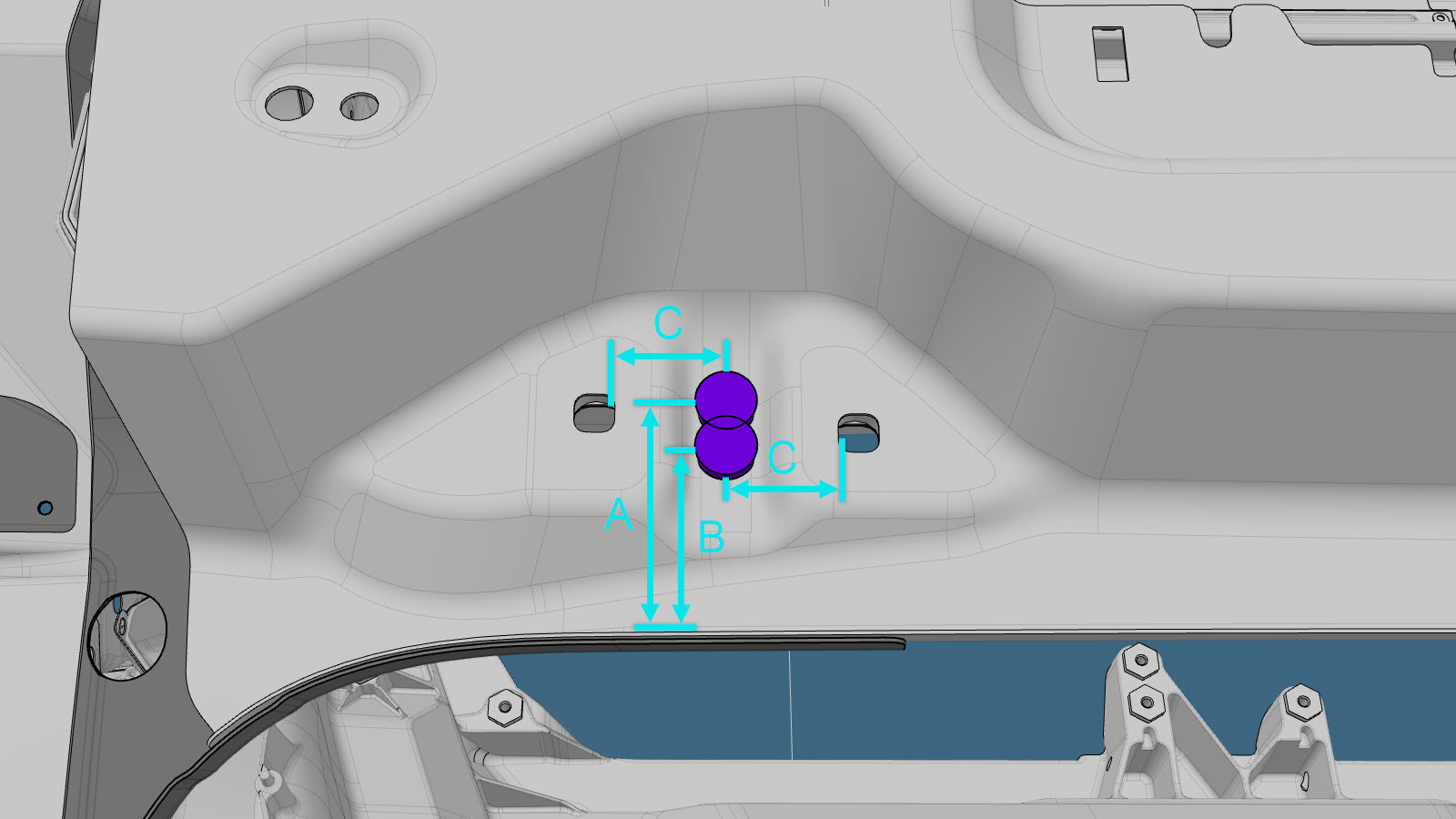

- or Structural Bulb Rivets, 6.5 mm A = 77 mm B = 62 mm C = 35 mm
Prepare for installation.

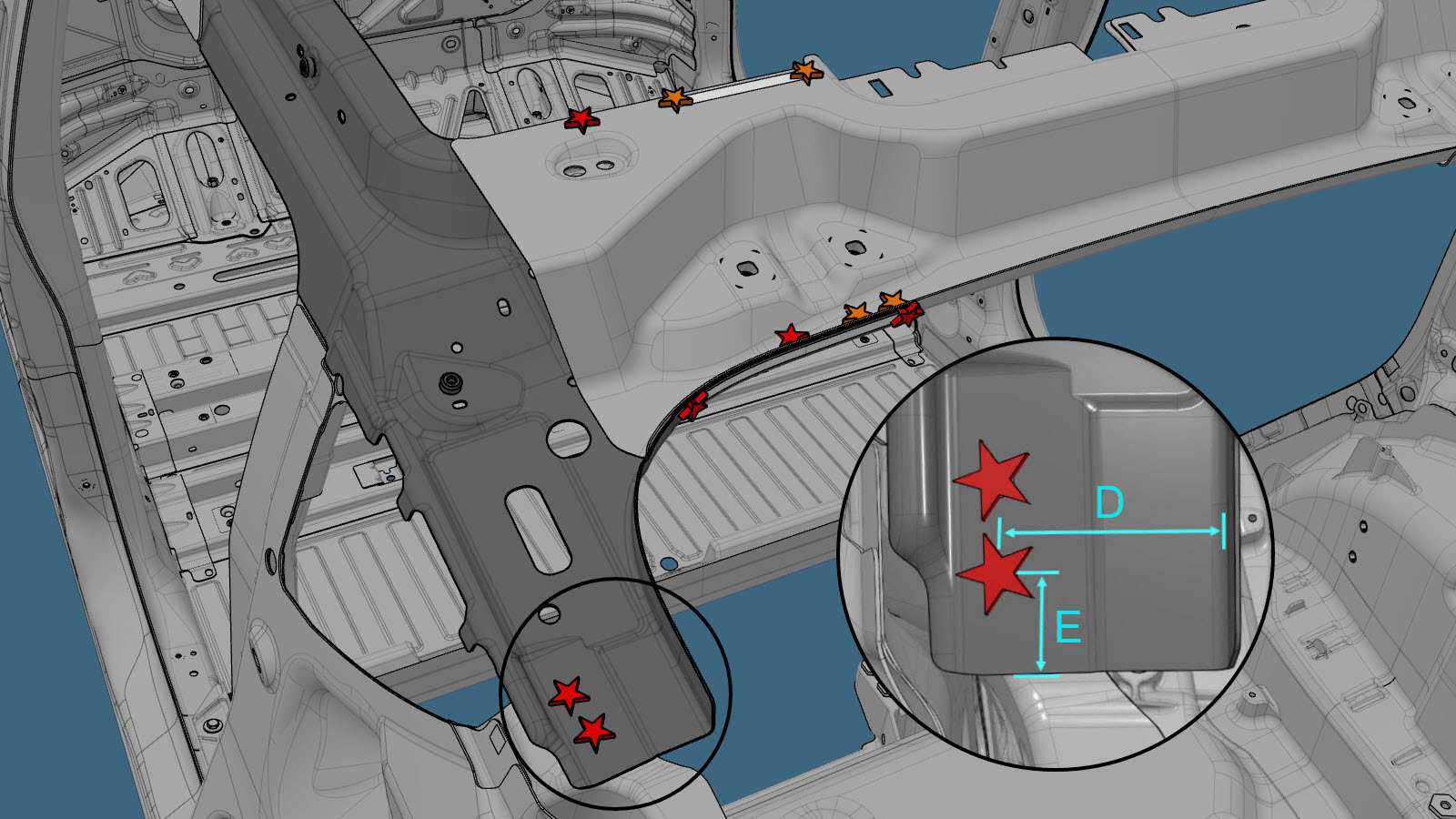

- Reference Line/Point
- or Flow Form Rivets, S18 D = 66 mm E = 30 mm
- or Flow Form Rivets, S28
Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
Install the new component or components.
Install the Coat Hook Clip Bracket.
Install the Roof Rail Extension.
When installing the Body Side Outer, install the fasteners indicated.
- or Flow Form Rivets, S28
- or Flow Form Rivets, S58
Perform any necessary post-repair operations.
