Toeboard Outer
Correction code:
10101000802
NOTE:
Unless explicitly stated in the procedure, the above
correction code includes all Collision Repair work required
to perform this procedure, including the linked Collision
Repair procedures. Do not stack Collision Repair
correction codes unless explicitly told to do
so. Add any associated mechanical procedures
needed to perform this procedure.
Procedure in Development
Repair Information
- Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
- This procedure can be completed without using a frame bench.
Parts List
| Quantity | Description | Image / Notes |
|---|---|---|

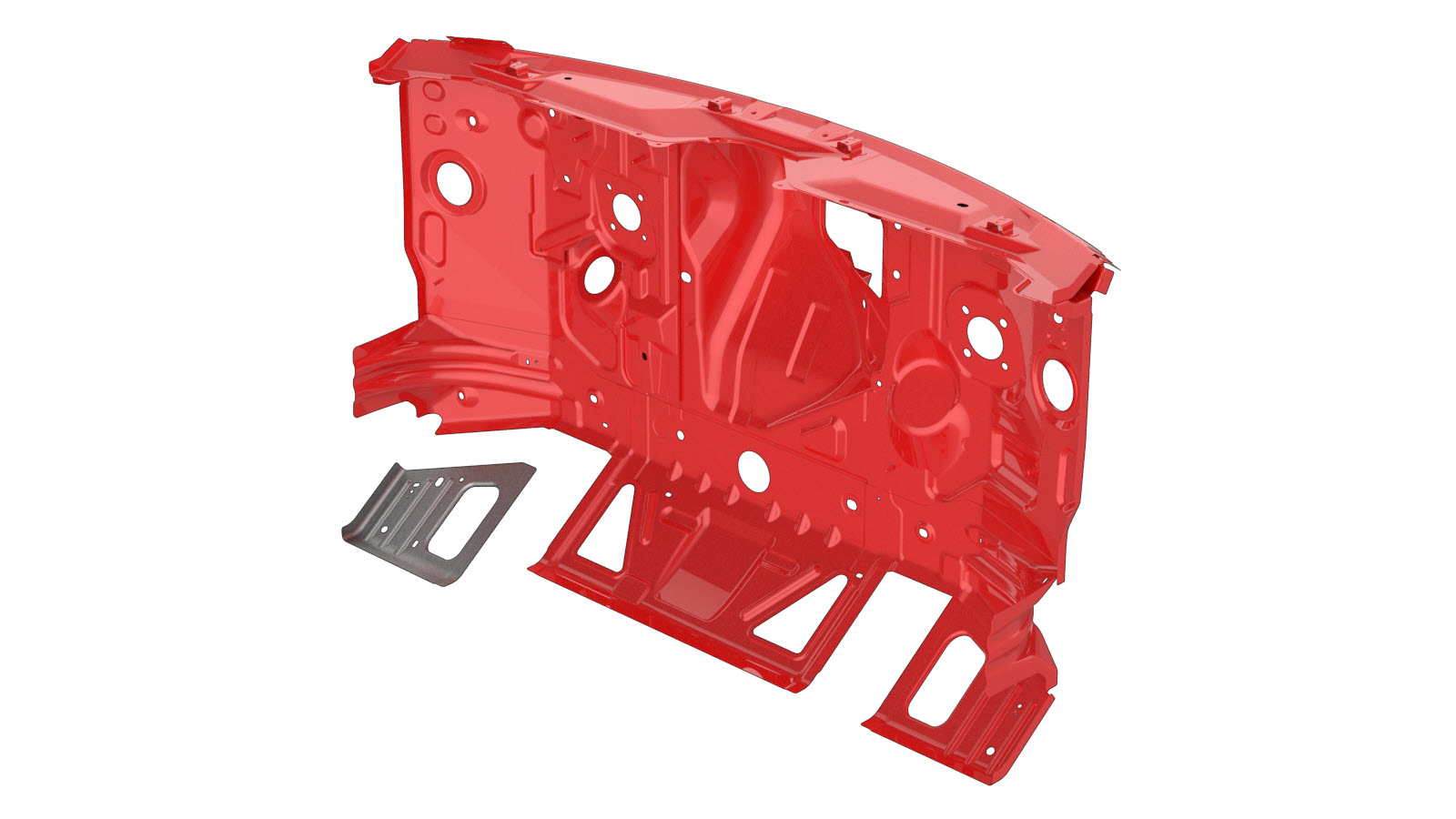

| 1 | ASSEMBLY - DASH WITH COWL LOWER AND TOEBOARD (Dash Reinforcement Assembly with Cowl Lower and Toeboard) | |
| 13 | High Strength Structural Rivet, 6.5 mm | |
| 7 | Countersunk Rivet, 4.8 mm Long |
When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.
Repair Procedure
-

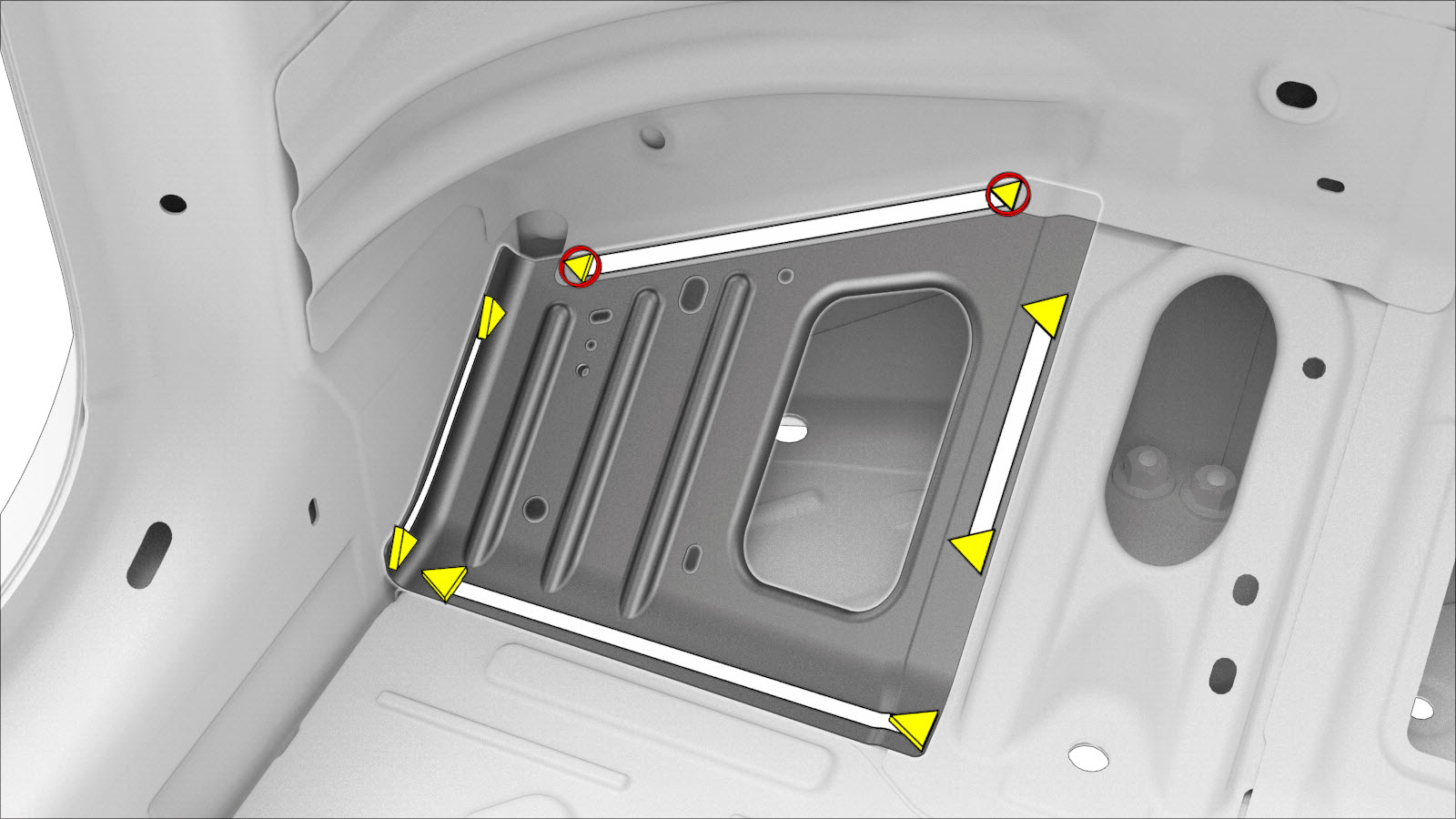

Remove the original component.
- or Factory Spot Welds
-

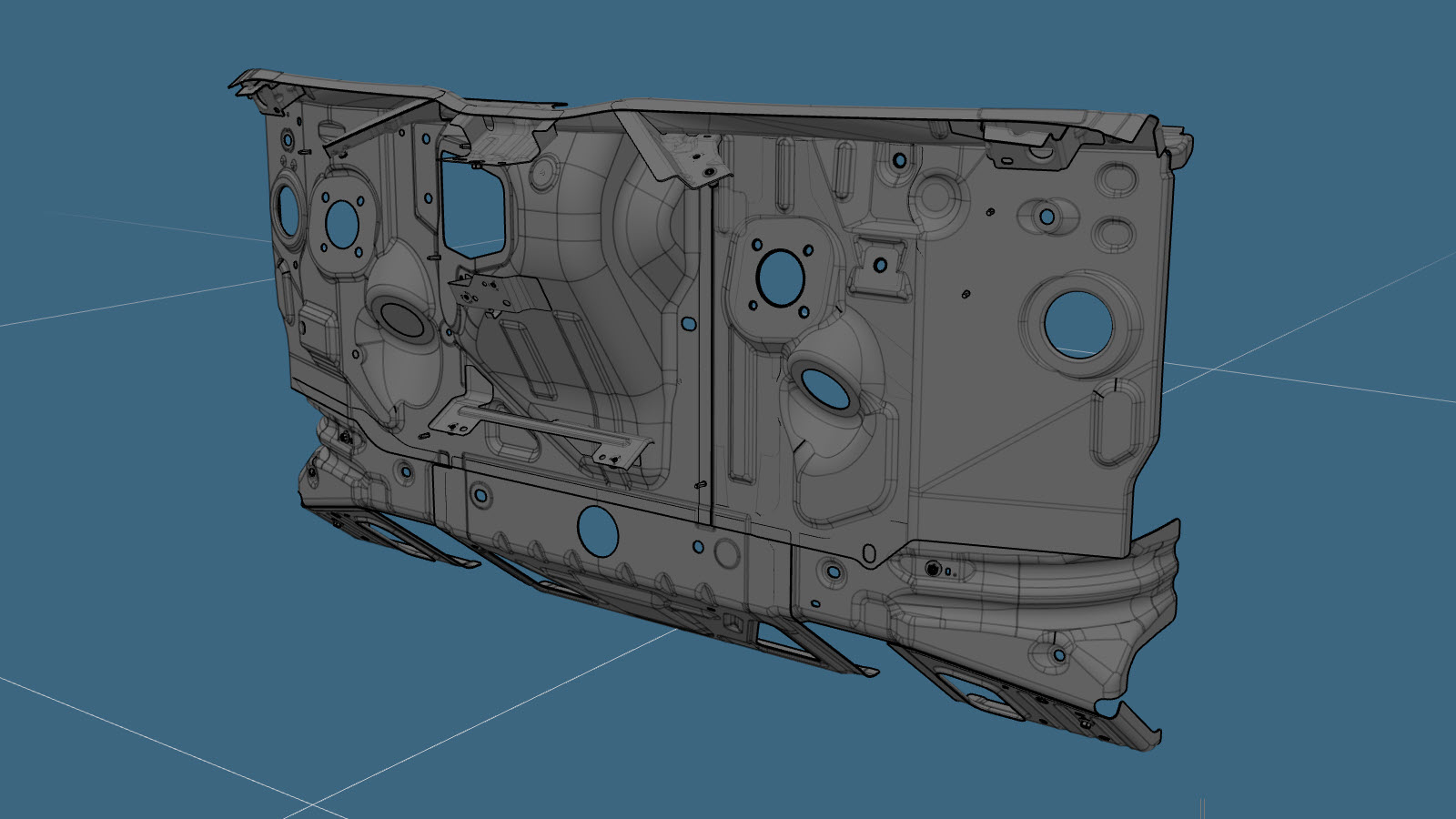

Remove the Toeboard Outer from the ASY - DASH AND COWL COMPLETE service
part.
- Prepare for installation.
- Prepare for installation.
- Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
- Install the new component or components.
- Perform any necessary post-repair operations.
