前围侧总成

Repair Information

Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
Properly mount the vehicle on a frame bench when performing this procedure.

Parts List


Quantity	Description	Image / Notes
1	MDLX, ASSY, COWL SIDE（前围侧总成）
9	Structural Bulb Rivet, 6.5 mm
16	Structural Rivet, 6.5 mm Medium
2	SPR，5x4.5
2	SPR，5x5

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

拆卸A 柱内件。
Remove the original component.

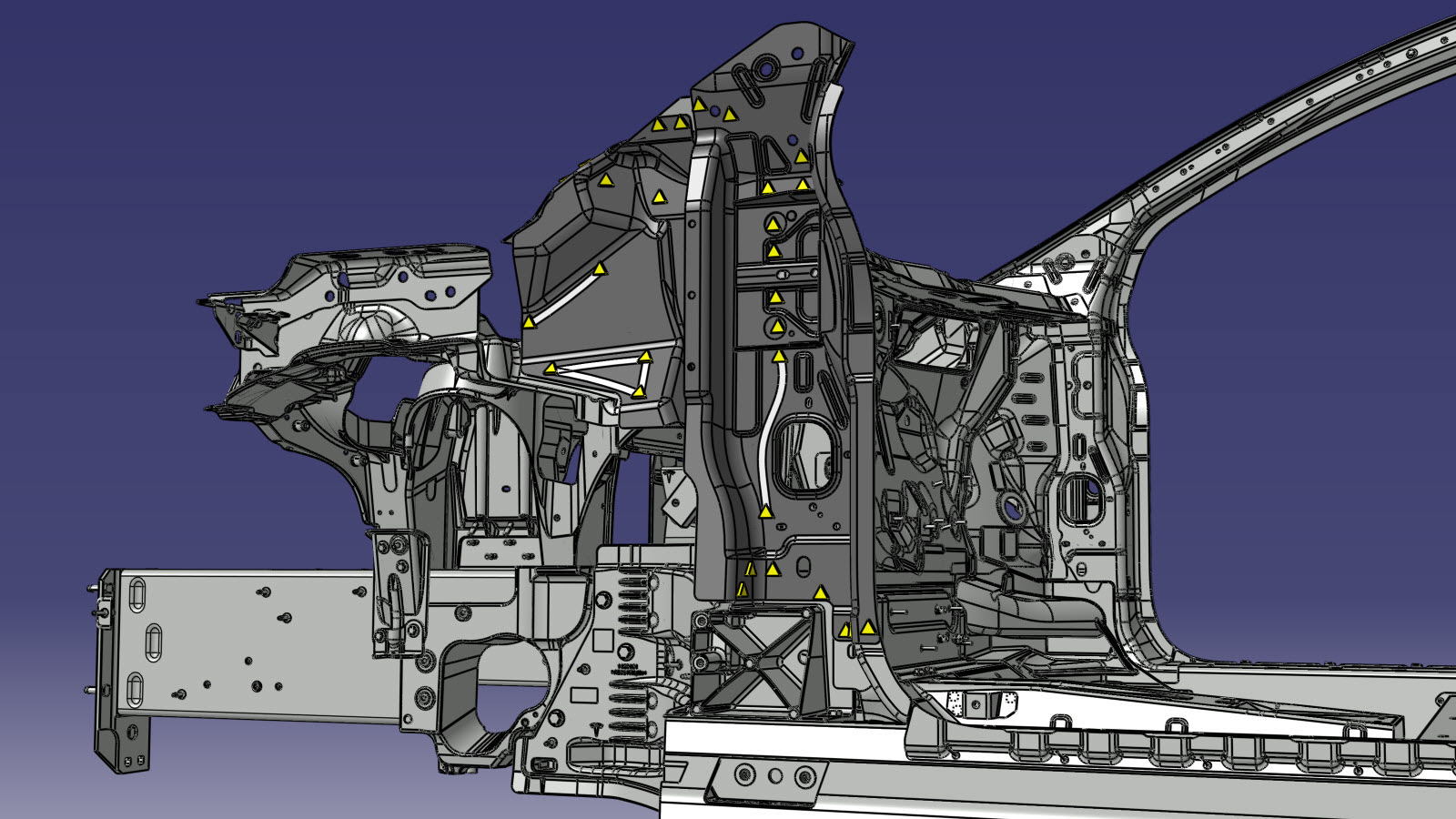

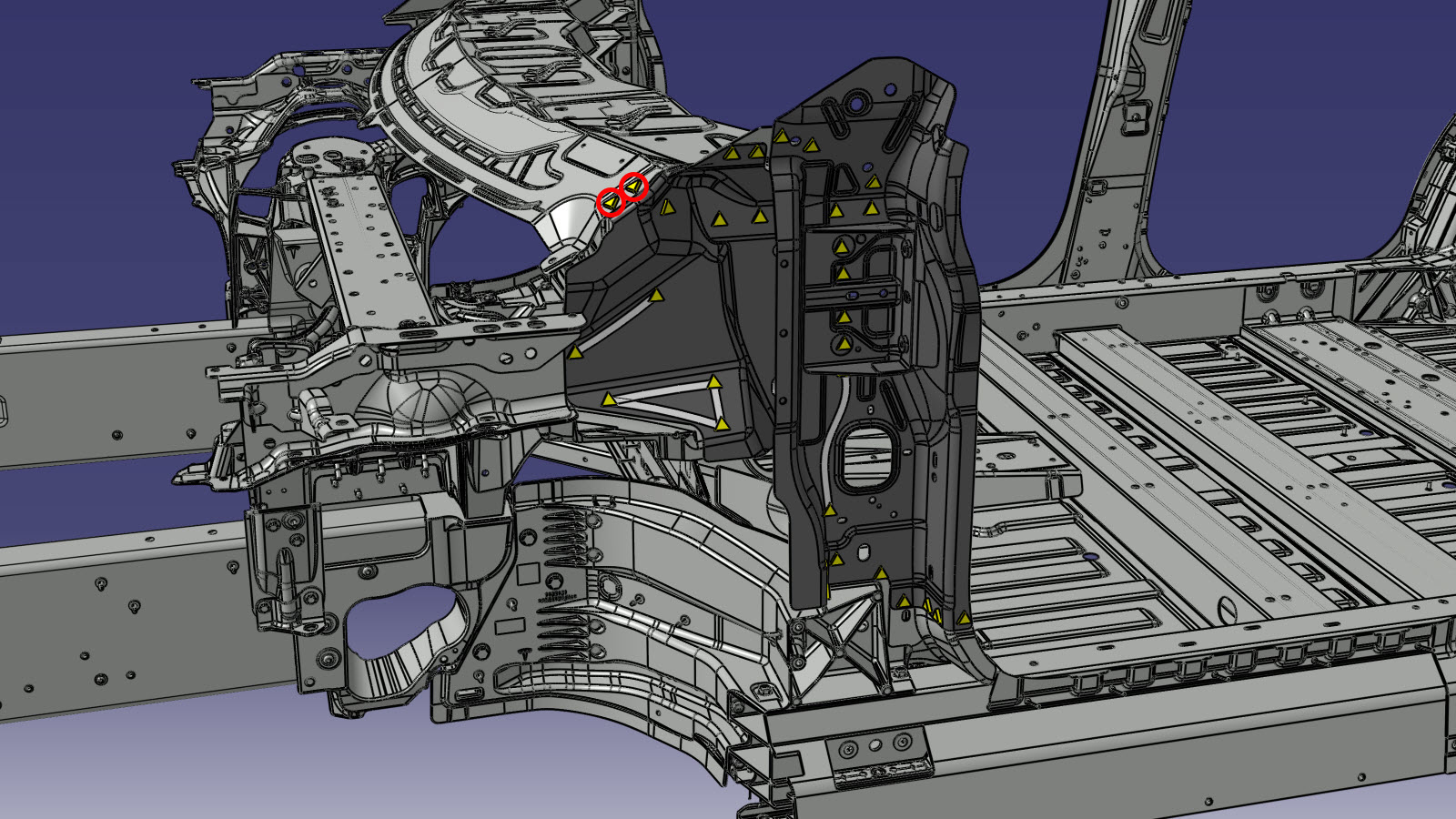

or Factory Spot Welds
or Drill through factory spot welds
注
When drilling out spot welds, use a drill bit that creates a hole correctly sized for the fastener that will replace the spot weld.
从新的前围侧总成维修零件上拆下门槛连接器。
Prepare for installation.

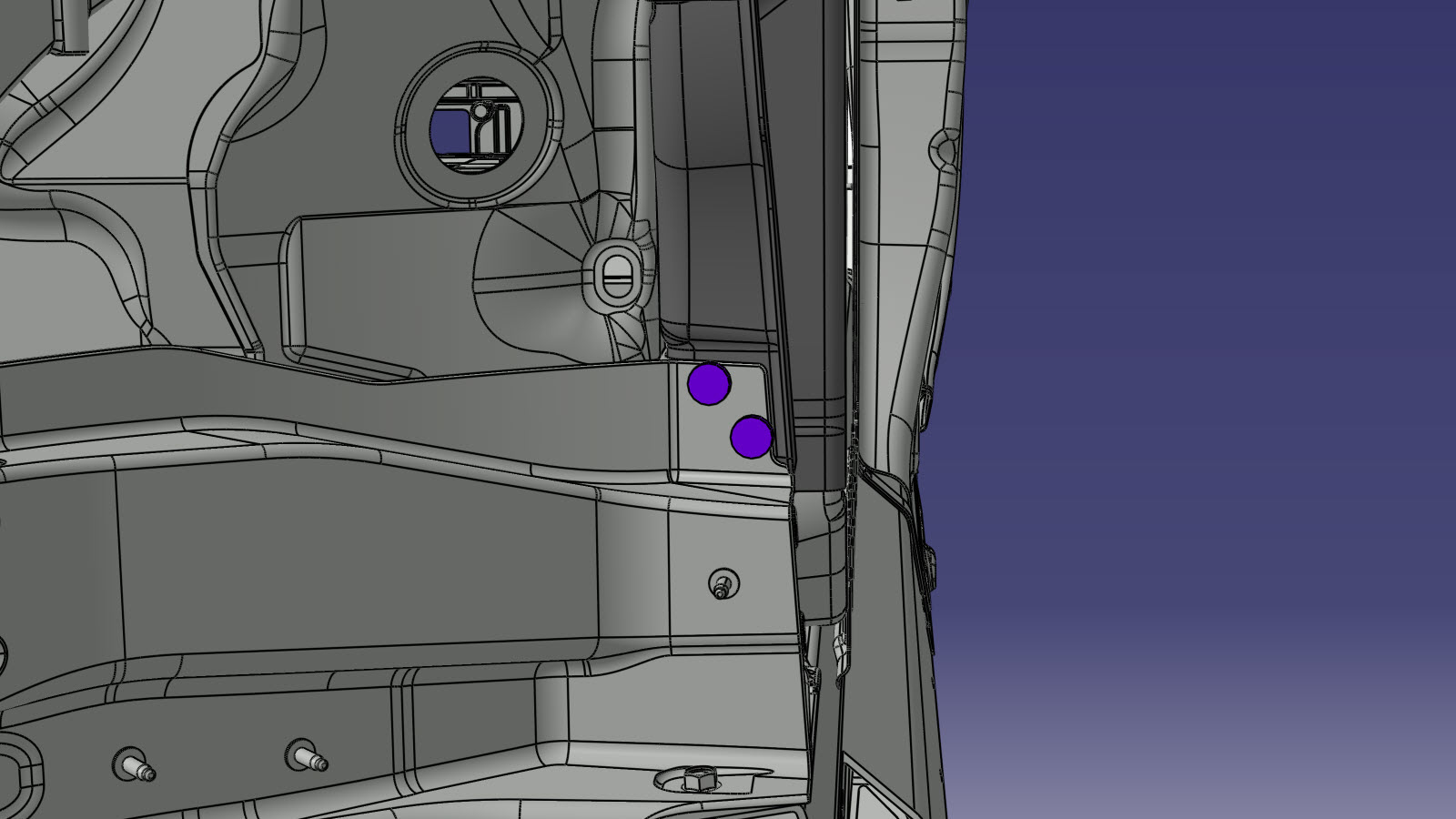

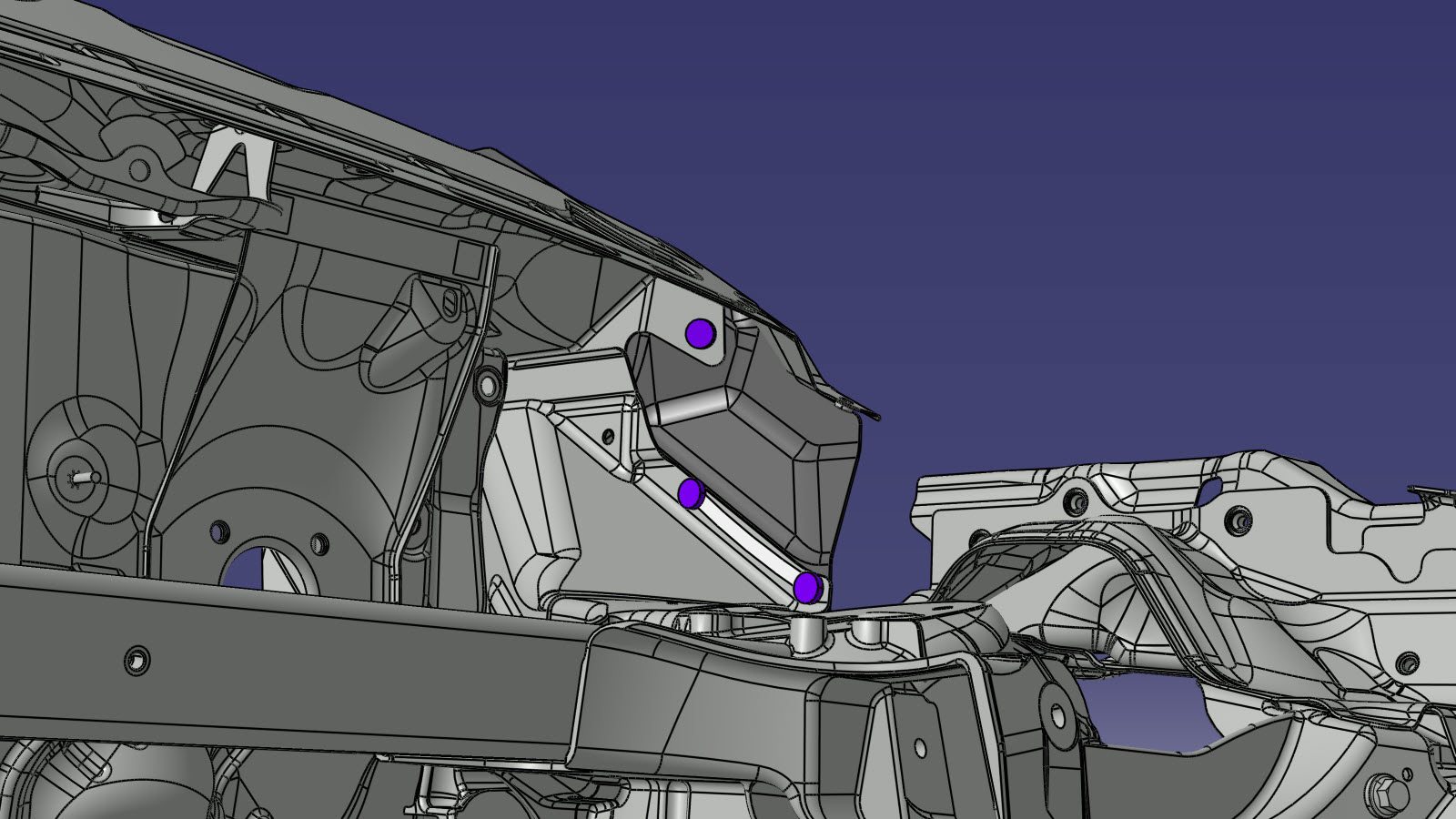

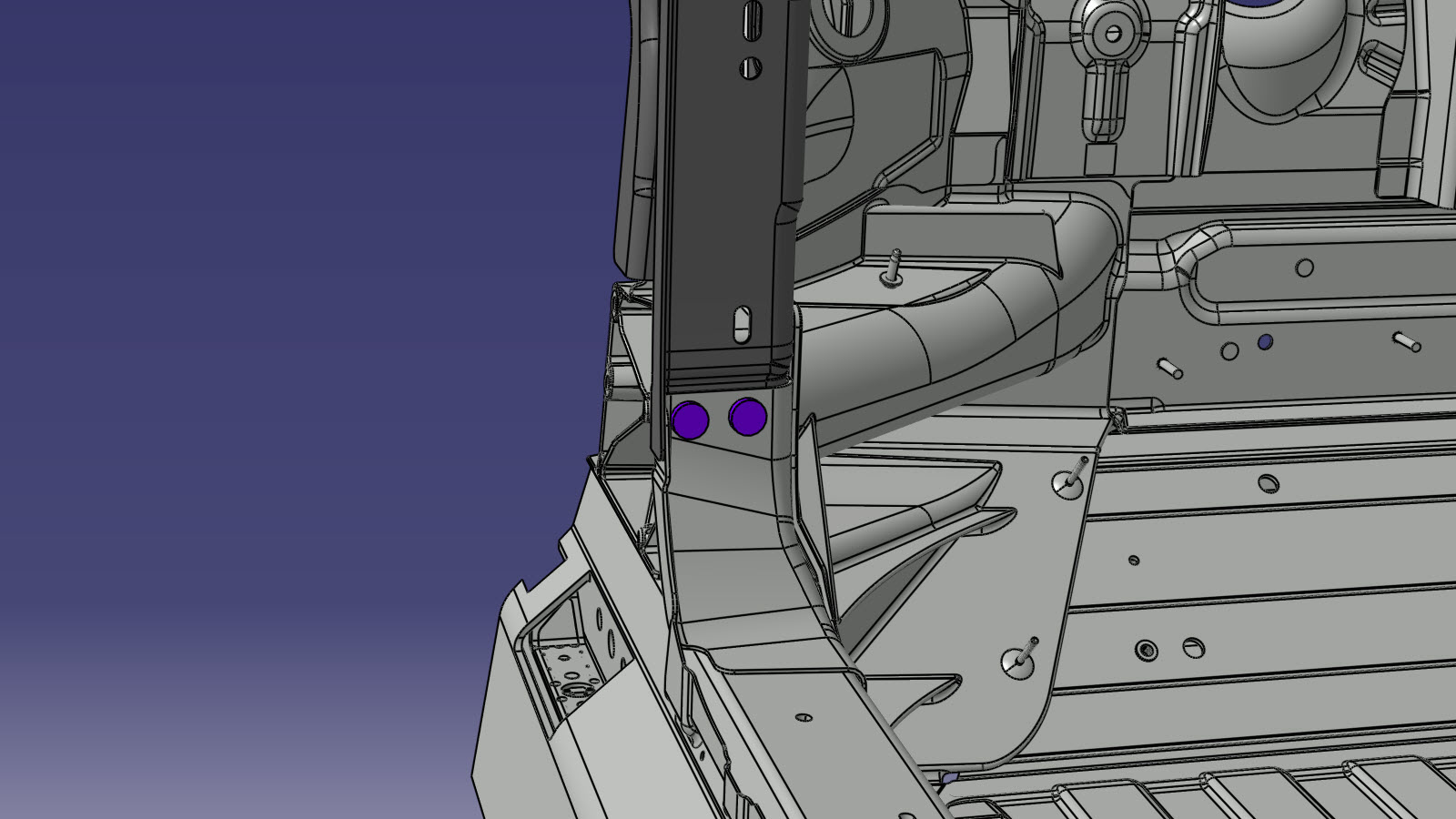

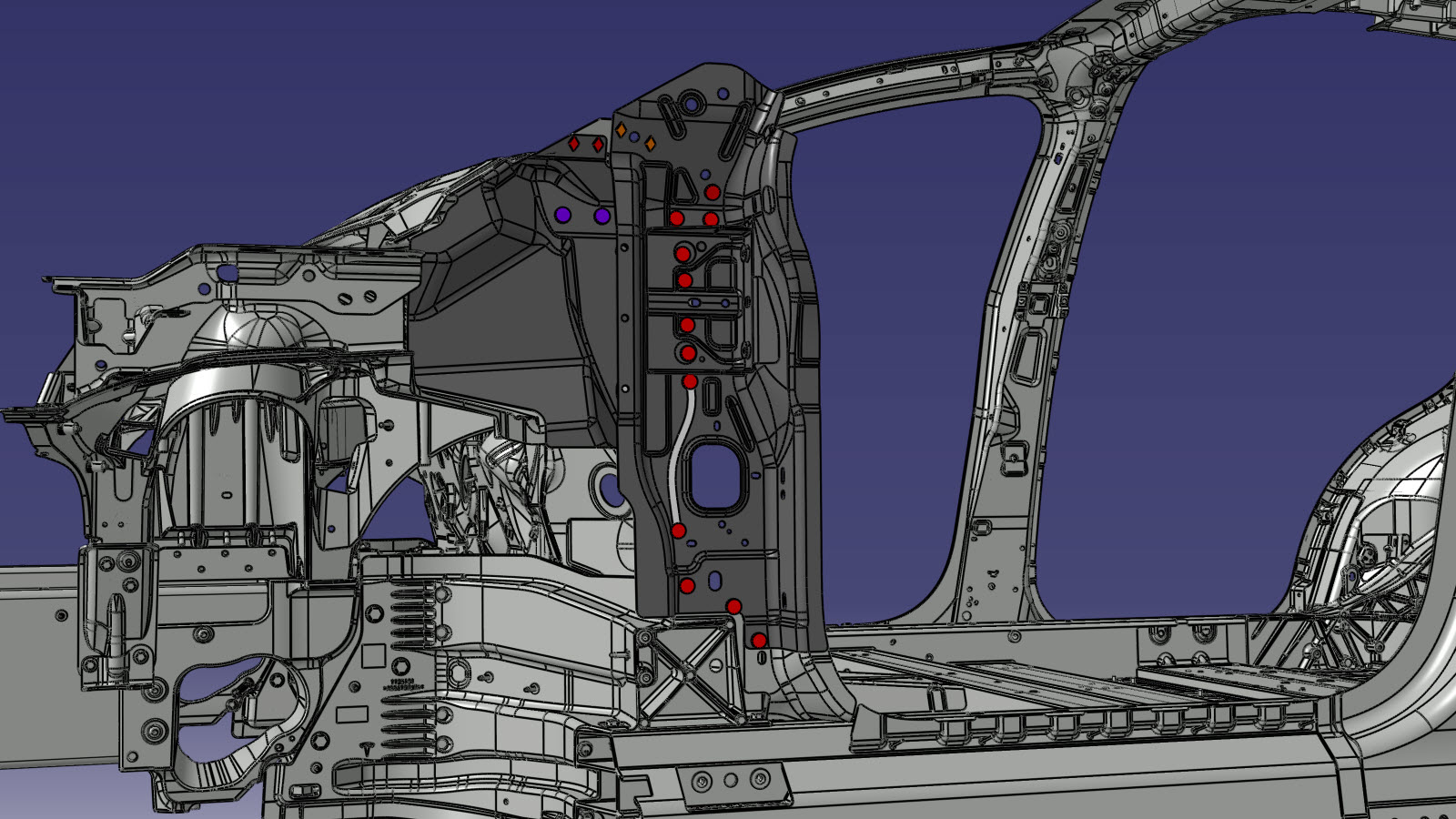

or Structural Bulb Rivets, 6.5 mm

or Structural Rivets, 6.5 mm Medium

or SPRs, 5x4.5
注
安装此 SPR 需要使用以下 Tesla SPR 模具：SM 085 0125。

or SPRs, 5x5
注
安装此 SPR 需要使用以下 Tesla SPR 模具：KA 075 2113。
Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
Install the new component or components.
安装A 柱内件。
Perform any necessary post-repair operations.
