A 柱内件
Repair Information
- Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
- Properly mount the vehicle on a frame bench when performing this procedure.
Parts List
| Quantity | Description | Image / Notes |
|---|---|---|
| 1 | ASY - A-PILLAR INR（A 柱内件） |
|
| 3 |
SPR，5x6 H4
|
|
| 1 |
Bolt, hex-head
，M6x1.00x18 |
Tesla 零件号 1006529-00-A。 |
When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.
Repair Procedure
-
拆下车身侧外件的必要部分，露出要更换的底层组件。
-
拆卸A 柱加固件总成。
-
拆卸铰链柱内件。
-

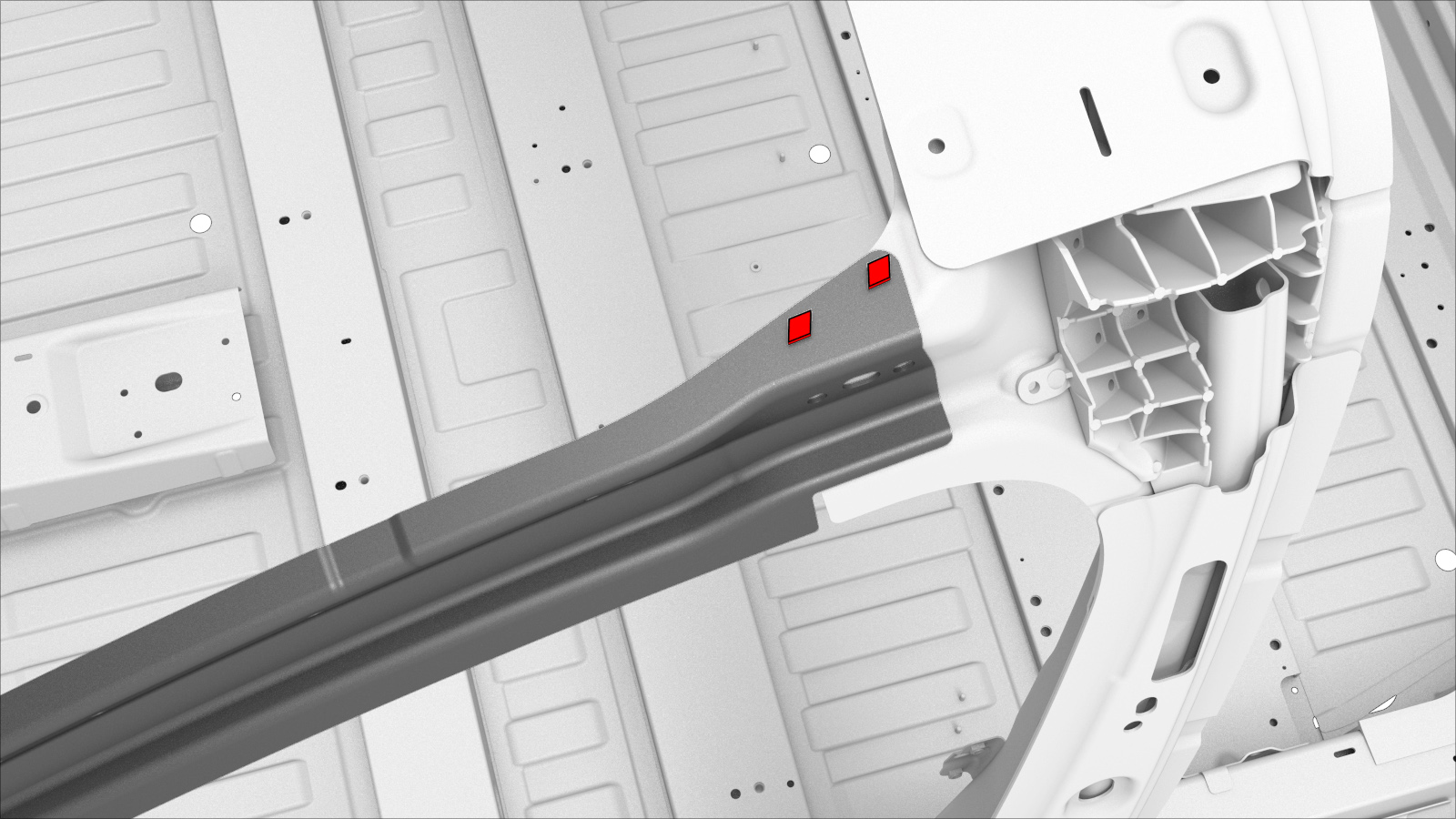

Remove the original component.
or
Factory SPRs
-
Prepare for installation.
or SPRs, 5x6 H4
- A = 7 毫米。
- B = 3 毫米。
- C = 6 毫米。
- D = 9 毫米。
- E = 7 毫米。
注安装此 SPR 需要使用以下 Tesla SPR 模具：FM 090 2120。
- Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
-
Install the new component or components.
将螺栓拧紧至 10 Nm。
-
安装铰链柱内件。
-
安装A 柱加固件总成。
-
安装先前为更换组件而从 车身侧外件 拆下的部分。
- Perform any necessary post-repair operations.
