2024-07-17

后保险杠板垫片

Parts List

Quantity Description Image / Notes

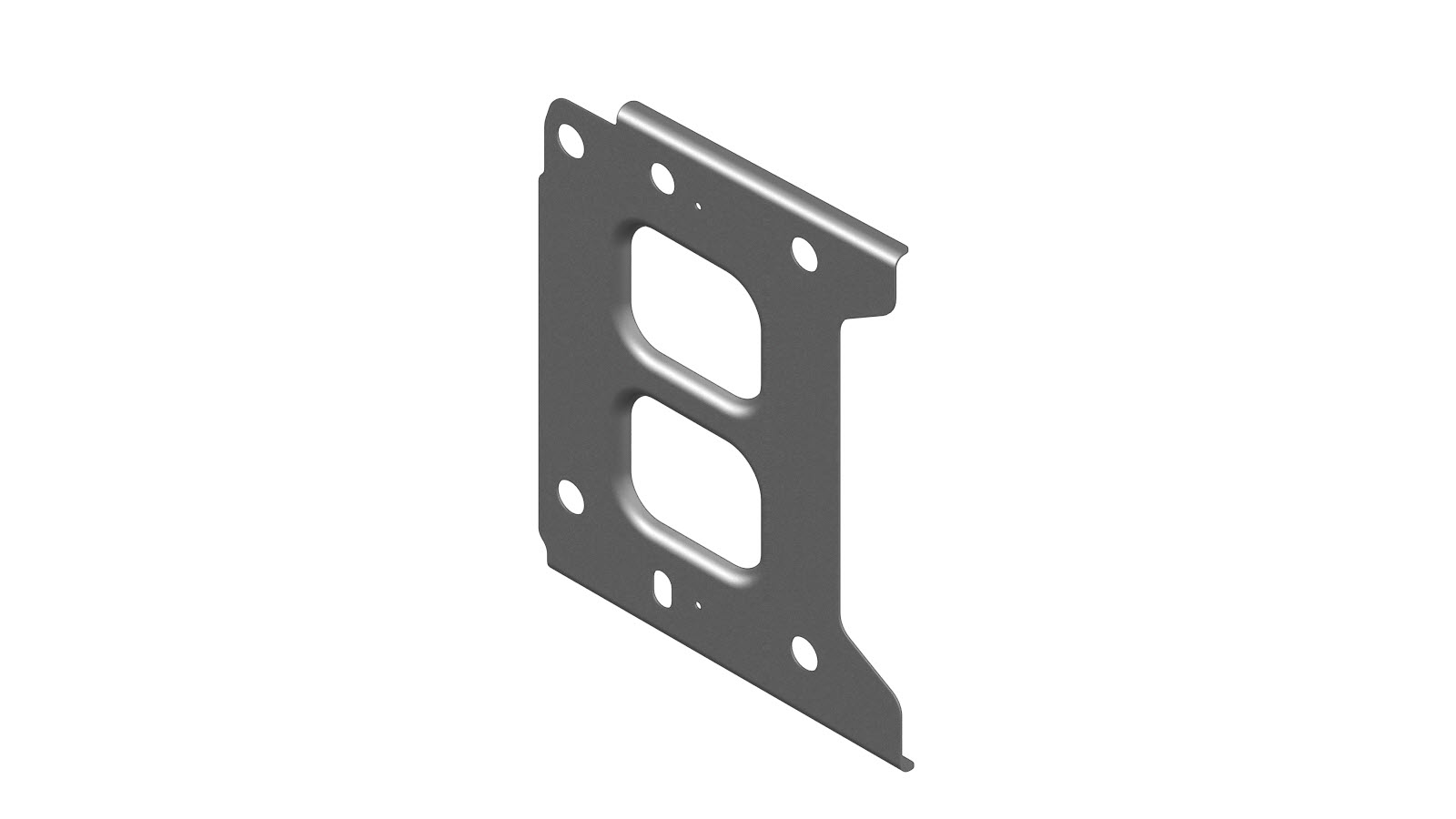

1 SHIM-MX BUMPER RR(后保险杠板垫片)
2 SPR,5x4 Tesla 零件号 1026936-00-A。

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

  1. 拆卸后面板总成
  2. Remove the original component.
  3. Prepare for installation.

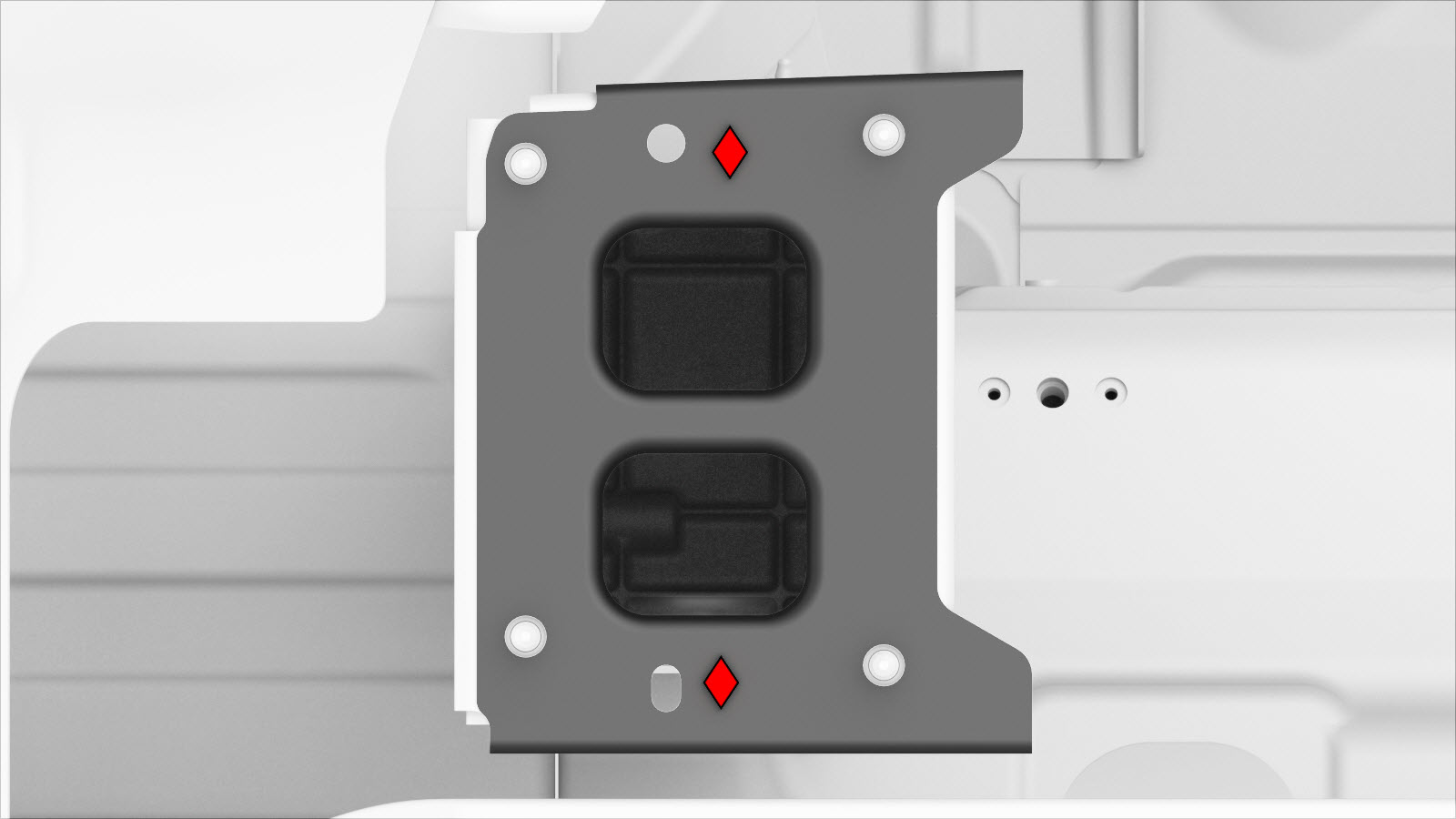

    or SPRs, 5x4

    Informational PurposesAn informational icon, calling your attention

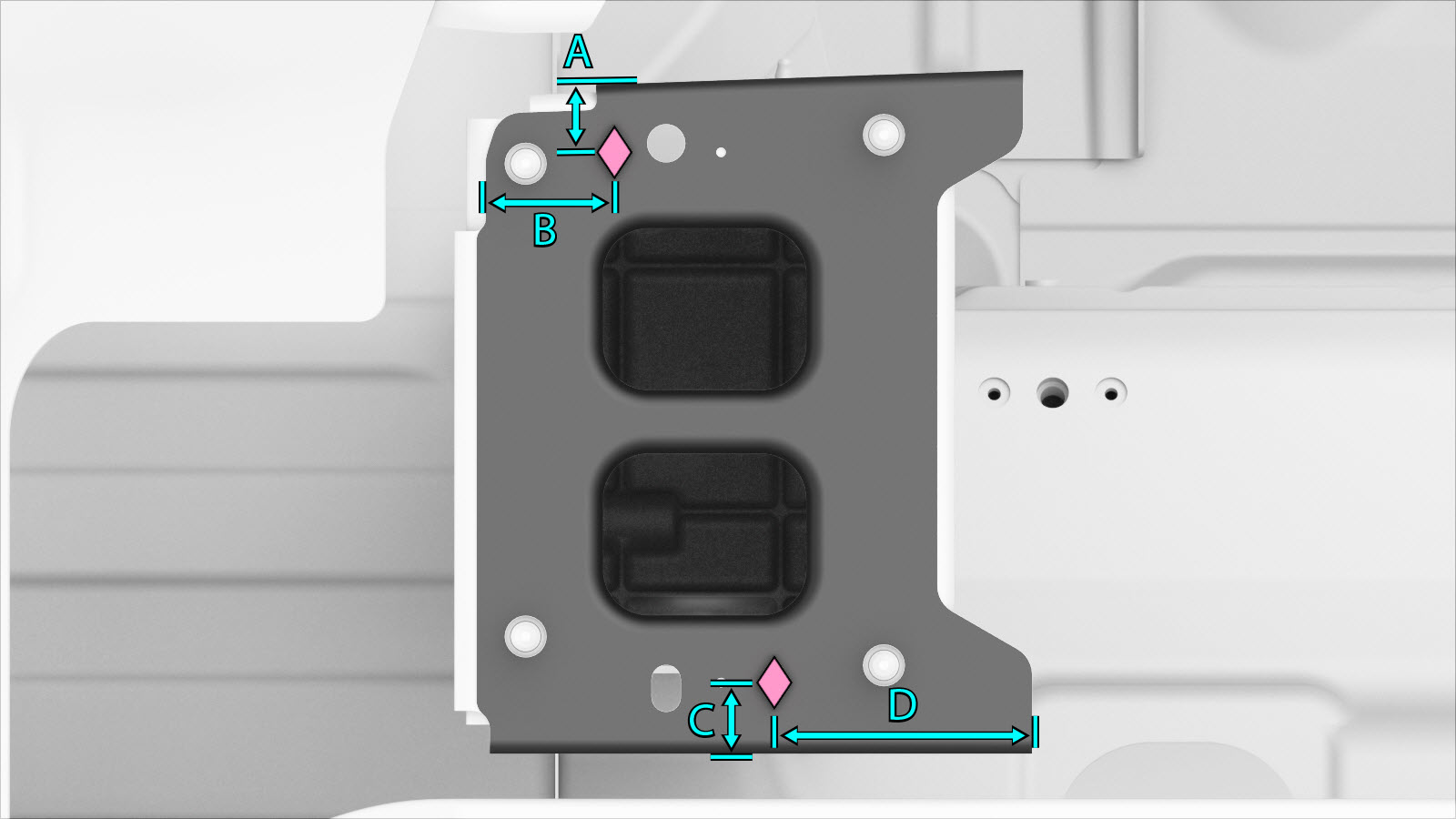

    安装此 SPR 需要使用以下 Tesla SPR 模具:FM 090 2120
    • A = 23 mm
    • B = 44 毫米
    • C = 24 毫米
    • D = 87 毫米
  4. Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
  5. Install the new component or components.
  6. 安装后面板总成
  7. Perform any necessary post-repair operations.
