2024-07-17

铰链柱内件

Parts List

Quantity Description Image / Notes
1 ASY, HINGE PILLAR INR(铰链柱内件)
8 Structural Rivet, 6.5 mm Medium
1 SPR,5x4.5
2 SPR,5x7
1

Bolt, hex-head ,M6x1.00x18

Tesla 零件号 1006529-00-A。

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

  1. 拆卸A 柱加固件总成
  2. 拆卸铰链柱加固件
  3. 拆卸A 柱上部外侧下方支架

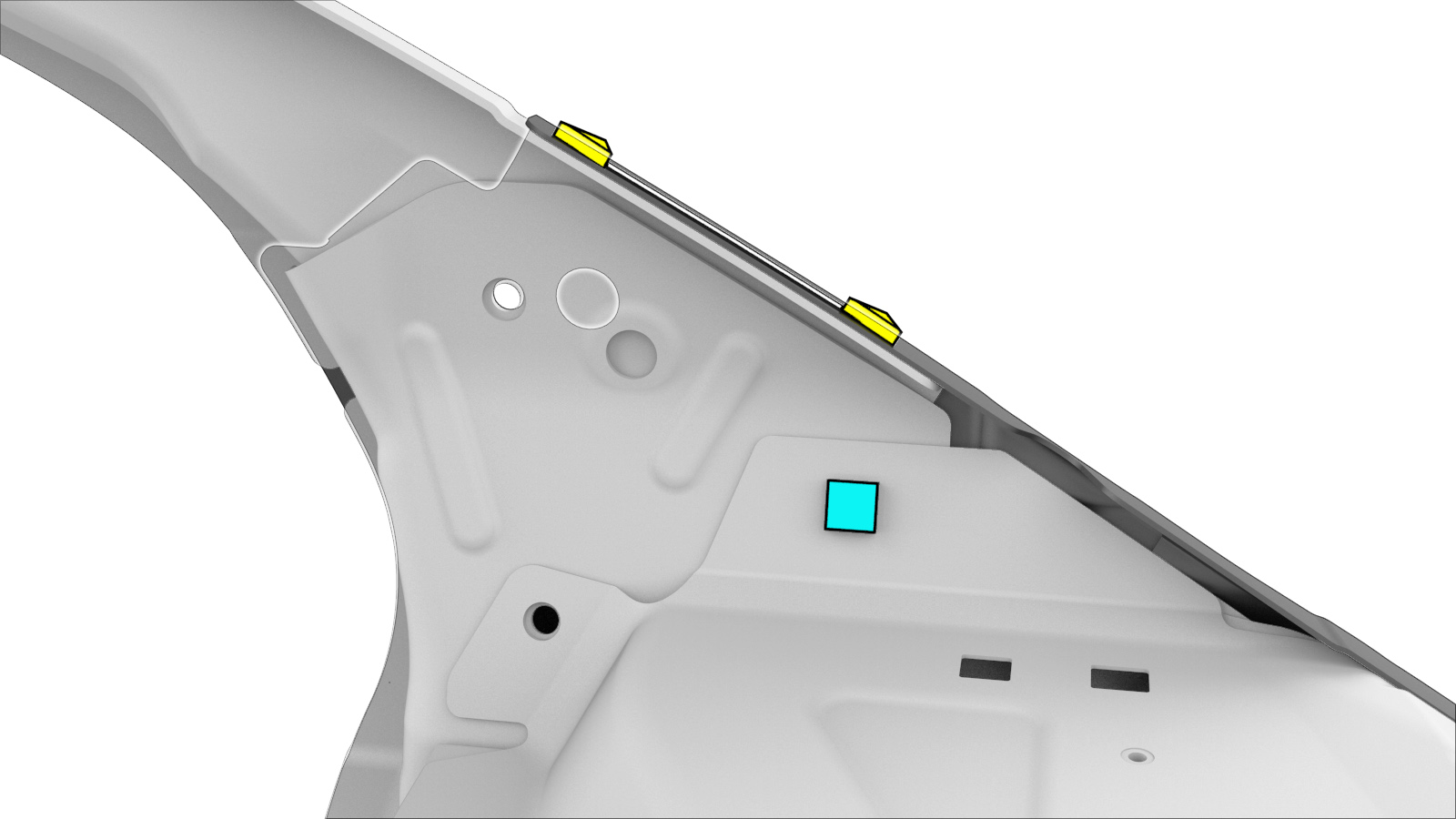

  4. Remove the original component.
    or Factory Spot Welds

    or Bolts, hex-head

  5. Prepare for installation.

    or Structural Rivets, 6.5 mm Medium

    or SPRs, 5x4.5
    Informational PurposesAn informational icon, calling your attention
    安装此 SPR 需要使用以下 Tesla SPR 模具:SM 085 0125
    or SPRs, 5x7
    Informational PurposesAn informational icon, calling your attention
    安装此 SPR 需要使用以下 Tesla SPR 模具:SM 085 0125

    or Bolts, hex-head

  6. Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
  7. 放置新组件并临时安装螺栓,如图所示,以便在结构型粘合剂固化时将组件固定到位。
    Informational PurposesAn informational icon, calling your attention
    结构型粘合剂固化后,拆下螺栓。
  8. Install the new component or components.
    将螺栓拧紧至 10 Nm。
  9. 安装铰链柱加固件
  10. 安装A 柱加固件总成
  11. 安装A 柱上部外侧下方支架
  12. Perform any necessary post-repair operations.
