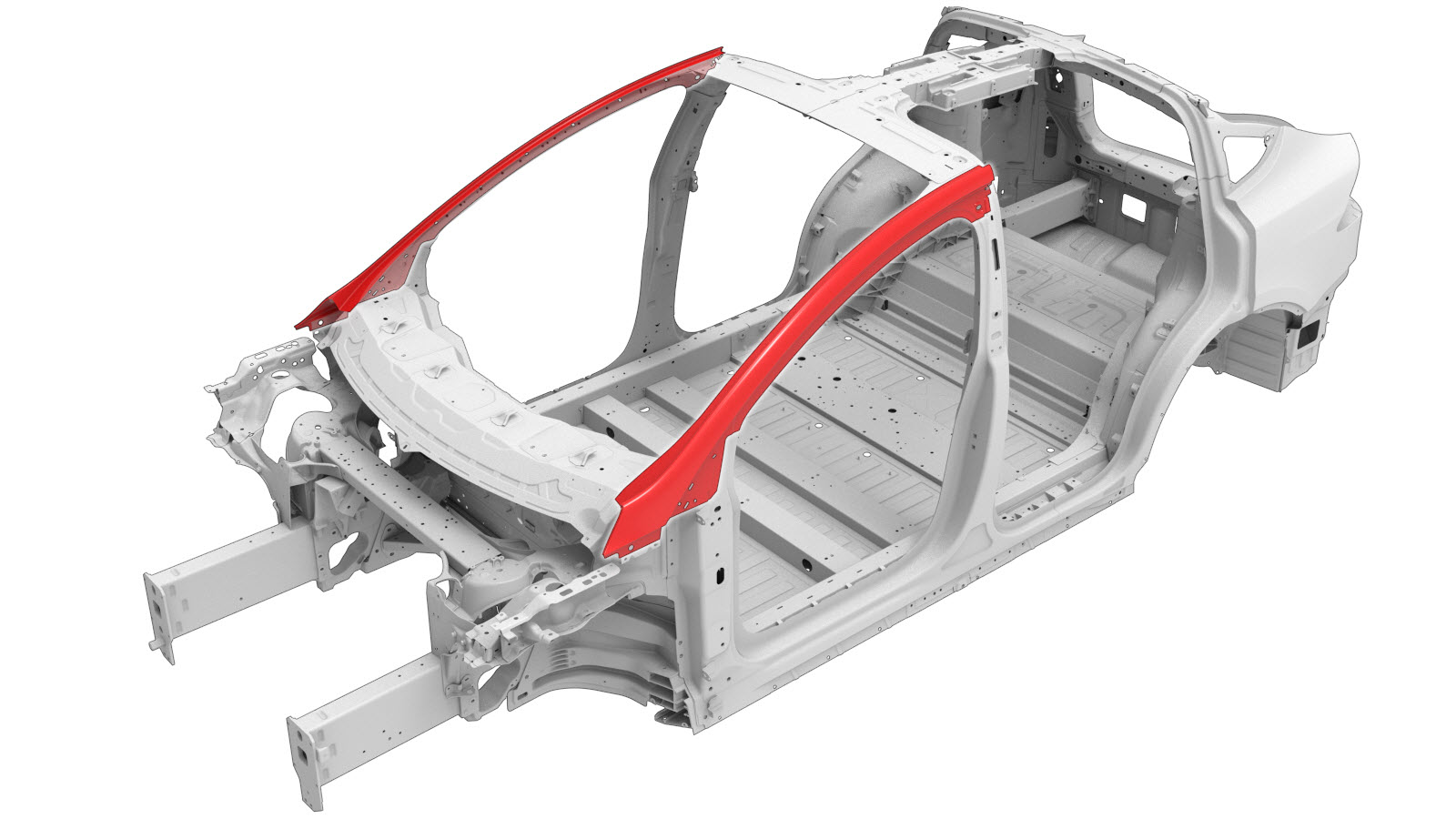

A 柱外件

使用本文档

本文档包含两大部分:
  1. A 柱外件区块说明 说明在需要时如何切割 A 柱外件以及切割位置,以便于更换 A 柱外件损坏区域或操作车辆结构底部零件。参考区块说明判定在维修时根据需要成功切割 A 柱外件的位置。
    Informational PurposesAn informational icon, calling your attention
    对螺栓孔位置的测量应以参考孔洞的中心为起点,除非区块说明中有不同的表述。
  2. 本文档的“维修程序”部分包含有关更换整个 A 柱外件的必要信息。如欲更换 A 柱外件(非整个 A 柱外件)的区块,请使用各步骤的相应内容来判断需要哪些零件、紧固件和步骤,以便完成维修。

Parts List

Quantity Description Image / Notes
更换整个 A 柱外件:1

更换 A 柱外件的一个区块:2

ASY, A-PILLAR OTR, SVC(A 柱外件)
2 Countersunk Rivet, 4.8 mm Short
5 Rivet, 4.8 mm
4 Flow Form Rivet S28
13 Flow Form Rivet S38

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

A 柱外件区块说明

A 柱外件分割
A 柱外件(完整) A 柱外件区块

或者,也可以不更换整个 A 柱外件,而是参考本文档所述的切割线,使用完整 A 柱外件的某个部分来更换上部或下部区块。



A 柱外件区块说明

Cut Line

Reference Line/Point

  • A = 95 mm.
  • B = 94 mm.
Informational PurposesAn informational icon, calling your attention
如果对接接头后面有空间,请制作并安装一块衬垫板

or Aluminum Plug Welds

GMA Weld

Repair Procedure

  1. 更换 A 柱外件的一个区块:A 柱外件区块说明 中所述的方式标记切割线。
  2. Remove the original component.

    or Factory Spot Welds

    or Factory SPRs

  3. 更换 A 柱外件的一个区块:按照A 柱外件区块说明中所述,制作并安装衬垫板
  4. Prepare for installation.
    Informational PurposesAn informational icon, calling your attention
    A red X indicates a location where a factory-installed fastener is not being replaced.

    or Flow Form Rivets, S28

    or Flow Form Rivets, S38
    • A = 9 毫米。
    or Rivets, 4.8 mm
    • B = 60 毫米。

    or Countersunk Rivets, 4.8 mm Short

  5. Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
  6. Install the new component or components.
  7. 更换 A 柱外件的一个区块: GMA 焊接区块之间的对接接头
    GMA Weld
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Failure to follow all welding safety precautions, including the use of personal protective equipment, could result in serious injury or property damage. Only technicians who have completed Tesla’s approved welding training are authorized to weld structural components on Tesla vehicles.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    To maintain vehicle crash integrity, use only approved welding wire and an approved GMA welder to perform GMA welding on Tesla vehicles. Refer to 已批准的气体保护金属极弧 (GMA) 焊接器和焊丝 for information on approved GMA welders and welding wire.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    警告
    Do not weld on a Tesla vehicle before performing the Vehicle Electrical Isolation Procedure (refer to the vehicle-specific Service Manual for more information on the Vehicle Electrical Isolation Procedure). Welding on a Tesla vehicle with an energized high or low voltage system might damage vehicle components.
    Informational PurposesAn informational icon, calling your attention
    Before GMA welding, a test weld using material of the same gauge and type should be performed to make sure that the welding equipment settings produce a satisfactory joint.
  8. Perform any necessary post-repair operations.
