包含 C 柱下部加长件的围板外壳（并非针对中国市场制造的车辆）

Parts List

Quantity Description Image / Notes
1 REAR QUARTER OUTER COMPLETE（围板外件整体）
12 Structural Bulb Rivet, 6.5 mm
23 Countersunk Rivet, 4.8 mm Short
1 Countersunk Rivet, 4.8 mm Long
14 Flow Form Rivet S08
9 Flow Form Rivet S18
7 Flow Form Rivet S28
3 Flow Form Rivet S38

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

  1. 将下列组件从维修零件中拆下，以制作新组件。
    • 1 - C 柱加固件
    • 2 - 后围外件上部加长件
    • 3 - 后车灯下部灯罩
    • 4 - 灯罩总成
    • 5 - 后围外件下部
  2. Remove the original component.

    or Factory Spot Welds

    or Drill through factory spot welds
    Informational PurposesAn informational icon, calling your attention
    注
    When drilling out spot welds, use a drill bit that creates a hole correctly sized for the fastener that will replace the spot weld.

    or Factory laser welds

  3. Prepare for installation.
    Informational PurposesAn informational icon, calling your attention
    注
    A red X indicates a location where a factory-installed fastener is not being replaced.

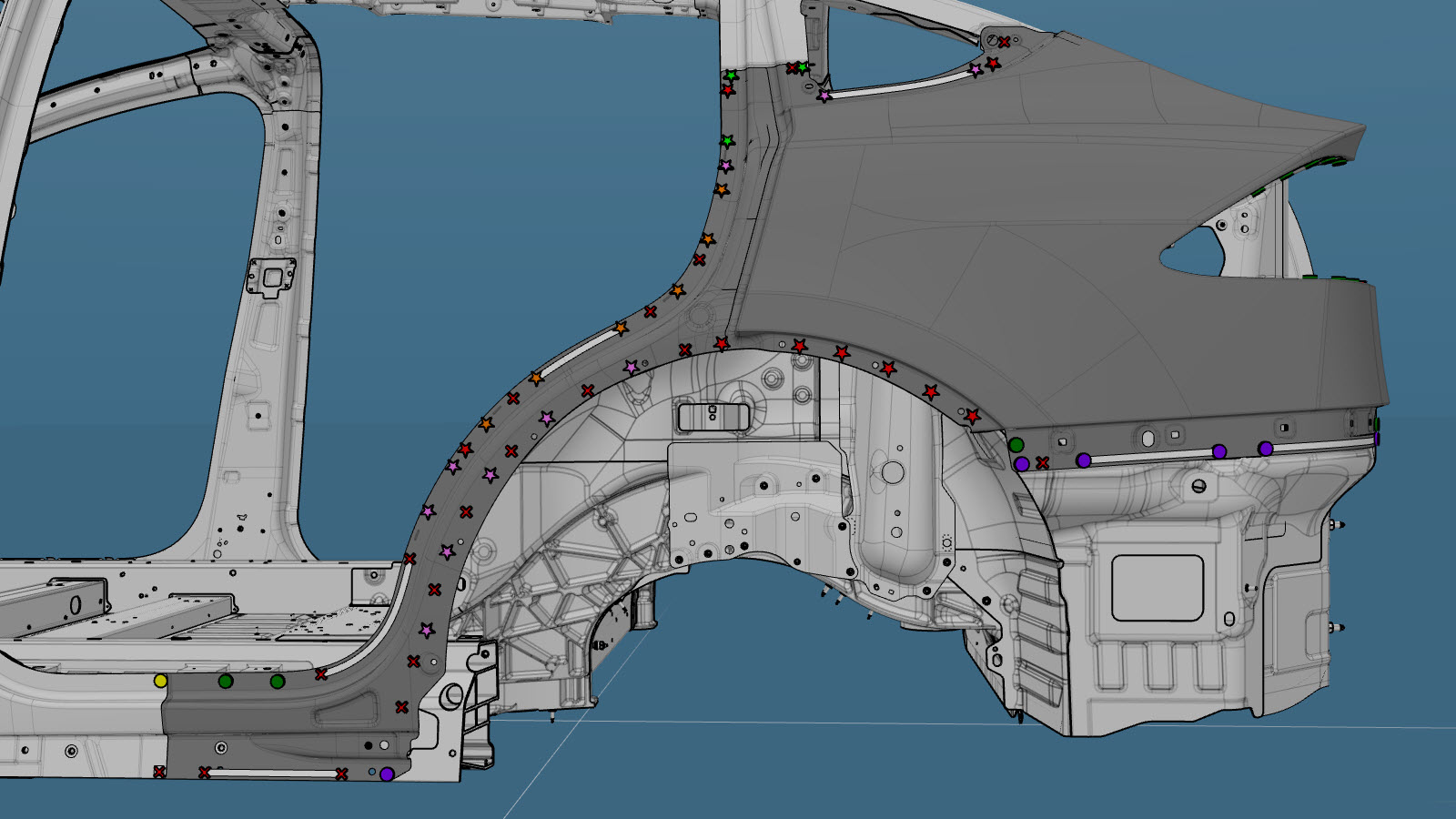

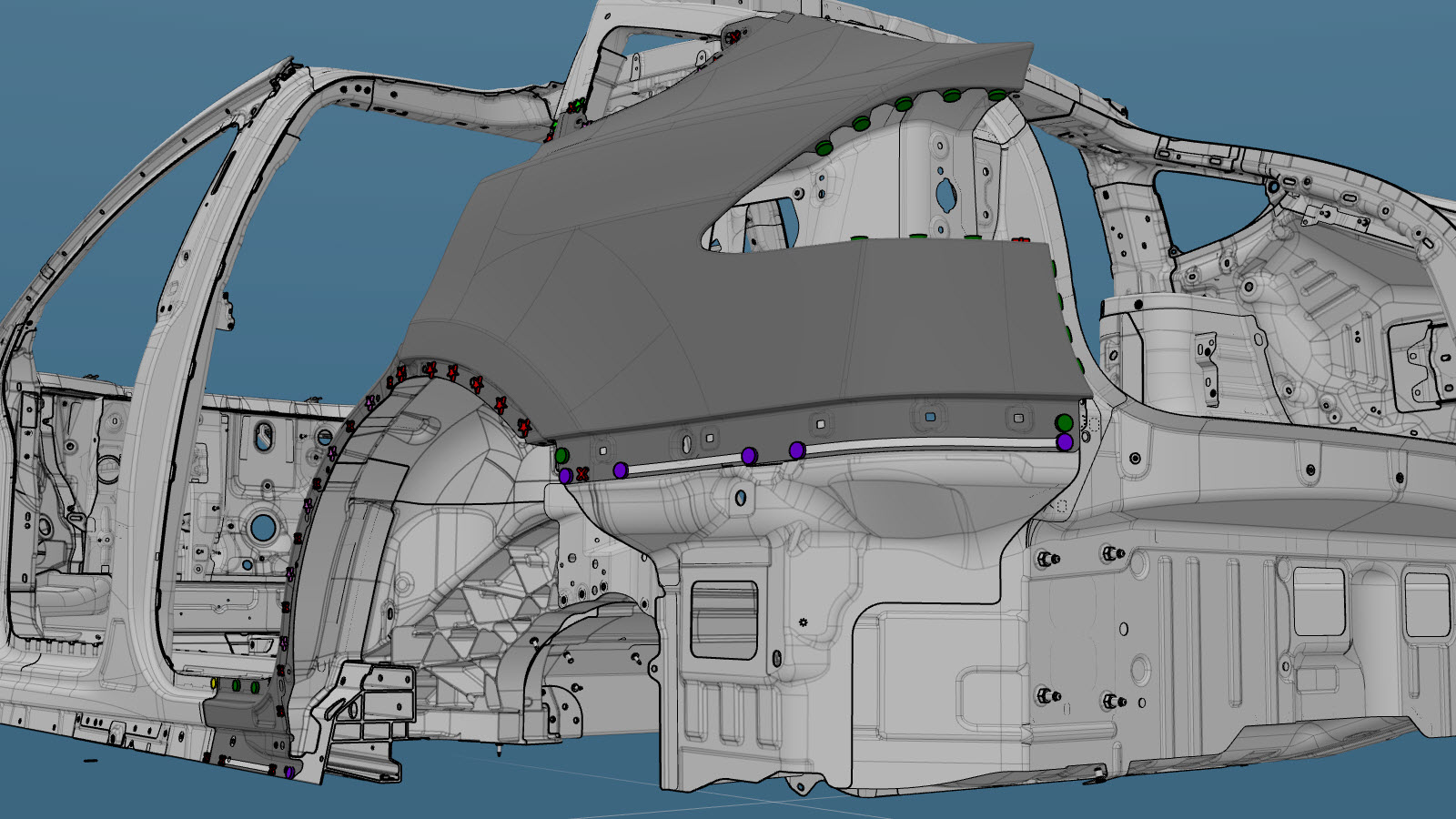

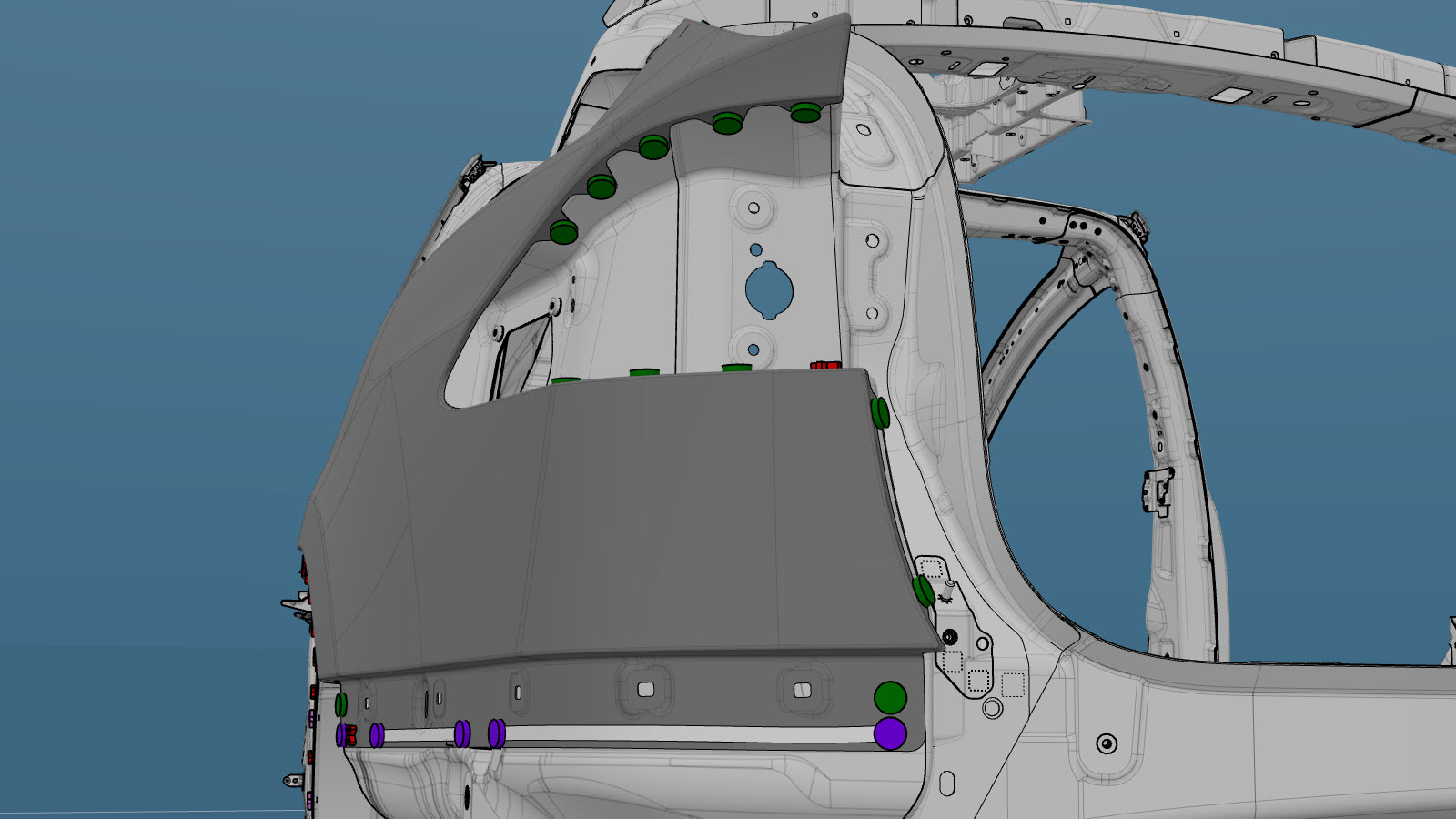

    or Structural Bulb Rivets, 6.5 mm

    or Countersunk Rivets, 4.8 mm Short

    or Countersunk Rivets, 4.8 mm Long

    or Flow Form Rivets, S08

    or Flow Form Rivets, S18

    or Flow Form Rivets, S28

    or Flow Form Rivets, S38

  4. Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
  5. Install the new component or components.
  6. 用聚氨酯填充围板外件面板和围板外件下部面板（以红色表示）之间的间隙。
  7. 聚氨酯固化后，使用接缝密封剂全面填充接缝。
  8. Perform any necessary post-repair operations.
