围板完整总成

Parts List

Quantity Description Image / Notes

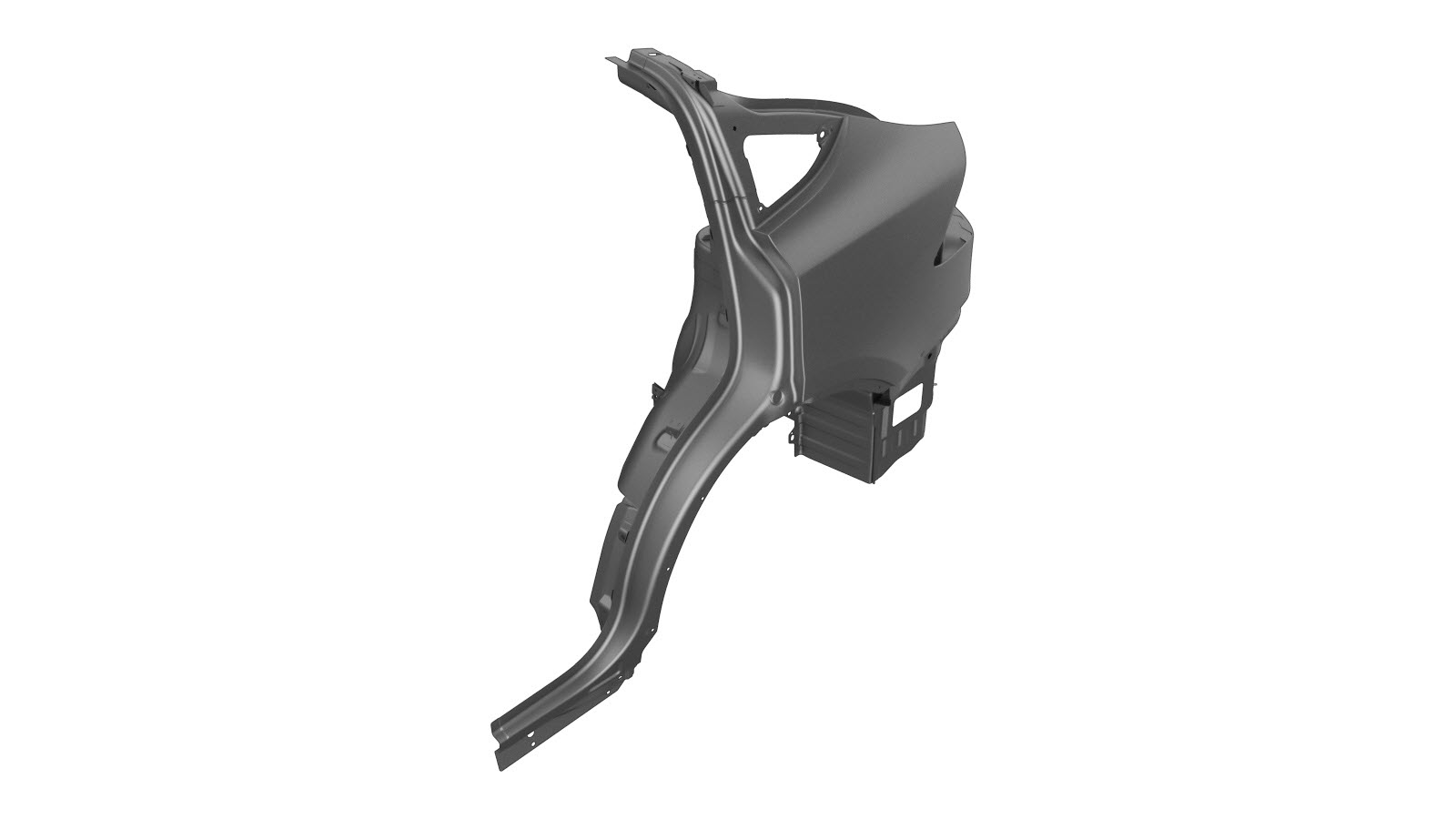

1 MX ASY-RR QTR COMP（围板完整总成）
1 ASY - RR PARCEL SHELF BRKT（置物板支架 – LH）
Informational PurposesAn informational icon, calling your attention
注
仅适用于截至 2016 年 10 月 17 日生产的车辆。
1 ASY - RR PARCEL SHELF BRKT RH（置物板支架 – RH）
Informational PurposesAn informational icon, calling your attention
注
仅适用于截至 2016 年 10 月 17 日生产的车辆。
2 High Strength Structural Rivet, 6.5 mm
27（LH 组件）或 26（RH 组件） Structural Bulb Rivet, 6.5 mm
1 Countersunk Rivet, 4.8 mm Long
2 Countersunk Rivet, 4.8 mm Short
8 Flow Form Rivet S18
3 Flow Form Rivet S28
6 Flow Form Rivet S38
4 Bolt, hex-head , M8-1.25X27 Tesla 零件号 1621820-00-A。
7 Bolt, hex-head , PF, M8X16, STL[98] ZNNI BLK Tesla 零件号 1008833-01-A。
7 Nut , HF M8X1.25 10-ZNAL-W Tesla 零件号 2007088。

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

  1. 拆卸后节点外加固件。

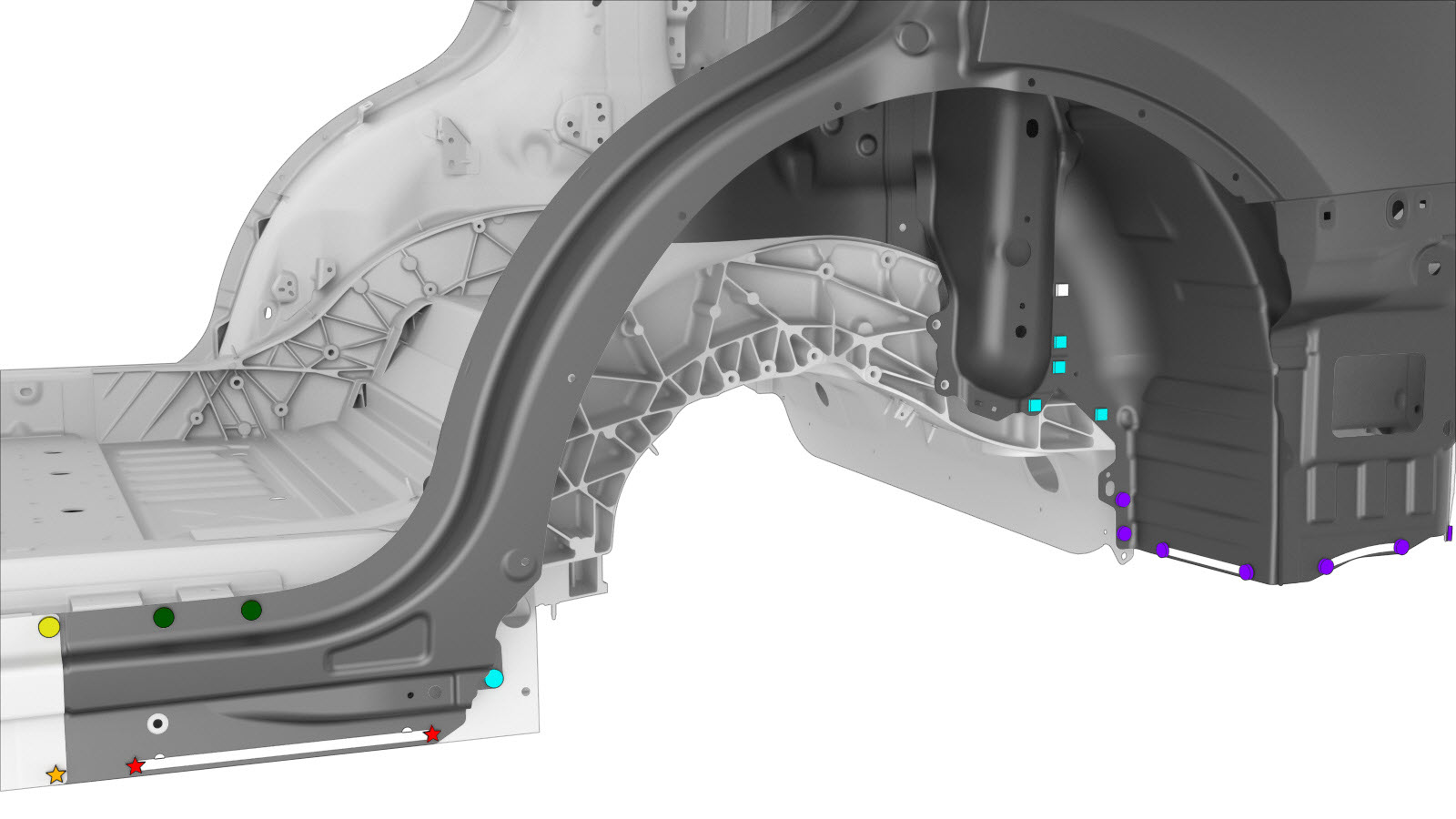

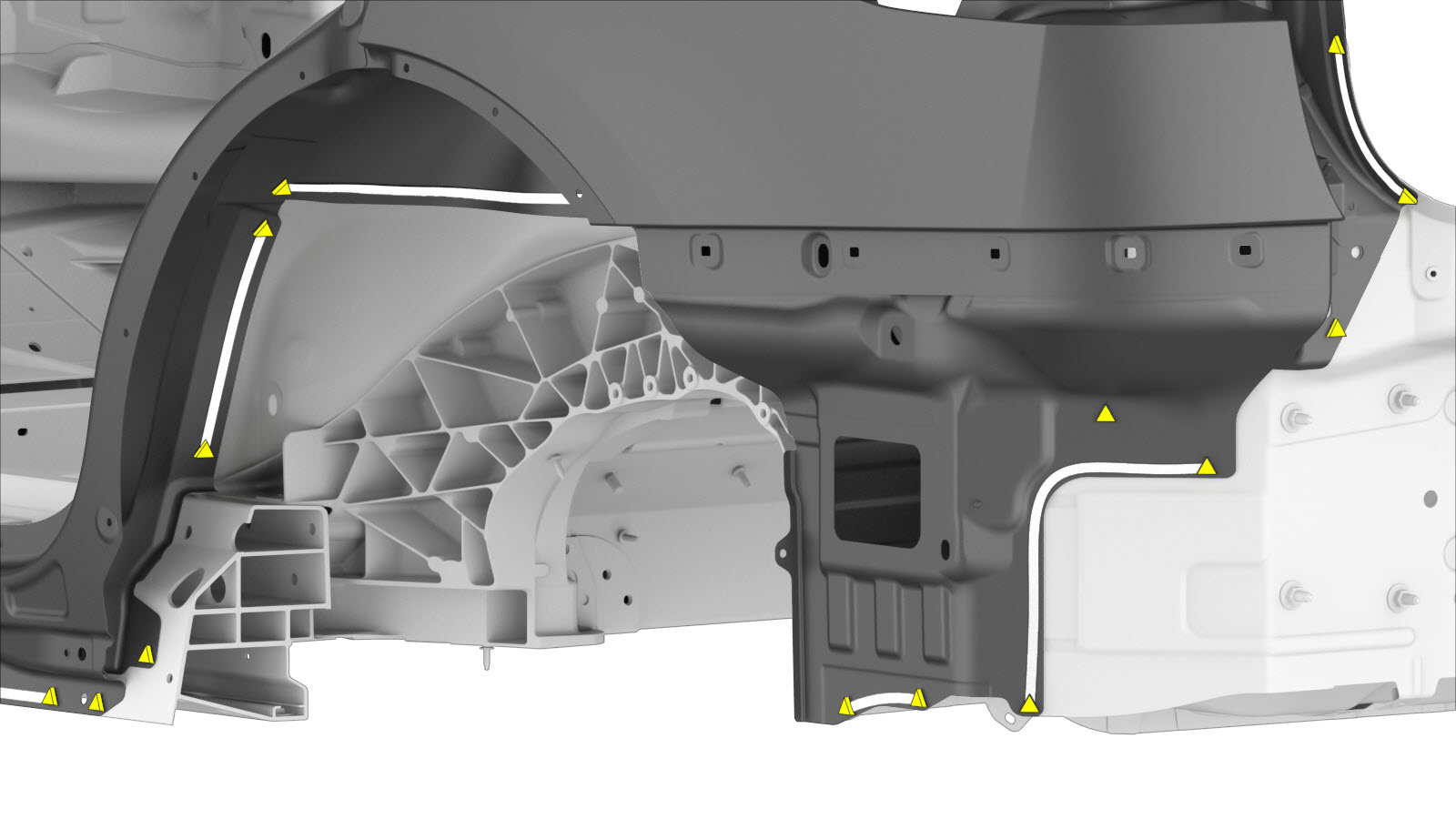

  2. Remove the original component.
    or Factory Spot Welds
    or Drill through factory spot welds
    Informational PurposesAn informational icon, calling your attention
    注
    When drilling out spot welds, use a drill bit that creates a hole correctly sized for the fastener that will replace the spot weld.

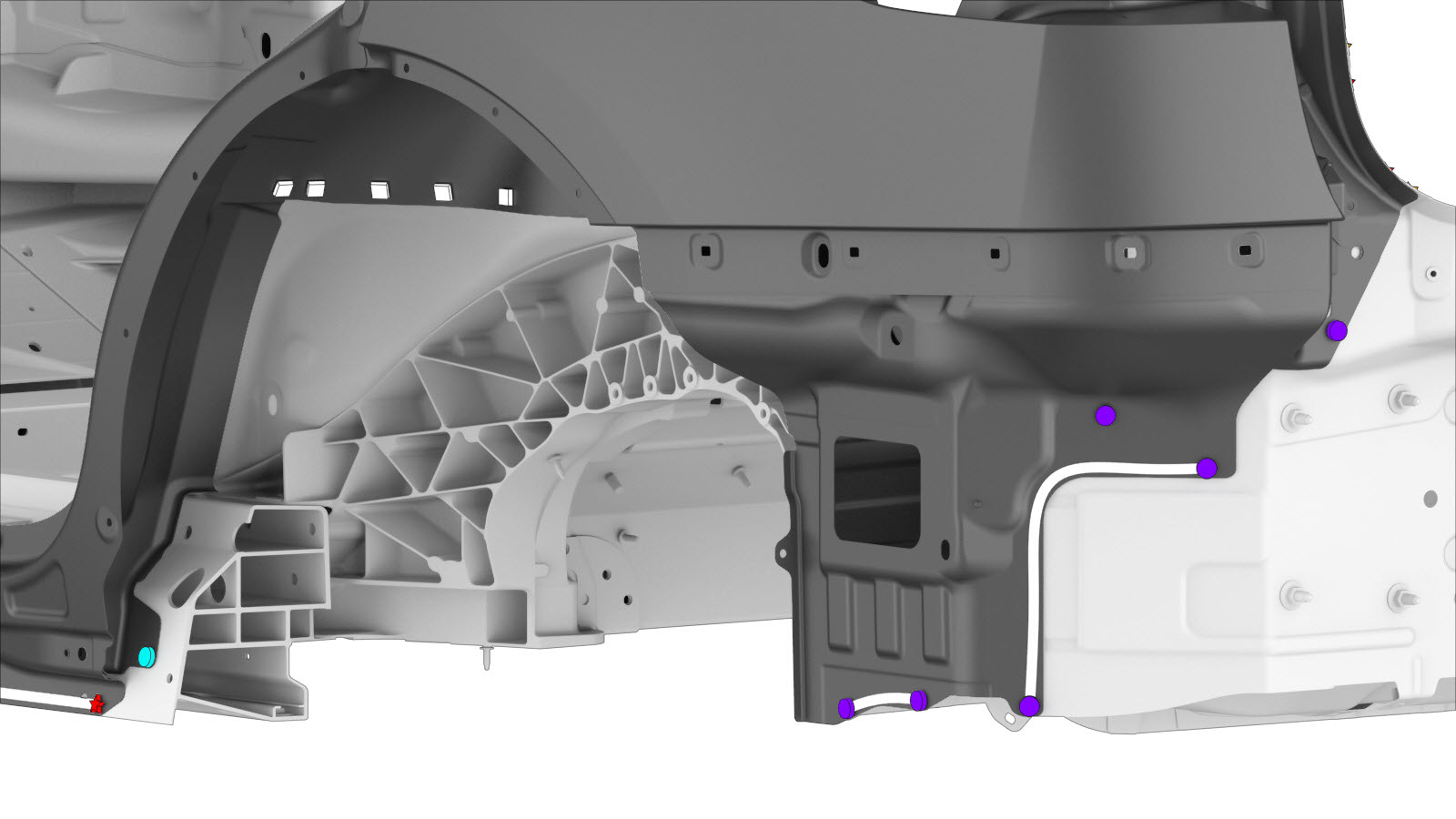

    or Bolts, hex-head

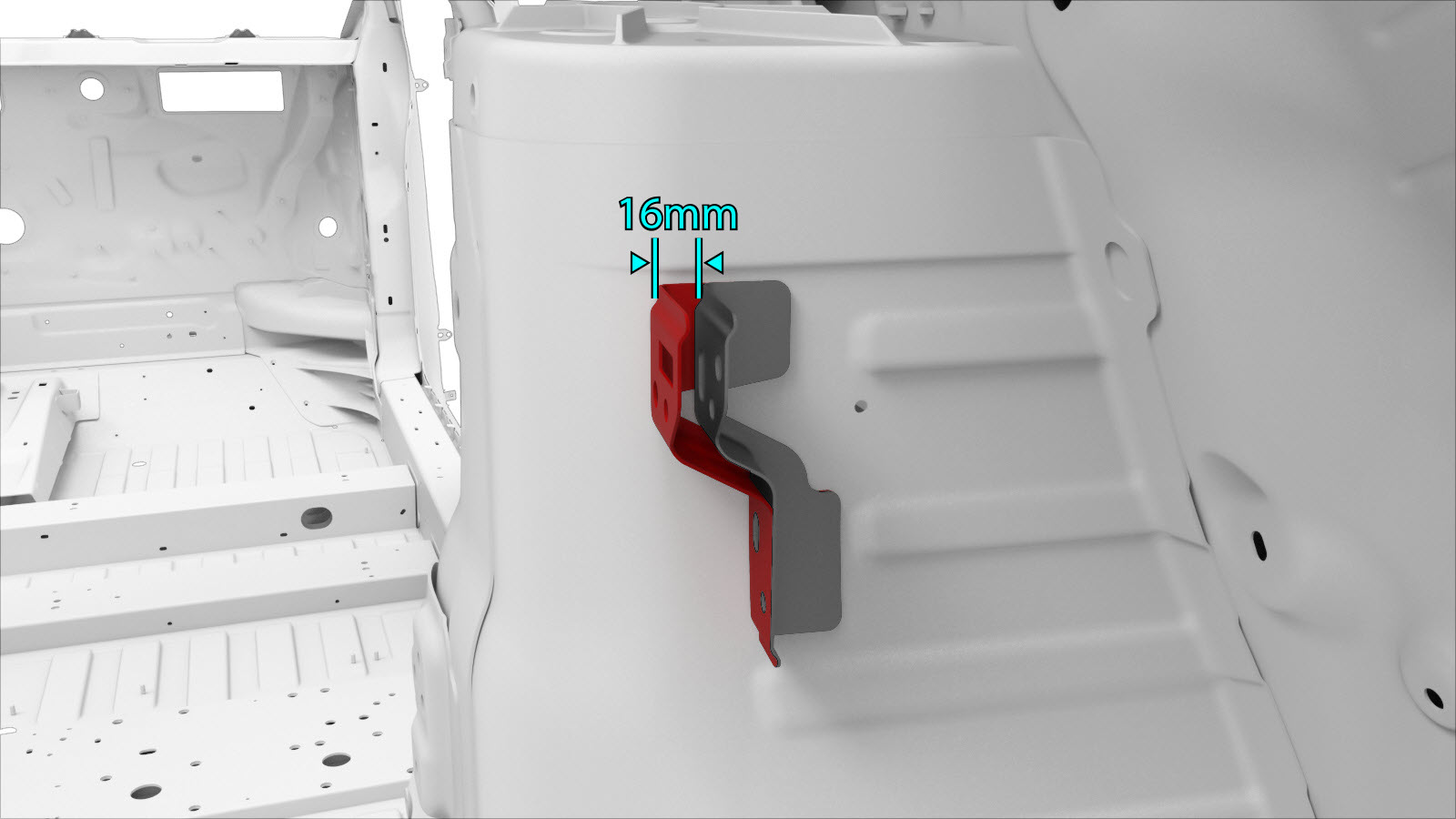

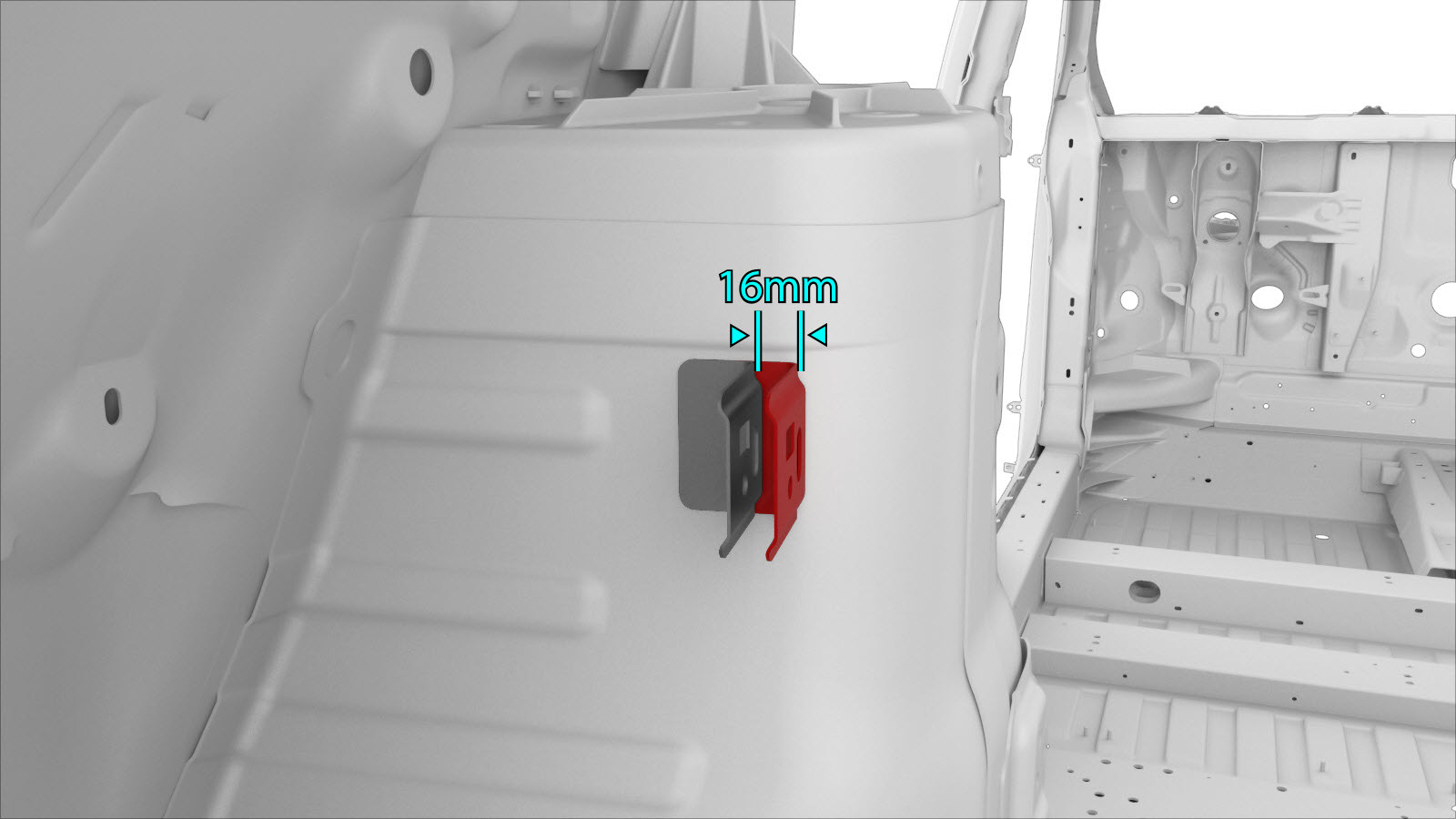

  3. 仅限截至 2016 年 10 月 17 日制造的车辆：改装 置物板支架 (LH) 和 置物板支架 (RH)。
    Informational PurposesAn informational icon, calling your attention
    注
    将替换置物板支架安装在原组件位置内侧 16 毫米处。

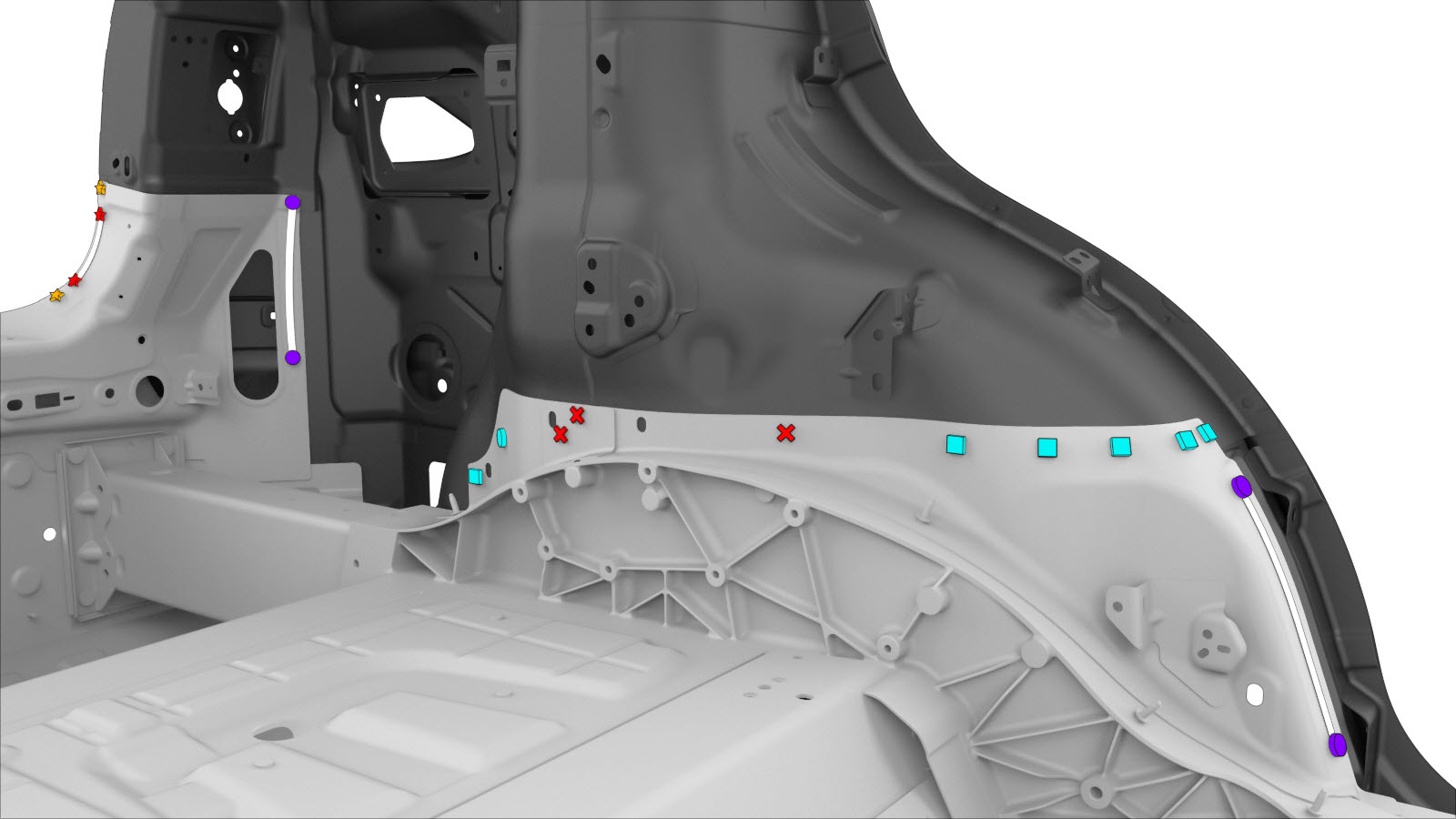

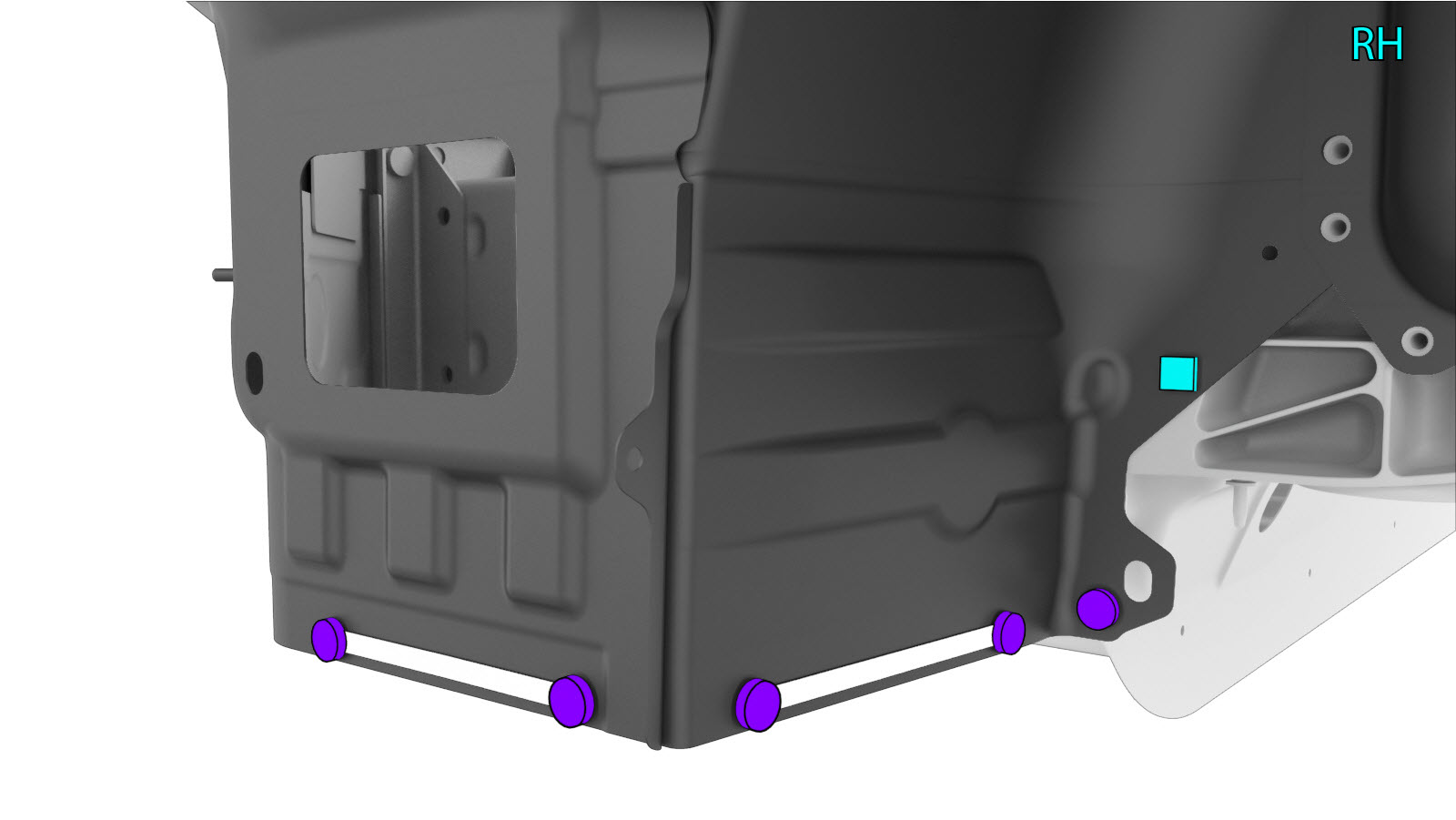

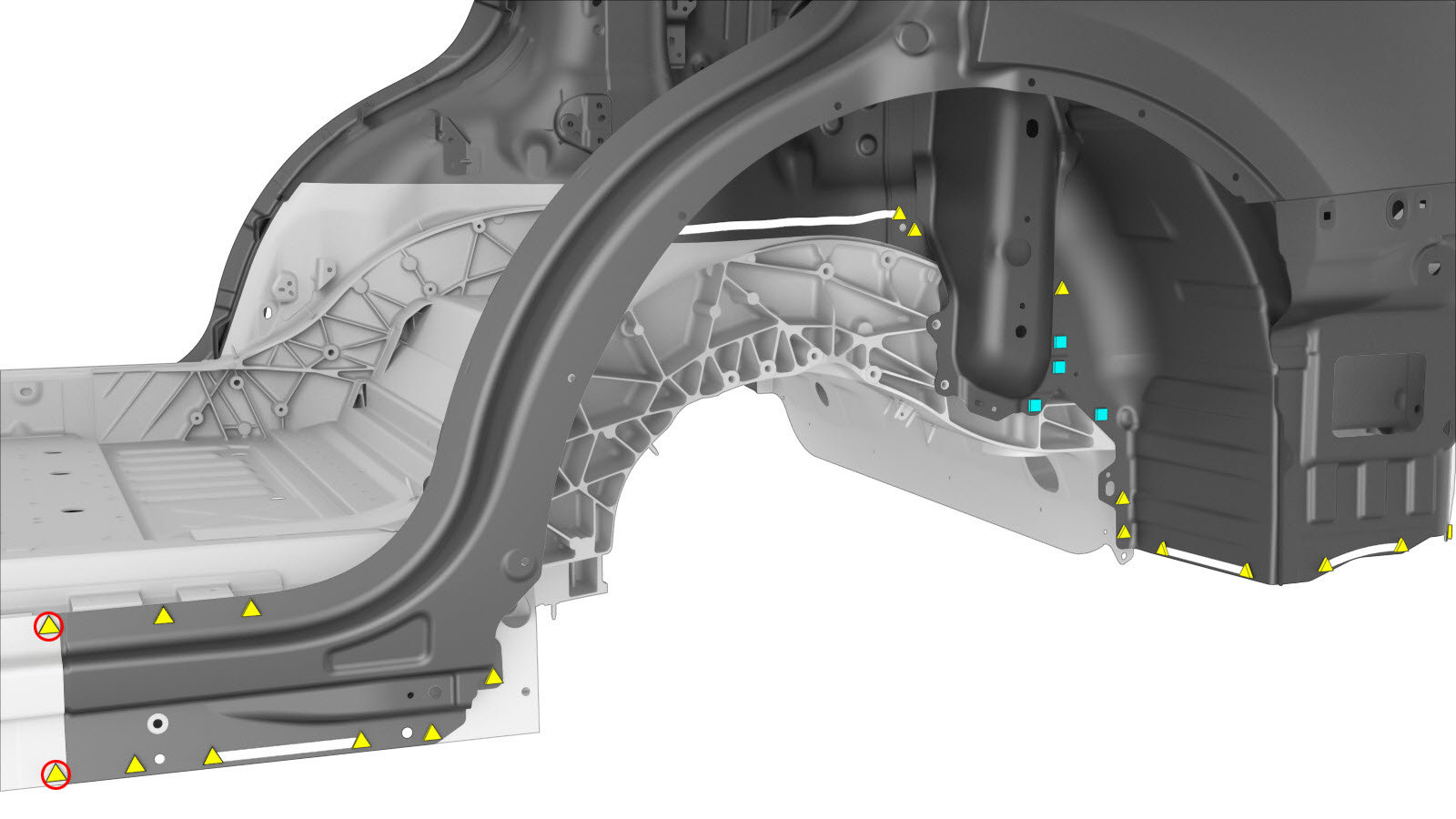

  4. Prepare for installation.
    Informational PurposesAn informational icon, calling your attention
    注
    A red X indicates a location where a factory-installed fastener is not being replaced.

    or High Strength Structural Rivets, 6.5 mm

    or Structural Bulb Rivets, 6.5 mm

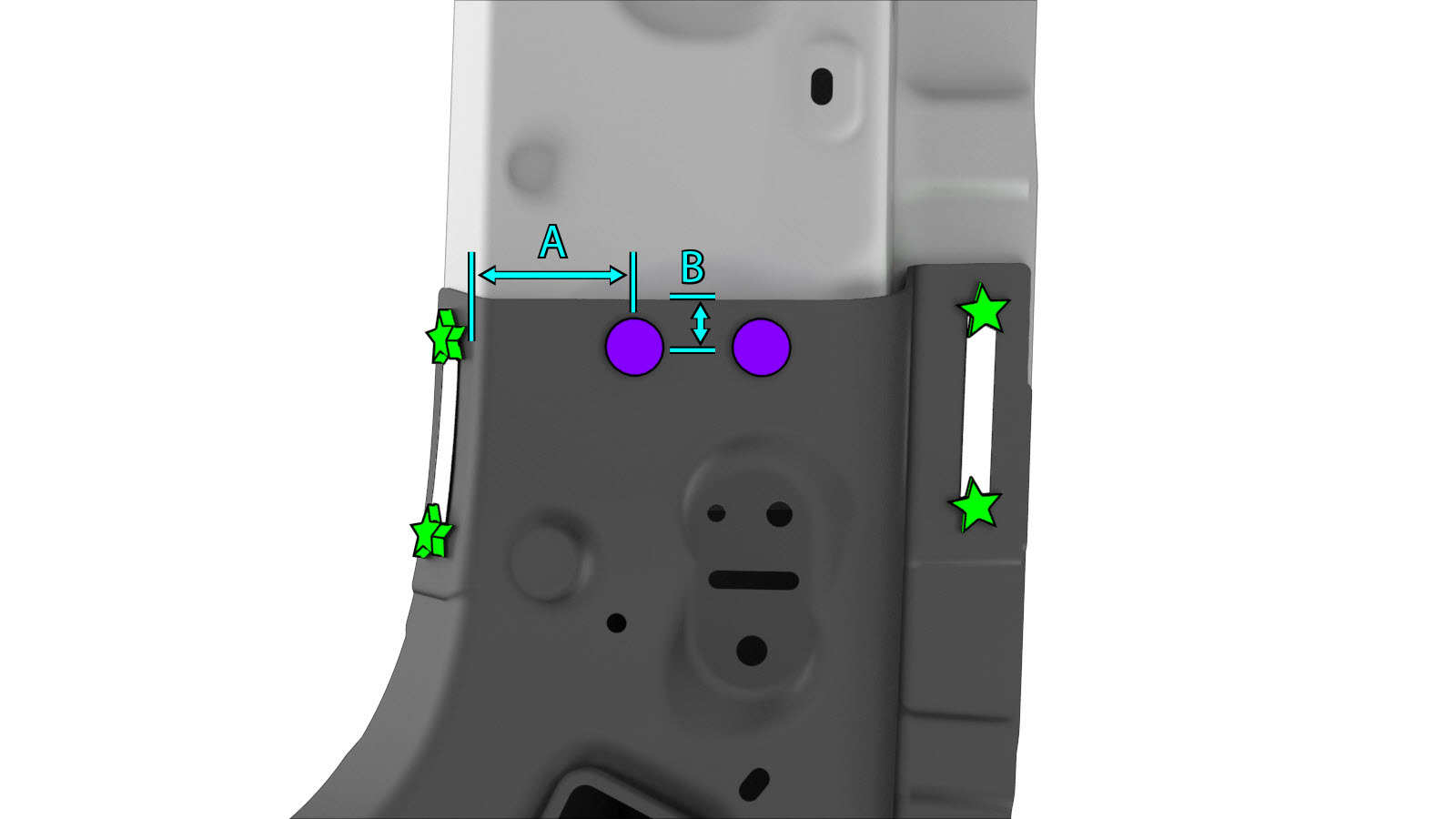

    • A = 51 毫米。
    • B = 15 毫米。

    or Countersunk Rivets, 4.8 mm Short

    or Countersunk Rivets, 4.8 mm Long

    or Flow Form Rivets, S18

    or Flow Form Rivets, S28

    or Flow Form Rivets, S38

    or Bolts, hex-head

    Nut

  5. Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
  6. Install the new component or components.

    将这些螺母和螺栓拧紧至 25 Nm。

  7. 安装后节点外加固件。

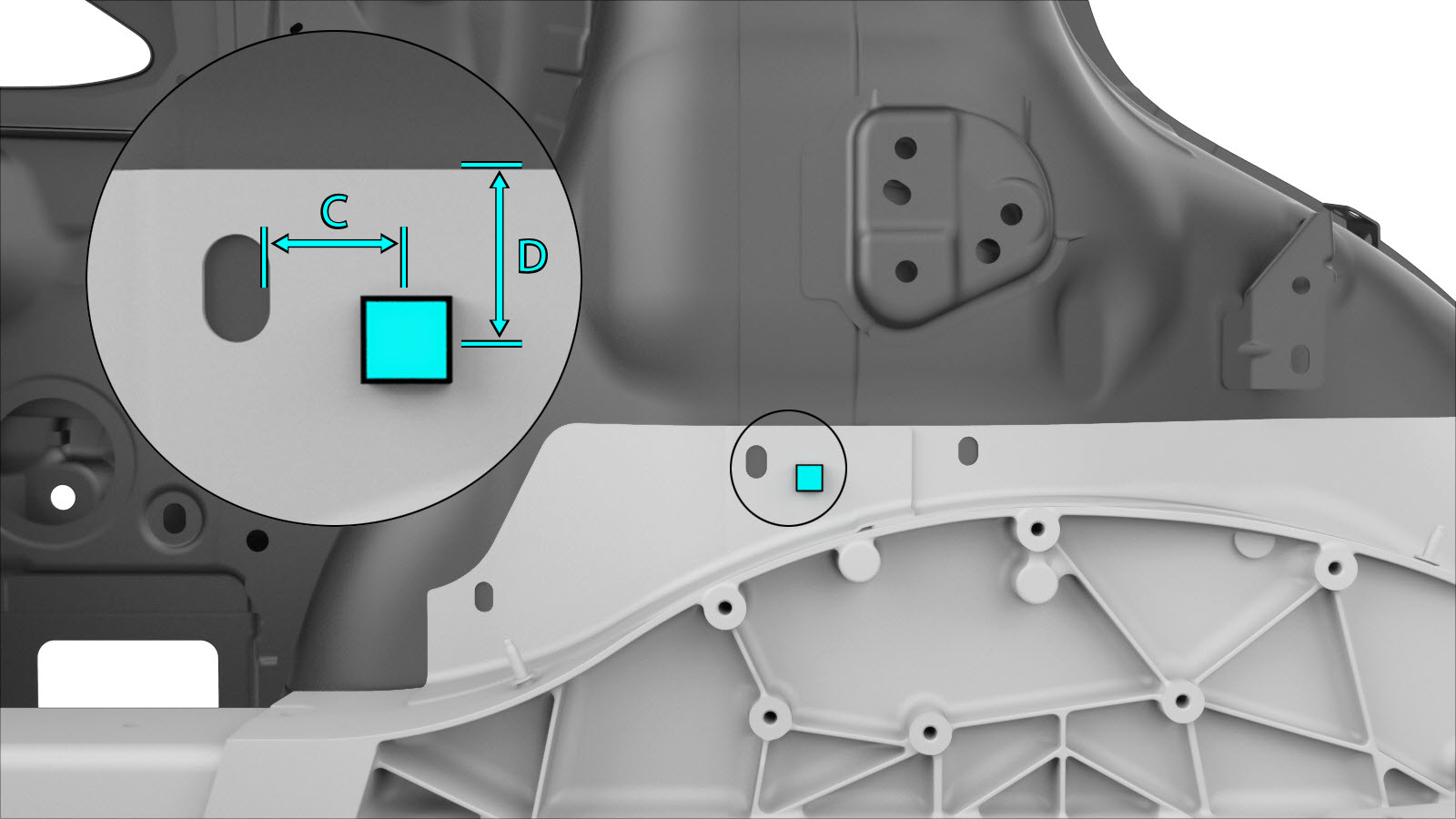

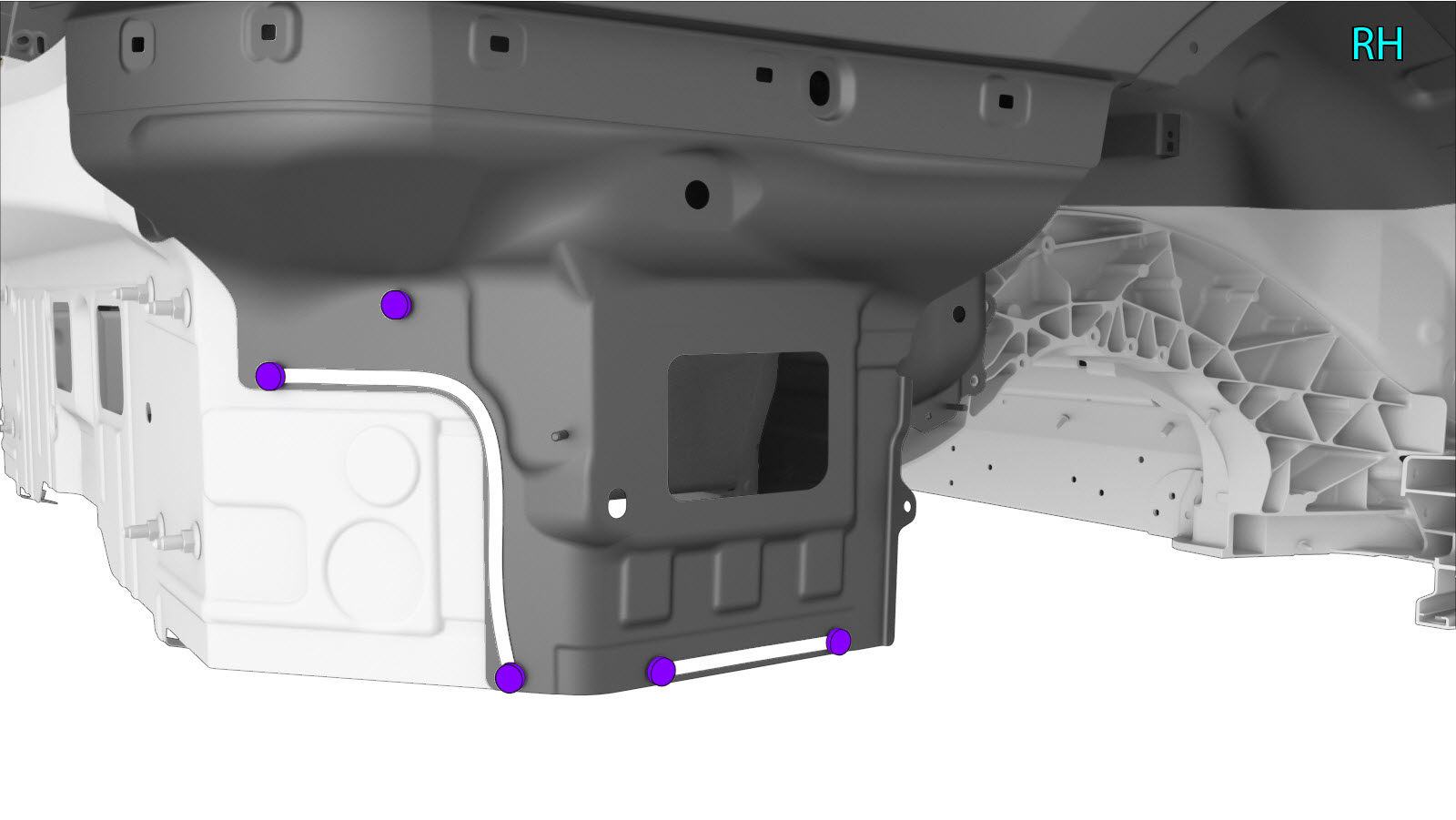

  8. Install the fastener as indicated.
    or Bolts, hex-head
    • C = 20 毫米。
    • D = 25 毫米。

    Nut （未显示）

    将此螺母和螺栓拧紧至 25 Nm。

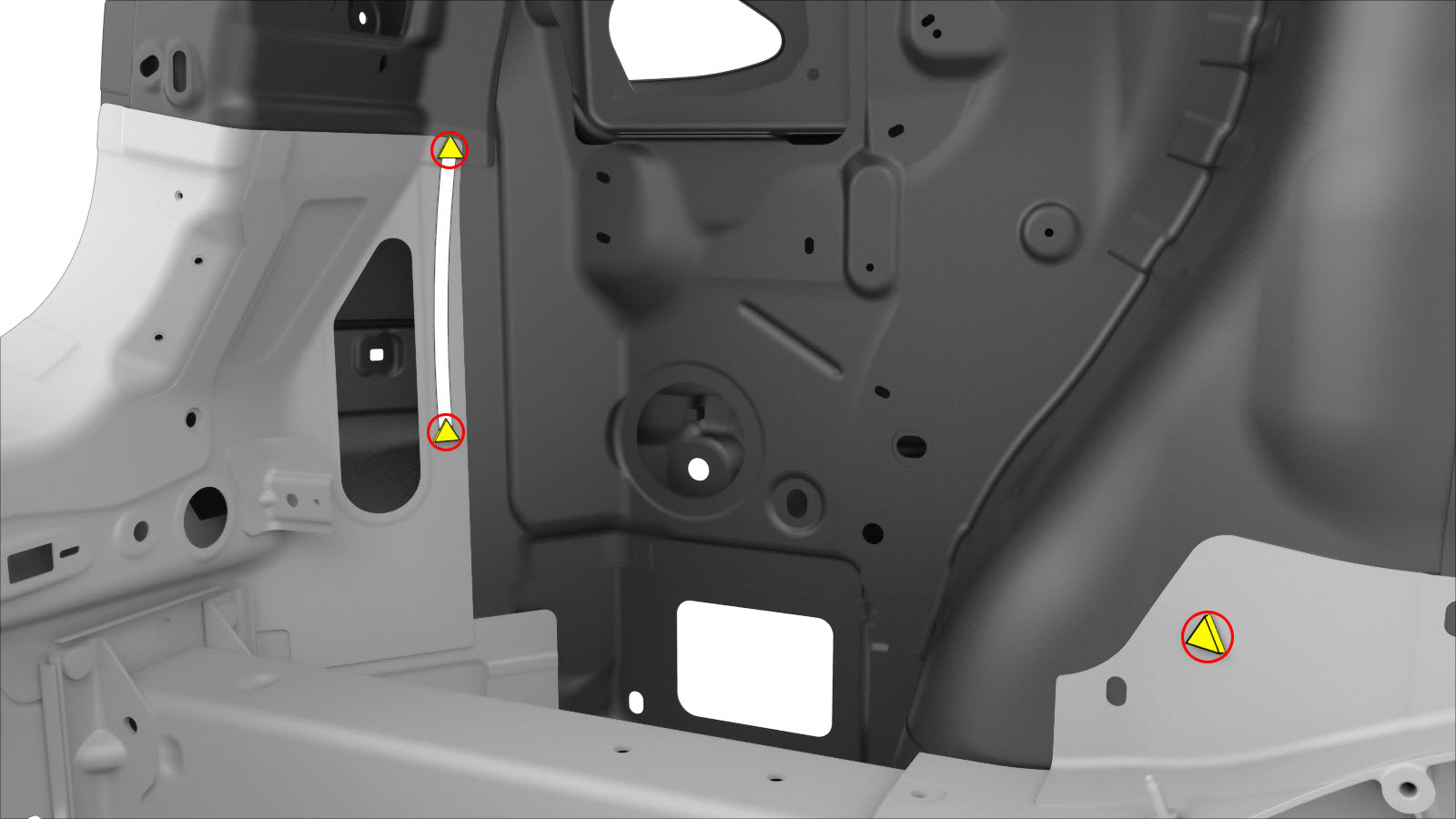

  9. 用聚氨酯填充围板外件面板和围板外件下部面板（以红色表示）之间的间隙。
  10. 聚氨酯固化后，使用接缝密封剂全面填充接缝。
  11. Perform any necessary post-repair operations.
