后节点内侧加固件（前）

Repair Information

Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
This procedure can be completed without using a frame bench.

Parts List


Quantity	Description	Image / Notes

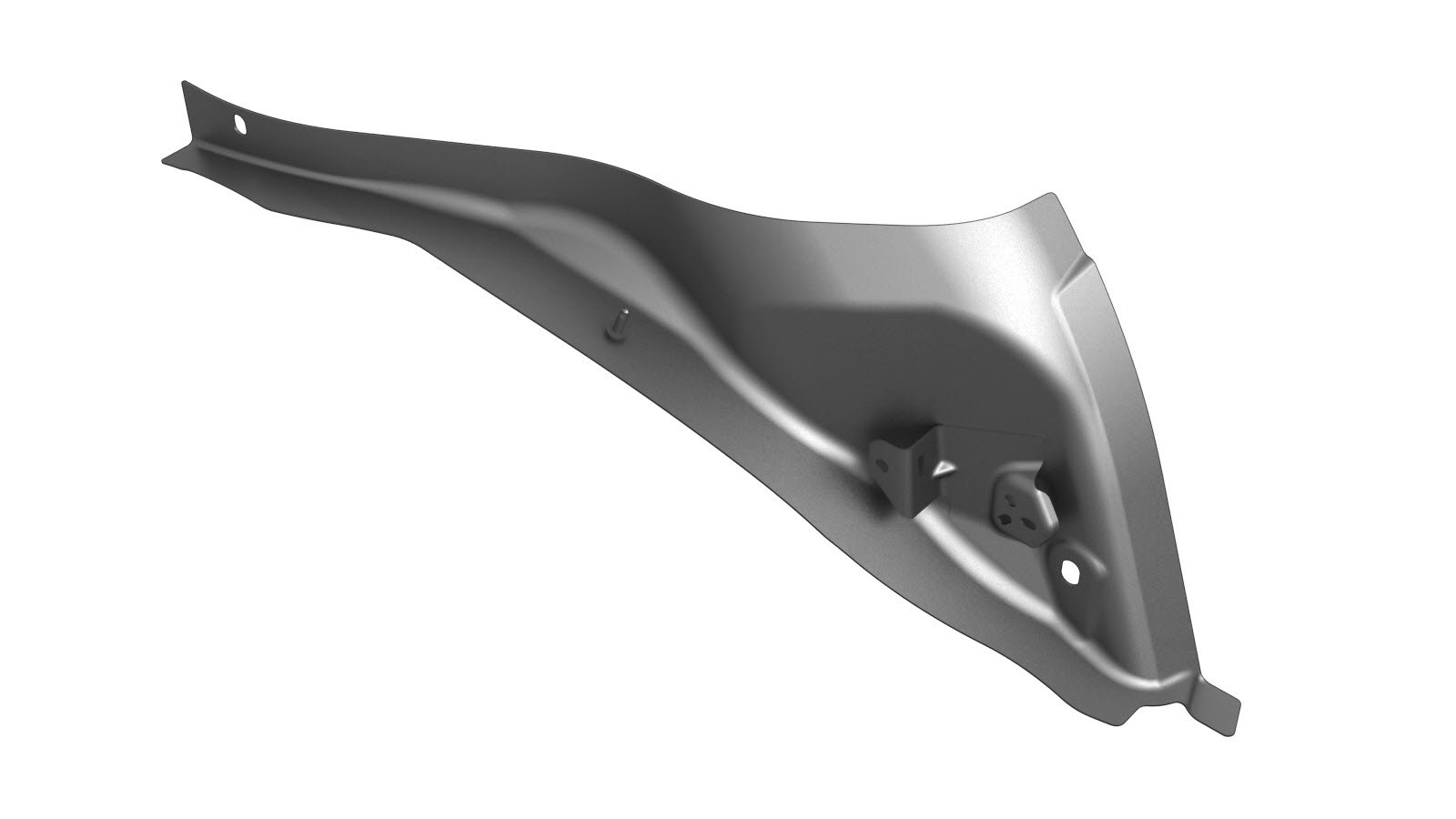

1	REINF-RR NODE INNER FRT（后节点内侧加固件（前））
6	Structural Bulb Rivet, 6.5 mm	Tesla 零件号 1063943-00-A。
13	Structural Rivet, 6.5 mm Short	Tesla 零件号 1028408-00-A。
9	Bolt, hex-head , M8-1.25x16	Tesla 零件号 1005582-00-A。
9	Nut	Tesla 零件号 2007088。

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

Remove the original component.
or Factory Spot Welds
or RIVTAC
Prepare for installation.

注
A red X indicates a location where a factory-installed fastener is not being replaced.

or Structural Bulb Rivets, 6.5 mm

or Structural Rivets, 6.5 mm Short

or Bolts, hex-head
Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
Install the new component or components.
将这些螺栓拧紧至 25 Nm。
Perform any necessary post-repair operations.
