2024-07-17

挡泥板支架

Parts List

Quantity Description Image / Notes

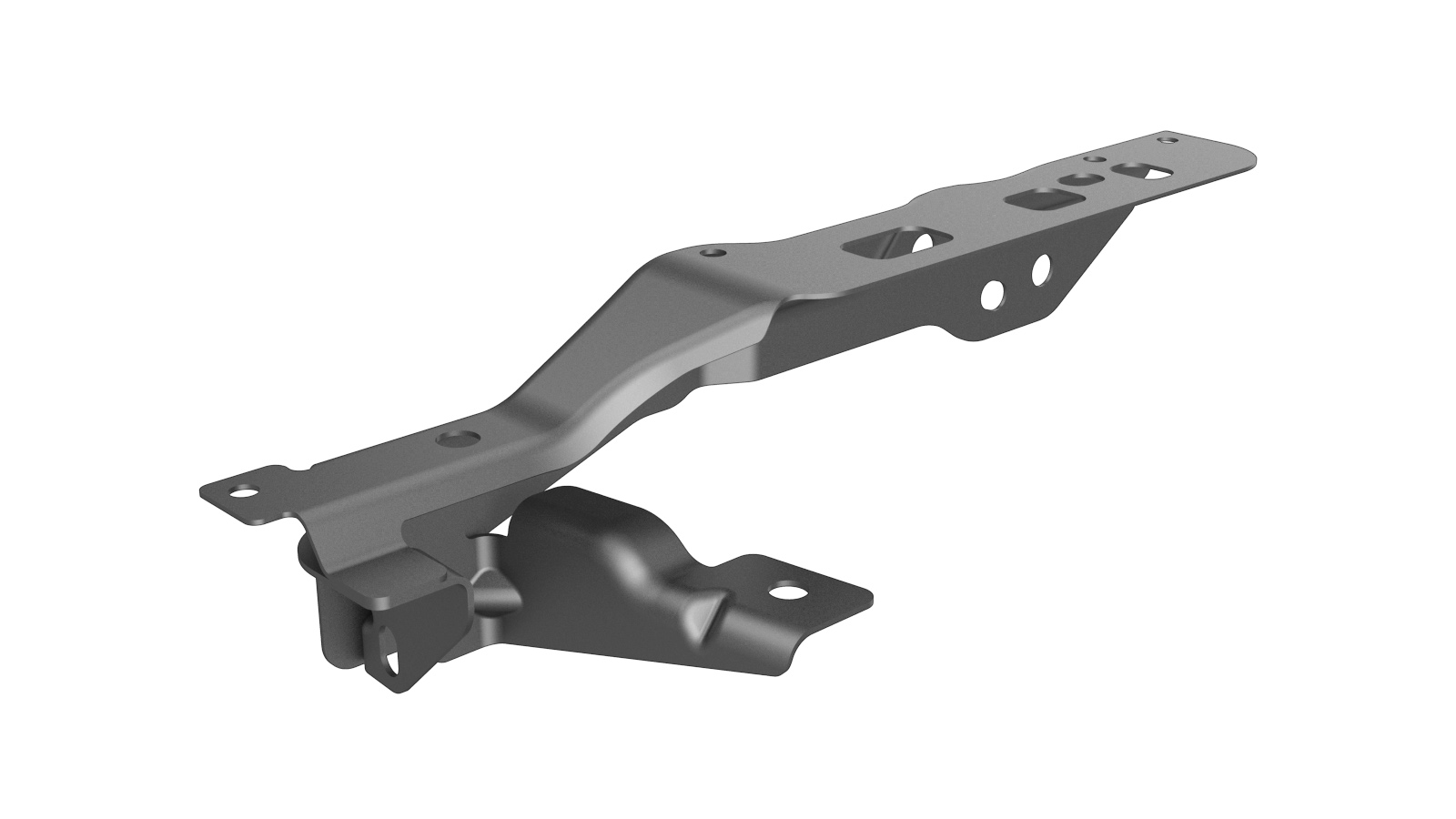

1 ASY - FENDER SUPP(挡泥板支架)
3 SPR,5x8

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

  1. Remove the original component.
    or Factory Spot Welds
  2. Prepare for installation.
    Informational PurposesAn informational icon, calling your attention
    松弛地安装前备箱盖铰链螺栓,以将新组件保持在适当位置。
    or SPRs, 5x8
    Informational PurposesAn informational icon, calling your attention
    安装此 SPR 需要使用以下 Tesla SPR 模具:FM 090 2120

    or Bolts, hex-head

  3. Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
  4. Install the new component or components.
  5. Perform any necessary post-repair operations.
