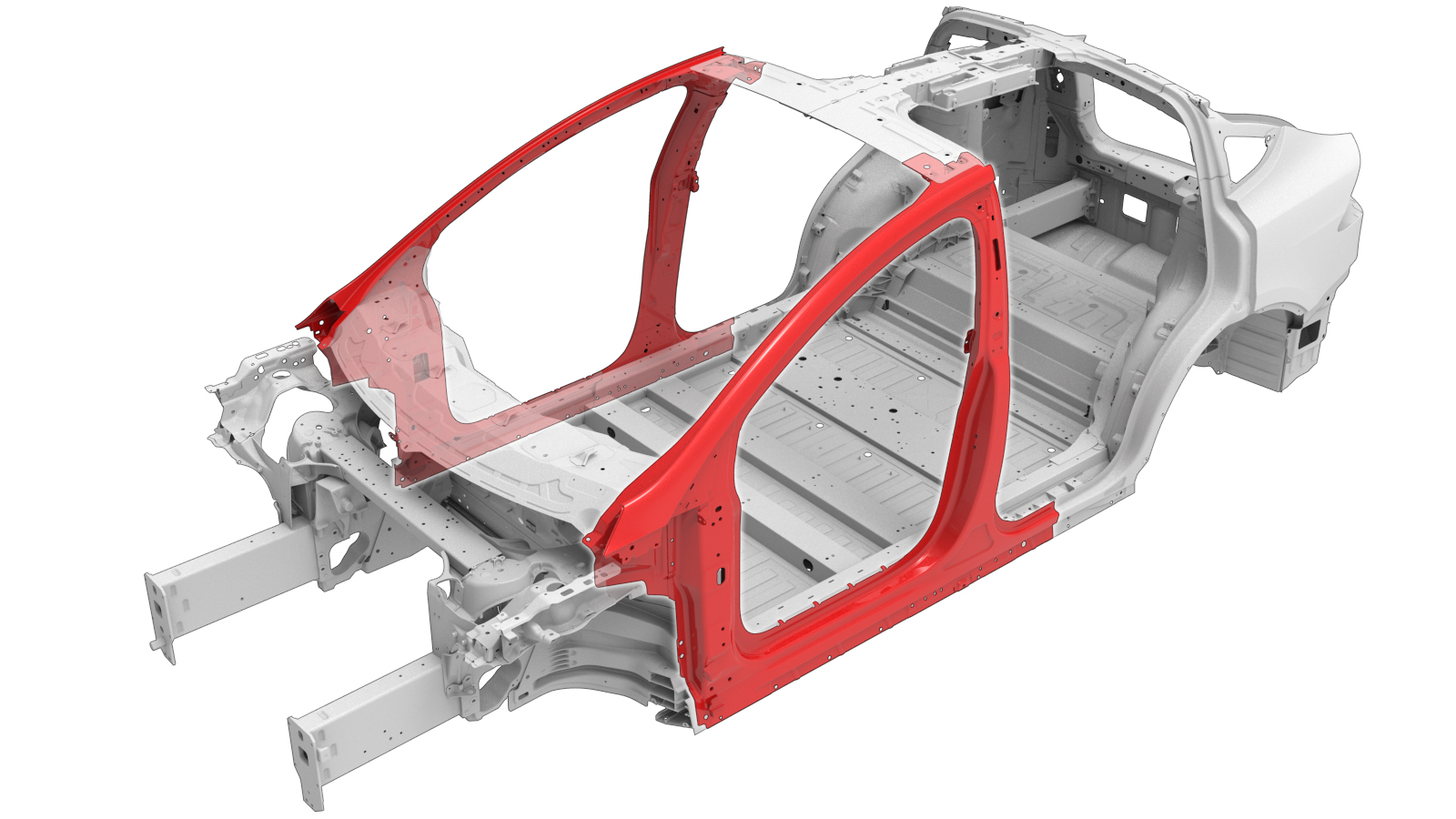

车身侧完整总成

Parts List

Quantity Description Image / Notes

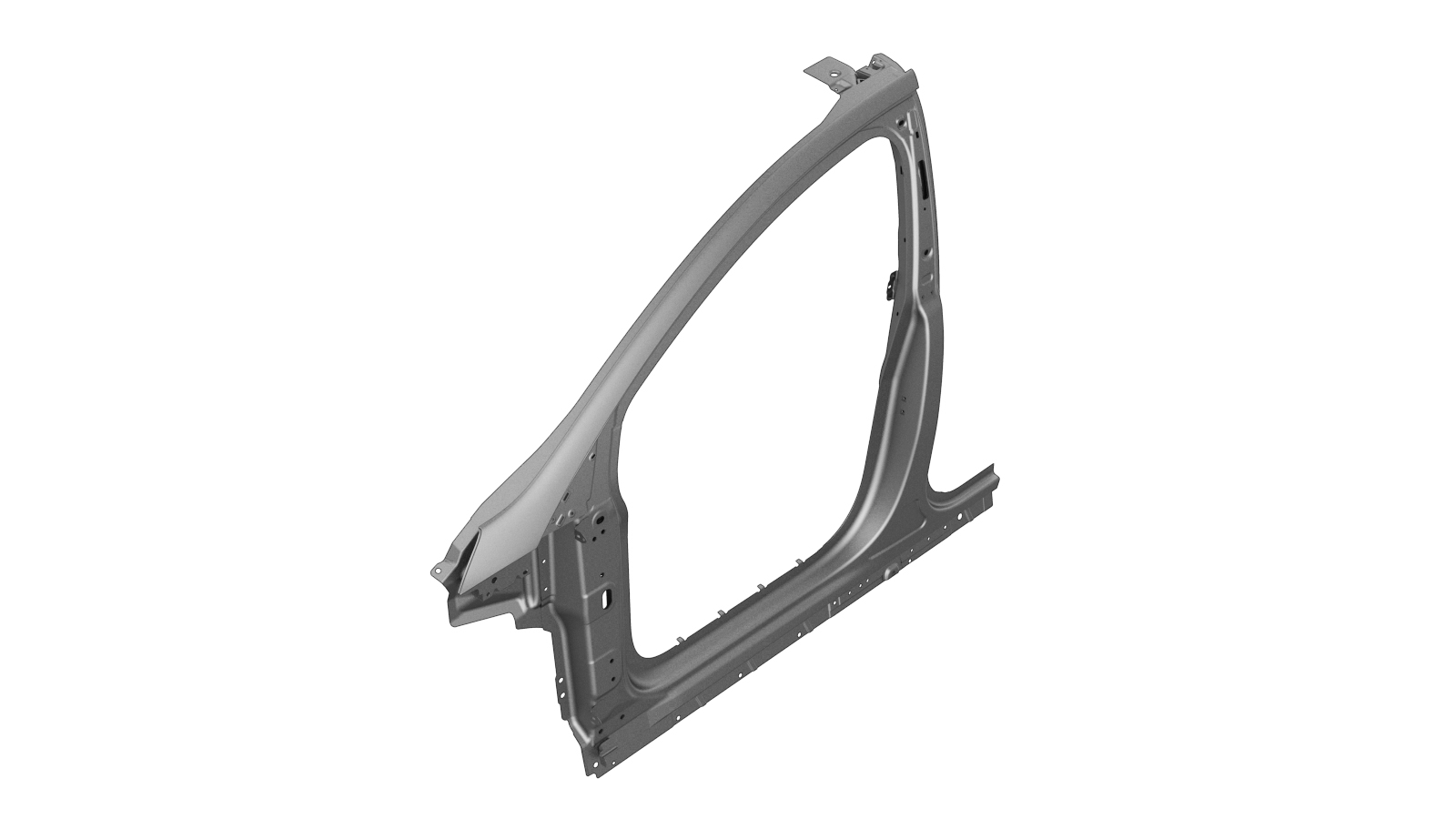

1 ASY - BODY SIDE COMPLETE(车身侧整体)
9 Countersunk Rivet, 4.8 mm Short
10 Structural Rivet, 6.5 mm Medium
2 Flow Form Rivet S28
10 Flow Form Rivet S38
6 Flow Form Rivet S48
4 Flow Form Rivet S58
1 SPR,5x4.5
13 SPR,5x5
16 SPR,5x6.5
7 SPR,5x7
2 SPR,5x8
9 Bolt, hex-head ,M8-1.25x20 Tesla 零件号 1007580-00-A。
6 Bolt, hex-head ,M6-1.00x18 Tesla 零件号 1006529-00-A。
2 Bolt, hex-head ,M10x80 Tesla 零件号 1053943-00-A。
1 Bolt, Torx-head , M8x20 Tesla 零件号 1014747-00-B。

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

  1. 拆卸B 柱加固件

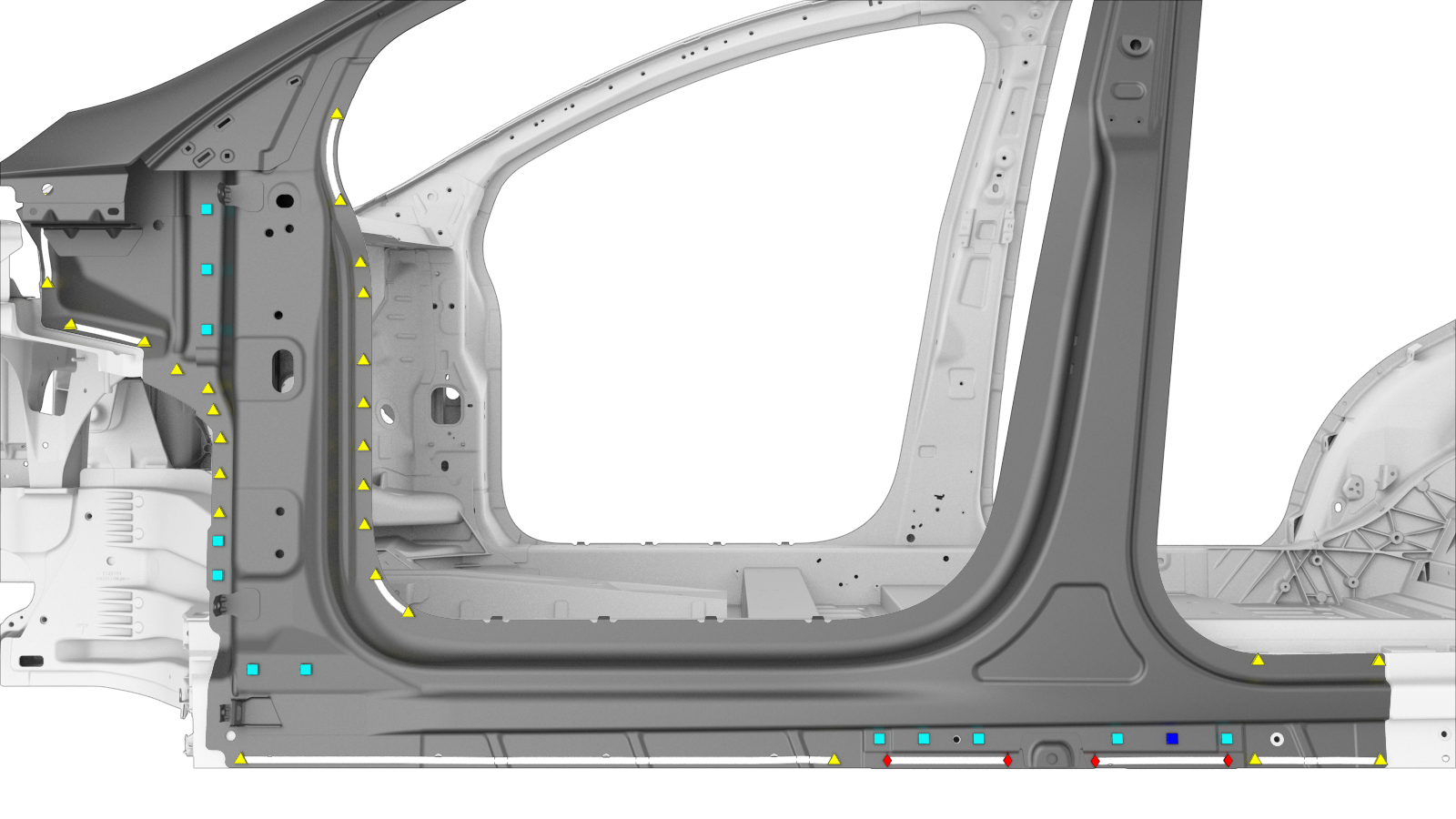

  2. Remove the original component.

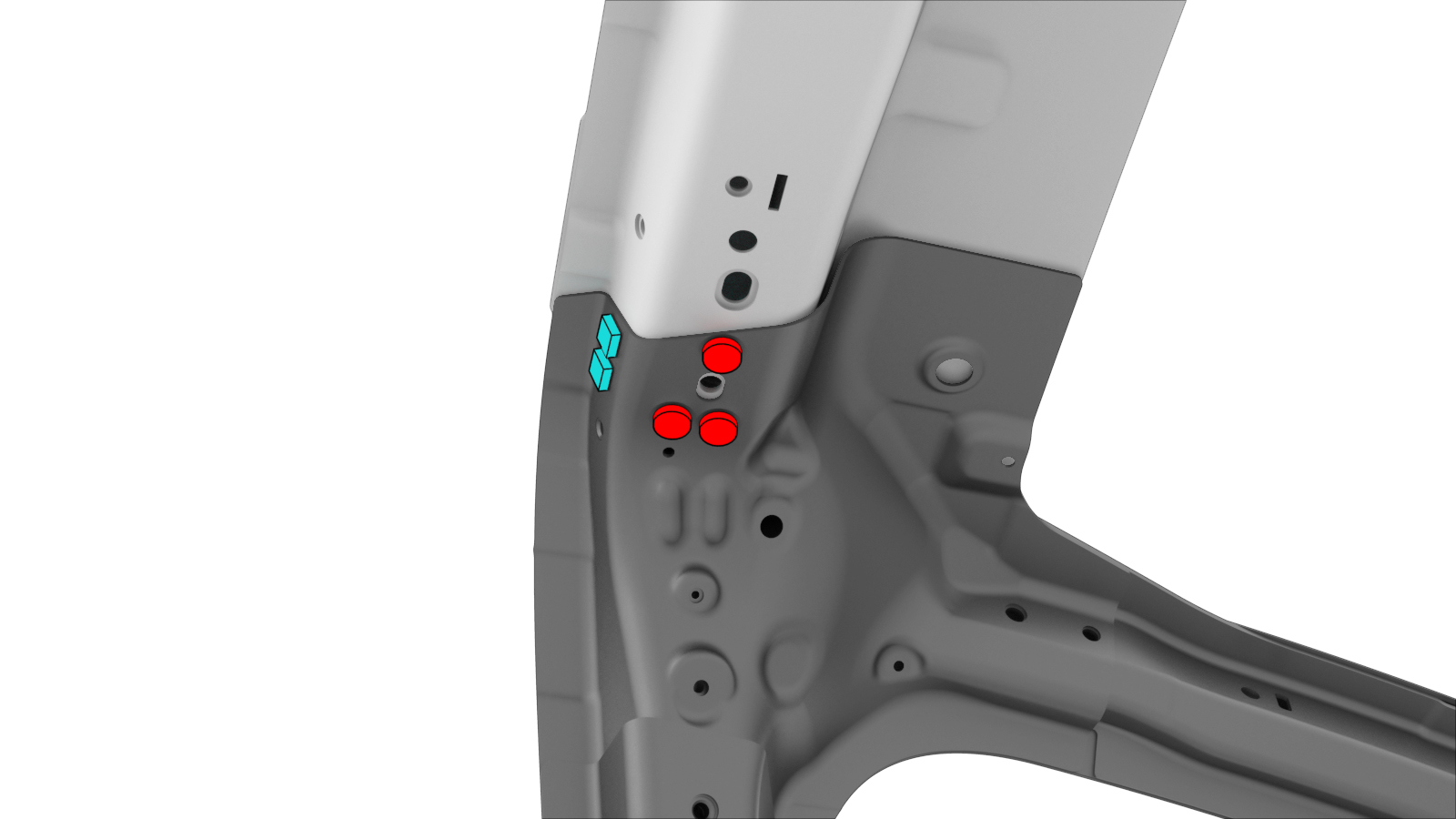

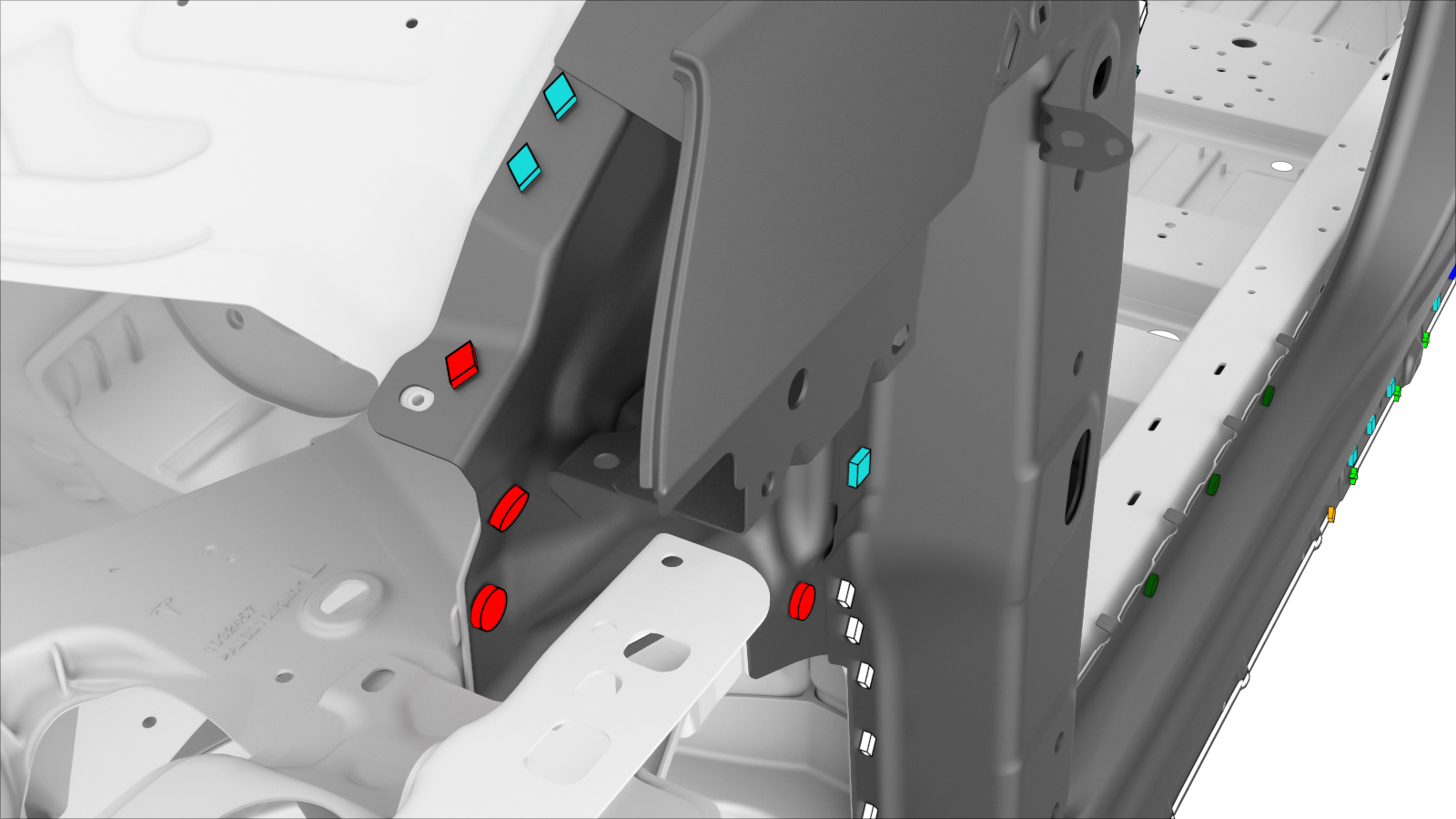

    or Factory Spot Welds

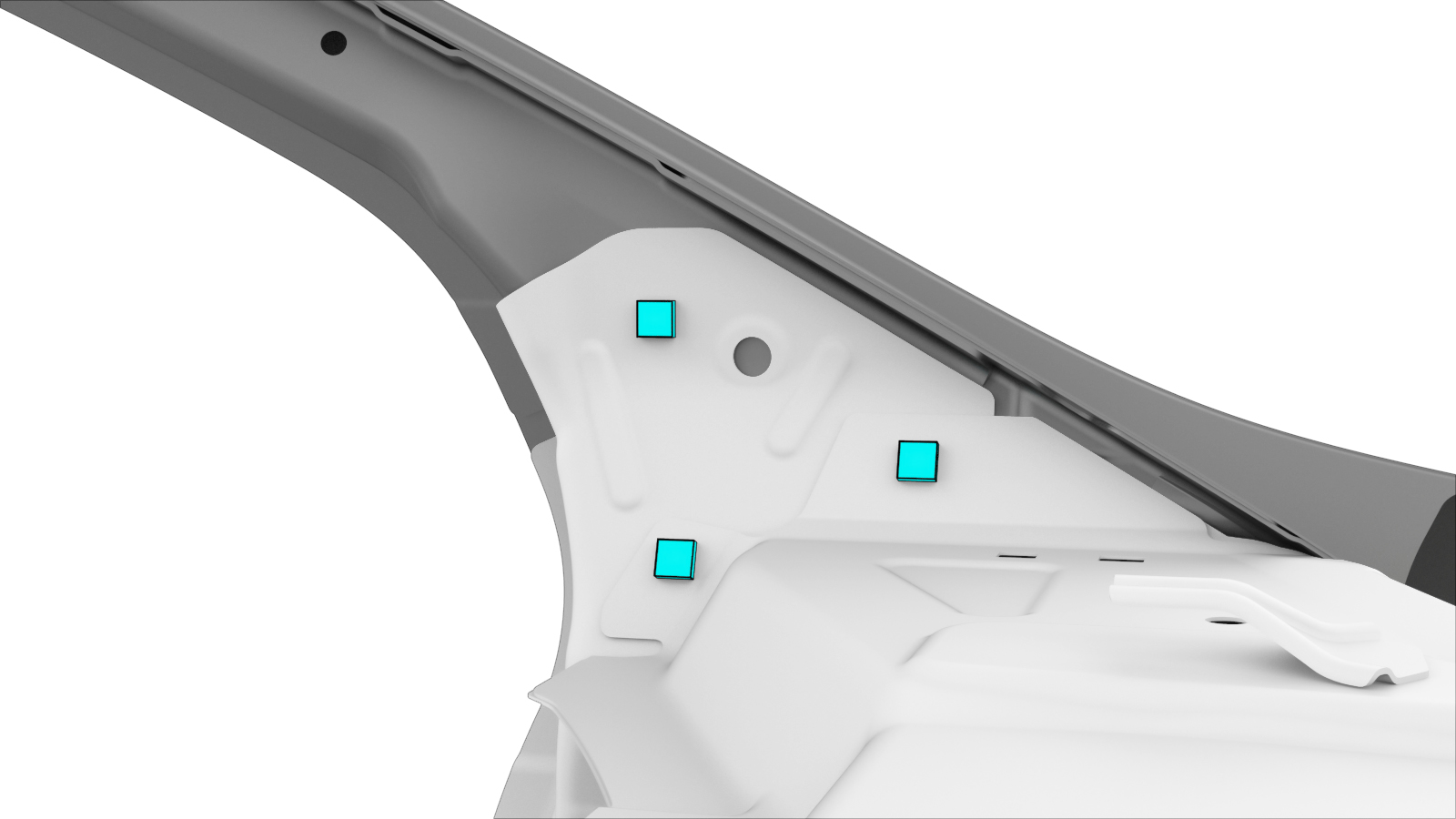

    or Factory SPRs

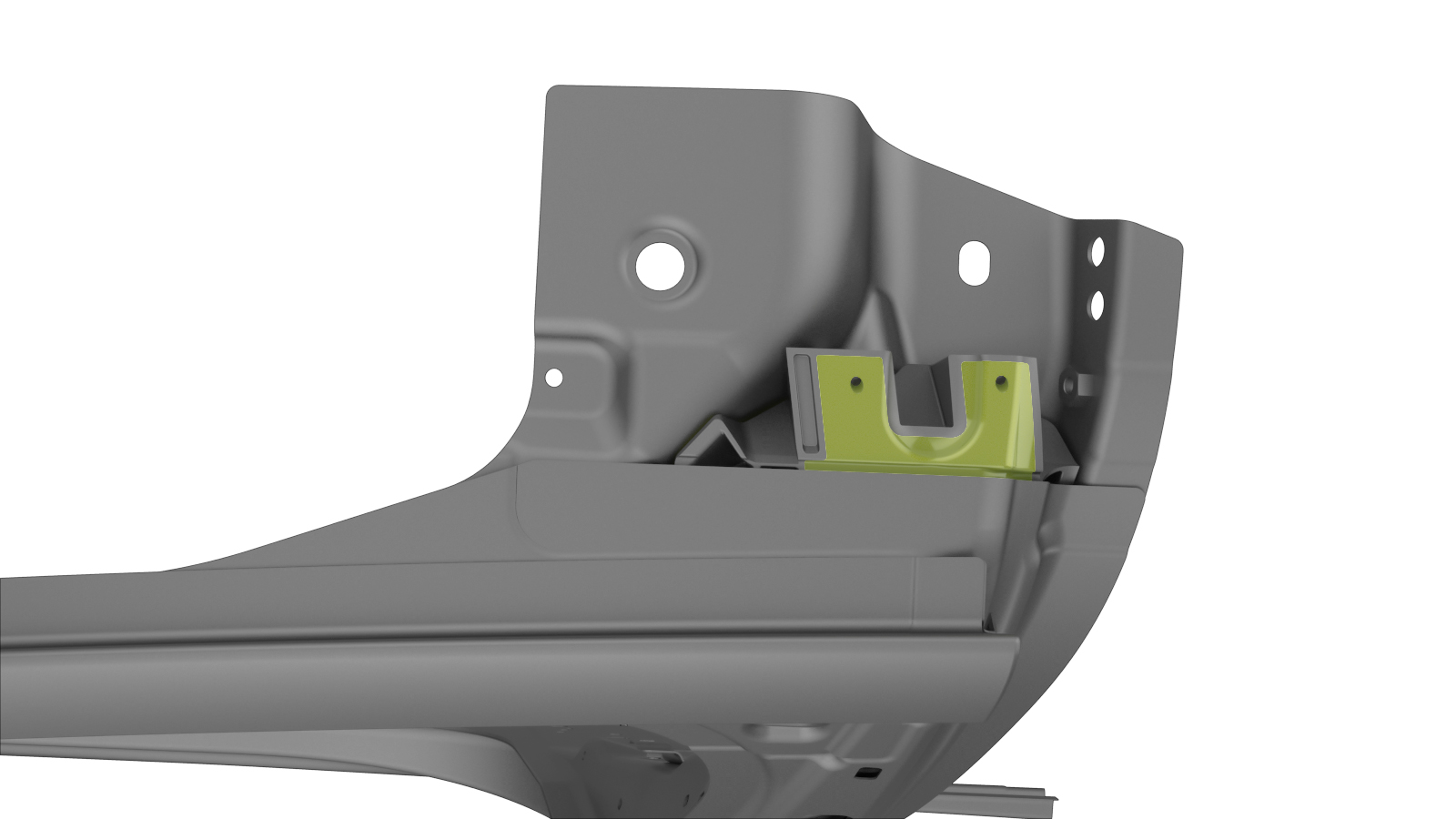

    or Bolt, Torx-head

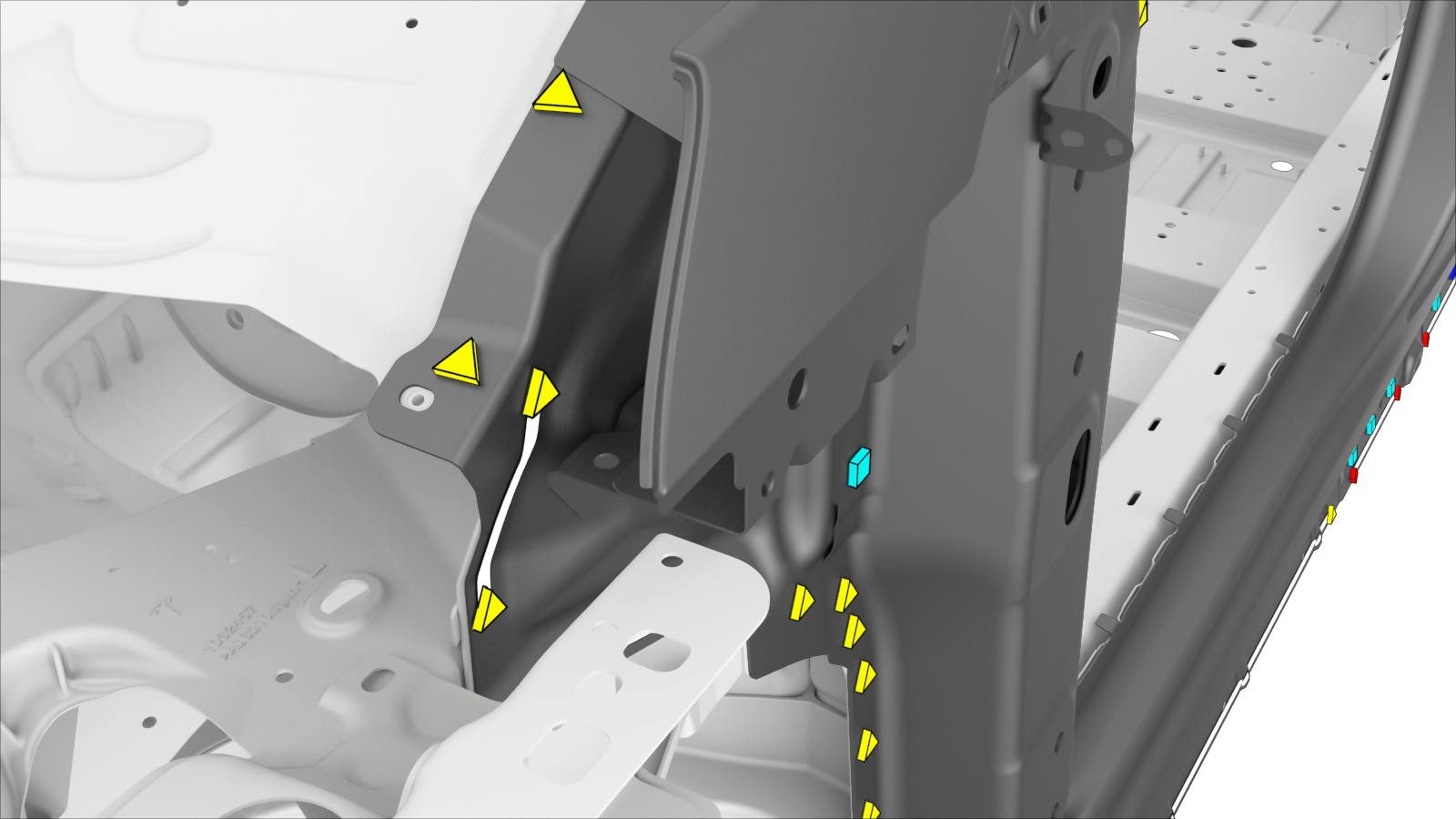

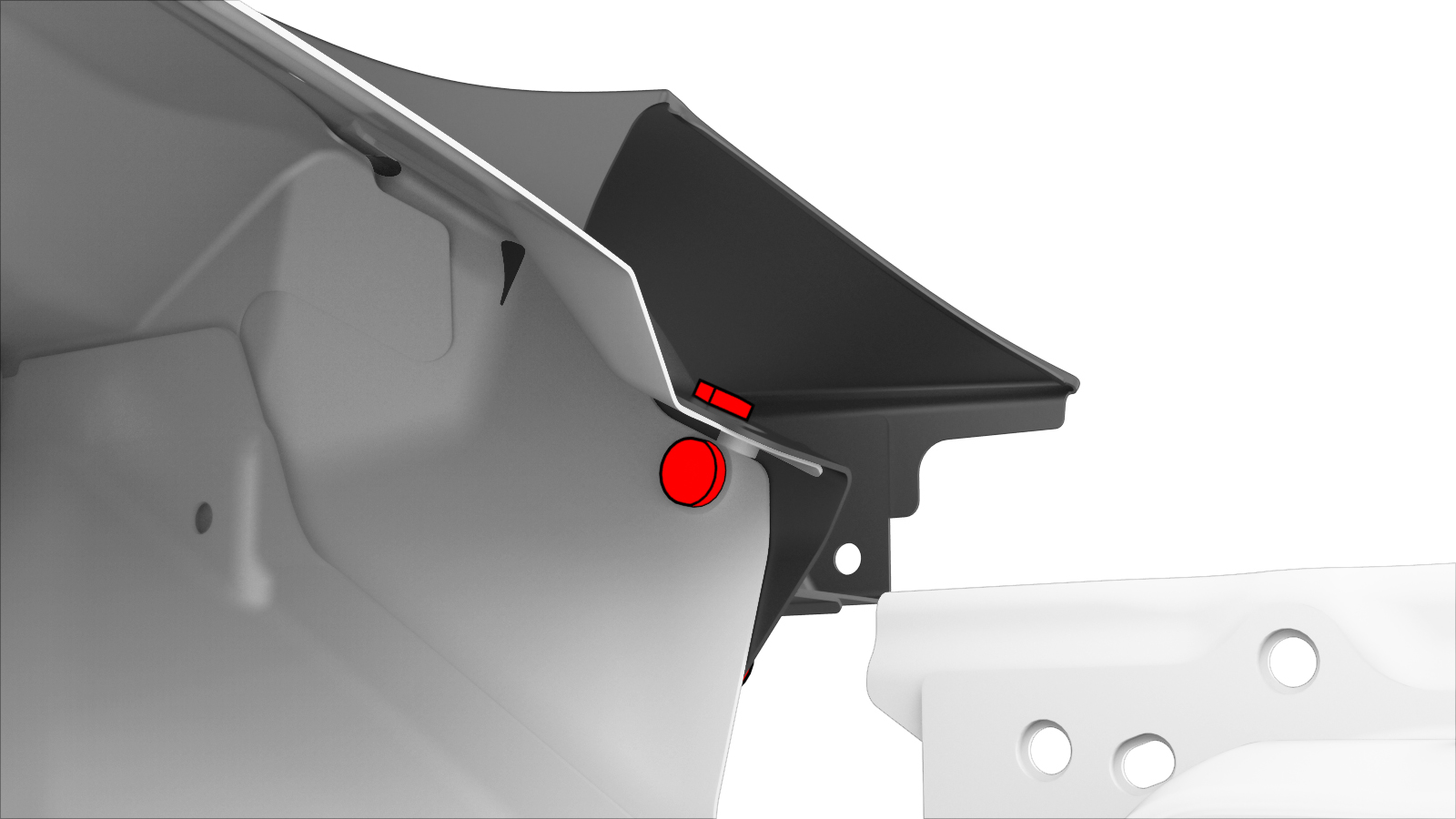

    or Bolts, hex-head

  3. Prepare for installation.

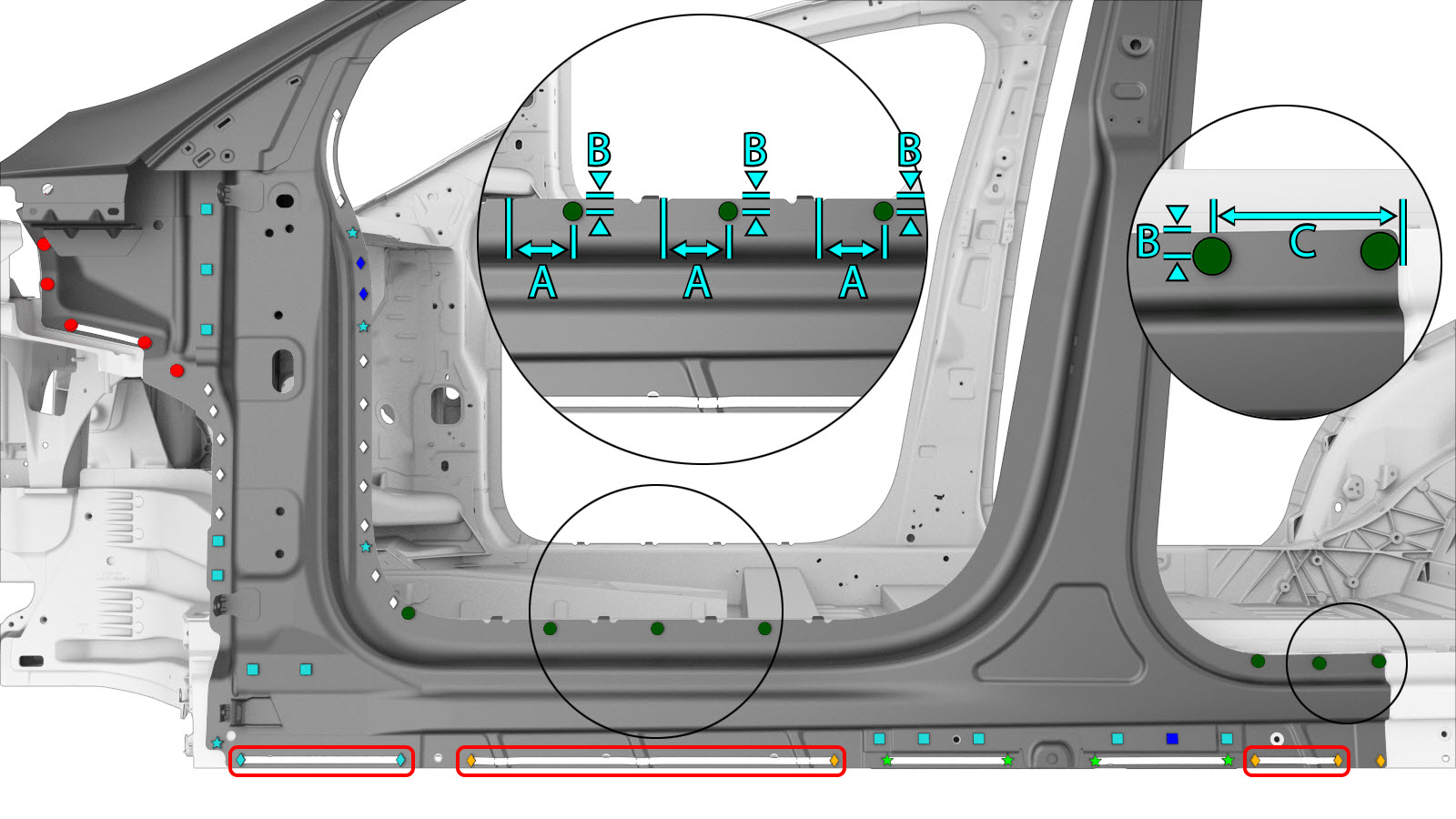

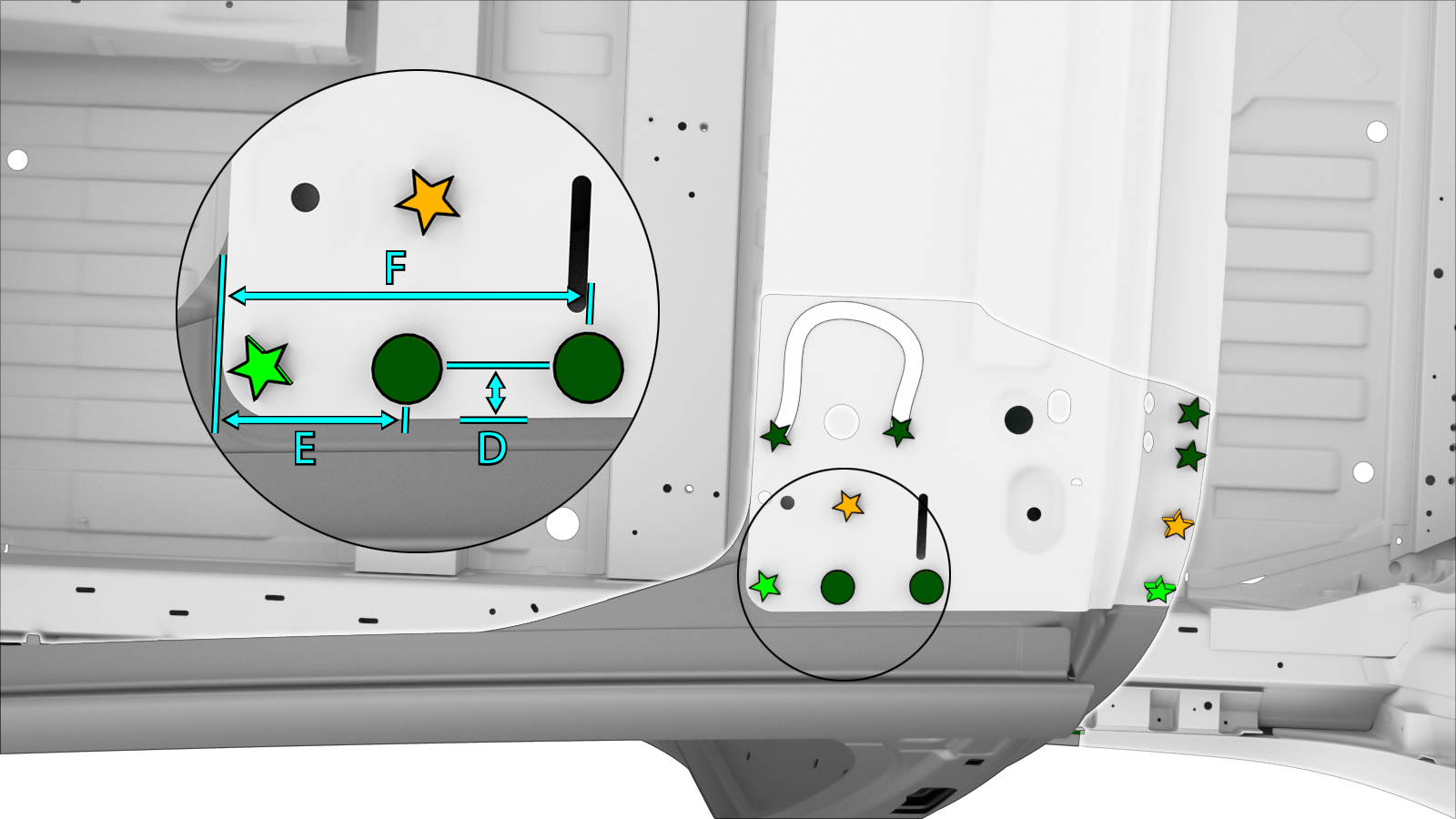

    or Countersunk Rivets, 4.8 mm Short
    • A = 70 毫米。
    • B = 12 毫米。
    • C = 90 毫米。
    • D = 14 毫米。
    • E = 51 毫米。
    • F = 100 毫米。

    or Structural Rivets, 6.5 mm Medium

    or Flow Form Rivets, S28

    or Flow Form Rivets, S38

    or Flow Form Rivets, S48

    or Flow Form Rivets, S58

    or SPRs, 5x4.5
    Informational PurposesAn informational icon, calling your attention
    安装此 SPR 需要使用以下 Tesla SPR 模具:SM 085 0125
    or SPRs, 5x5
    Informational PurposesAn informational icon, calling your attention
    使用 Tesla SPR 模具 KA 075 2113 安装以红色圈示的 5x5 SPR。使用 Tesla SPR 模具 SM 085 0125 安装未以红色圈示的 5x5 SPR。
    or SPRs, 5x6.5
    Informational PurposesAn informational icon, calling your attention
    安装此 SPR 需要使用以下 Tesla SPR 模具:SM 085 0125
    or SPRs, 5x7
    Informational PurposesAn informational icon, calling your attention
    使用 Tesla SPR 模具 KA 075 2113 安装以红色圈示的 5x7 SPR。使用 Tesla SPR 模具 SM 085 0125 安装未以红色圈示的 5x7 SPR。

    or SPRs, 5x8

    Informational PurposesAn informational icon, calling your attention
    安装此 SPR 需要使用以下 Tesla SPR 模具:SM 085 0125

    or Bolts, hex-head

    or Bolt, Torx-head

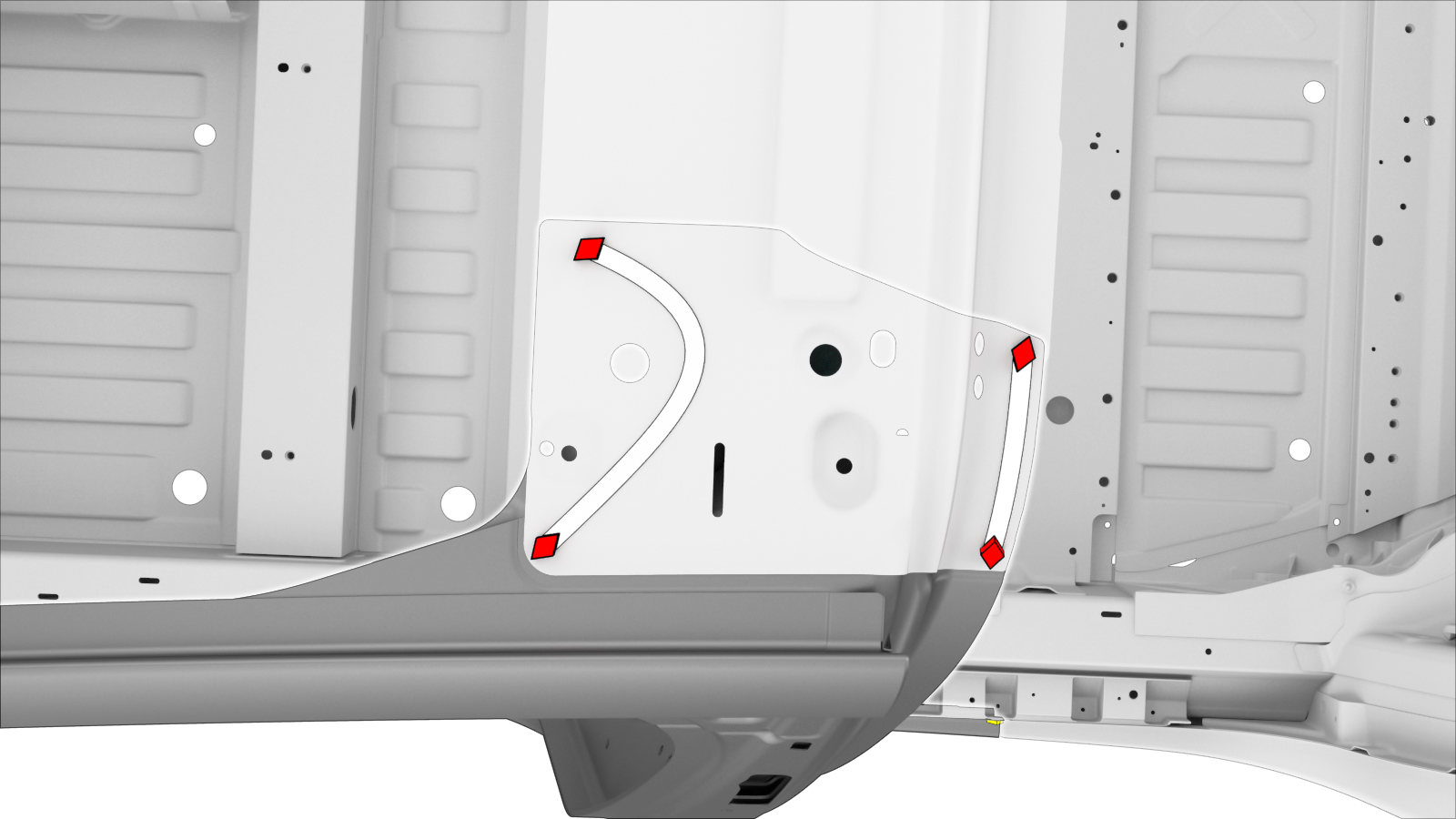

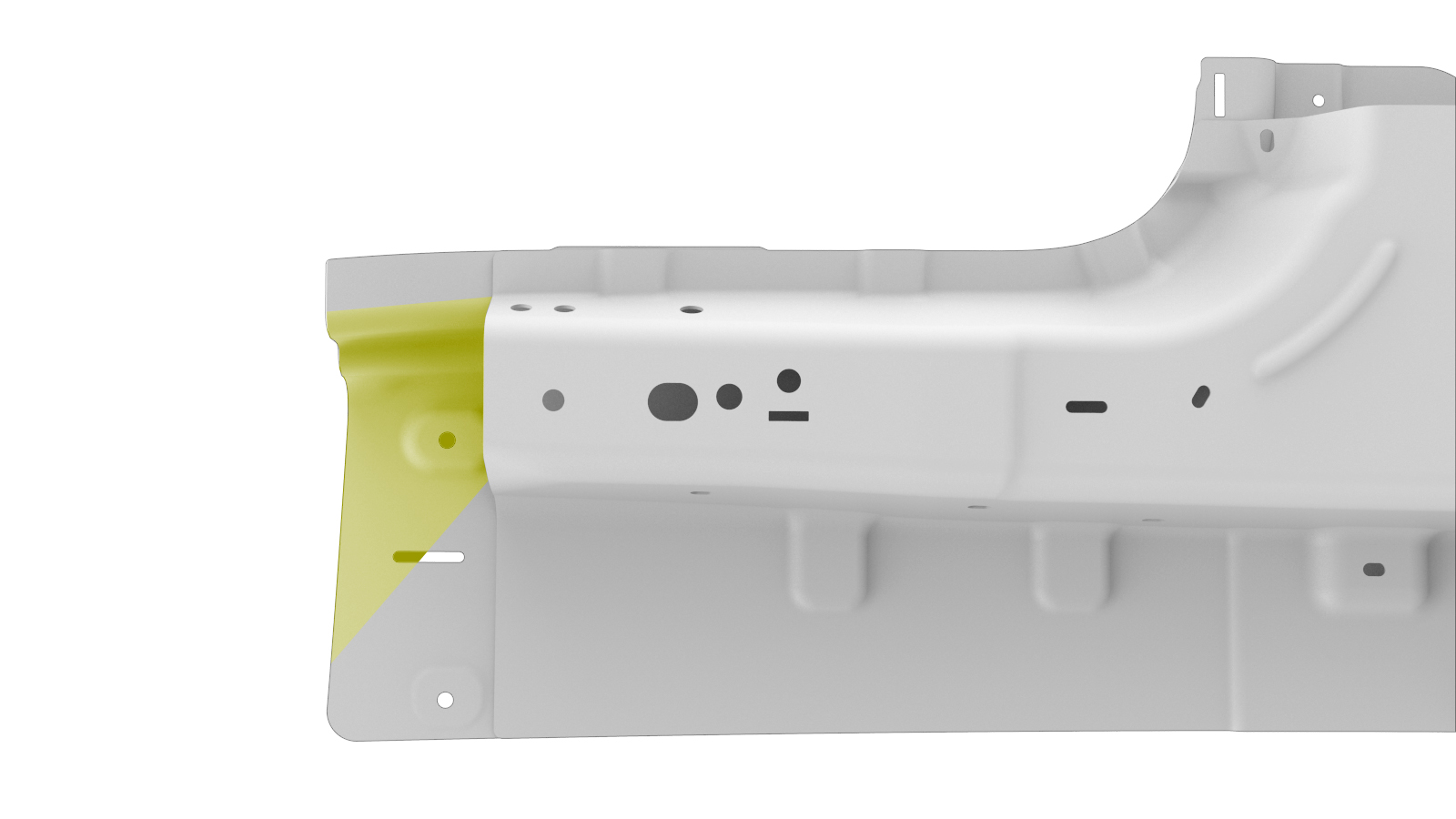

  4. 在新车身侧完整总成的上部 B 柱区域和黄色标示区域的车辆上涂抹结构型泡沫。
  5. Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
  6. Install the new component or components.
    按如下所示拧紧螺栓:
    • B 柱角撑板固定到上顶的六角头 M8-1.25x20 螺栓,Tesla 零件号 1007580-00-A:25 Nm。
    • 车身侧外件固定到铰链加固件的六角头 M8-1.25x20 螺栓,Tesla 零件号 1007580-00-A:50 Nm。
    • 六角头 M6-1.00x18 螺栓,Tesla 零件号 1006529-00-A:10 Nm。
    • 六角头 M10x80 螺栓,Tesla 零件号 1053943-00-A:25 Nm。
    • 梅花头 M8x20 螺栓,Tesla 零件号 1014747-00-B:25 Nm。
  7. 安装B 柱加固件
  8. Perform any necessary post-repair operations.
