2024-07-17
清洗液瓶支架
Repair Information
- Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
- This procedure can be completed without using a frame bench.
Parts List
| Quantity | Description | Image / Notes |
|---|---|---|

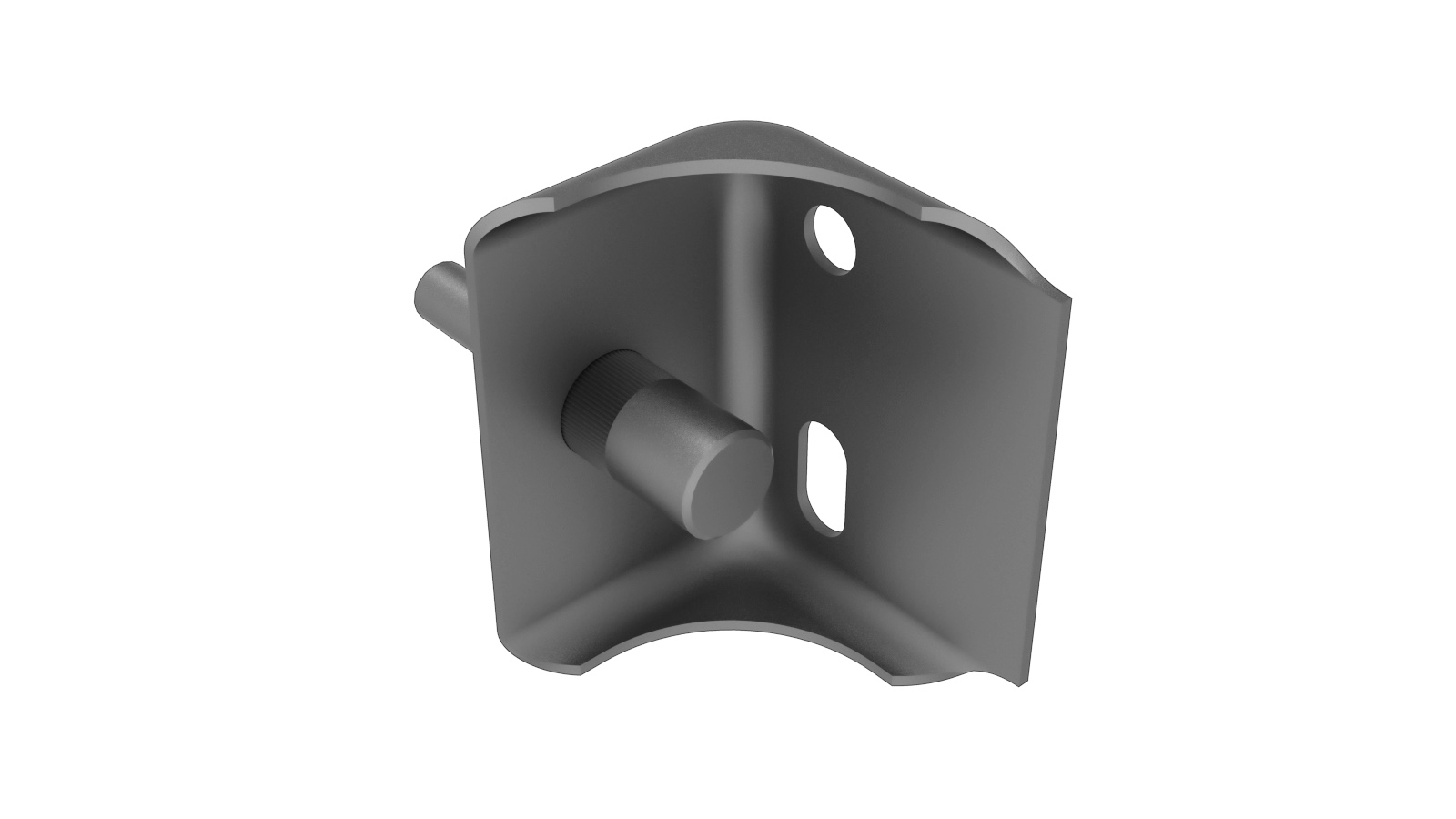

| 1 | BKT - Washer Bottle（清洗液瓶支架） |
|
| 2 |
Structural Countersunk Rivet, 6.5 mm
|
When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.
Repair Procedure
-

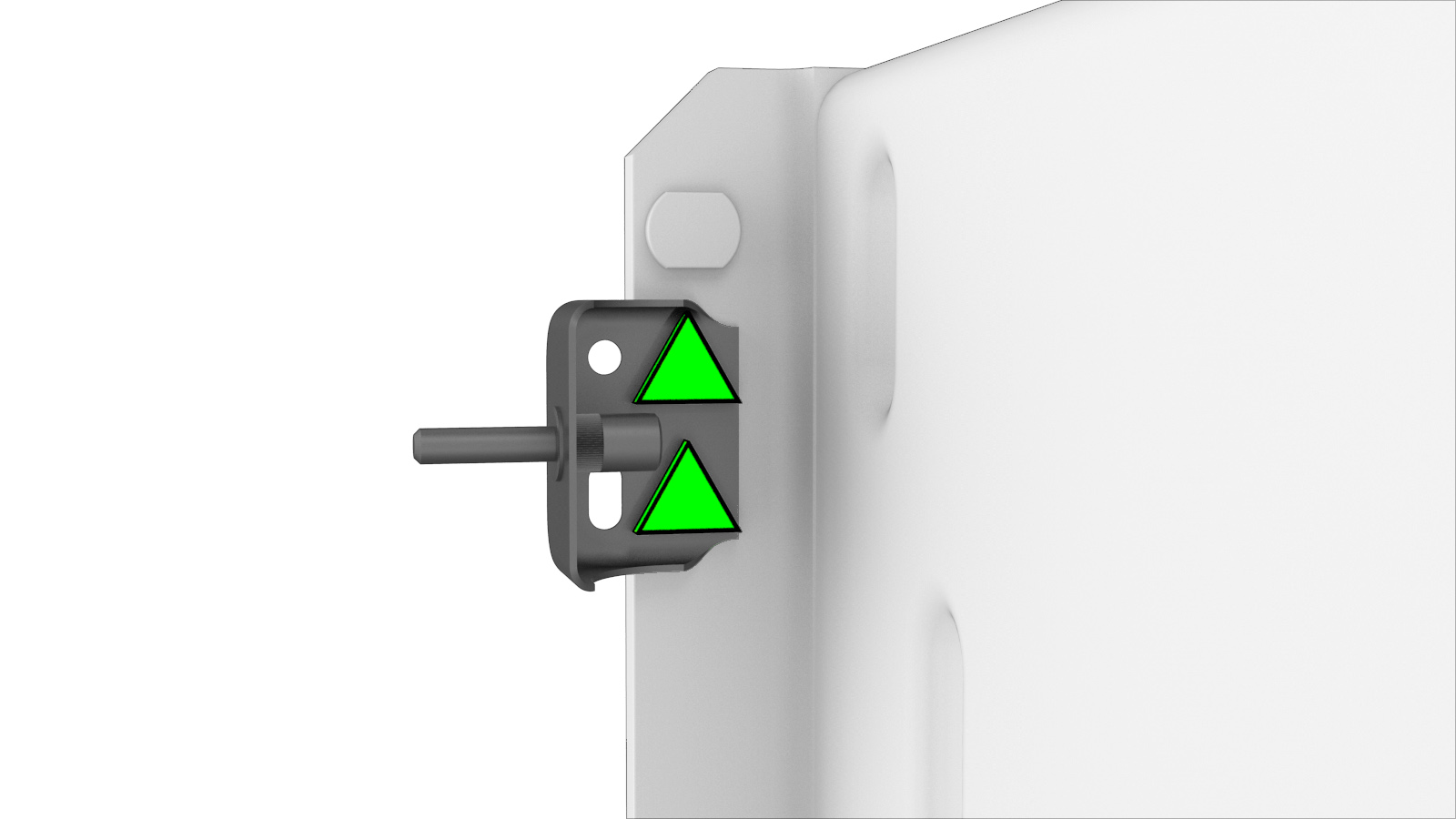

Remove the original component.
or
Factory laser welds
-

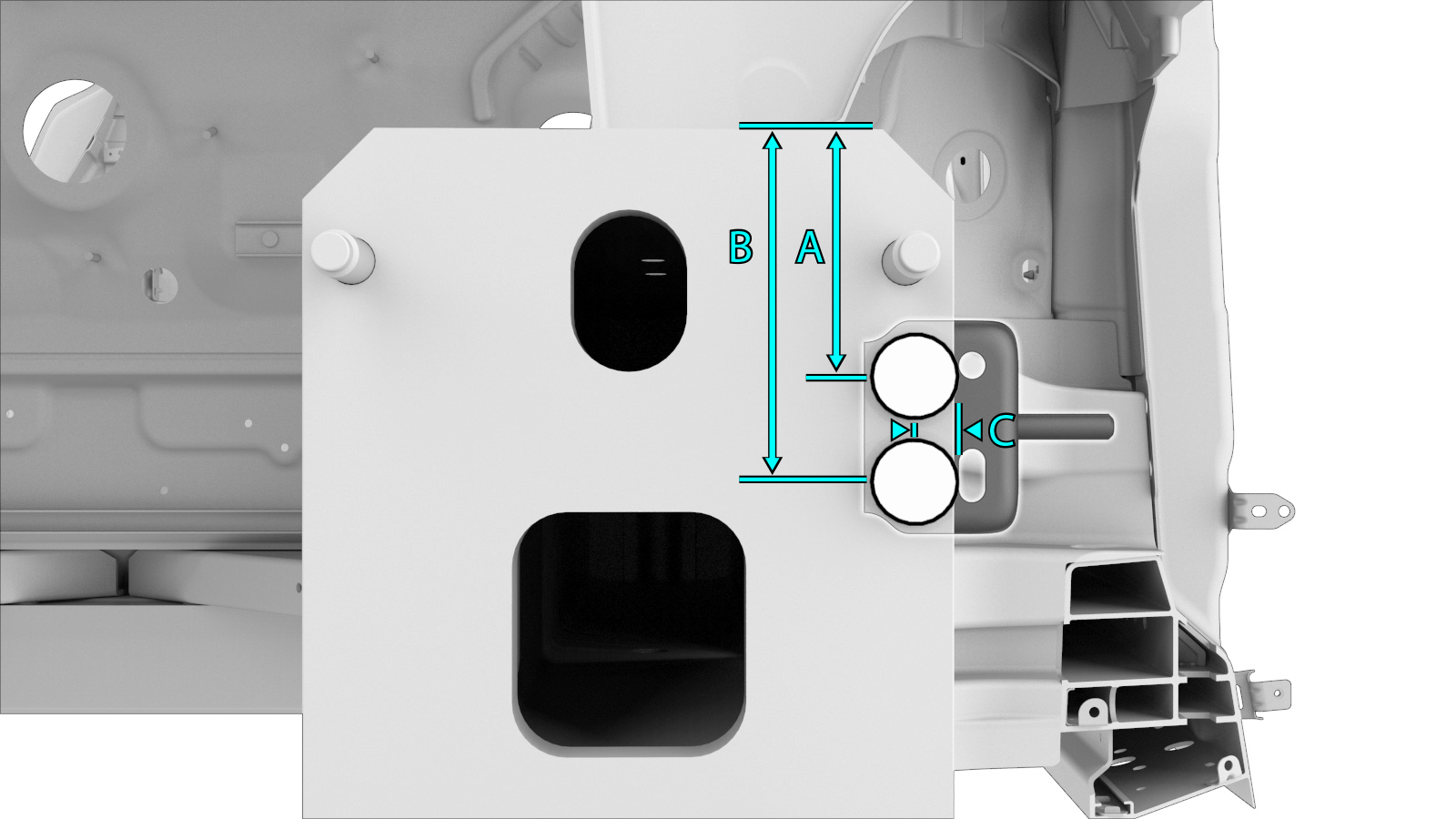

Prepare for installation.
or Structural Countersunk Rivets, 6.5 mm
- A = 54 毫米。
- B = 77 毫米。
- C = 9 毫米。
- Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
- Install the new component or components.
- Perform any necessary post-repair operations.
