鹰翼门撞销支架
Repair Information
- Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
- This procedure can be completed without using a frame bench.
Parts List
| Quantity | Description | Image / Notes |
|---|---|---|

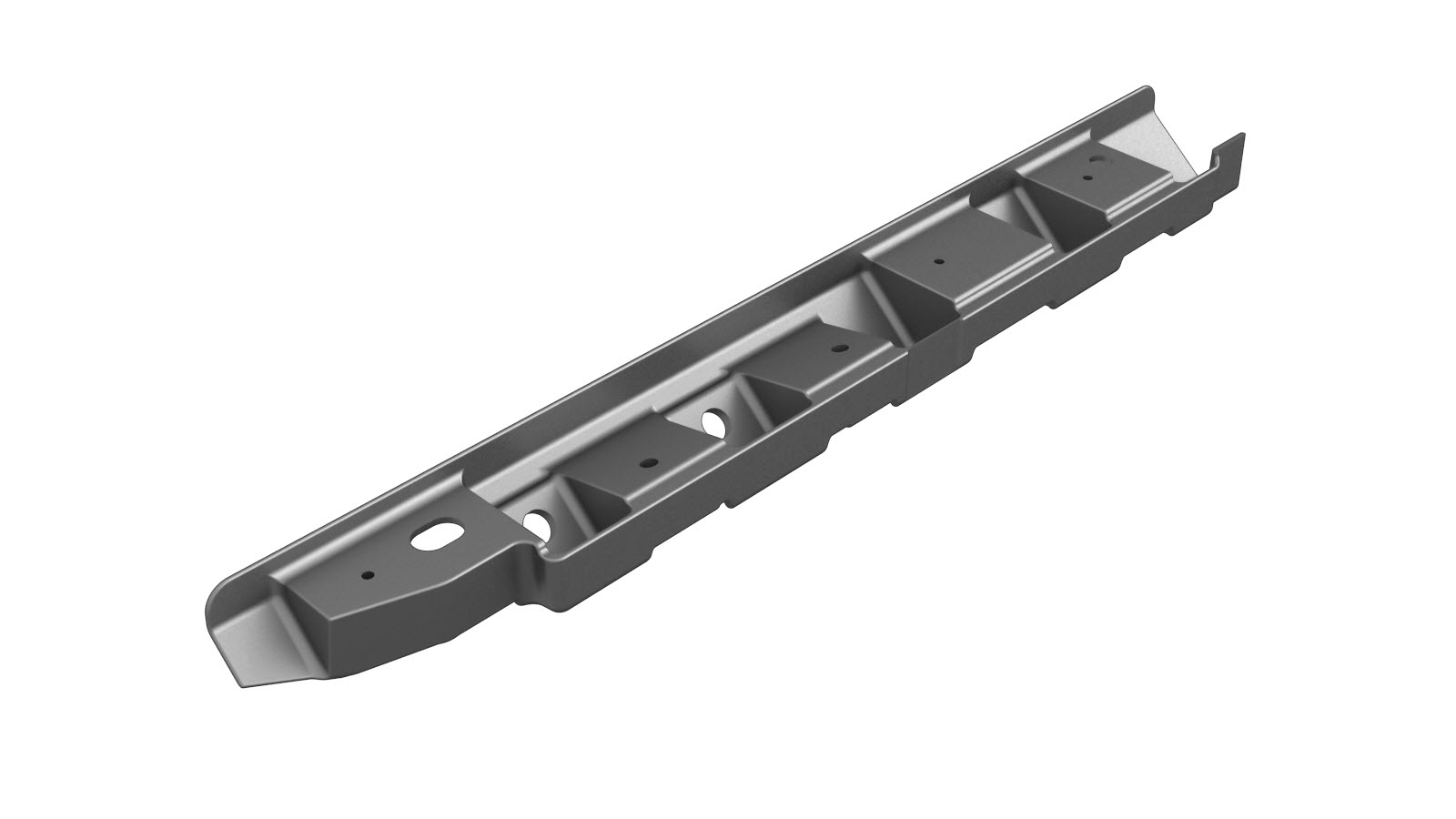

| 1 | Asy, Flcn Dr Striker Brkt（鹰翼门撞销支架） |
|
| 3 |
Countersunk Rivet, 4.8 mm Short
|
|
| 1 |
Countersunk Rivet, 4.8 mm Long
|
|
| 2 |
Bolt, Torx-head
|
Tesla 零件号 1014747-00-B。 |
When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.
Repair Procedure
-

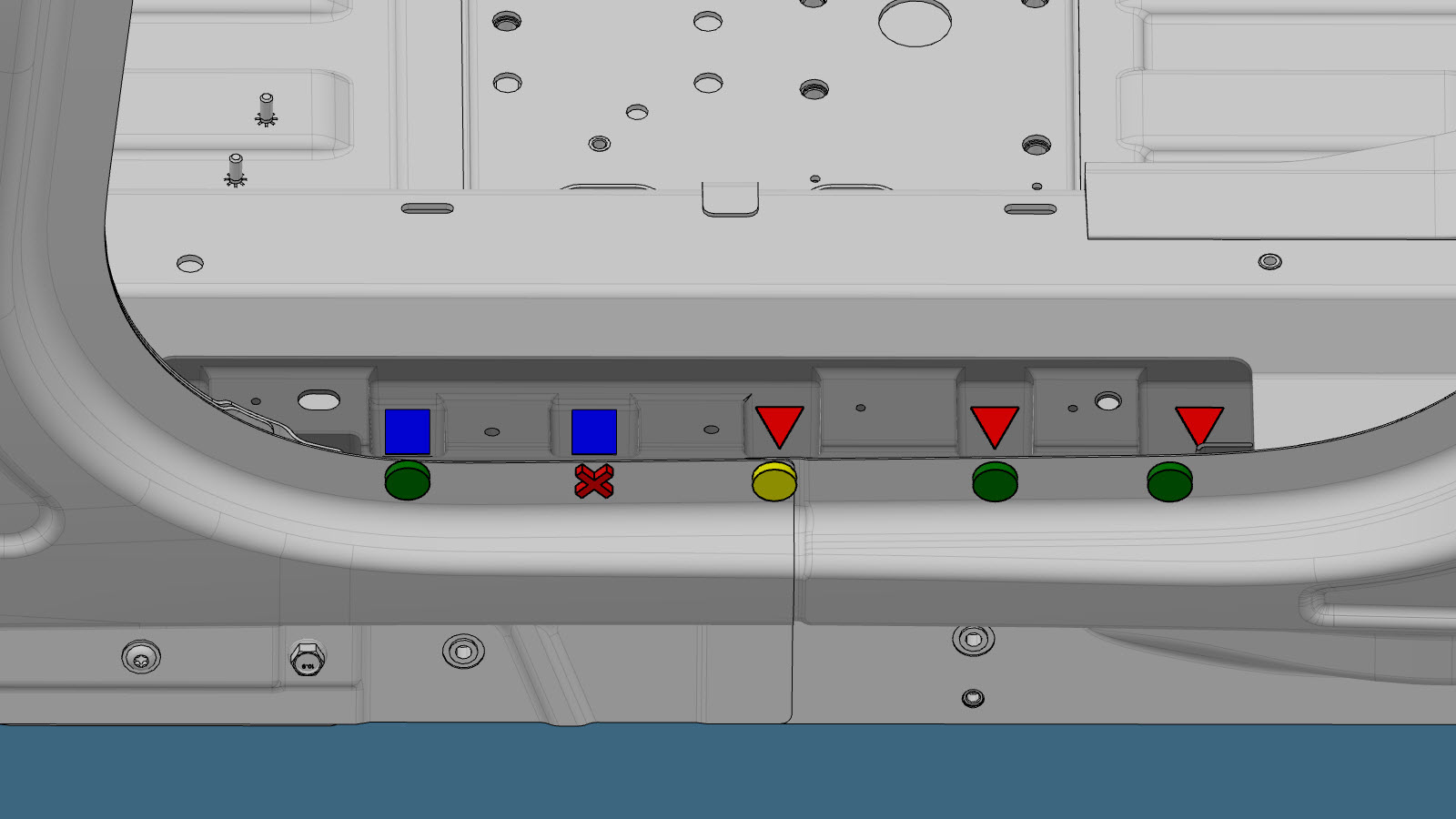

Remove the original component.
or Bolt, Torx-head
or
Drill through factory spot welds
注When drilling out spot welds, use a drill bit that creates a hole correctly sized for the fastener that will replace the spot weld.
or
RIVTAC
-

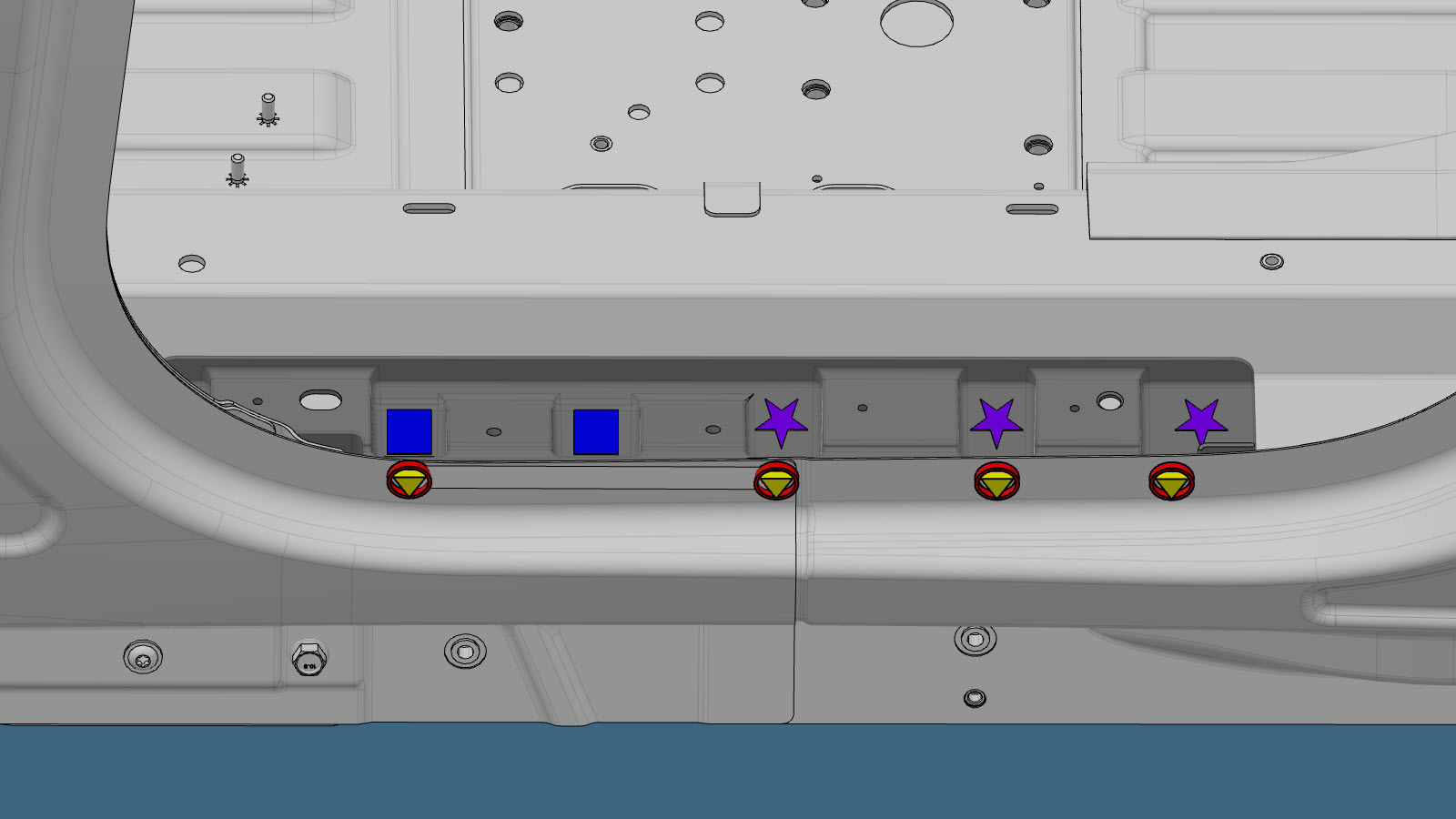

Prepare for installation.
注A red X indicates a location where a factory-installed fastener is not being replaced.
or Countersunk Rivets, 4.8 mm Short
or Countersunk Rivets, 4.8 mm Long
or
Aluminum Plug Welds
注在每个塞焊安装位置钻一个 11 毫米的孔。
- Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
-
Install the new component or components.
将这些螺栓拧紧至 25 Nm。
-
Perform GMA welding.
-
or Aluminum Plug Welds
警告Failure to follow all welding safety precautions, including the use of personal protective equipment, could result in serious injury or property damage. Only technicians who have completed Tesla’s approved welding training are authorized to weld structural components on Tesla vehicles.警告To maintain vehicle crash integrity, use only approved welding wire and an approved GMA welder to perform GMA welding on Tesla vehicles. Refer to 已批准的气体保护金属极弧 (GMA) 焊接器和焊丝 for information on approved GMA welders and welding wire.警告Do not weld on a Tesla vehicle before performing the Vehicle Electrical Isolation Procedure (refer to the vehicle-specific Service Manual for more information on the Vehicle Electrical Isolation Procedure). Welding on a Tesla vehicle with an energized high or low voltage system might damage vehicle components.注Before GMA welding, a test weld using material of the same gauge and type should be performed to make sure that the welding equipment settings produce a satisfactory joint. -
- Perform any necessary post-repair operations.
