前备箱支架
Repair Information
- Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
- This procedure can be completed without using a frame bench.
Parts List
| Quantity | Description | Image / Notes |
|---|---|---|
| 1 | MY ASY – FRUNK BRKT SVC E-COATED（前备箱支架） |
|
| 3 | ||
| 4 |
Structural Bulb Rivet, 6.5 mm
|
When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.
Repair Procedure
-
Remove the original component.
or
Factory Spot Welds
-
Prepare for installation.

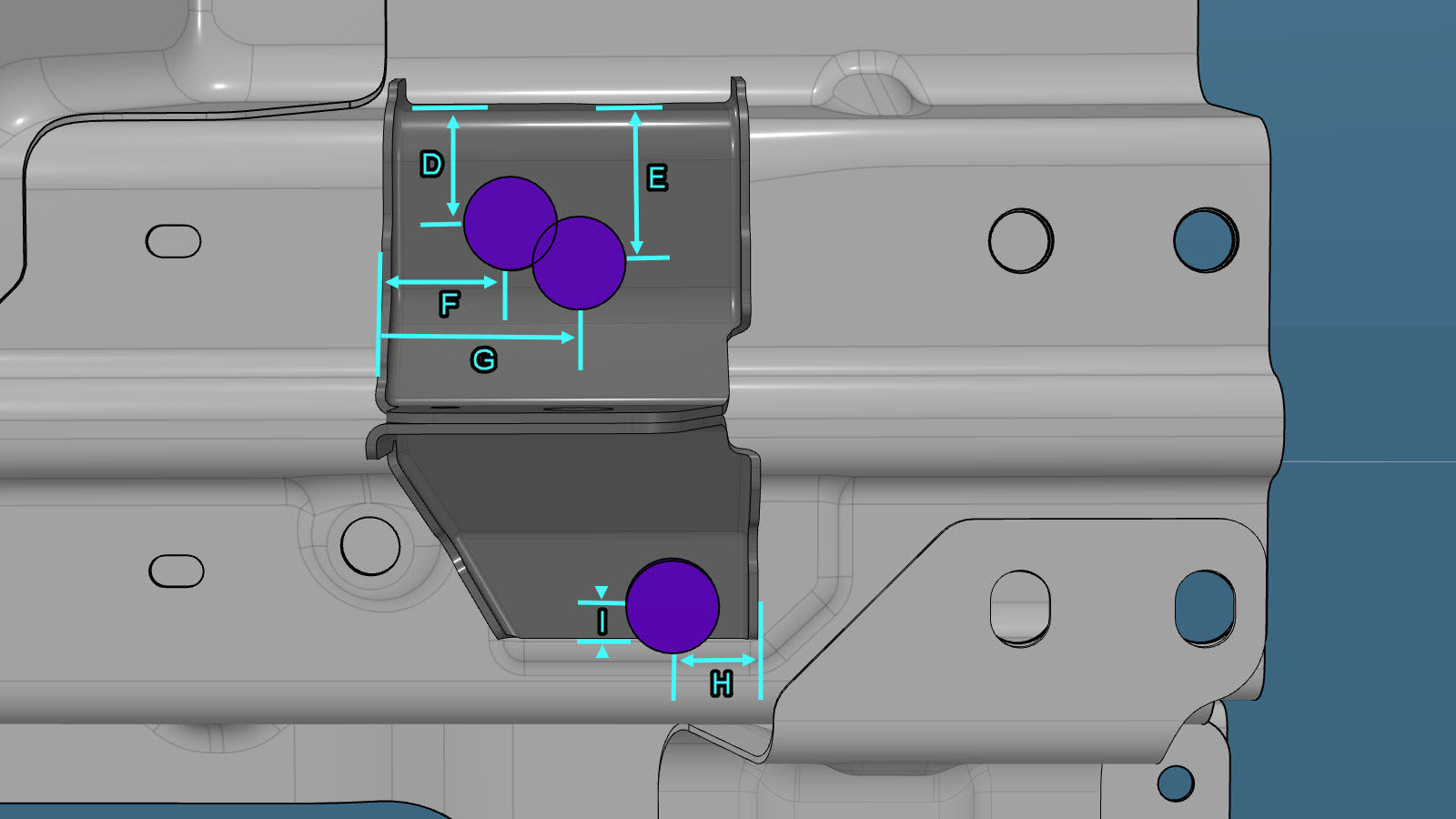

注对于每个要安装的铆钉，仅在车架纵梁外件上钻一个 6.7 毫米的孔。请勿在内车架纵梁加固板上钻孔。
or
Structural Rivets, 6.5 mm Short
or Structural Bulb Rivets, 6.5 mm
- A = 19 毫米。
- B = 11 毫米。
- C = 45 毫米。
- D = 27 毫米。
- E = 34 毫米。
- F = 26 毫米。
- G = 40 毫米。
- H = 20 毫米。
- Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
- Install the new component or components.
- Perform any necessary post-repair operations.
