Toeboard Assembly

Correction code: 10101022702 NOTE: Unless explicitly stated in the procedure, the above correction code includes all Collision Repair work required to perform this procedure, including the linked Collision Repair procedures. Do not stack Collision Repair correction codes unless explicitly told to do so. Add any associated mechanical procedures needed to perform this procedure.

Repair Information

Review all collision repair general practices and safety documentation and wear the appropriate PPE (Personal Protective Equipment) before beginning this procedure.
Properly mount the vehicle on a frame bench when performing this procedure.

Parts List


Quantity	Description	Image / Notes
1	Asy-CrossMember ToeBoard (Toeboard Assembly)
1	Toeboard NVH Baffle LH	Tesla part number 1622950-00-A.
1	Toeboard NVH Baffle RH	Tesla part number 1622951-00-A.
11	High Strength Structural Rivet, 6.5 mm
9	Structural Bulb Rivet, 6.5 mm
2	Countersunk Rivet, 4.8 mm Long
8	Structural Countersunk Rivet, 6.5 mm
2	Structural Flange Rivet
3	Bolt, Torx-head , M8x34	Tesla part number 1022448-00-A.

When ordering parts, refer to the Parts Catalog and enter the VIN of the vehicle being repaired to find the correct parts (and the part numbers) for the vehicle. Alternatively, use the search function in the Parts Catalog to find a specific part for the vehicle.

Repair Procedure

Remove the Shock Tower Assembly (Front).
Remove the Cowl Side.
Remove the Sill (Complete).
Remove the original component.

or Factory SPRs

or Factory Structural Rivets

or RIVTAC

or Bolt, Torx-head

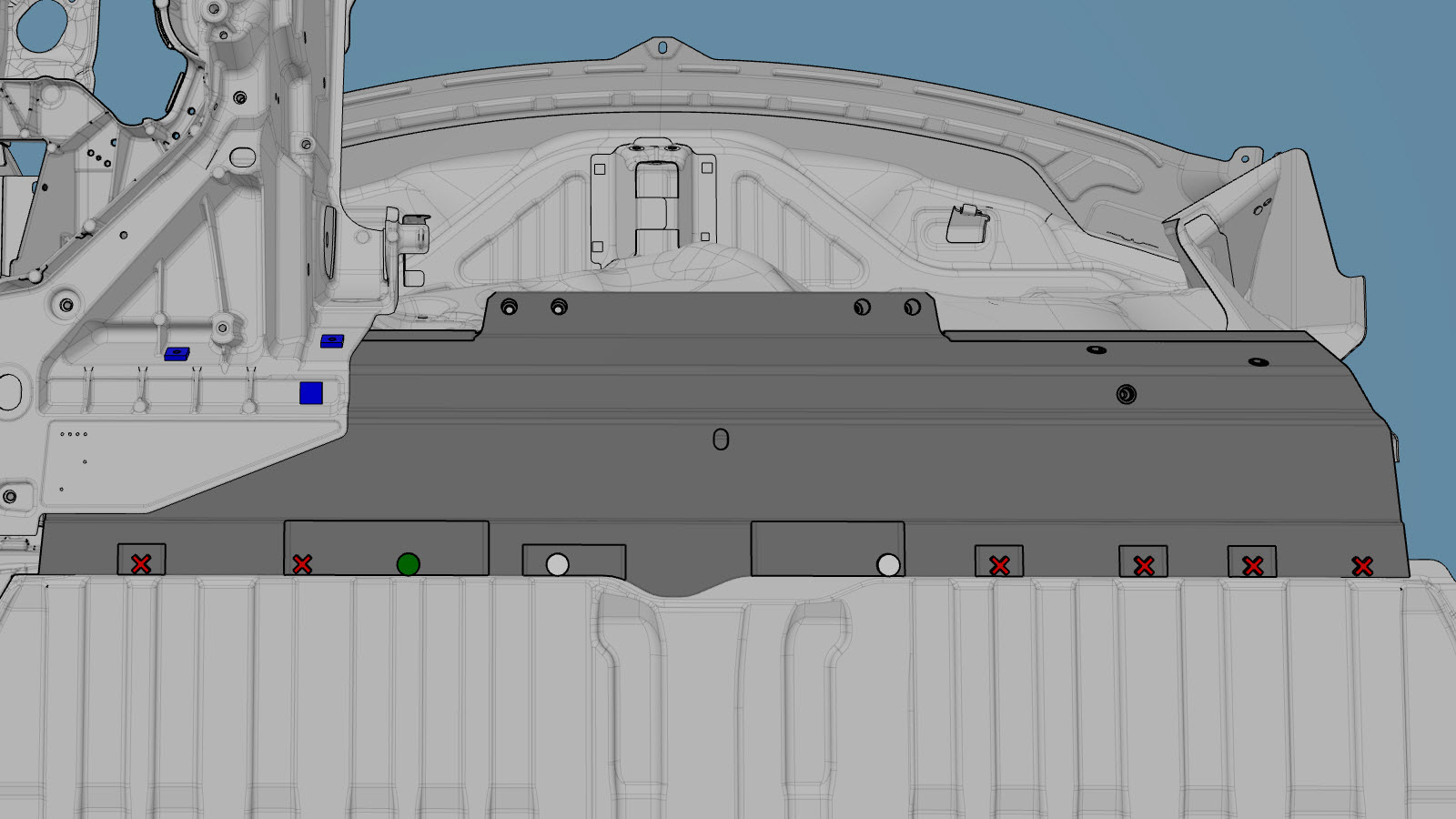

Prepare for installation.
or High Strength Structural Rivets, 6.5 mm
- A = 12 mm
- B = 53 mm
- C = 10 mm
- D = 31 mm
- G = 15 mm
- H = 20 mm
- I = 44 mm
or Structural Bulb Rivets, 6.5 mm
- E = 14 mm
- F = 252 mm
or Countersunk Rivets, 4.8 mm Long
or Structural Countersunk Rivets, 6.5 mm
- J = 10 mm
- K = 52 mm
- L = 198 mm
- M = 409 mm
- N = 279 mm
- O = 181 mm
- P = 82 mm
or Structural Flange Rivets, 6.5 mm

or Bolt, Torx-head
Apply structural adhesive to the mating surfaces on the vehicle and the new component or components.
Install the NVH baffles in the Toeboard Assembly.
Install the new component or components.
Torque all bolts to 30 Nm.
Install theShock Tower Assembly (Front).
Install the Cowl Side.
Install the Sill (Complete).
Perform any necessary post-repair operations.
