X987F

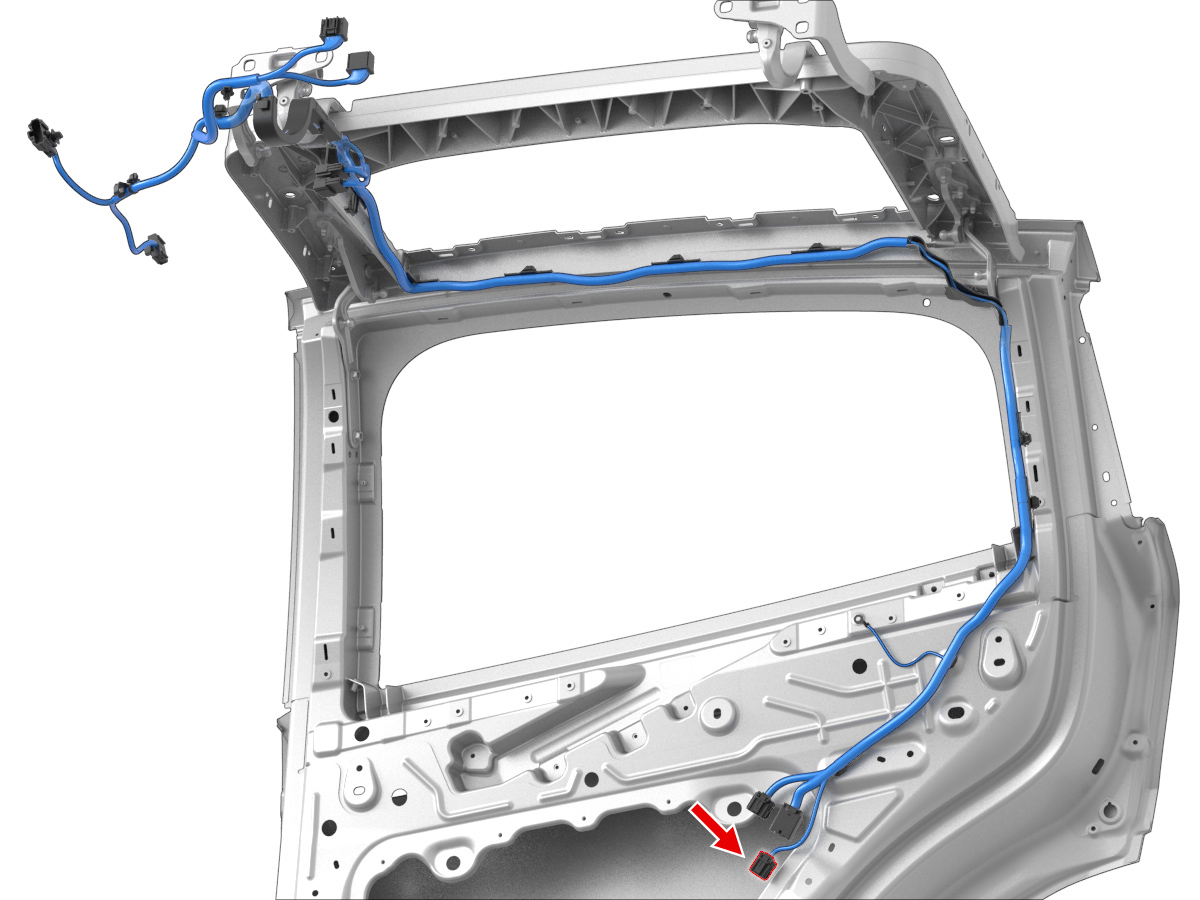

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 35457252 | 1.2x0.6F | GN | 1.50 | X971F | 1 | ||
| 2 | |||||||||
| 3 | DELPHI | 35410019 | 1.2x0.6F | GY | 0.35 | X978F | 14 | ||
| 4 | DELPHI | 35410019 | 1.2x0.6F | RD | 0.35 | X978F | 5 | ||
| 5 | DELPHI | 35410019 | 1.2x0.6F | BN | 0.35 | X971F | 15 | ||
| 6 | DELPHI | 35410019 | 1.2x0.6F | YE | 0.35 | X978F | 13 | ||
| 7 | DELPHI | 35457252 | 1.2x0.6F | TN | 1.50 | X971F | 9 | ||
| 8 | |||||||||
| 9 | DELPHI | 35410019 | 1.2x0.6F | WH | 0.35 | X978F | 6 | ||
| 10 | DELPHI | 35410019 | 1.2x0.6F | BU | 0.35 | X978F | 16 | ||
| 11 | |||||||||
| 12 |
