X596

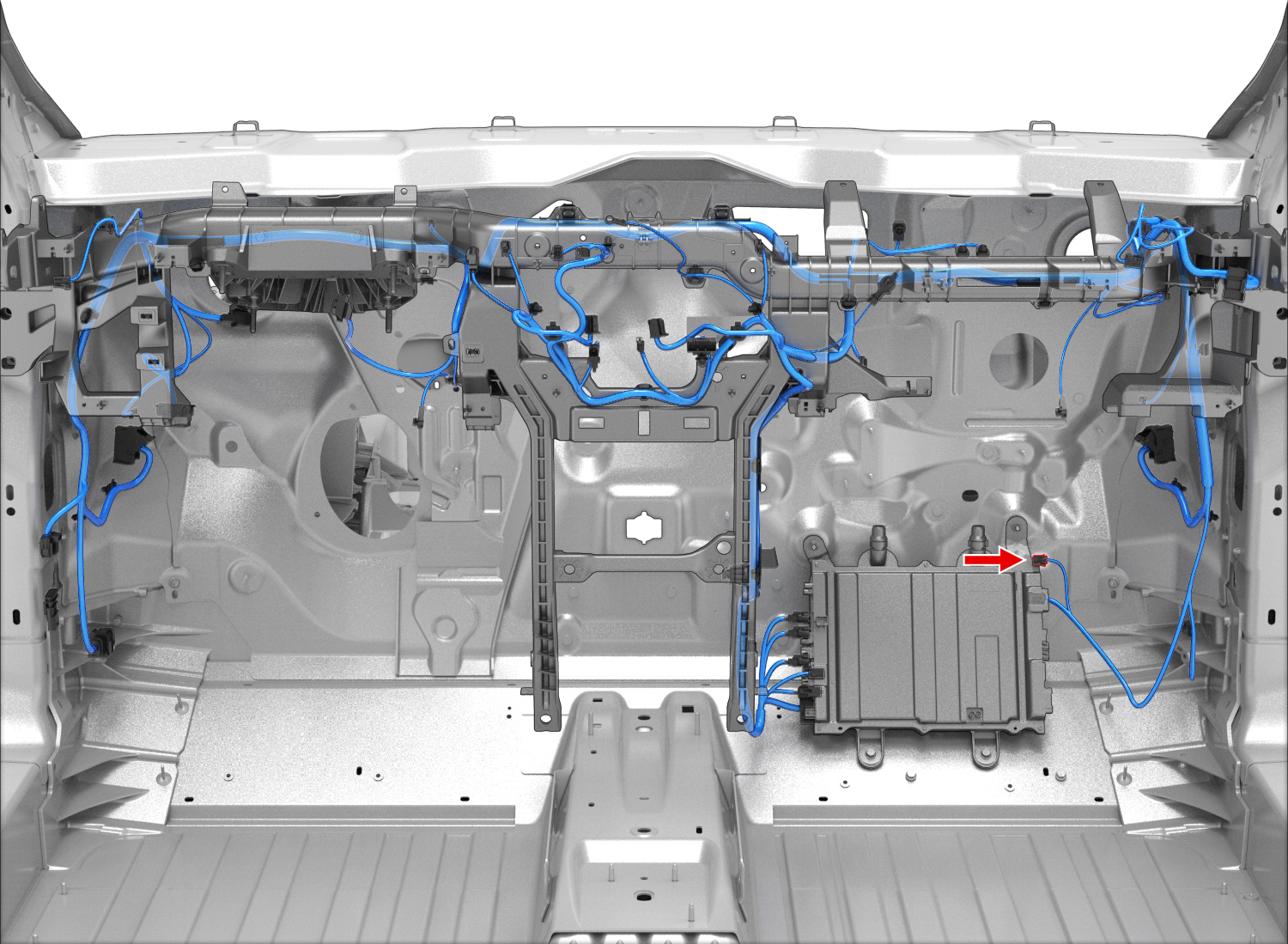

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMPHENOL | 10155447-111LF | 0.5F | GN | 0.35 | X177 | 2 | ||
| 2 | AMPHENOL | 10155447-111LF | 0.5F | YE/WH | 0.35 | X177 | 1 | ||
| 3 | unused | ||||||||
| 4 | AMPHENOL | 10155447-111LF | 0.5F | WH | 0.35 | X945F | 5 | ||
| 5 | AMPHENOL | 10155447-111LF | 0.5F | GN/WH | 0.35 | X177 | 4 | ||
| 6 | AMPHENOL | 10155447-111LF | 0.5F | YE | 0.35 | X177 | 3 | ||
| 7 | AMPHENOL | 10155447-111LF | 0.5F | GN | 0.35 | X947F | 19 | ||
| 8 | unused | ||||||||
