X2019A

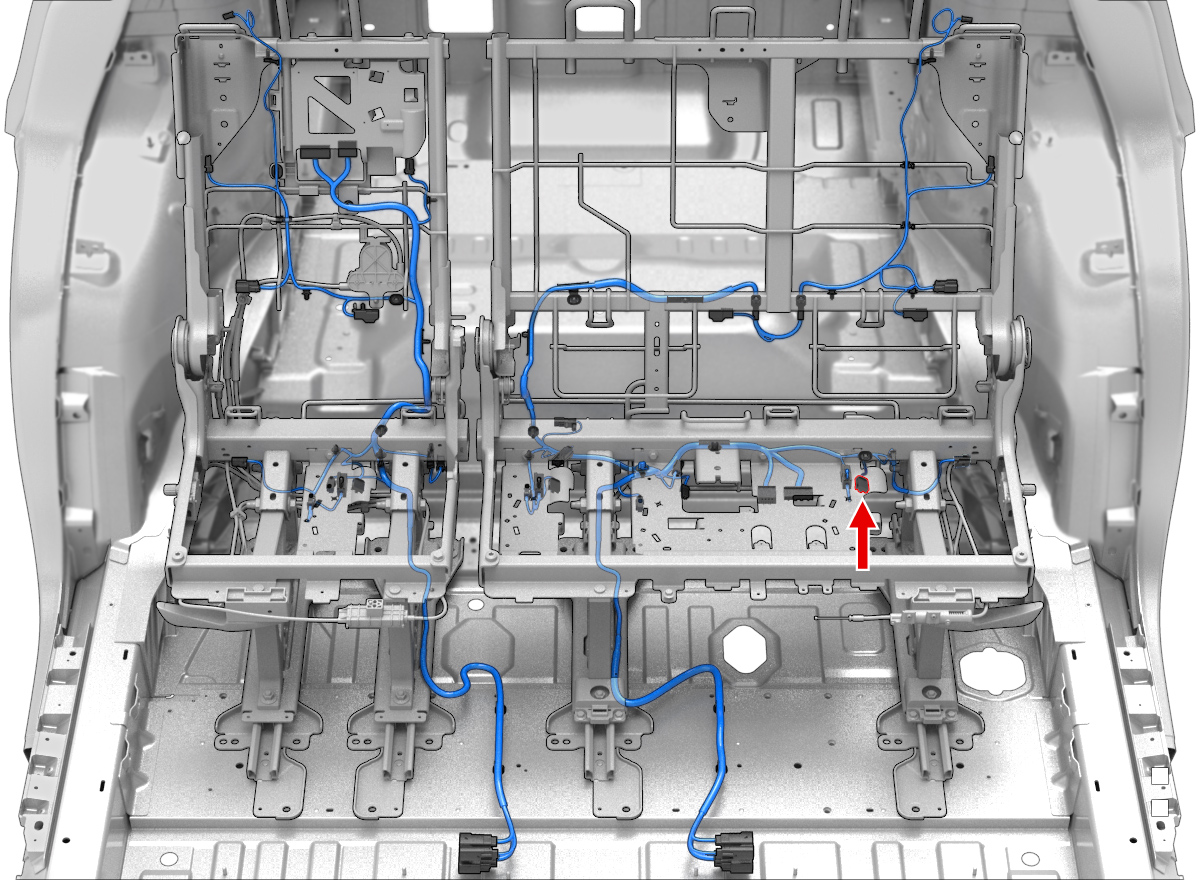

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 15316667 | 090F | BN | 0.50 | ||||
| 2 | DELPHI | 15316667 | 090F | GN | 0.35 | X2003A | 35 | ||
| 3 | unused | ||||||||
| 4 | DELPHI | 15316667 | 090F | VT | 0.50 | ||||
