X038A

Tesla Part Number

1506908-02-A

Connector

SUMITOMO 6098-8953

Color

WH

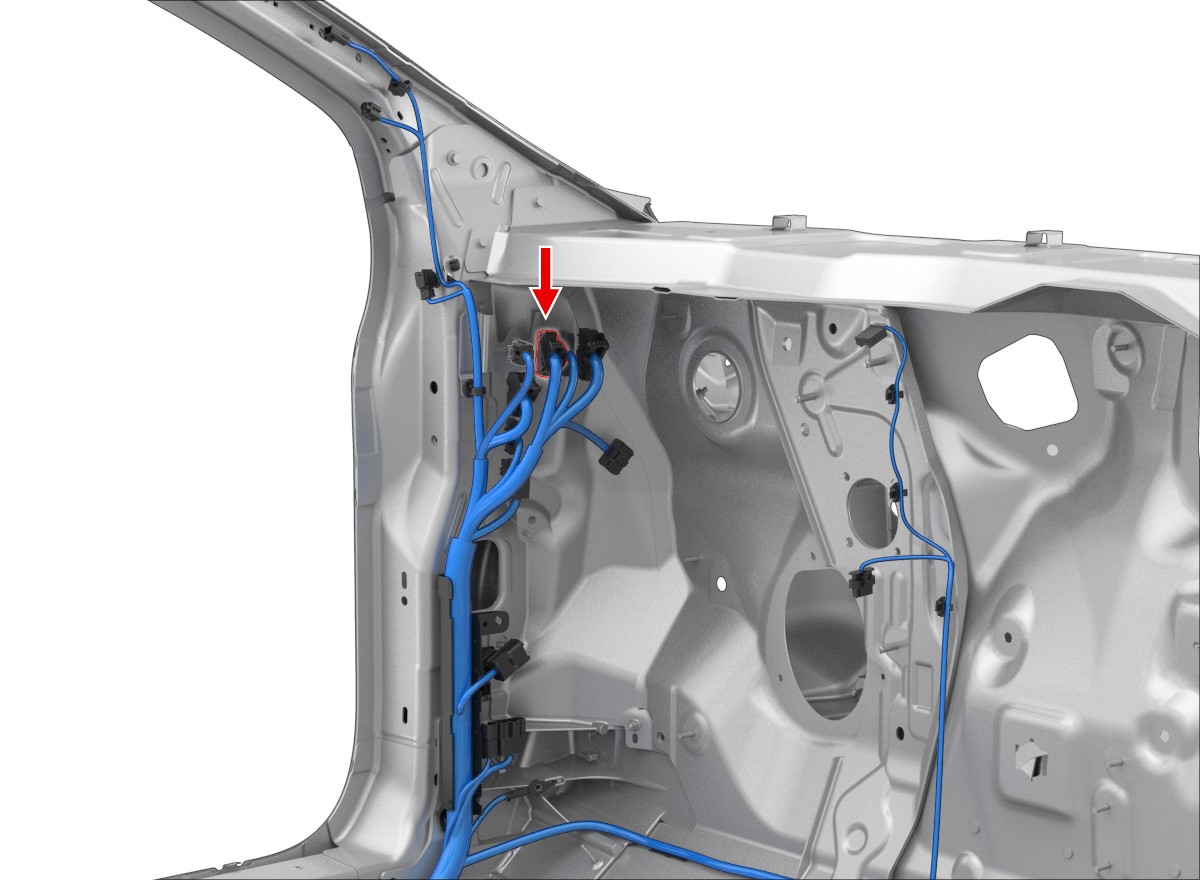

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1
2	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X1000	9
3	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X997M	6
4
5	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X983F	11
6	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X930M	7
7	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X932M	2
8
9
10
11
12	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X982F	16
13	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X970M	14
14
15	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X1000	8
16	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X997M	5
17	SUMITOMO	8100-3625	0.64x0.64F	GY	0.50			X970M	2
18	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X983F	12
19	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X983F	7
20	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X932M	9
21	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X930M	8
22
23
24
25
26	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X983F	19
27	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X970M	13
28
29	SUMITOMO	8240-0213	1.5x0.64F	RD	0.75			X959F	10
30
31
32
33
34	SUMITOMO	8240-0214	1.5x0.64F	WH	1.50			X930M	1
35
