X986F

Tesla Part Number

1494976-00-A

Connector

DELPHI 33250071

Color

BK

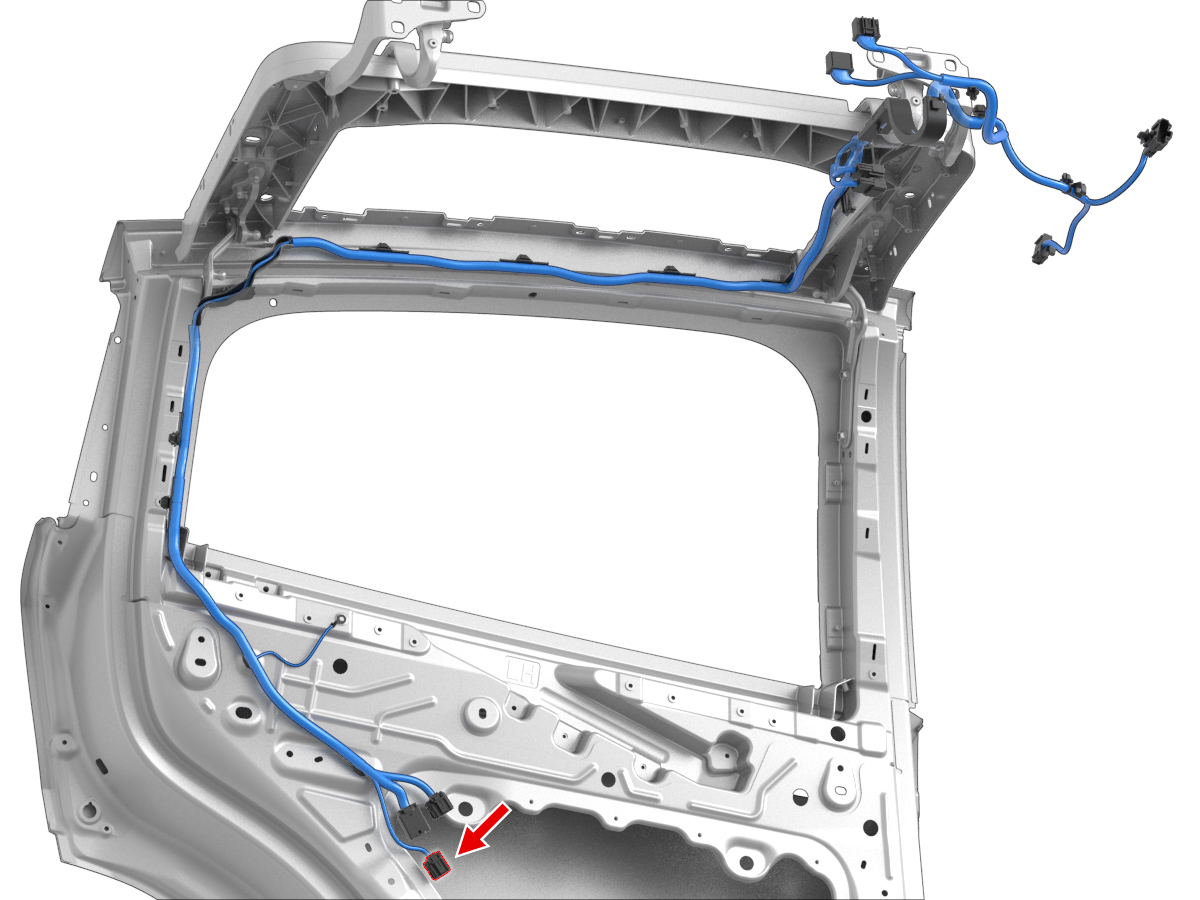

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35457252	1.2x0.6F	RD	1.50			X970F	1
2
3	DELPHI	35410019	1.2x0.6F	GY	0.35			X970F	14
4	DELPHI	35410019	1.2x0.6F	RD	0.35			X970F	13
5	DELPHI	35410019	1.2x0.6F	BN	0.35			X970F	6
6	DELPHI	35410019	1.2x0.6F	YE	0.35			X970F	12
7	DELPHI	35457252	1.2x0.6F	TN	1.50			X970F	11
8
9	DELPHI	35410019	1.2x0.6F	GN	0.35			X970F	16
10	DELPHI	35410019	1.2x0.6F	BU	0.35			X970F	15
11
12
