X120

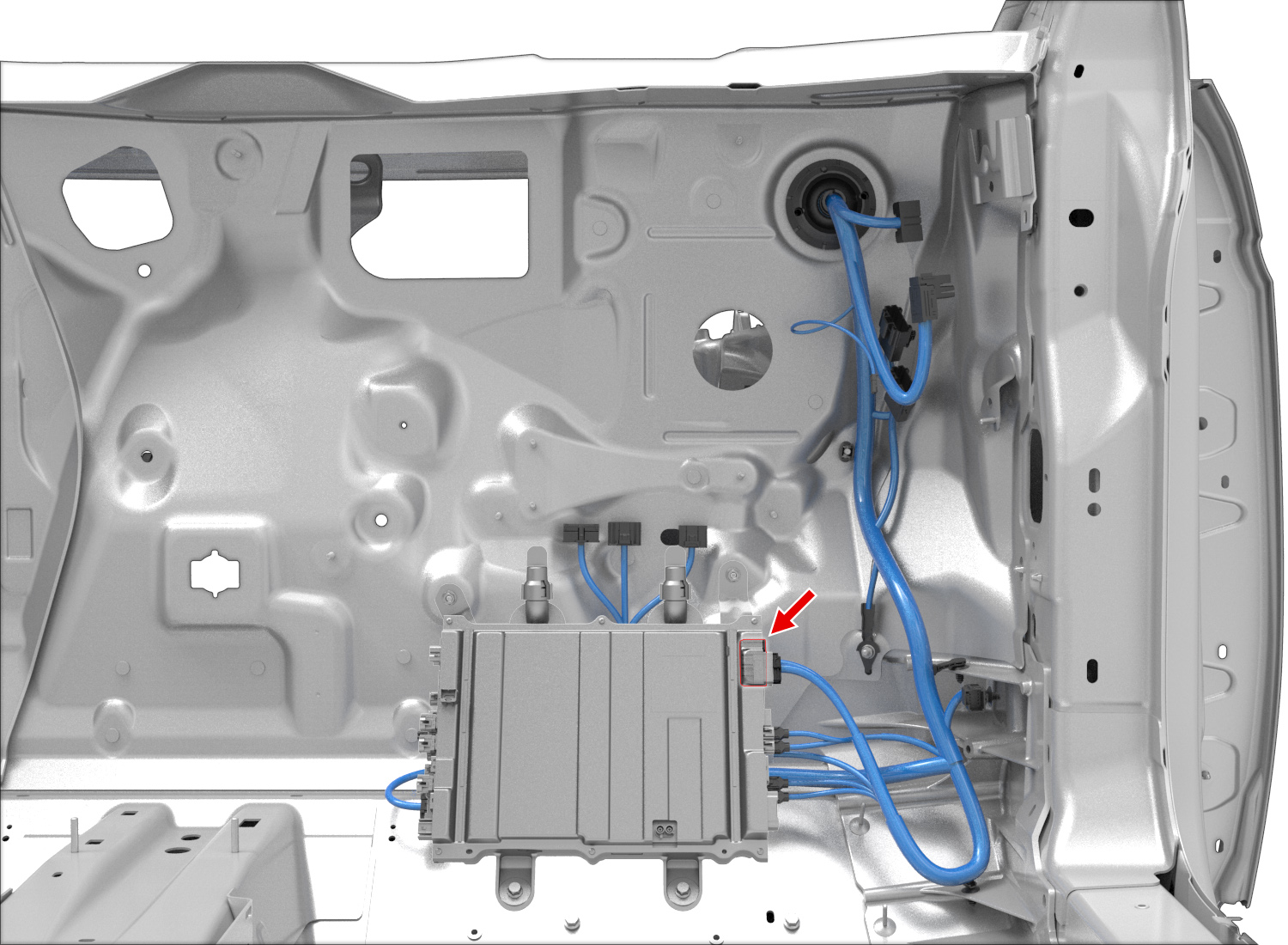

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-4932 | 4.8x0.8F | BU | 4.00 | X012 | 2 | ||
| 2 | |||||||||
| 3 | SUMITOMO | 8100-2730 | 1.0x0.64F | GN/WH | 0.35 | ||||
| 4 | SUMITOMO | 8100-2730 | 1.0x0.64F | GN | 0.35 | ||||
| 5 | SUMITOMO | 8100-2730 | 1.0x0.64F | WH | 0.35 | X906F | 8 | ||
| 6 | SUMITOMO | 8100-2730 | 1.0x0.64F | YE | 0.35 | X906F | 9 | ||
| 7 | |||||||||
| 8 | |||||||||
| 9 | |||||||||
| 10 | |||||||||
| 11 | SUMITOMO | 8100-2730 | 1.0x0.64F | GN | 0.50 | X580 | 2 | ||
| 12 | SUMITOMO | 8100-2730 | 1.0x0.64F | BN/WH | 0.35 | ||||
| 13 | SUMITOMO | 8100-2730 | 1.0x0.64F | BN | 0.35 | ||||
| 14 | |||||||||
| 15 | |||||||||
| 16 | |||||||||
| 17 | |||||||||
| 18 | |||||||||
| 19 | |||||||||
| 20 | SUMITOMO | 8100-2730 | 1.0x0.64F | VT | 0.50 | X580 | 1 |
