X972L

Tesla Part Number

1042583-01-A

Connector

SUMITOMO 6098-3926

Color

BK

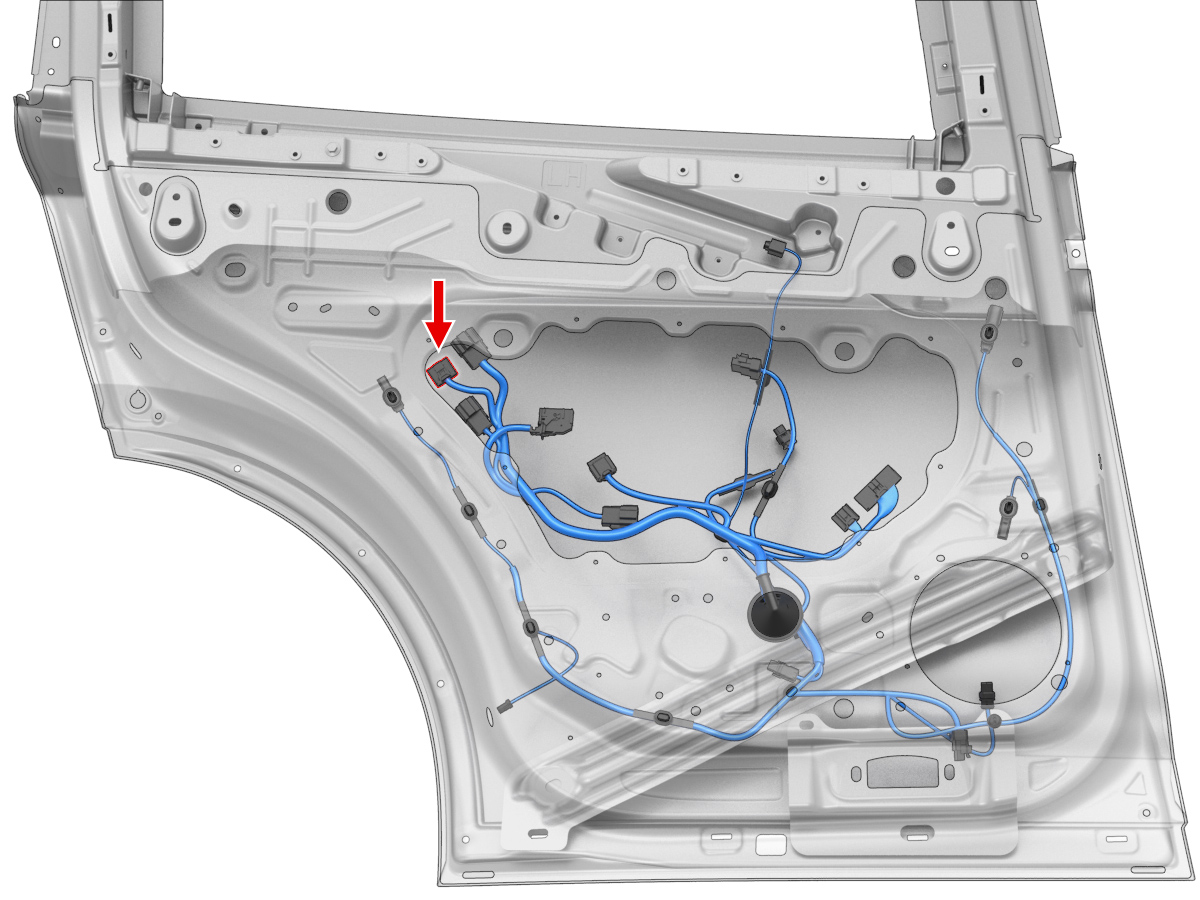

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X421	6
2
3	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.35			X421	7
4
5	SUMITOMO	8100-3625	0.64x0.64F	GY/WH	0.35			X442	3
6	SUMITOMO	8100-3625	0.64x0.64F	GY/WH	0.35			X447	24
7
8	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50			X440	2
9	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50			X439	2
10	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50			X440	1
11	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50			X439	1
12	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X447	18
13	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X421	19
14	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X442	1
15
16	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X442	4
17	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X447	23
18
19	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X447	22
20	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X421	27
21	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X442	2
22
