X361

Tesla Part Number

1043175-00-A

Connector

SUMITOMO 6098-4831

Color

WH

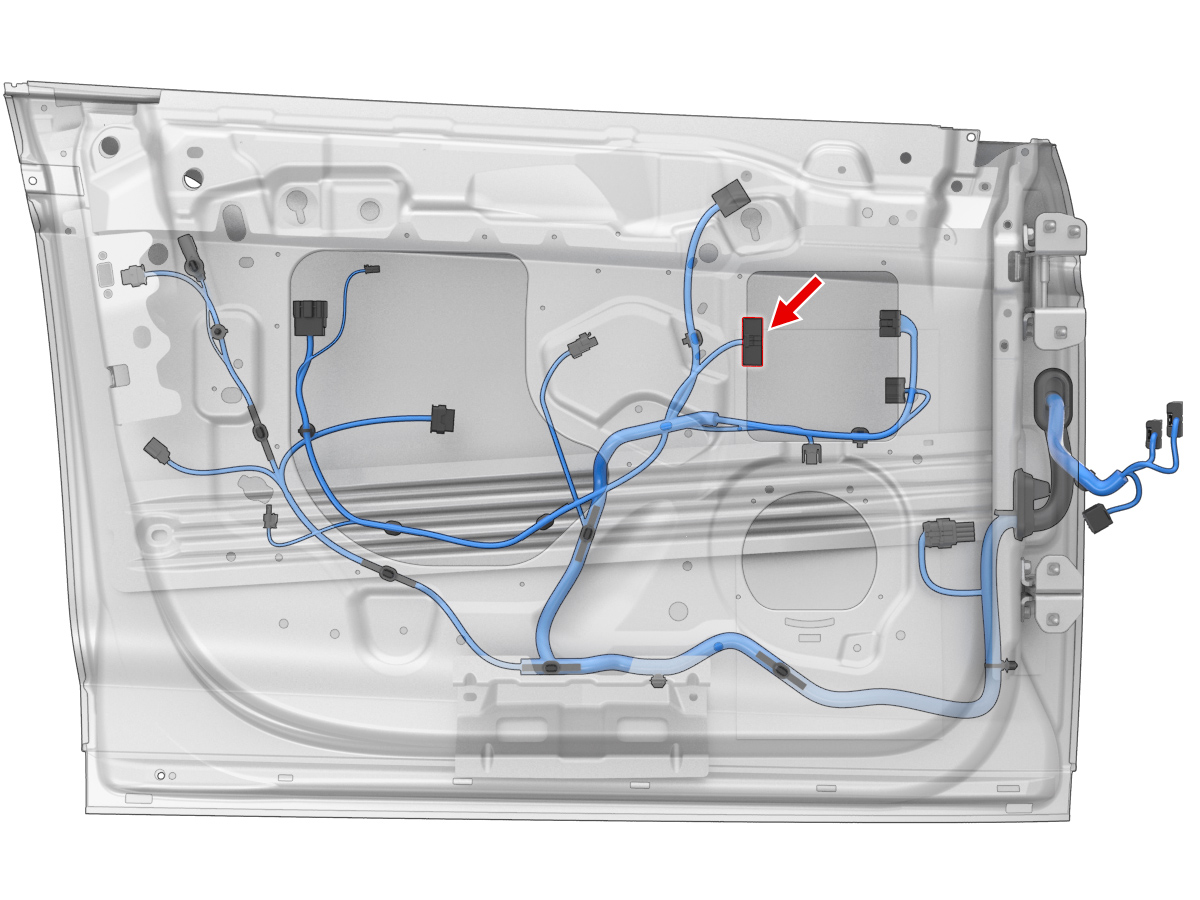

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1
2	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X377	1
3	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X377	2
4	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X374	17
5	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X920F	17
6
7	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X374	7
8	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X374	18
9	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X374	6
10	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X368	1
11	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X385	2
12
13	SUMITOMO	8100-3625	0.64x0.64F	BN/YE	0.35
14	SUMITOMO	8100-3625	0.64x0.64F	BN/YE	0.35
15
16
17
18
19	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X368	2
20
21
22	SUMITOMO	8100-3625	0.64x0.64F	GY	0.50			X378	2
23	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50			X378	1
24	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X374	20
25	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X374	9
26	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X374	10
27
28
29
30	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X033A	20
31	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.35			X033A	21
32	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X378	3
33	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X376	1
34	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X376	2
35	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X385	3
36
37	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X386	1
38
39
40	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X374	4
