X3004

Tesla Part Number
1075246-00-A
Connector
YAZAKI 7283-6449-40
Color
GY

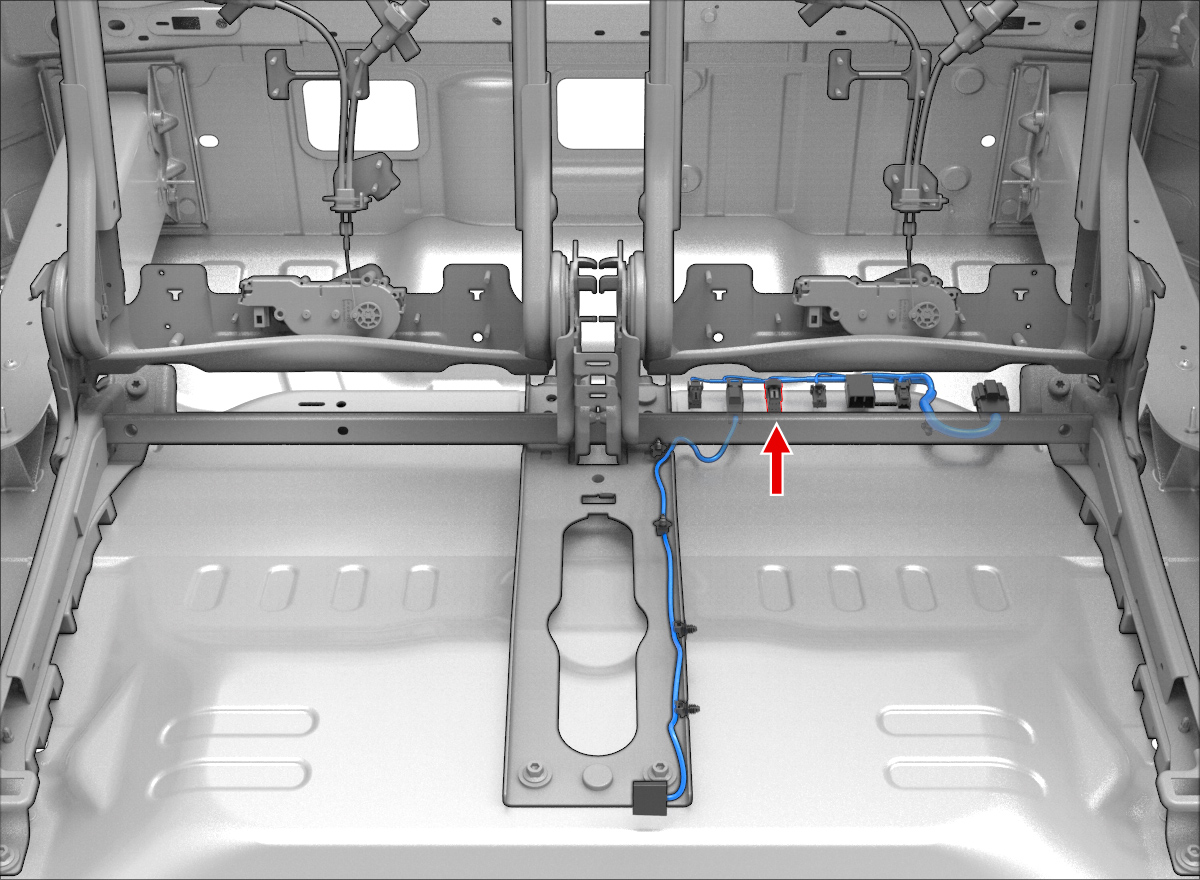

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1YAZAKI7116-6315-021.5x0.8FWH0.50
2YAZAKI7116-6315-021.5x0.8FBK0.50
3YAZAKI7116-6315-021.5x0.8FVT0.35X959M5
4YAZAKI7116-6315-021.5x0.8FBN0.35
