X463

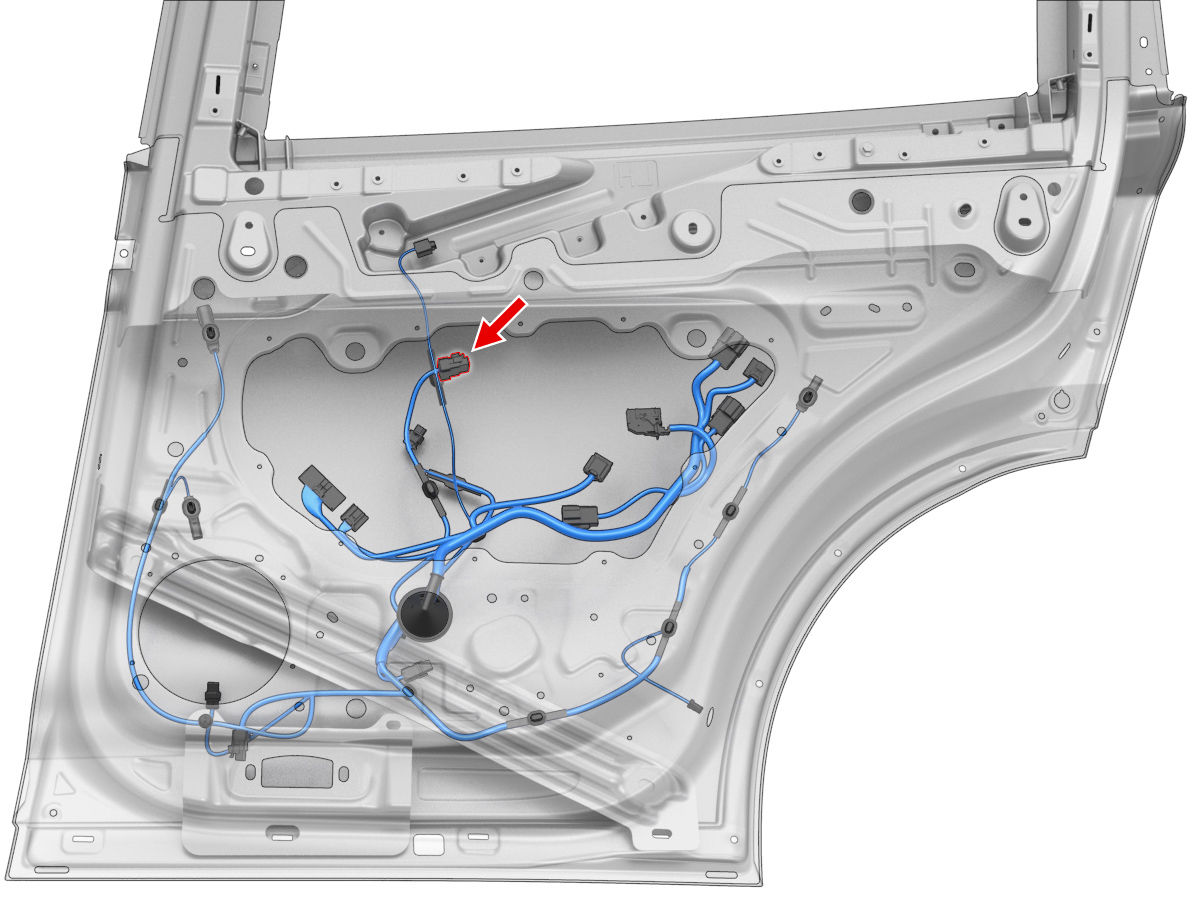

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | FCI | 211CC2S1160P | 1.5x0.8F | BU | 0.50 | TESLA | MAT-140-280 | X987M | 10 |
| 2 | FCI | 211CC2S1160P | 1.5x0.8F | GY | 0.50 | TESLA | MAT-140-280 | X987M | 3 |
| 3 | DELPHI | 10726549 | 2.8x0.8 | GN | 1.50 | TESLA | MAT-160-345 | X987M | 1 |
| 4 | DELPHI | 10726549 | 2.8x0.8 | TN | 1.50 | TESLA | MAT-160-345 | X987M | 7 |
| 5 | FCI | 211CC2S1160P | 1.5x0.8F | BN | 0.50 | TESLA | MAT-140-280 | ||
| 6 | FCI | 211CC2S1160P | 1.5x0.8F | WH | 0.50 | TESLA | MAT-140-280 | X987M | 9 |
