X974L

Tesla Part Number

1042583-01-A

Connector

SUMITOMO 6098-3926

Color

BK

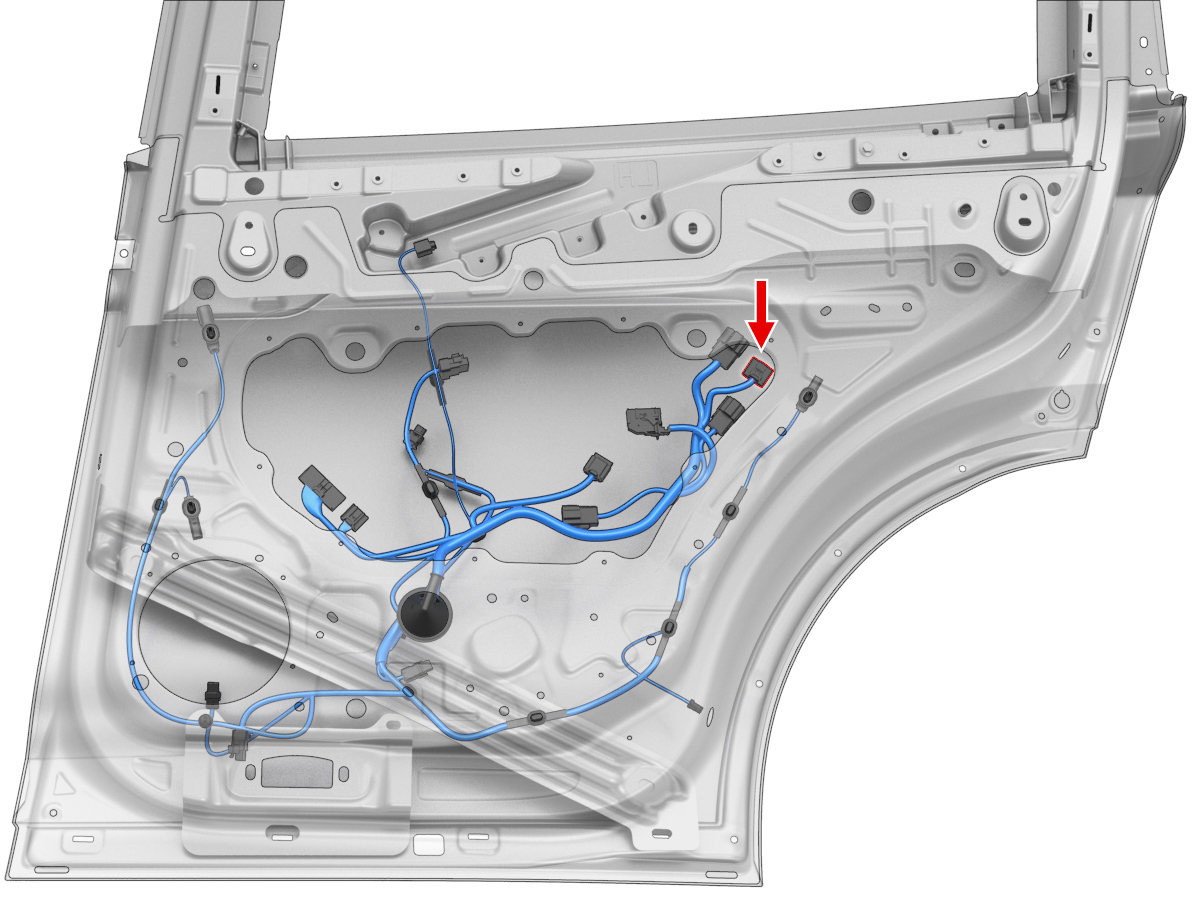

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X451	6
2
3	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.35			X451	7
4
5	SUMITOMO	8100-3625	0.64x0.64F	GY/WH	0.35			X472	3
6
7
8	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50			X470	2
9	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50			X469	2
10	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50			X470	1
11	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50			X469	1
12
13
14	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X472	1
15	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X451	19
16	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X472	4
17
18
19	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X472	2
20	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X451	27
21
22
