X920M

Tesla Part Number

1486226-00-A

Connector

DELPHI 33239497

Color

BK

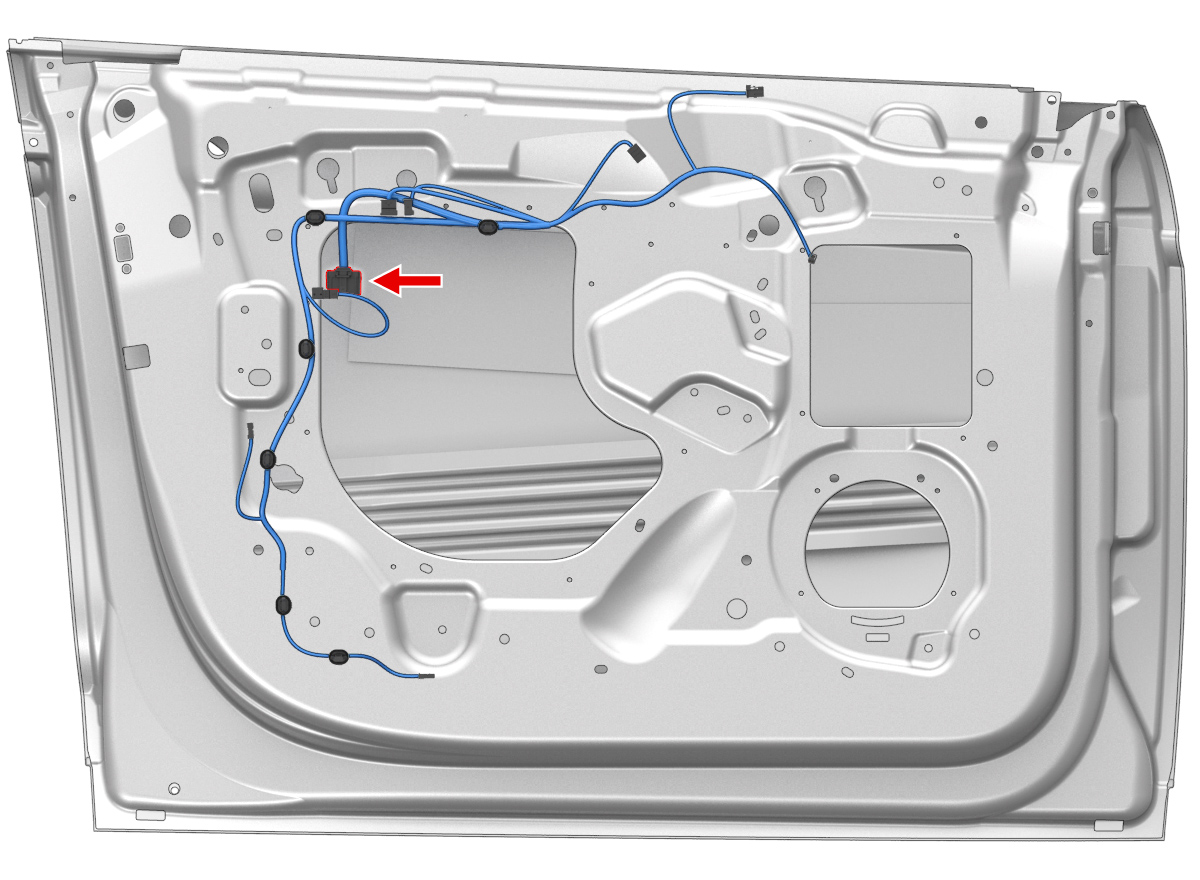

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35410019	1.2x0.6F	GY	0.35			X365	5
2	DELPHI	35410019	1.2x0.6F	WH	0.35			X371	1
3
4	DELPHI	35410019	1.2x0.6F	GN	0.35			X379	1
5	DELPHI	35410019	1.2x0.6F	WH	0.35			X366	2
6	DELPHI	35410019	1.2x0.6F	VT	0.35			X366	3
7	DELPHI	35410019	1.2x0.6F	BN	0.35
8
9	DELPHI	35410019	1.2x0.6F	RD	0.35			X366	1
10	DELPHI	35072404	1.2x0.6F	BU	0.75			X567	1
11	DELPHI	35410019	1.2x0.6F	VT	0.35			X369	2
12	DELPHI	35410019	1.2x0.6F	VT	0.35			X365	1
13	DELPHI	35410019	1.2x0.6F	BU	0.35			X365	3
14	DELPHI	35410019	1.2x0.6F	GY	0.35			X365	2
15	DELPHI	35410019	1.2x0.6F	YE	0.35			X365	4
16
17	DELPHI	35410019	1.2x0.6F	TN	0.35			X372	1
18	DELPHI	35410019	1.2x0.6F	BN/YE	0.35			X372	2
19
20	DELPHI	35072404	1.2x0.6F	VT	0.75			X567	2
