X451

Tesla Part Number

1043175-00-A

Connector

SUMITOMO 6098-4831

Color

WH

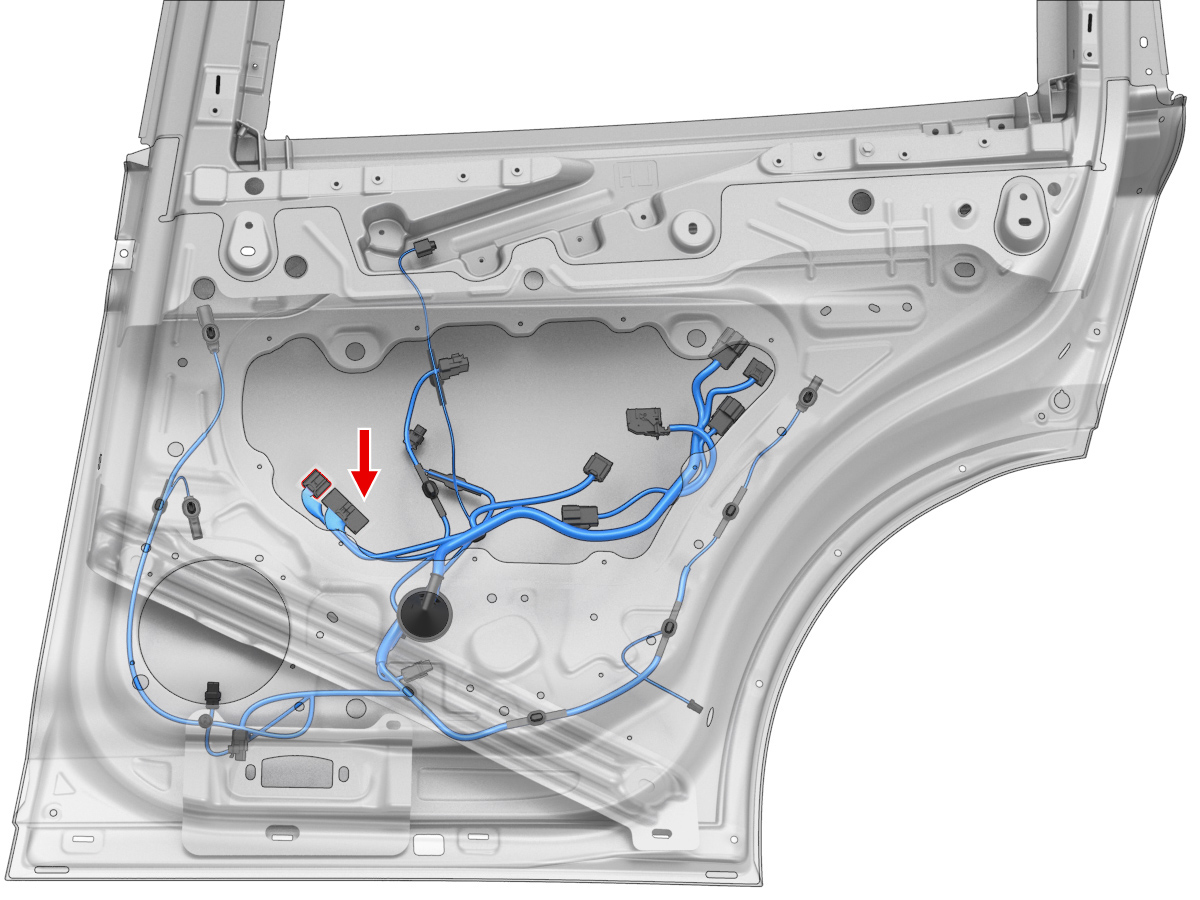

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1
2
3	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X464	3
4
5
6	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X974L	1
7	SUMITOMO	8100-3625	0.64x0.64F	VT/WH	0.35			X974L	3
8	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50			X628	4
9	SUMITOMO	8100-3625	0.64x0.64F	YE	0.50			X628	3
10	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X975M	3
11	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X975M	2
12
13
14
15	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50			X628	1
16
17
18	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35
19	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X974L	15
20
21
22
23
24
25
26	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X975M	11
27	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X974L	20
28
29
30	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X455	1
31
32	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X464	1
33
34
35	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X455	2
36
37
38
39	SUMITOMO	8100-3625	0.64x0.64F	GY	0.50			X629	2
40	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50			X629	1
