X060A

Tesla Part Number

1506908-02-A

Connector

SUMITOMO 6098-8953

Color

WH

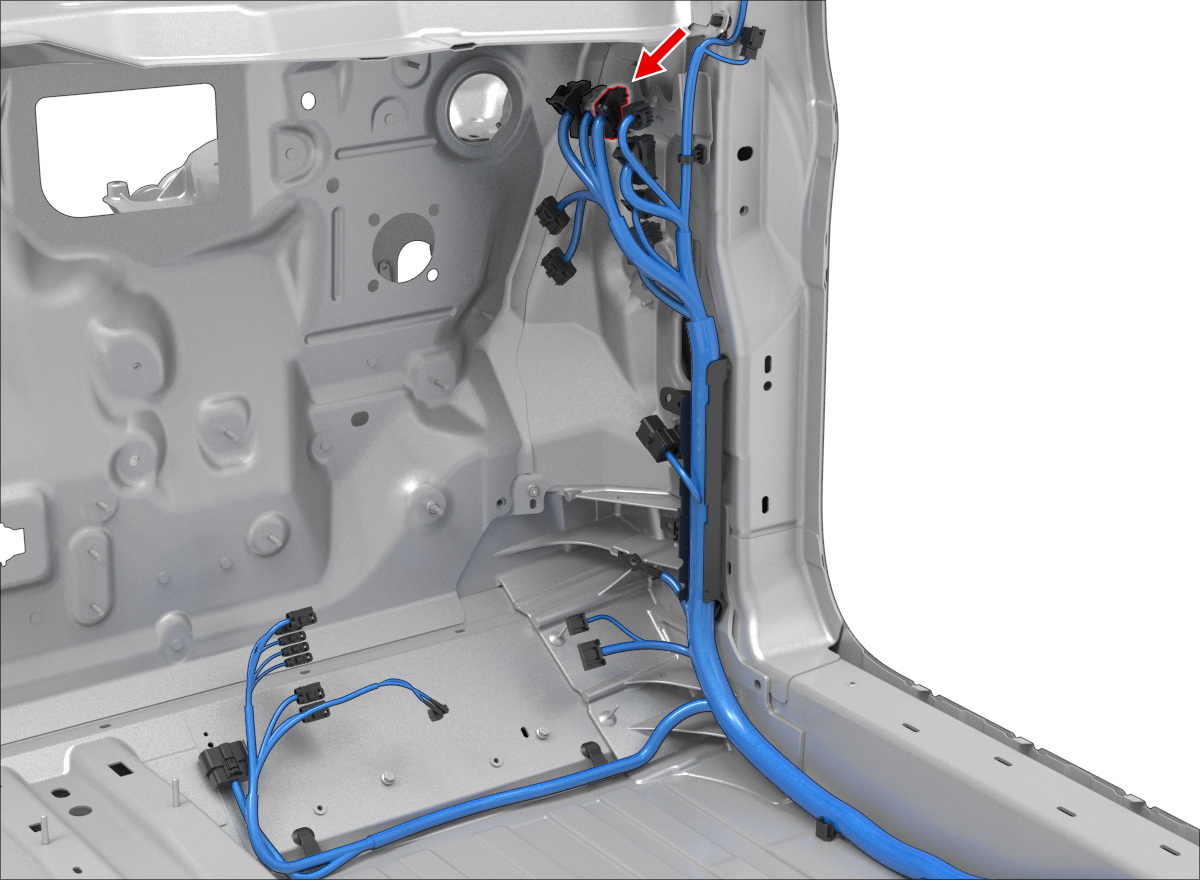

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X997F	6
2	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X914F	17
3	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X1001	9
4	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X488	9
5
6
7
8
9
10
11
12	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X978M	14
13	SUMITOMO	8100-3625	0.64x0.64F	GY	0.50			X971M	10
14	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X997F	5
15	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X914F	16
16	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X1001	8
17	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X488	11
18
19
20
21
22
23
24
25	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50			X914F	15
26	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X490	3
27	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X978M	5
28
29
30
31
32
33
34
35	SUMITOMO	8240-0215	1.5x0.64F	BU	0.35			X955M	10
