X911F

Tesla Part Number

1486224-00-A

Connector

DELPHI 33257519

Color

BK

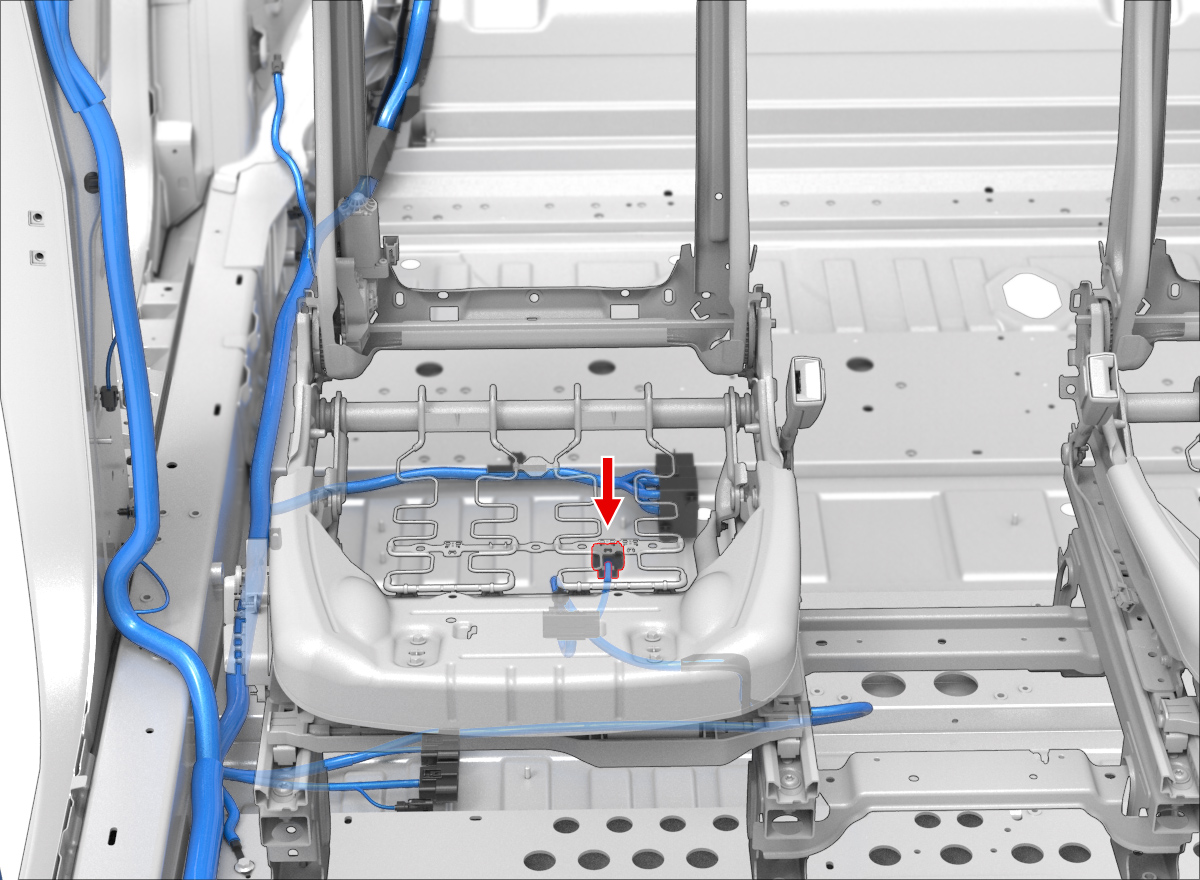

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35410019	1.2x0.6F	RD	0.35			X174	2
2	DELPHI	35410019	1.2x0.6F	WH	0.35			X174	1
3
4
5	DELPHI	35410019	1.2x0.6F	RD	0.35			X062	13
6	DELPHI	35410019	1.2x0.6F	BK	0.35			G350	1
7	DELPHI	35410019	1.2x0.6F	GN	0.35			X062	15
8
9	DELPHI	35410019	1.2x0.6F	GY	0.35			X993M	7
10	DELPHI	35410019	1.2x0.6F	YE	0.35			X993M	6
11
12
13	DELPHI	35410019	1.2x0.6F	WH	0.35			X997F	3
14	DELPHI	35410019	1.2x0.6F	BU	0.35			X997F	4
15	DELPHI	35410019	1.2x0.6F	BK	0.35			G350	1
16
