X922F

Tesla Part Number

1486227-00-A

Connector

DELPHI 33239518

Color

BK

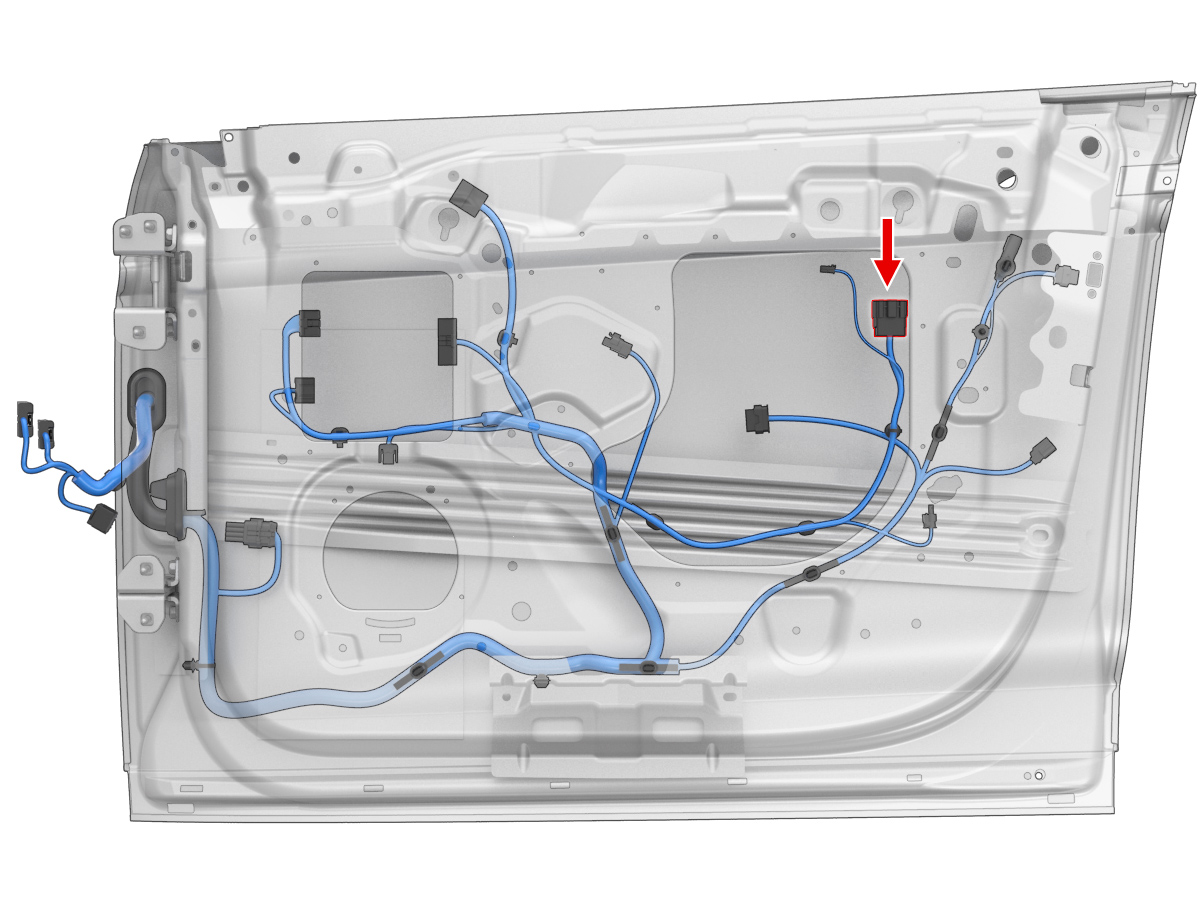

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35412744	1.2x0.6M	GY	0.35			X053A	12
2	DELPHI	35412744	1.2x0.6M	WH	0.35			X053A	19
3	DELPHI	35412744	1.2x0.6M	RD	0.35			X053A	17
4	DELPHI	35412744	1.2x0.6M	GN	0.35			X053A	22
5	DELPHI	35412744	1.2x0.6M	WH	0.35			X053A	7
6	DELPHI	35412744	1.2x0.6M	VT	0.35			X053B	13
7	DELPHI	35412744	1.2x0.6M	BN	0.35
8
9	DELPHI	35412744	1.2x0.6M	RD	0.35			X053A	23
10	DELPHI	35091061	1.2x0.6M	BU	0.75			X923F	2
11	DELPHI	35412744	1.2x0.6M	VT	0.35			X053B	8
12	DELPHI	35412744	1.2x0.6M	VT	0.35			X053B	9
13	DELPHI	35412744	1.2x0.6M	BU	0.35			X053B	6
14	DELPHI	35412744	1.2x0.6M	GY	0.35			X053B	8
15	DELPHI	35412744	1.2x0.6M	YE	0.35			X053A	6
16	DELPHI	35412744	1.2x0.6M	GN	0.35			X053A	18
17	DELPHI	35412744	1.2x0.6M	RD	0.35			X391	5
18	DELPHI	35412744	1.2x0.6M	BN/YE	0.35
19
20	DELPHI	35091061	1.2x0.6M	VT	0.75			X923F	5
