X062

Tesla Part Number

1506905-00-A

Connector

SUMITOMO 6098-8944

Color

WH

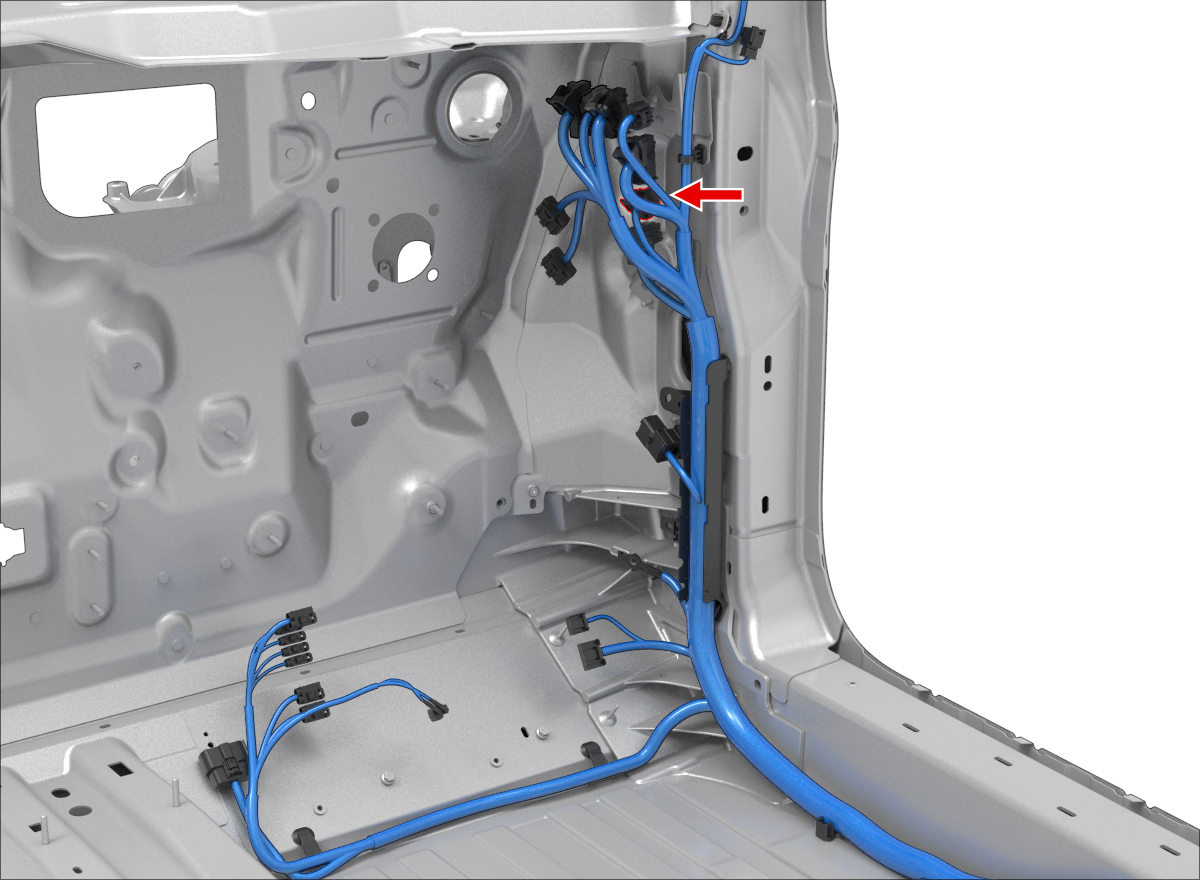

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X980M	7
2	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X980M	8
3	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50			X980M	6
4
5	SUMITOMO	8100-3625	0.64x0.64F	BN/YE	0.35			X980M	4
6
7
8
9	SUMITOMO	8100-3625	0.64x0.64F	GY/WH	0.35			X792	8
10	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X792	19
11
12
13	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X911F	5
14
15	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X911F	7
16
17
18	SUMITOMO	8240-0215	1.5x0.64F	BU	0.50			X954M	7
19	SUMITOMO	8240-0215	1.5x0.64F	GY	0.50			X954M	15
20
21
22
23
