X910F

Tesla Part Number

1486224-00-A

Connector

DELPHI 33257519

Color

BK

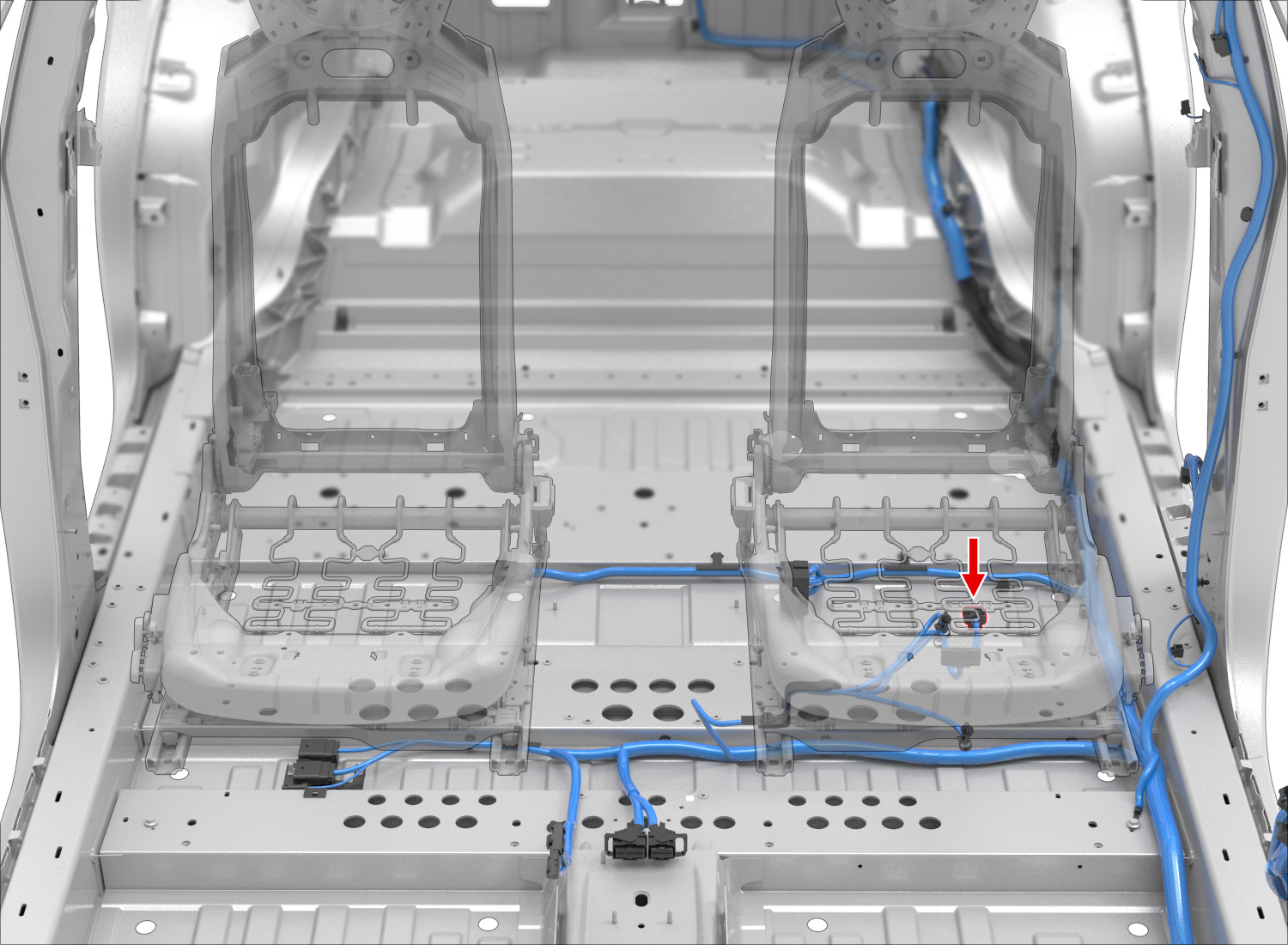

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35410019	1.2x0.6F	RD	0.35			X992M	15
2	DELPHI	35410019	1.2x0.6F	WH	0.35			X992M	14
3
4
5
6
7
8
9	DELPHI	35410019	1.2x0.6F	GY	0.35			X913F	13
10	DELPHI	35410019	1.2x0.6F	YE	0.35			X913F	12
11
12
13	DELPHI	35410019	1.2x0.6F	WH	0.35			X200	31
14	DELPHI	35410019	1.2x0.6F	BU/WH	0.35			X200	32
15	DELPHI	35410019	1.2x0.6F	BK	0.35			G250	1
