X2019

Tesla Part Number

1101455-00-C

Connector

DELPHI 35437717

Color

GY

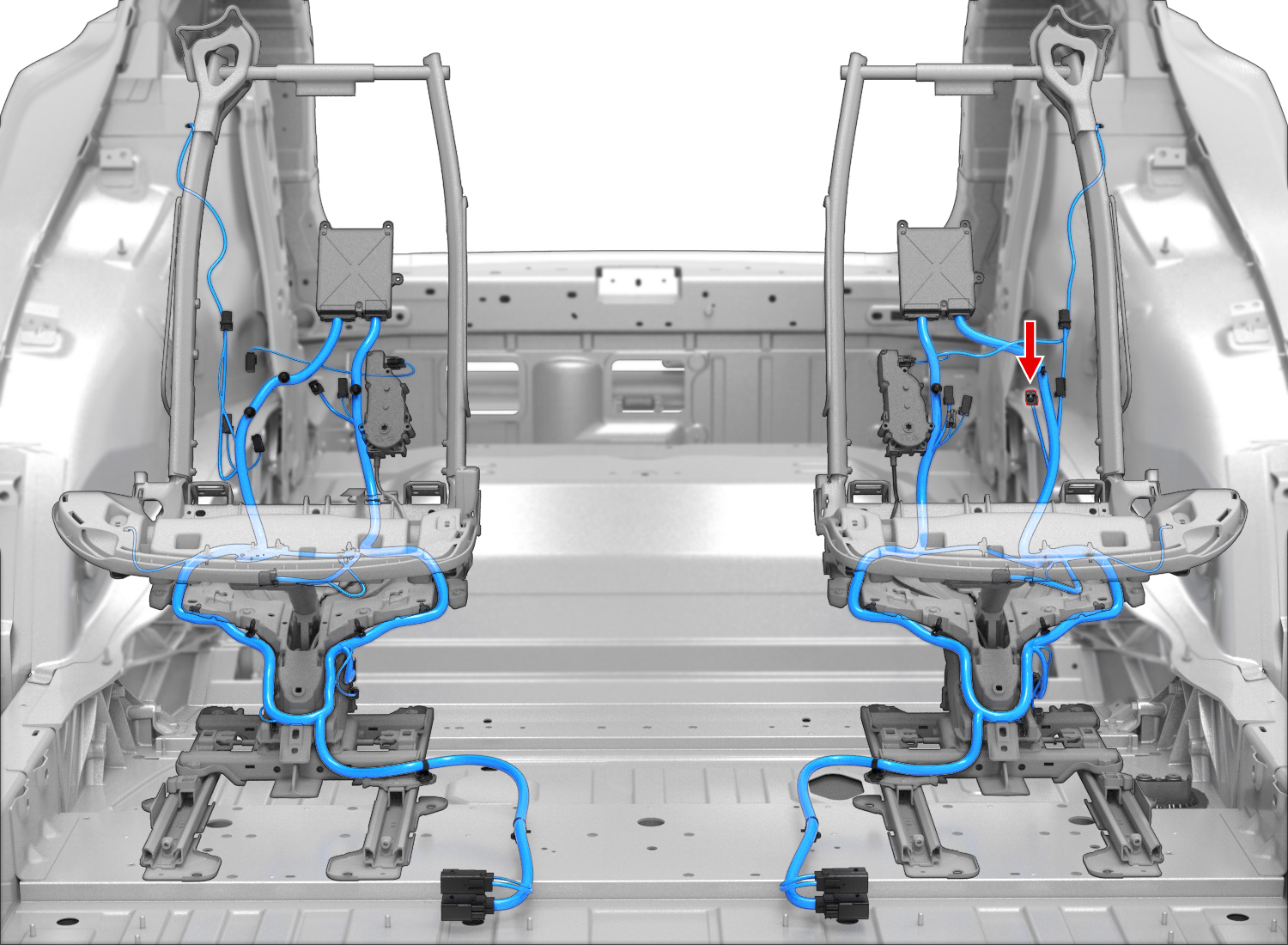

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	GEN	PIA-SRS-Y		BN	0.50			X2020	1
1	GEN	PIA-SRS-Y		BN	0.50			X2020	1
2	GEN	PIA-SRS-Y		WH	0.50			X2020	2
2	GEN	PIA-SRS-Y		WH	0.50			X2020	2
3	GEN	PIA-SRS-Y		BK	0.50			X2020	3
3	GEN	PIA-SRS-Y		BK	0.50			X2020	3
