X971F

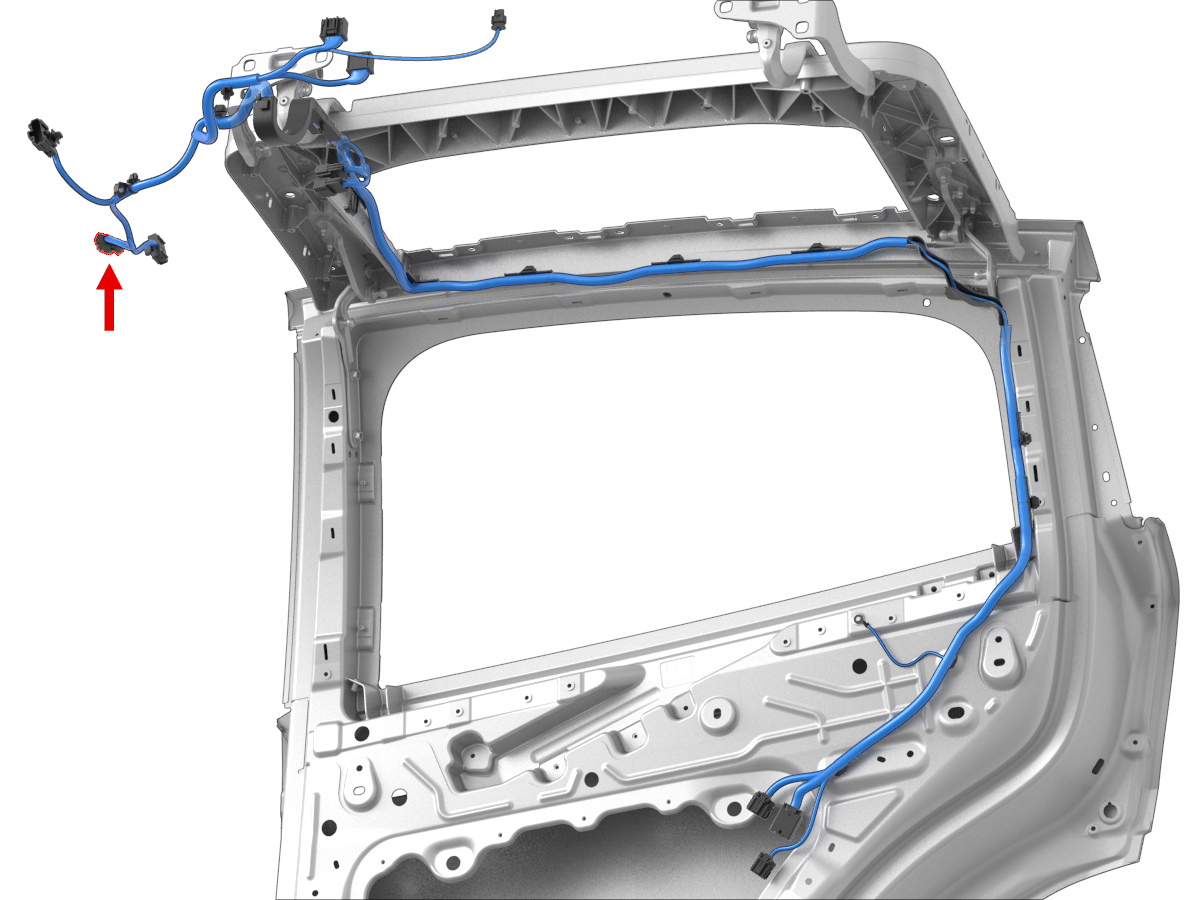

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 35457252 | 1.2x0.6F | GN | 1.50 | X987F | 1 | ||
| 2 | |||||||||
| 3 | |||||||||
| 4 | |||||||||
| 5 | |||||||||
| 6 | |||||||||
| 7 | |||||||||
| 8 | DELPHI | 35457252 | 1.2x0.6F | BU | 1.50 | X975F | 16 | ||
| 9 | DELPHI | 35457252 | 1.2x0.6F | TN | 1.50 | X987F | 7 | ||
| 10 | DELPHI | 35410019 | 1.2x0.6F | GY | 0.35 | X975F | 6 | ||
| 11 | DELPHI | 35410019 | 1.2x0.6F | YE | 0.35 | X975F | 7 | ||
| 12 | DELPHI | 35410019 | 1.2x0.6F | BU/WH | 0.35 | X985F | 18 | ||
| 13 | DELPHI | 35410019 | 1.2x0.6F | BU | 0.35 | X985F | 19 | ||
| 14 | |||||||||
| 15 | DELPHI | 35410019 | 1.2x0.6F | BN | 0.35 | X987F | 5 | ||
| 16 | DELPHI | 35457252 | 1.2x0.6F | BK | 1.50 | G650 | 1 |
