X2018

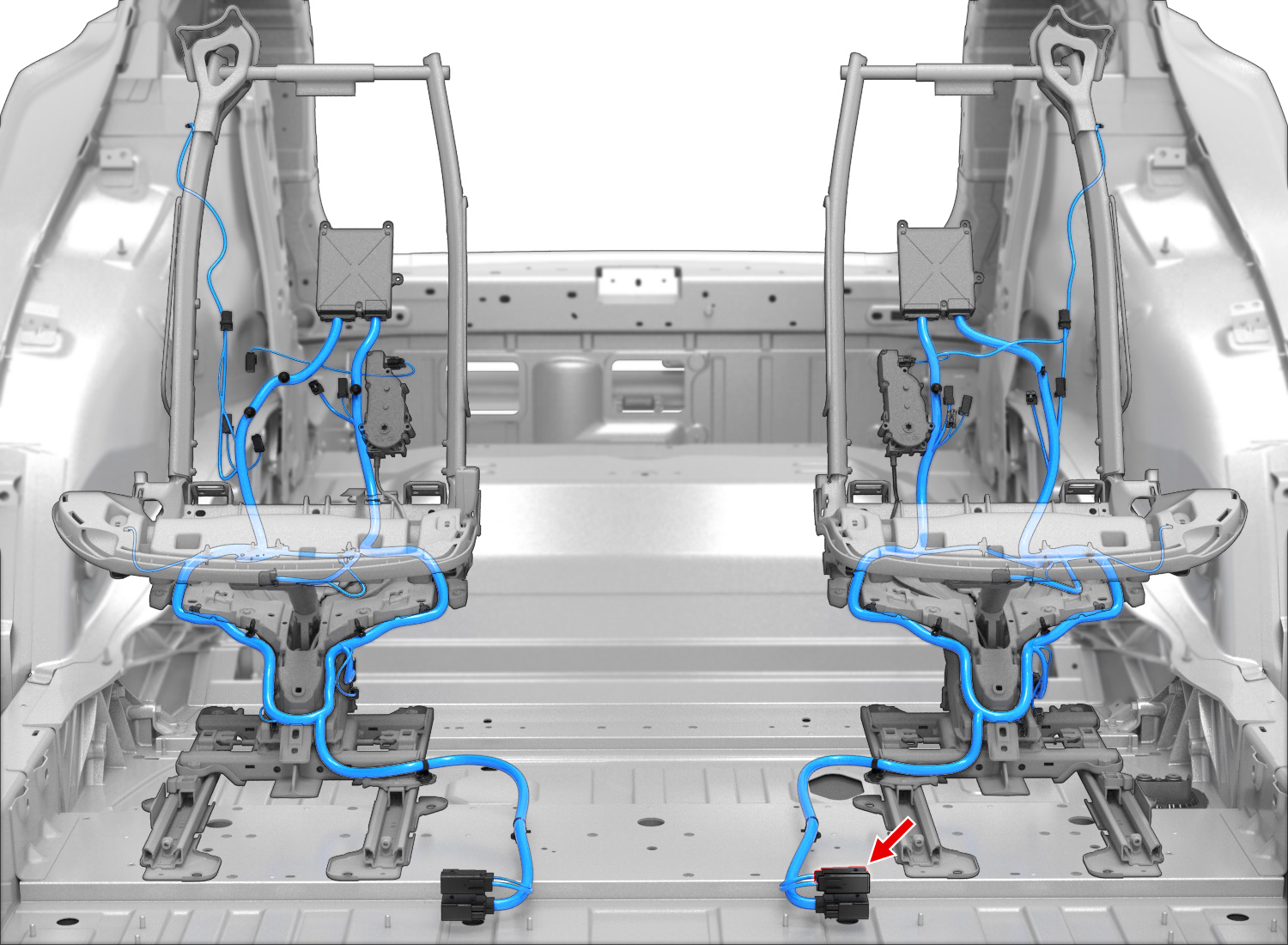

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 312960008 | 1.5x0.8F | GN | 0.50 | TESLA | MAT-120-240 | X2021 | 1 |
| 2 | MOLEX | 312960008 | 1.5x0.8F | WH | 0.50 | TESLA | MAT-120-240 | X2021 | 2 |
| 3 | MOLEX | 312960008 | 1.5x0.8F | BK | 0.50 | TESLA | MAT-120-240 | X2021 | 3 |
| 4 |
