X959M

Tesla Part Number

1486225-00-A

Connector

DELPHI 33257537

Color

BK

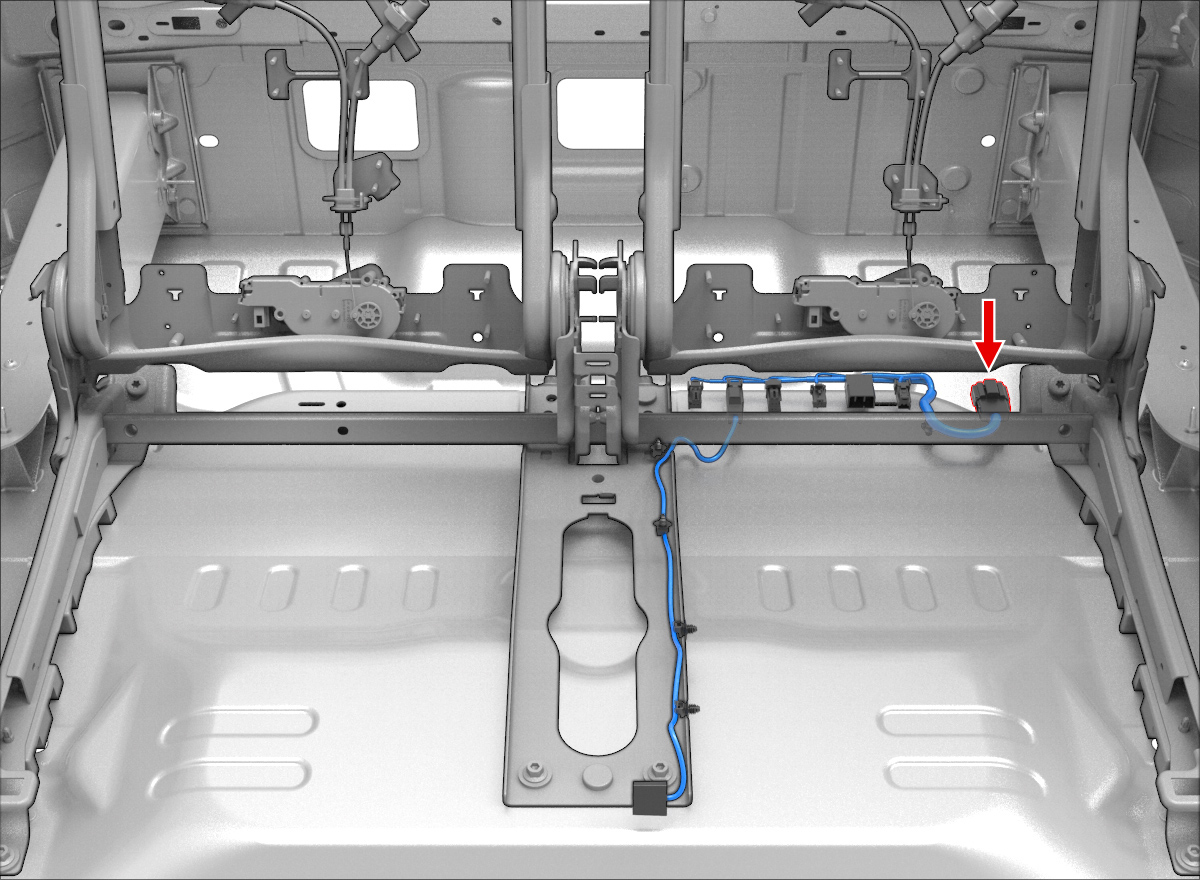

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	35091062	1.2x0.6M	GN	0.50			X969M	3
2	DELPHI	35091062	1.2x0.6M	TN	0.50			X969M	1
3
4	DELPHI	35412744	1.2x0.6M	RD	0.35			X969M	5
5	DELPHI	35412744	1.2x0.6M	VT	0.35			X3004	3
6
7
8	DELPHI	35091061	1.2x0.6M	BK	0.75
9	DELPHI	35091061	1.2x0.6M	WH	0.75
10	DELPHI	35091061	1.2x0.6M	RD	0.75			X967F	1
11
12	DELPHI	35412744	1.2x0.6M	YE	0.35			X3003	1
13	DELPHI	35412744	1.2x0.6M	GY	0.35			X3005	1
14
15	DELPHI	35091061	1.2x0.6M	BN	0.75
16	DELPHI	35091061	1.2x0.6M	BK	0.75			X967F	2
