Retainer - Sensor - Parking Distance (Remove and Replace)

Correction code 17272682 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-07-27: Added Note on procedure being an add-on procedure to the removal and installation of the parkiing sensor.
Note
This procedure is an add-on procedure to the removal and installation of the parking sensor. Add correction code 17272682 as a separate correction to the same activity to the Service Visit.
Special tool required for this procedure: 1638000-00-A Parking Sensor Retainer Kit

Procedure

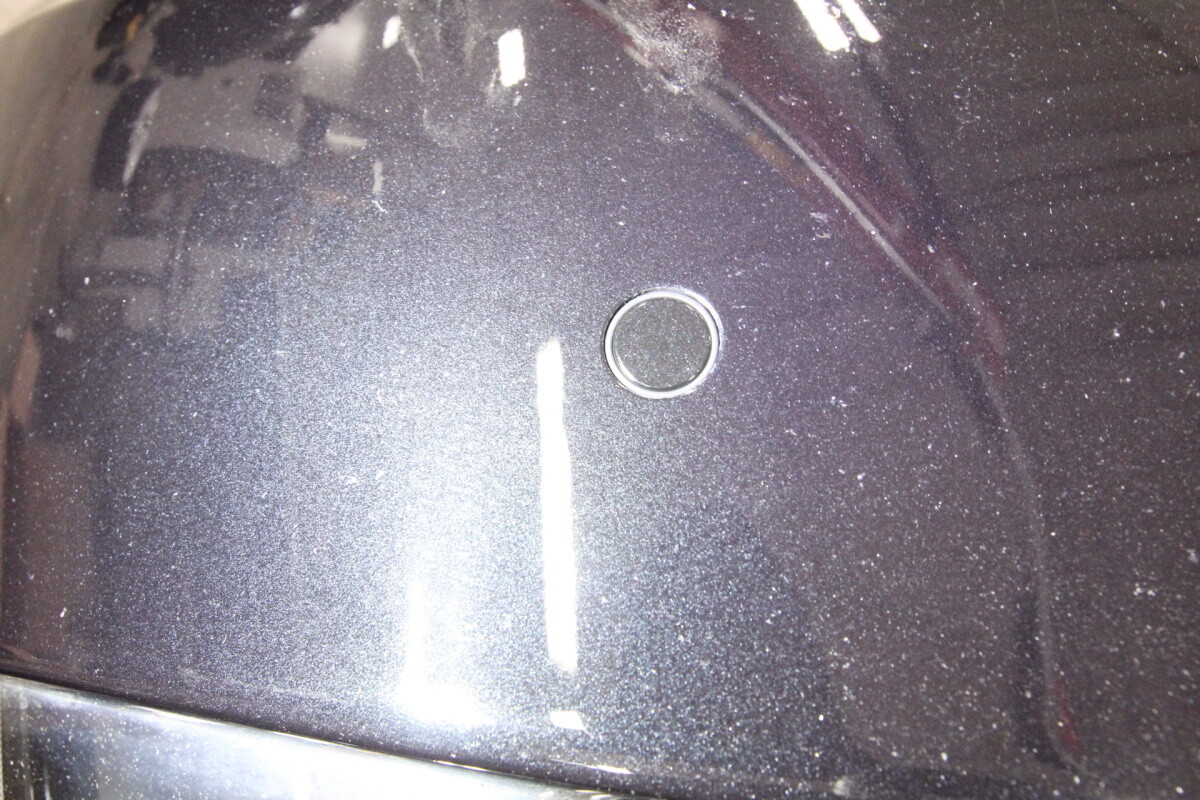

  1. Remove the parking distance sensor from the fascia. See:

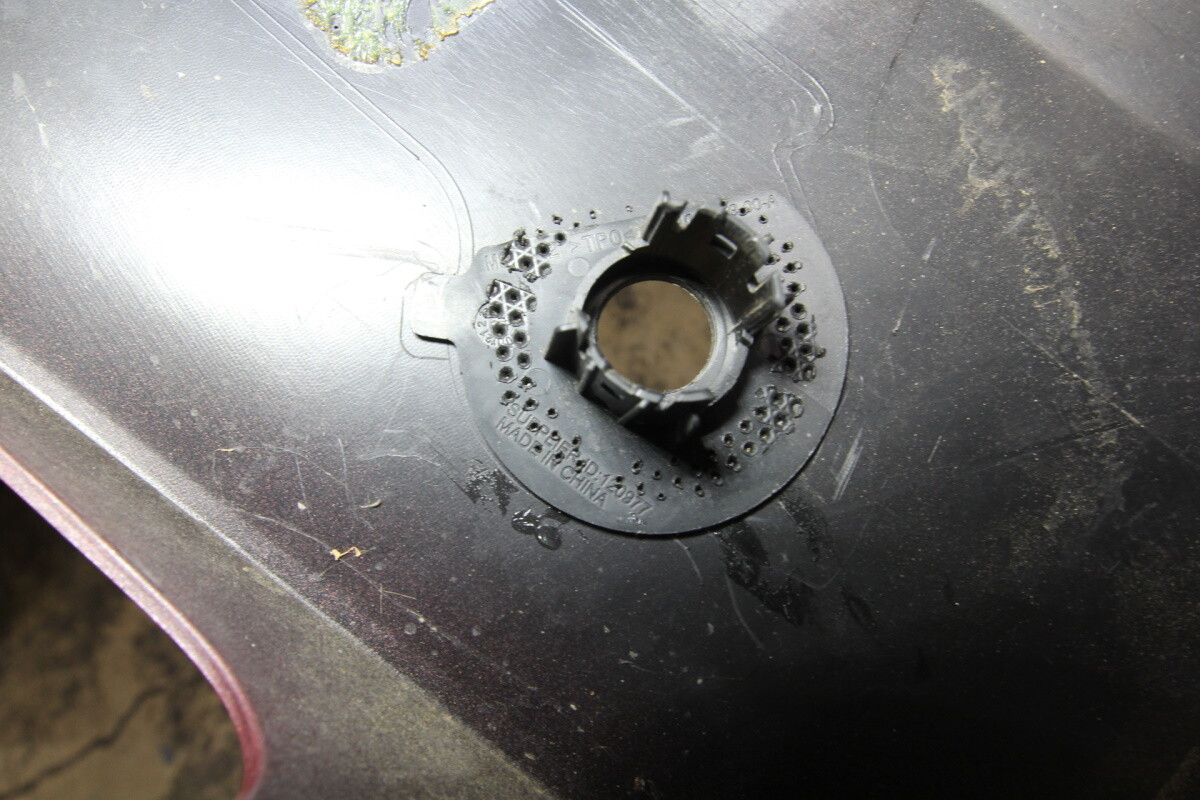

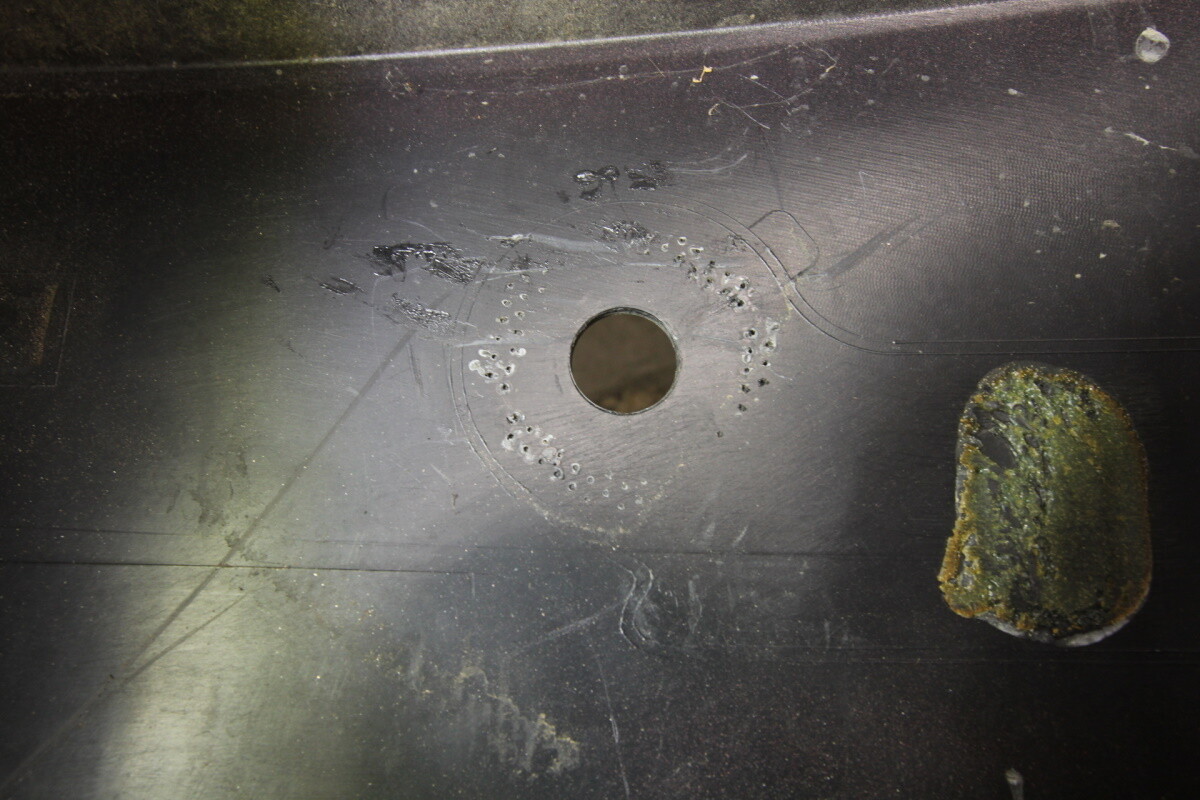

  2. Remove the parking distance sensor retainer.
    Note
    Take note of the original installation position of the retainer. Mark with a paint pen, if necessary.
    Note

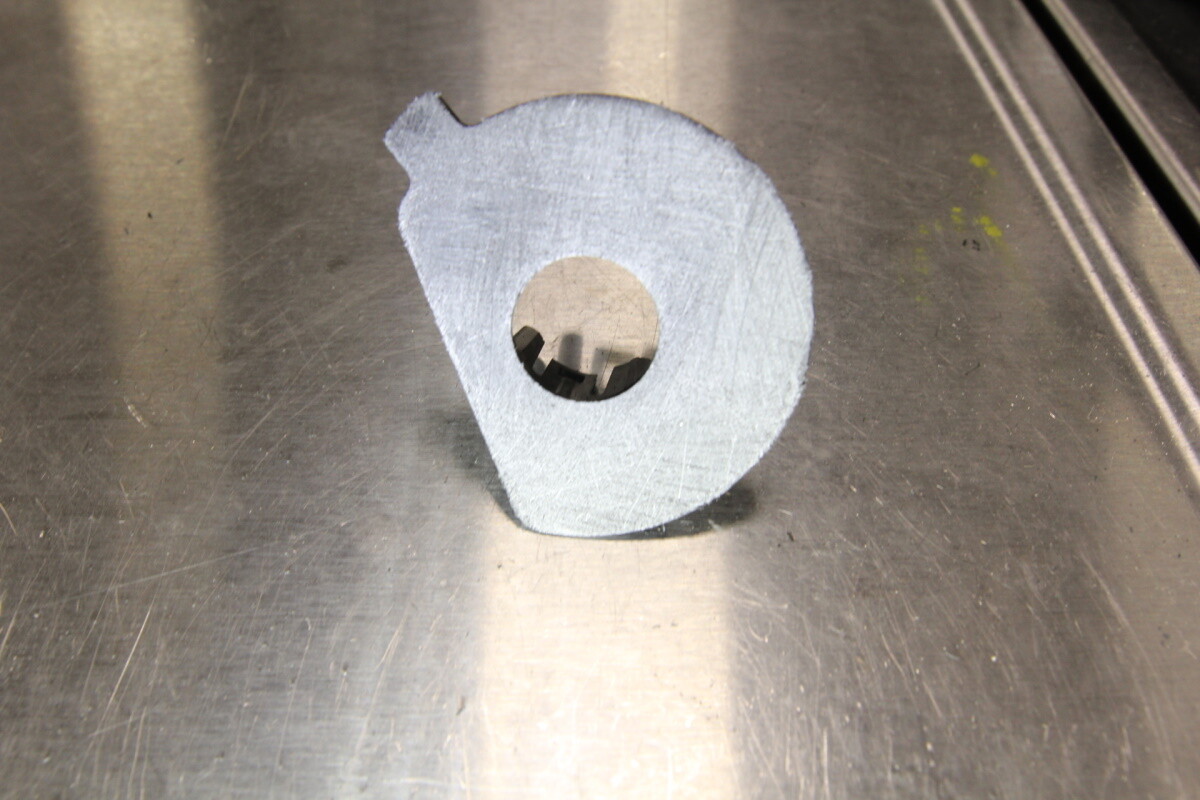

    The shape of the parking distance sensor retainer will vary slightly depending on location.
    Note
    Use of the following tools is recommended:
    • Flathead screwdriver
    • Needle nose pliers
    • Portable stand

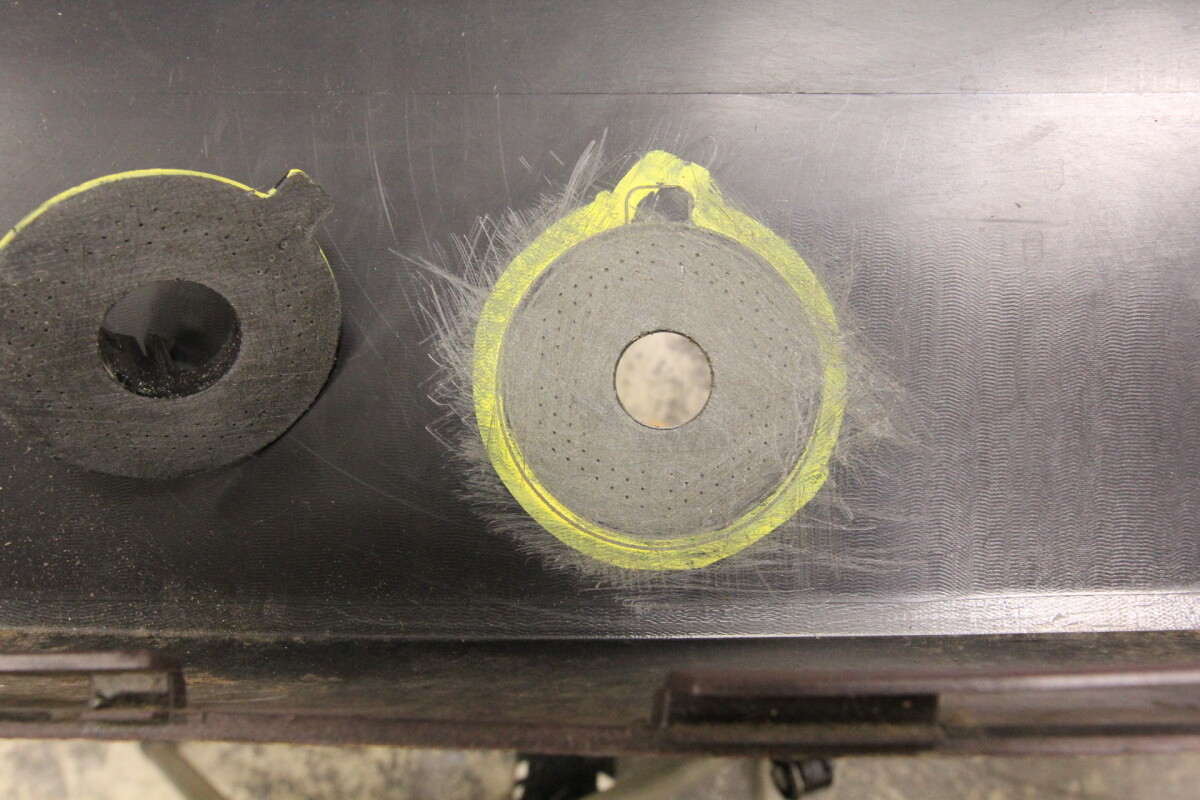

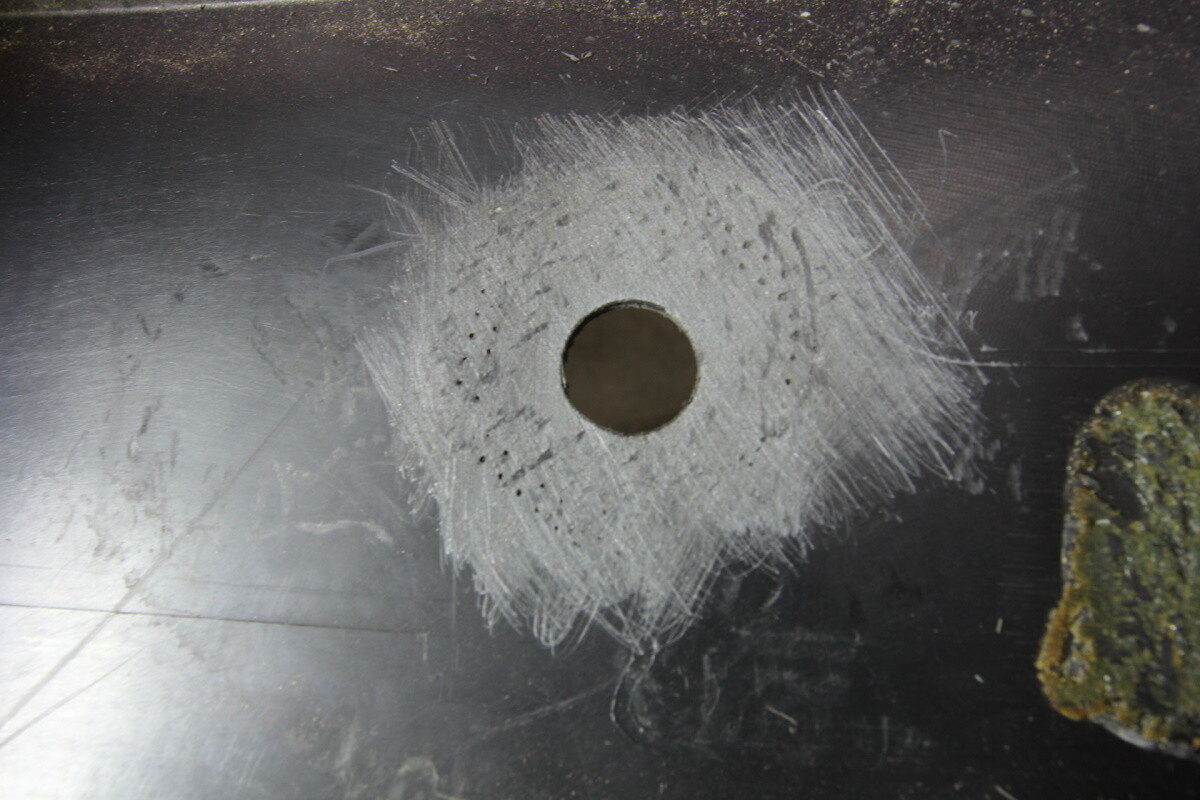

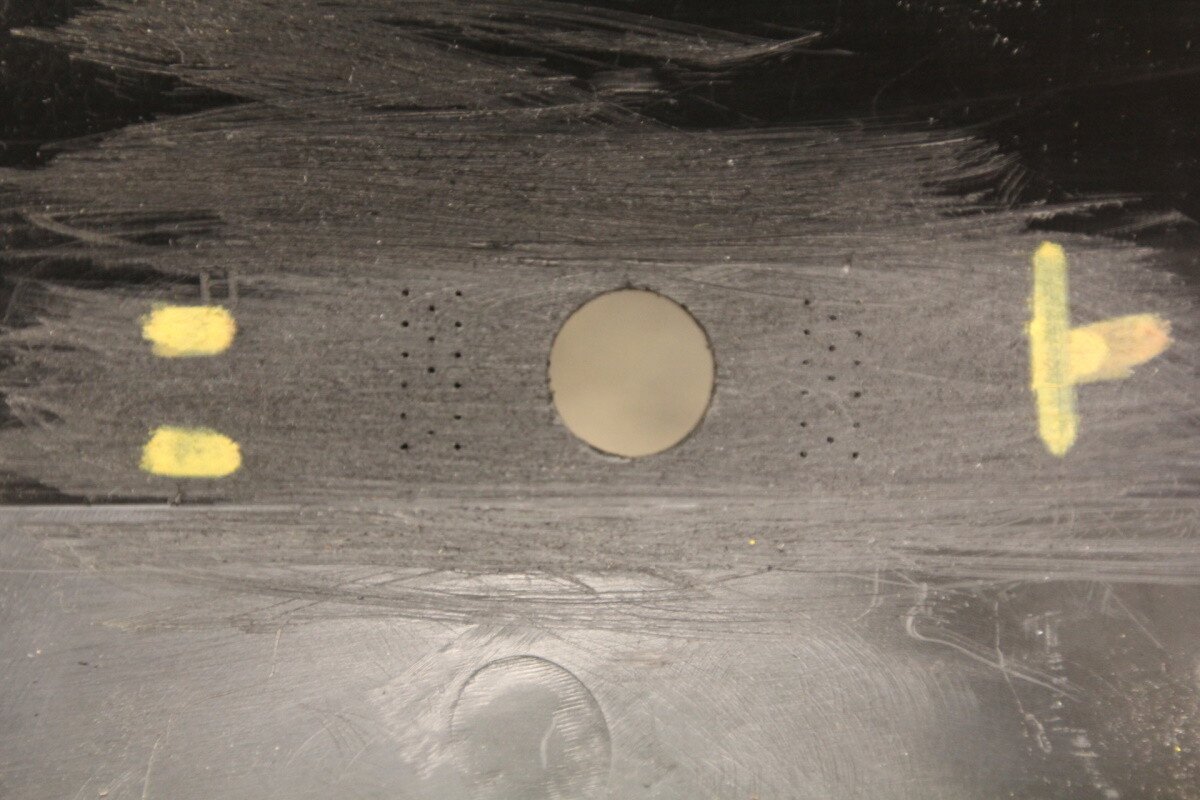

  3. Sand down the areas of installation on the fascia and the new retainer.

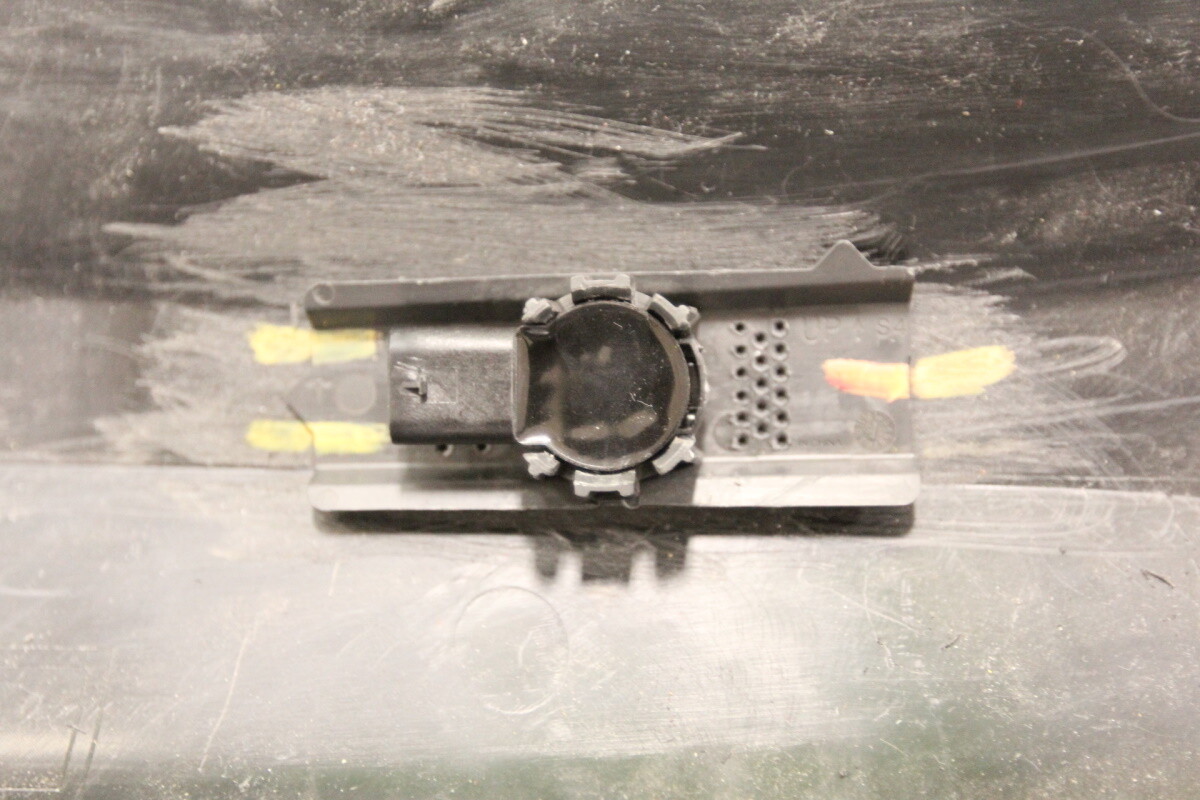

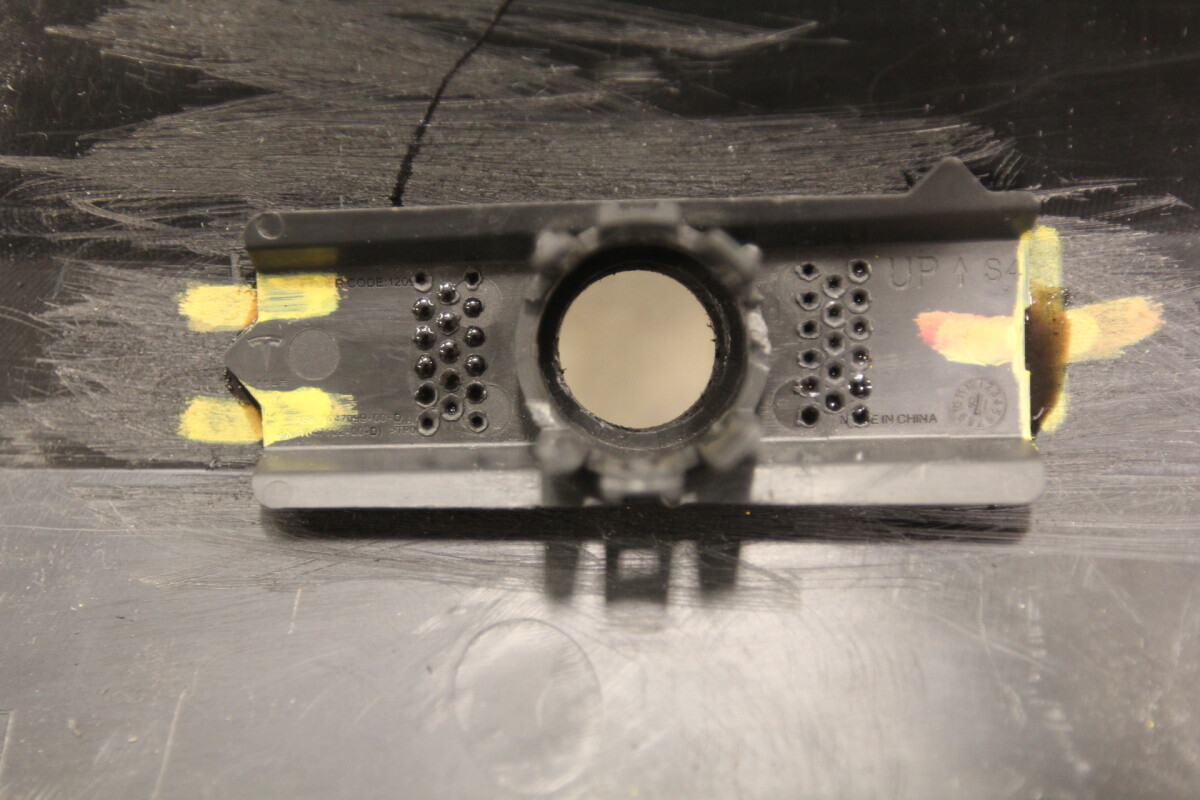

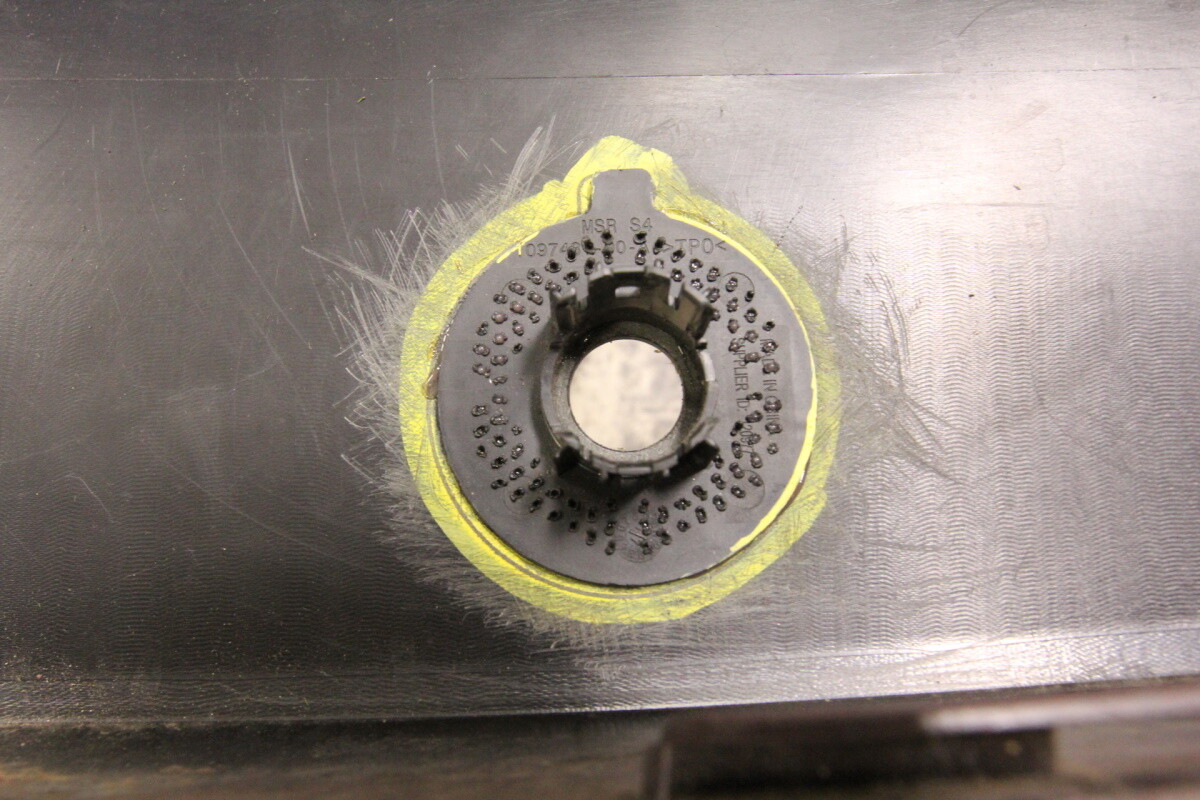

  4. Test fit the new retainer with the parking distance sensor installed. Mark the position to aid with the installation.
    Note
    Position the retainer so that the parking distance sensor is centered to the fascia. If the retainer is installed incorrectly, the sensor will not fit.
  5. Clean the installation areas of the fascia and retainer with an Isopropyl Alcohol (IPA) wipe.
    Note
    Allow 1 minute for surfaces to dry before continuing.

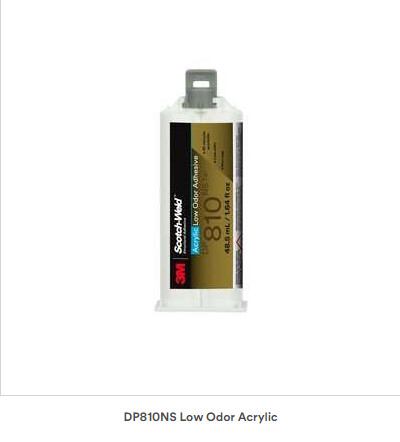

  6. Prepare and mix the 3M 810 Acrylic adhesive/Scotch weld applicator (1458055-00-A).

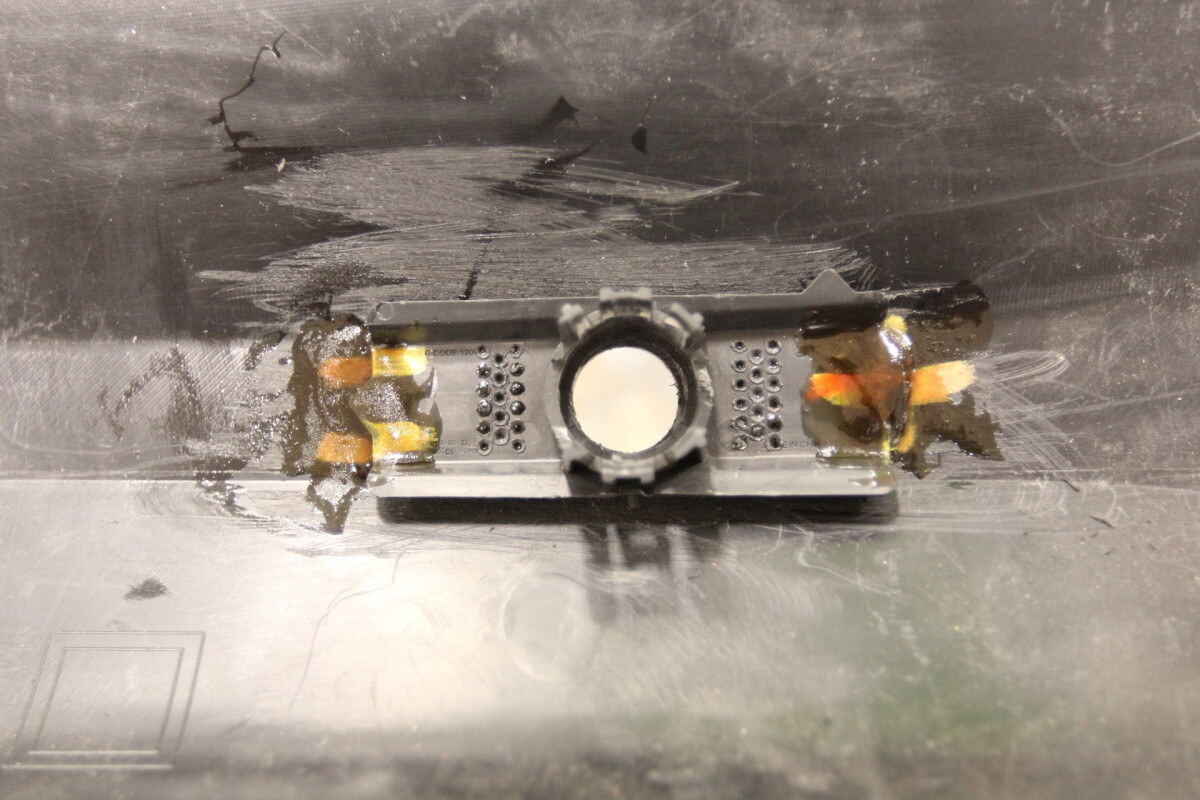

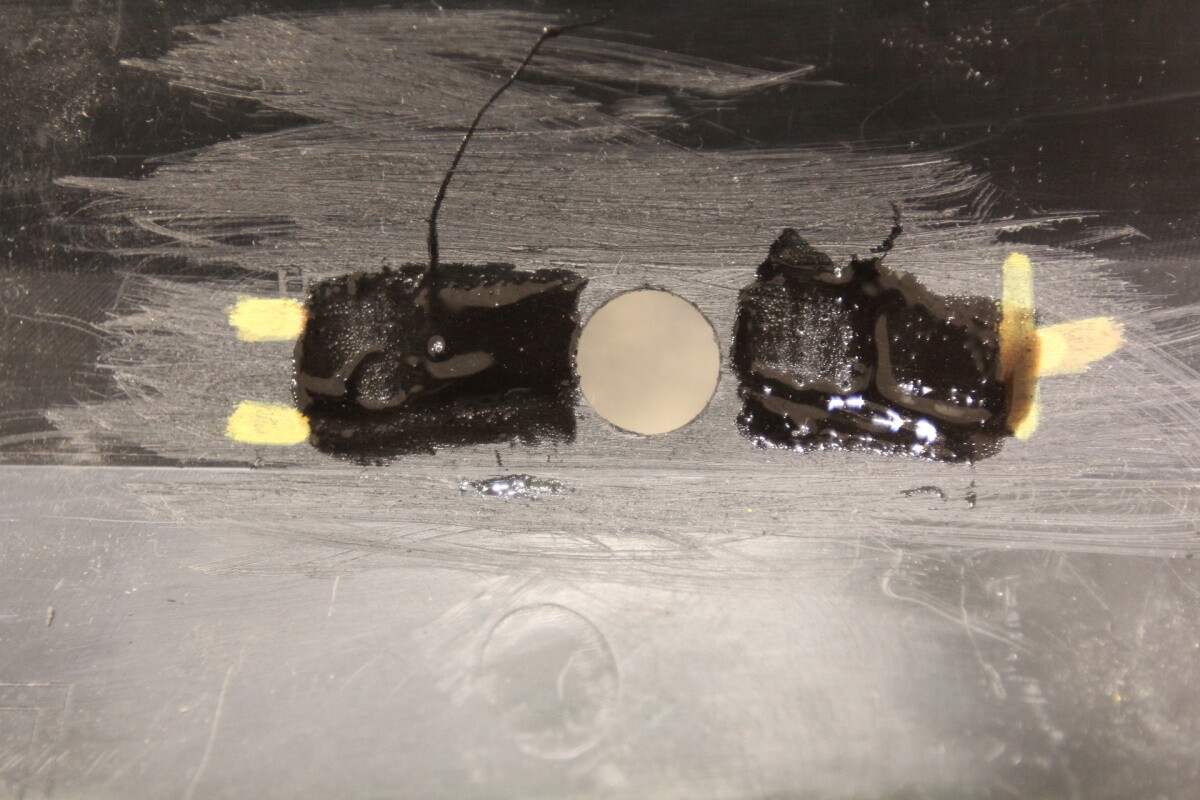

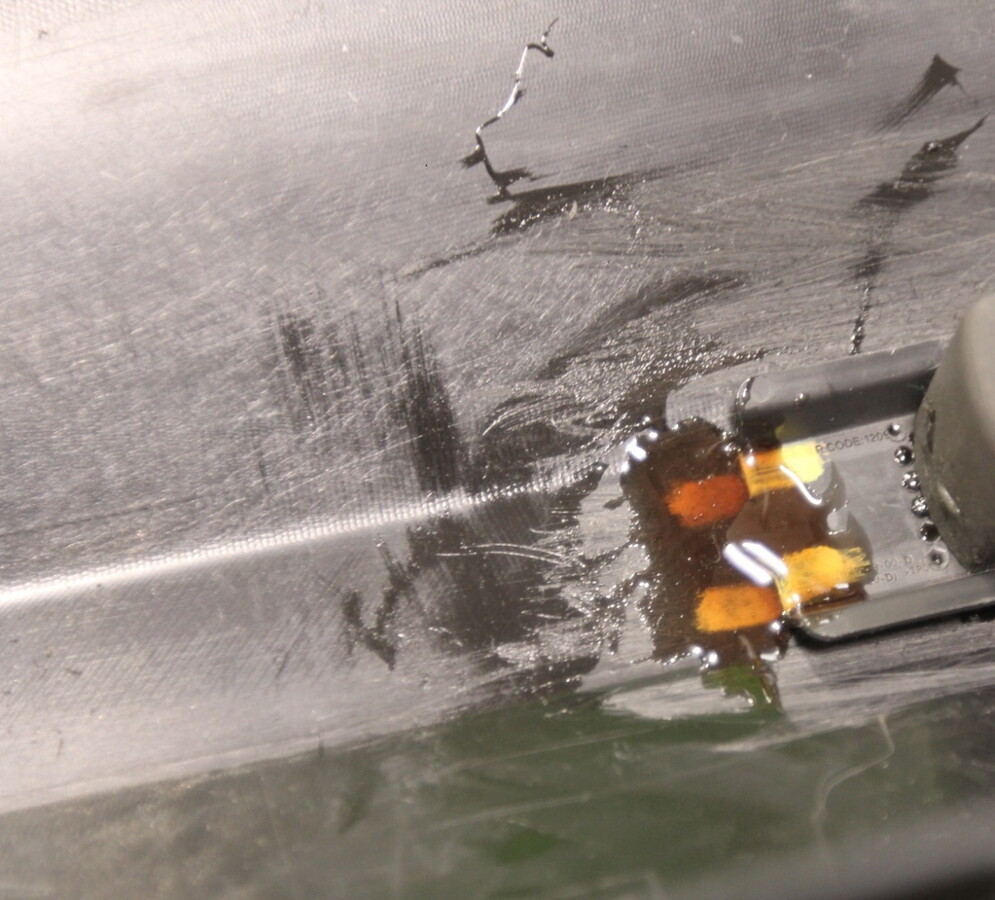

  7. Apply the 3M 810 Acrylic adhesive to the installation area.
    CAUTION
    Avoid putting excess adhesive.
    CAUTION
    Apply carefully and do not allow the adhesive to seep into the center of the retainer where the sensor will seat.

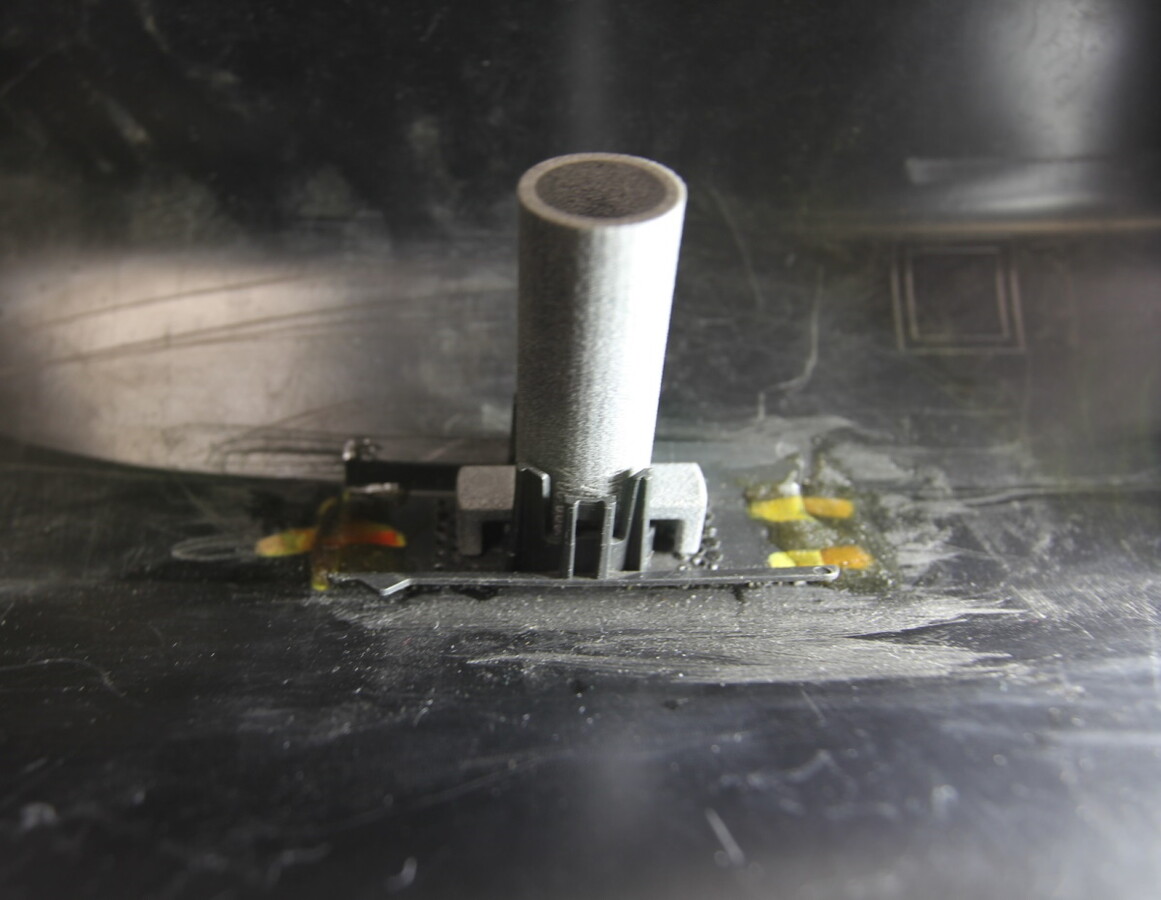

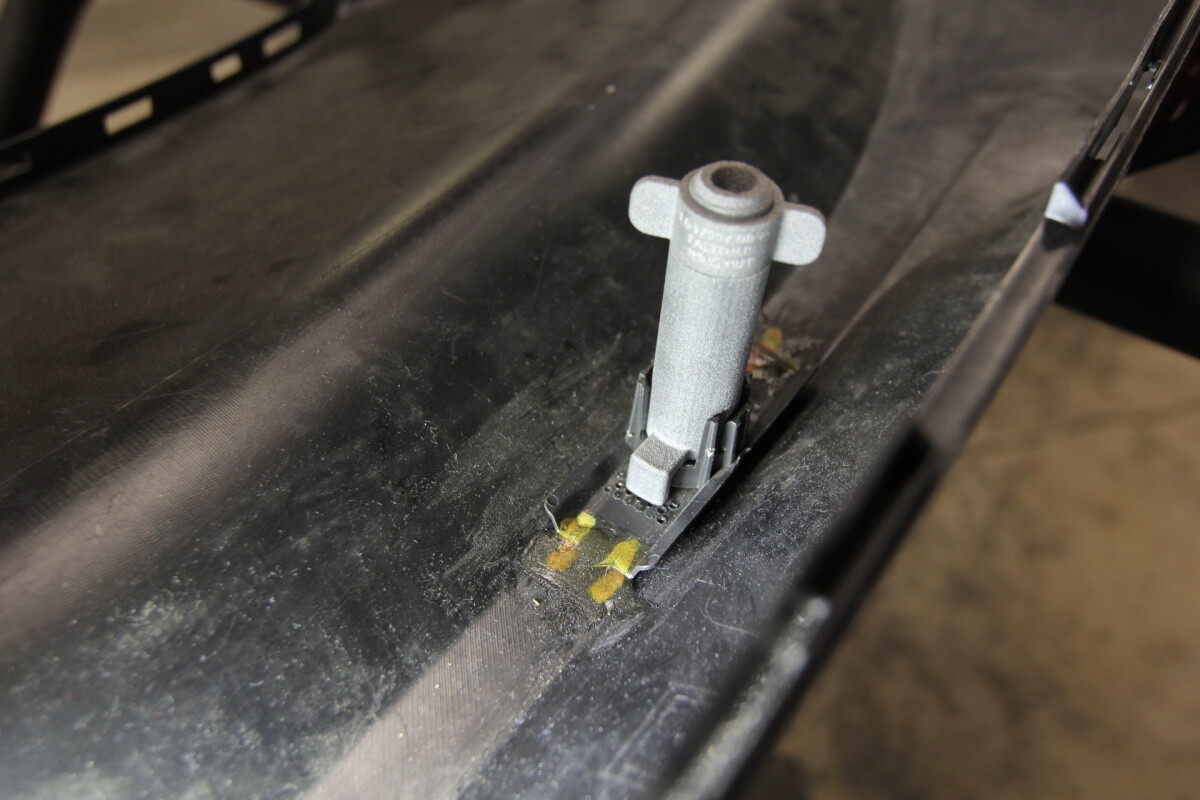

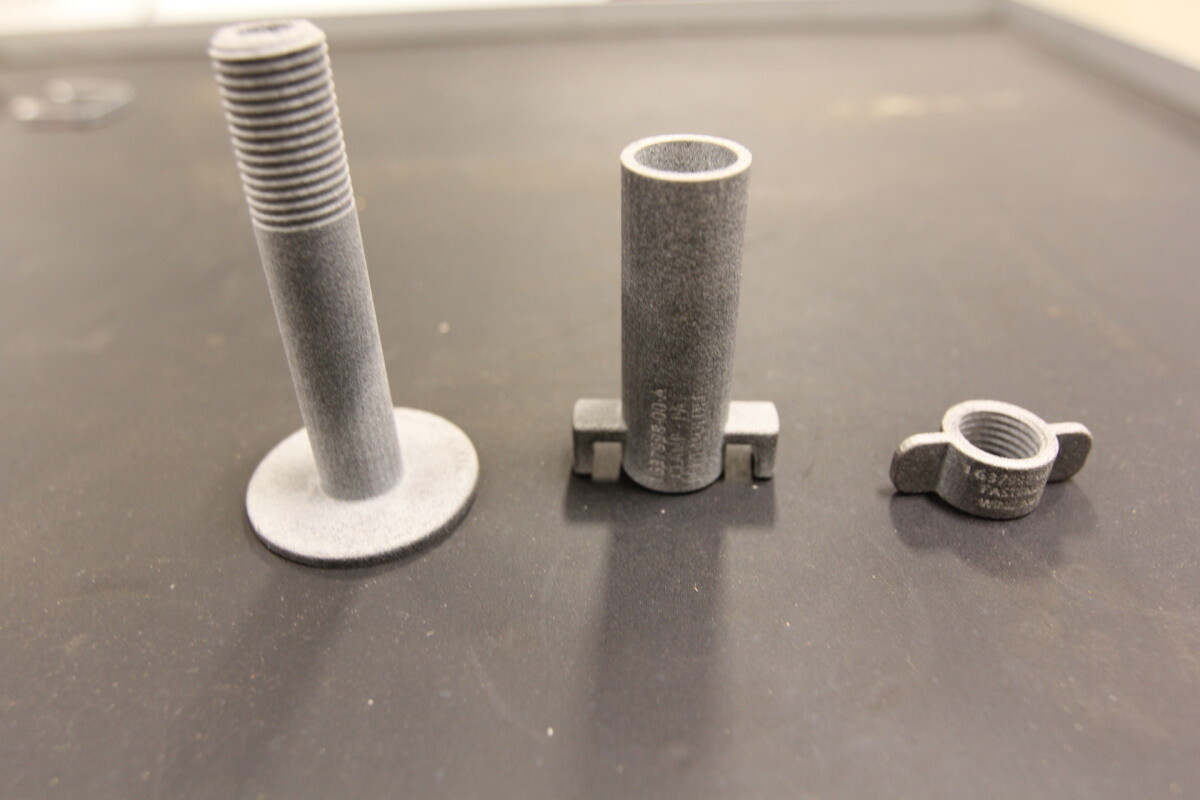

  8. Install the retainer and secure the fixture tool (Parking Sensor Retainer Kit 1638000-00-A).
    CAUTION
    Prevent adhesive from entering the center hole of the retainer.
    CAUTION
    Clean off any residue that may enter with an IPA wipe. Otherwise, the parking distance sensor will not seat properly.
    Note

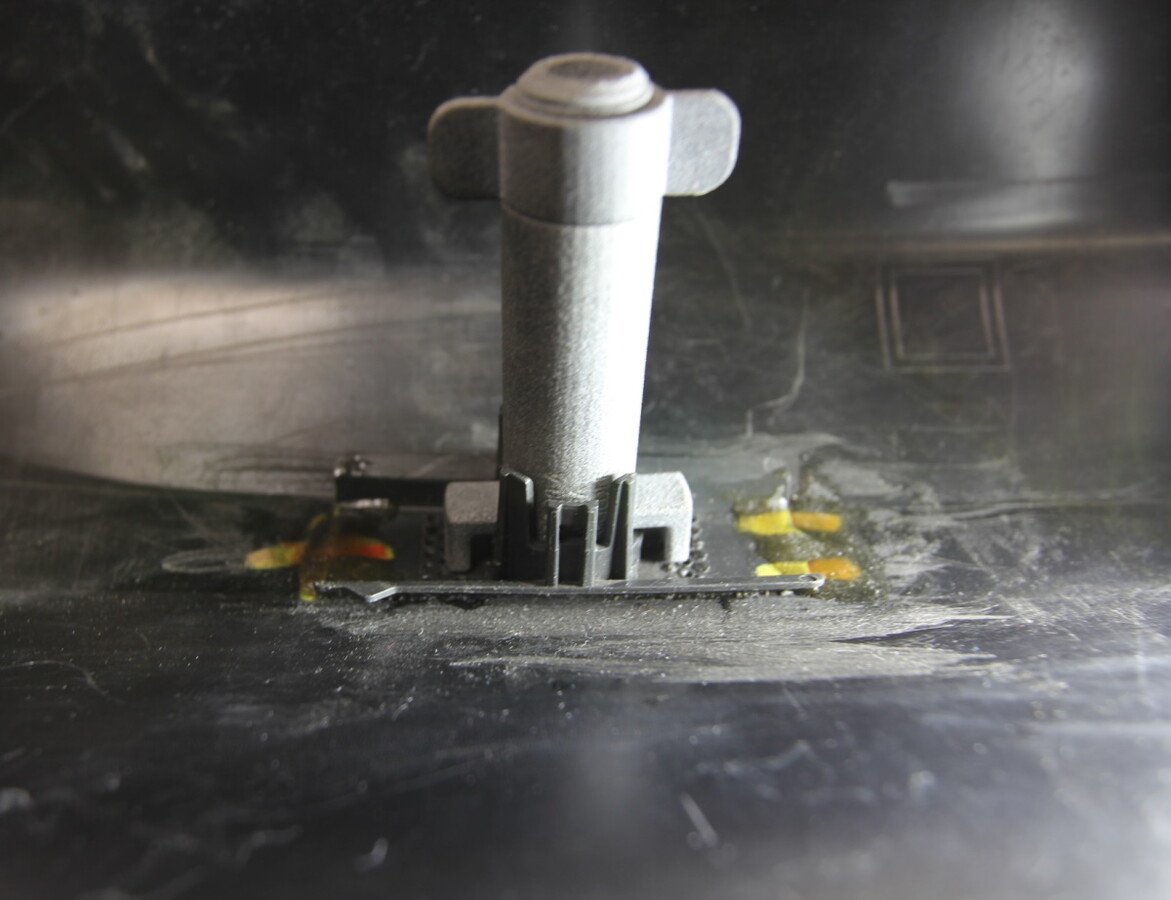

    Install the fixture tool to secure the retainer while adhesive cures.
    Note
    The fixture tool is self centering.

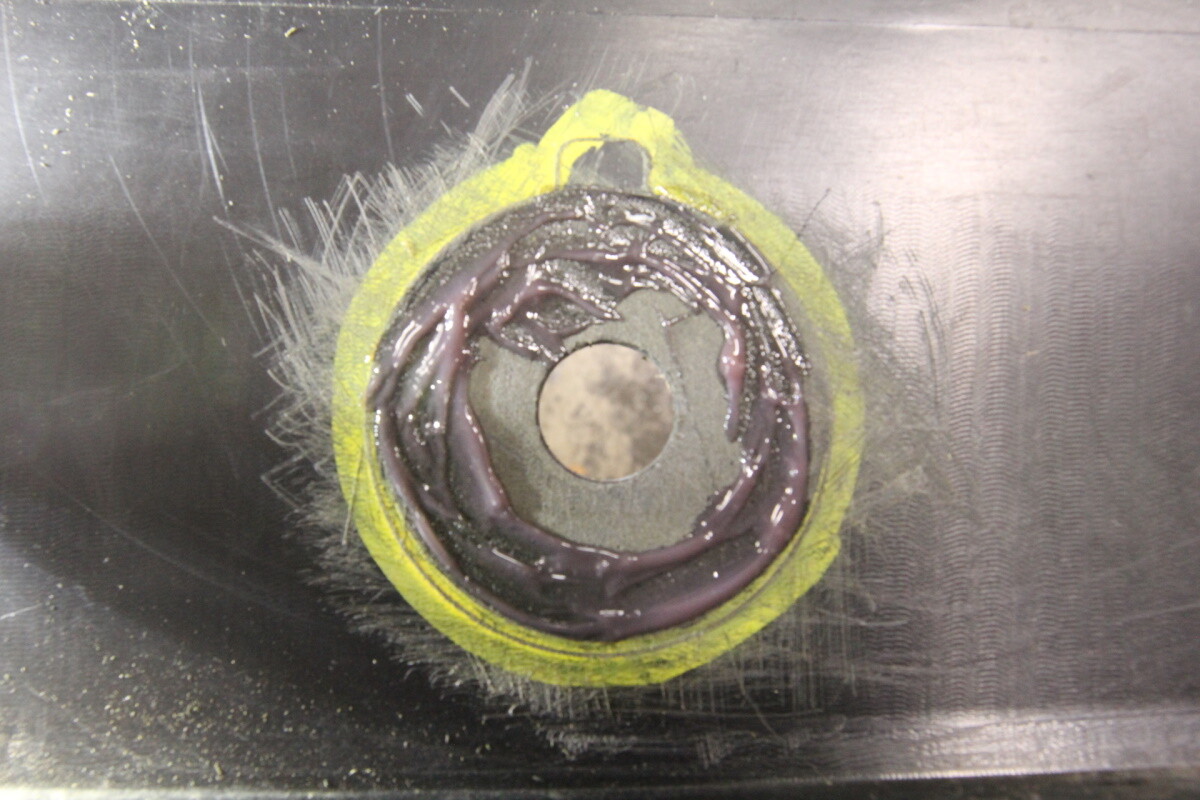

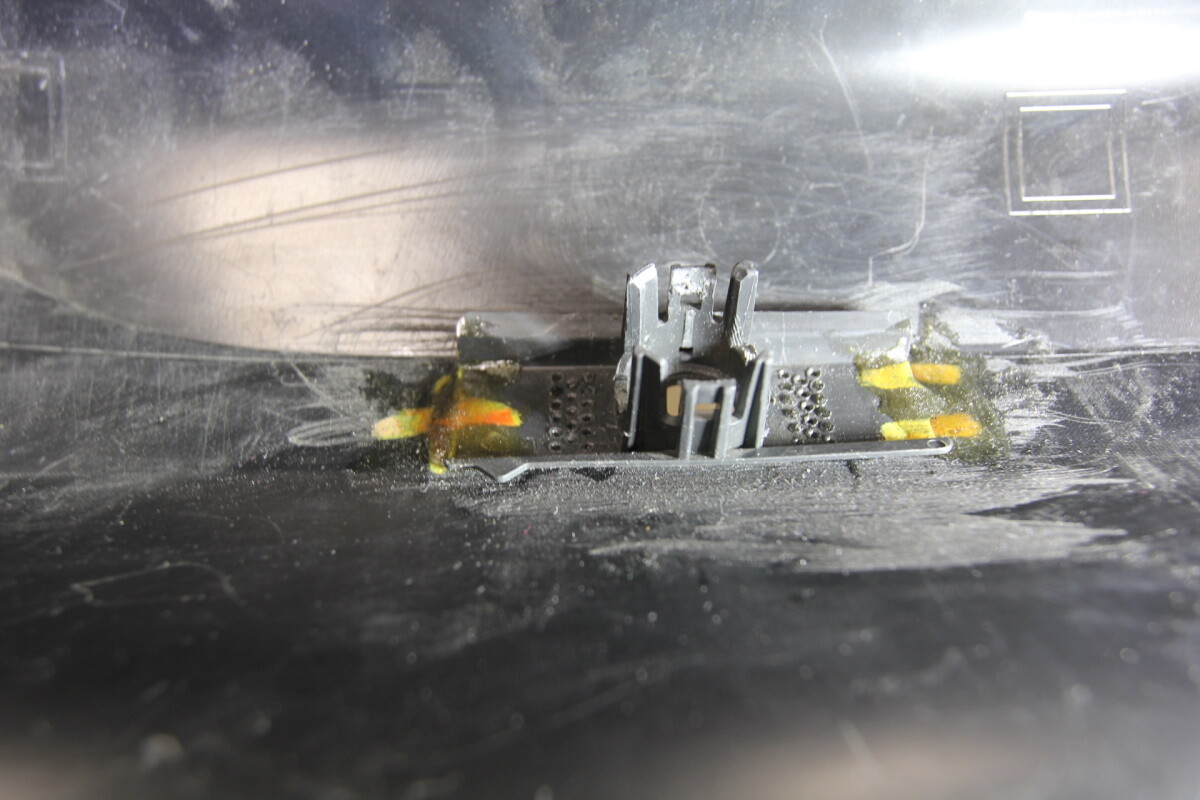

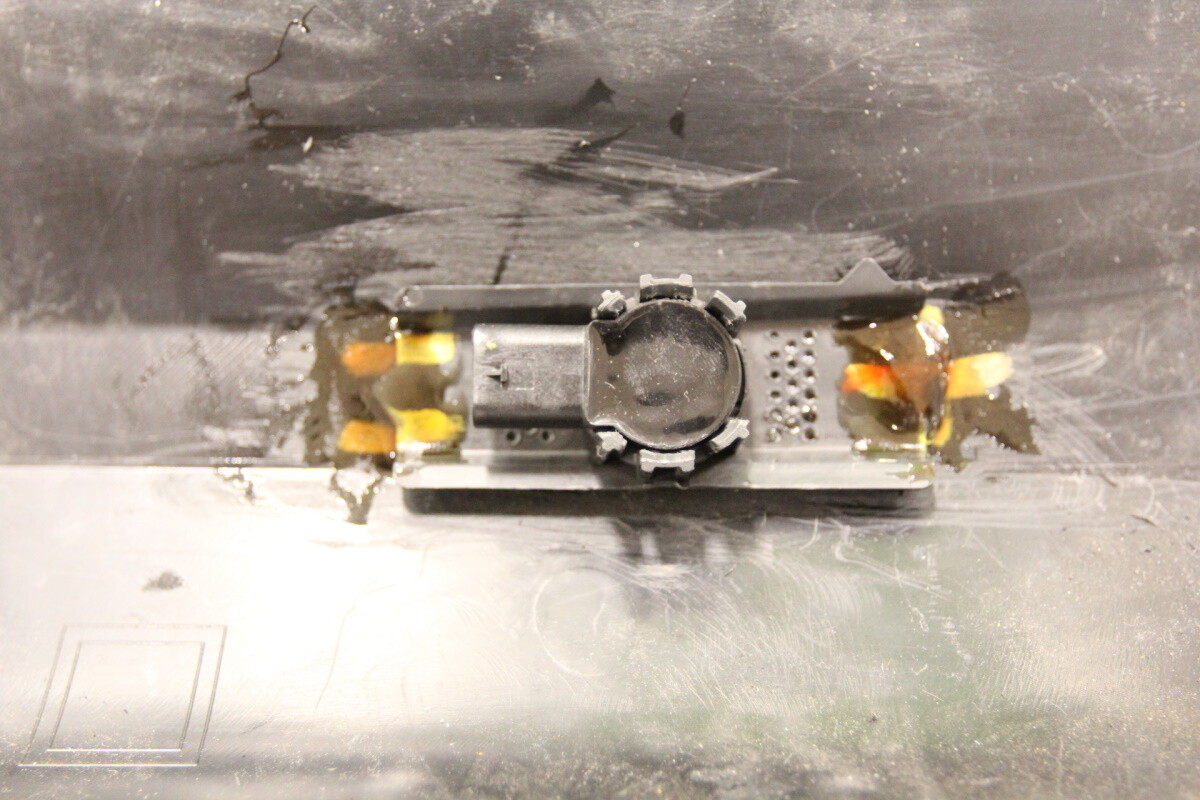

  9. Apply additional adhesive to the outer edge of the retainer.
  10. Allow 20 minutes for adhesive to reach handling strength.
  11. Remove the retainer fixture tool.
  12. Install the parking distance sensor from the fascia. See:
