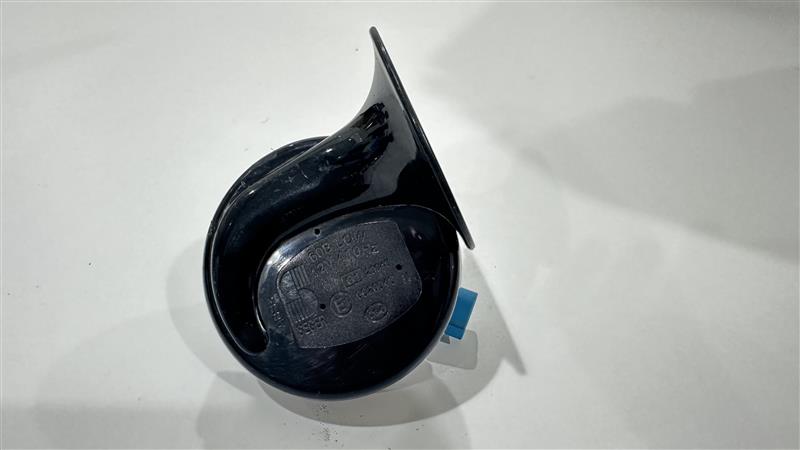

Horn - Low Tone (Heat Pump) (Remove and Replace)

Correction code 1753010042 FRT 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Table 1. Torque Specifications: Horn - Low Tone (Heat Pump) (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolt that attaches the low tone horn to the horn assembly bracket
9.5 Nm (7.0 lbs-ft)
  • 10 mm socket
 Reuse

Remove

  1. Remove the horn assembly from the vehicle. See Horn Assembly (Remove and Replace).

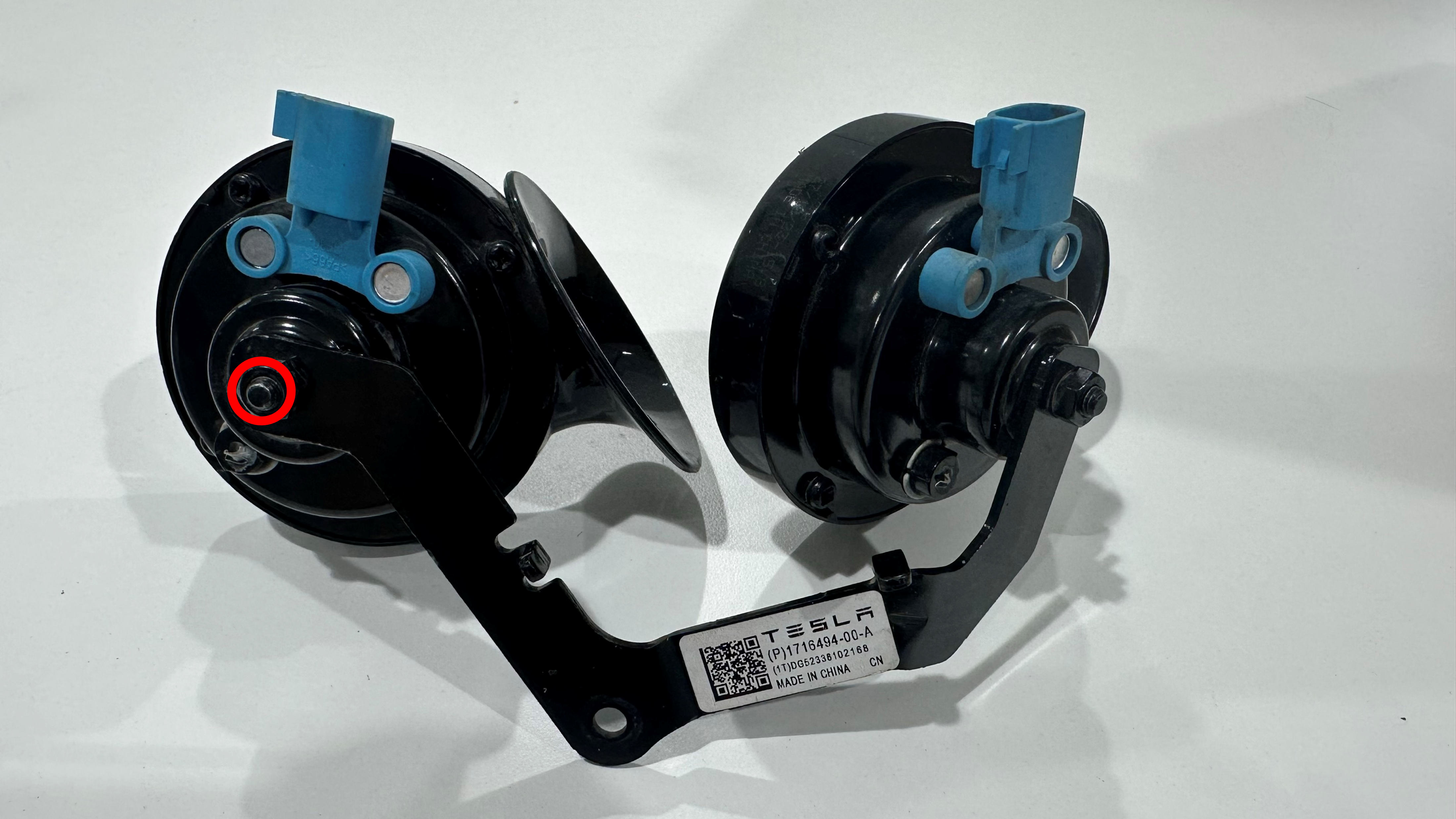

  2. Remove the bolt that attaches the low tone horn to the horn assembly bracket.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket

Install

  1. Install the bolt that attaches the low tone horn to the horn assembly bracket.
    9.5 Nm (7.0 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    The low tone horn connector should be perpendicular to the bracket frame. Adjust the low tone horn angle to avoid touching the high tone horn.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  2. Install the horn assembly to the vehicle. See Horn Assembly (Remove and Replace).
