Motor - Brake Caliper - Rear - LH (Remove and Replace)

Correction code 33052302 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

  • 2026-05-21: Added steps to discard the old caliper O-ring and two caliper motor bolts and to install the new parts supplied with the kit.
  • 2024-10-09: Remove road test after installation.
  • 2024-05-28: Updated EPB Service Mode reference.

Torque Specifications

Table 1. Torque Specifications: Motor - Brake Caliper - Rear - LH (Remove and Replace)
Description Torque Value Recommended Tools Reuse/Replace Notes
Bolt that attaches the LH rear EPB harness bracket to the LH rear caliper
5 Nm (3.7 lbs-ft)
  • 10 mm socket
 Reuse
Bolts (x2) that attach the LH rear brake caliper motor to the brake caliper
10.8 Nm (8.0 lbs-ft)
  • 5 mm hex
 Replace 8008277-00-A

Remove

  1. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift.
  2. Place the vehicle into EPB Service Mode. See Parking Brake - Caliper - Rear - LH (Release).
  3. Remove the LH rear wheel. See Wheel Assembly (Remove and Install).

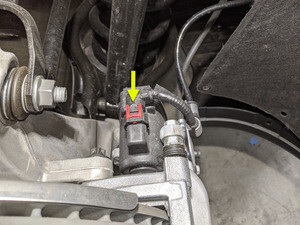

  4. Release the locking tab, and then disconnect the LH rear EPB caliper connector.

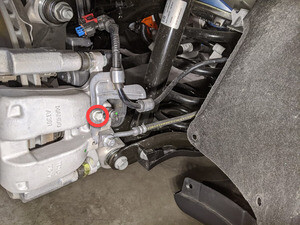

  5. Remove the bolt that attaches the LH rear EPB harness bracket to the LH rear caliper.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket

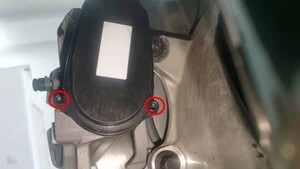

  6. Remove and discard the bolts (x2) that attach the LH rear brake caliper motor to the vehicle, and then remove the caliper motor from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 5 mm hex
  7. Remove and discard the old O-ring from the LH rear brake caliper.

Install

  1. Install the new O-ring provided in the service kit onto the LH rear brake caliper.
  2. Position the LH rear brake caliper motor into the vehicle, and then install new bolts (x2) that attach the caliper motor to the vehicle.
    10.8 Nm (8.0 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 5 mm hex
  3. Install the bolt that attaches the LH rear EPB harness bracket to the LH rear caliper.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  4. Connect the LH rear EPB caliper connector, and then engage the locking tab.
  5. Position the LH rear wheel and hand-tighten the lug nuts.
  6. On the touchscreen, touch Chassis > Brakes > EPB Service Mode, select "BOTH" in "EPB Selection" and "STOP" in "Action Selection", and then touch RUN to exit EPB Service Mode.
  7. Exit Service Mode. See Service Mode.
  8. Install the LH rear wheel. See Wheel Assembly (Remove and Install).
  9. Remove the vehicle from the lift. See Raise Vehicle - 2 Post Lift.
