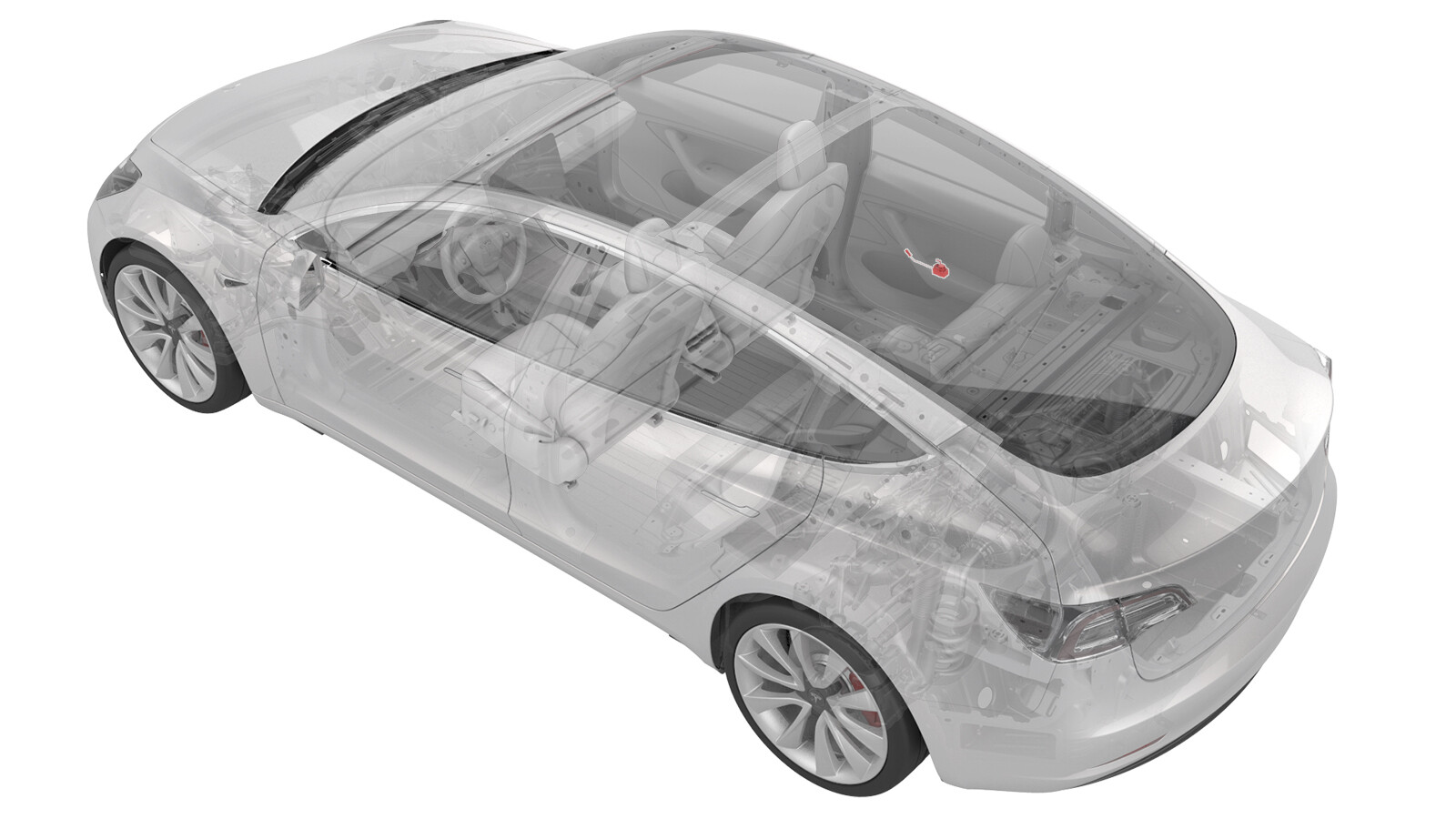

Switch - Window - Rear (Remove and Replace)

Correction code 11503002 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

Remove

  1. Remove the LH rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Install).

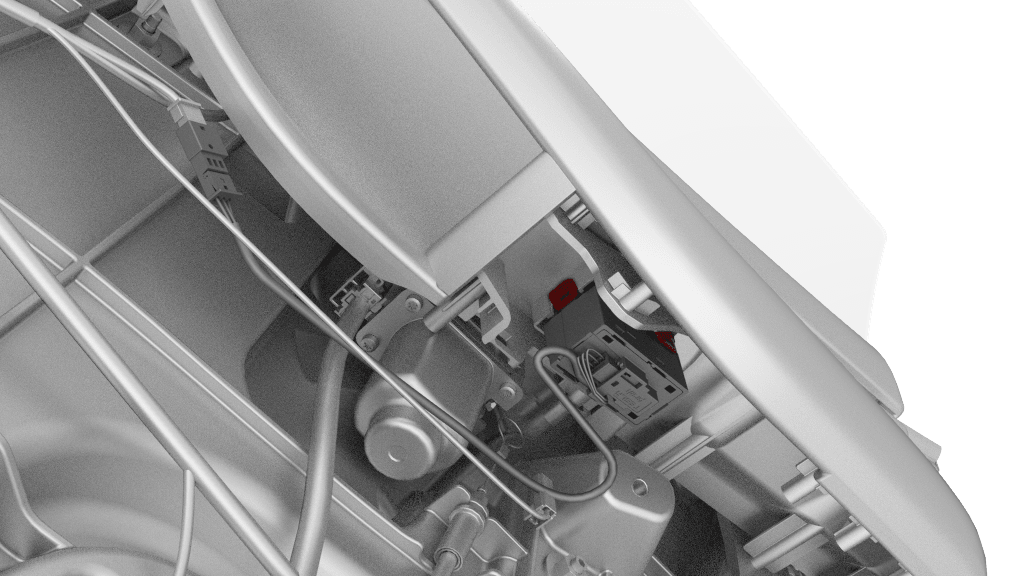

  2. Release the clips that attach the rear window switch to the door trim panel.
    Tip
    Release the front clips first, and then release the rear clips while pushing the rear window switch to release it from the door trim panel.
    Note
    Feed the electrical harness through the door trim panel hole to remove the electrical harness from the rear window switch.
    Note
    Replace any broken door panel clips

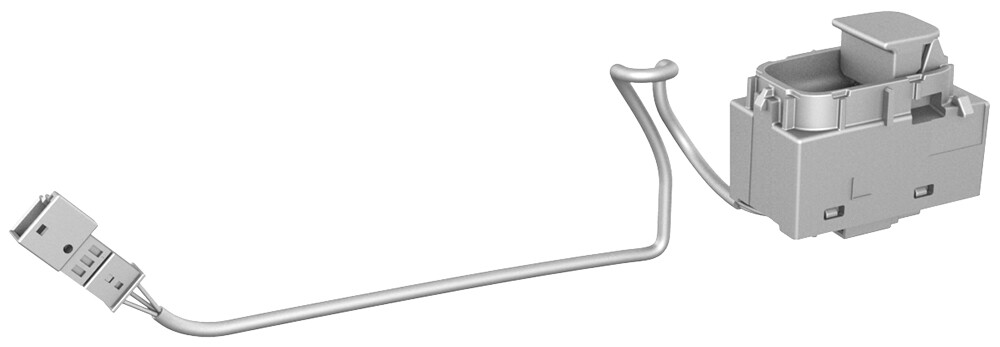

  3. Remove the rear window switch from the vehicle.
