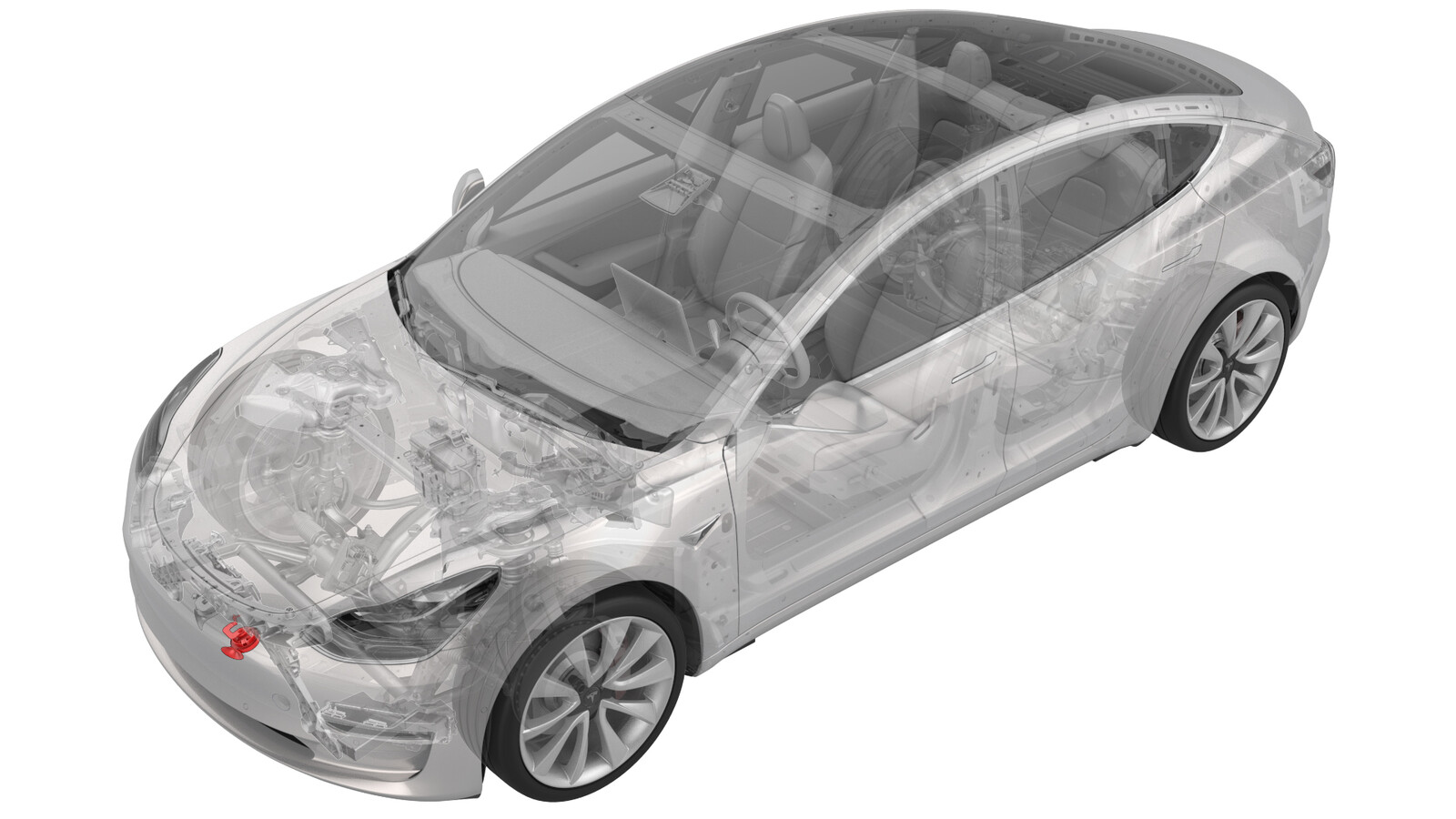

Horn - Low Tone (Remove and Replace)

Correction code 17530302 0.72 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so.NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure.

Remove

  1. Remove the front fascia. See Remove.

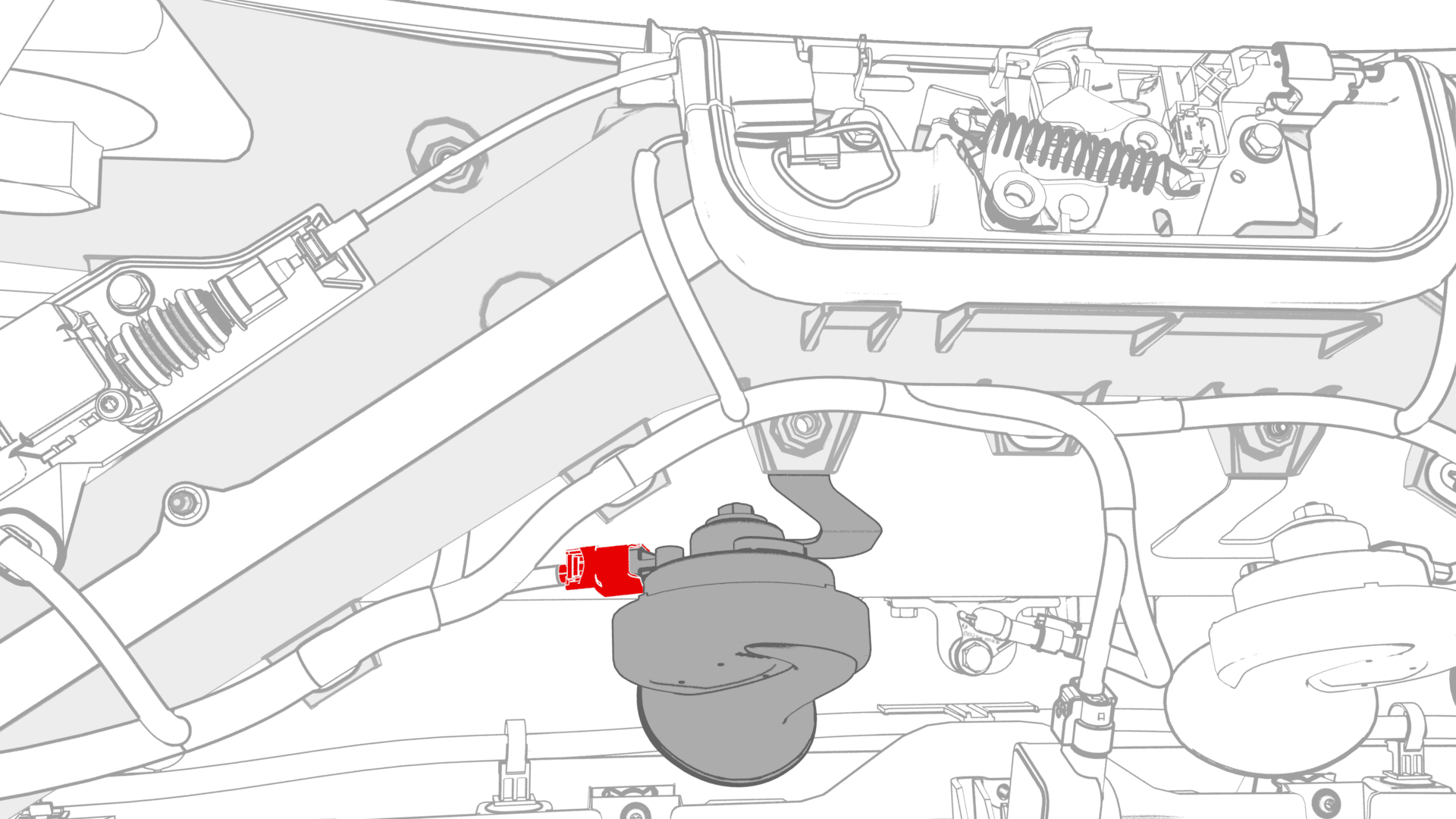

  2. Disconnect the harness from the low tone horn connector.

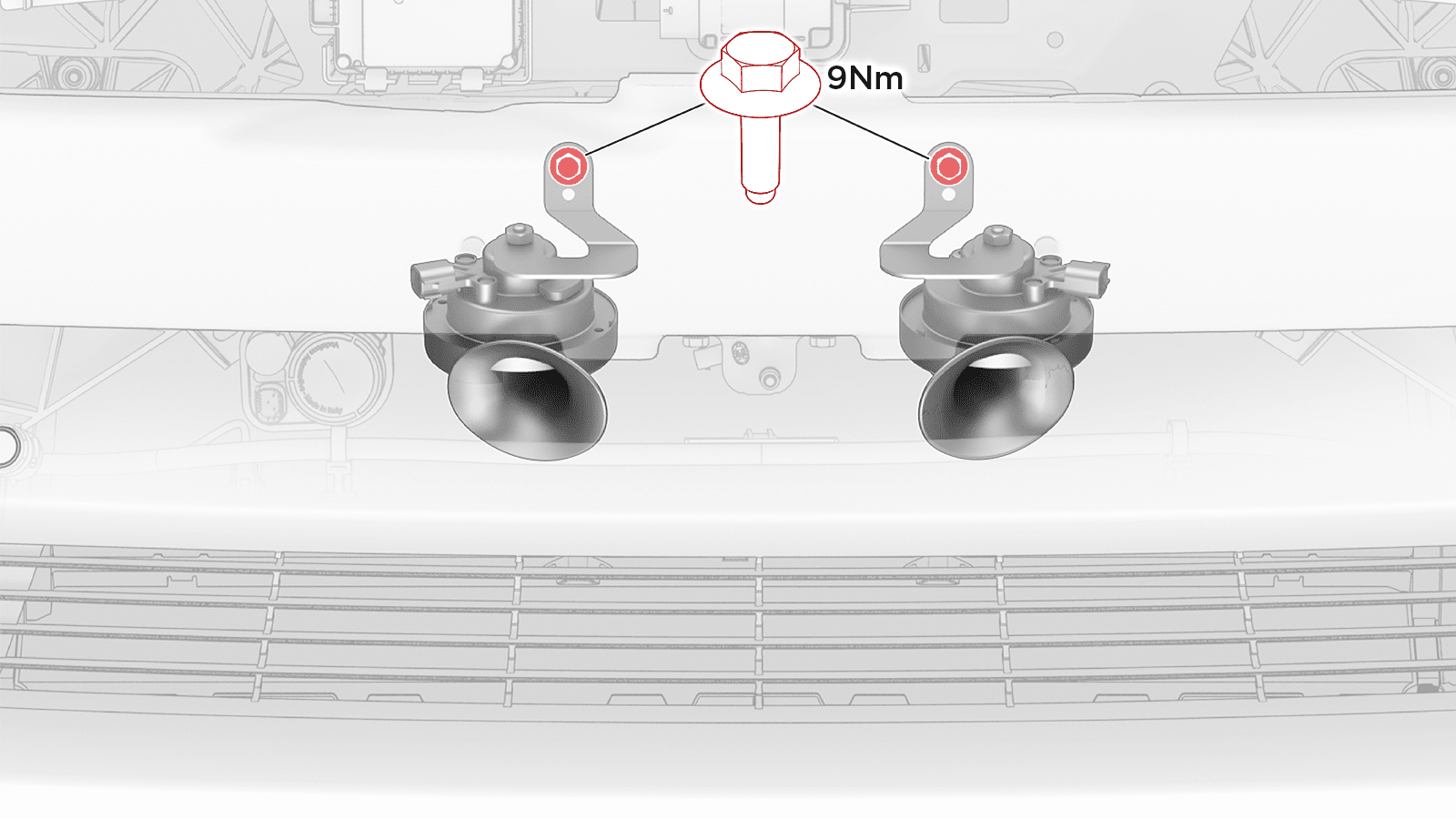

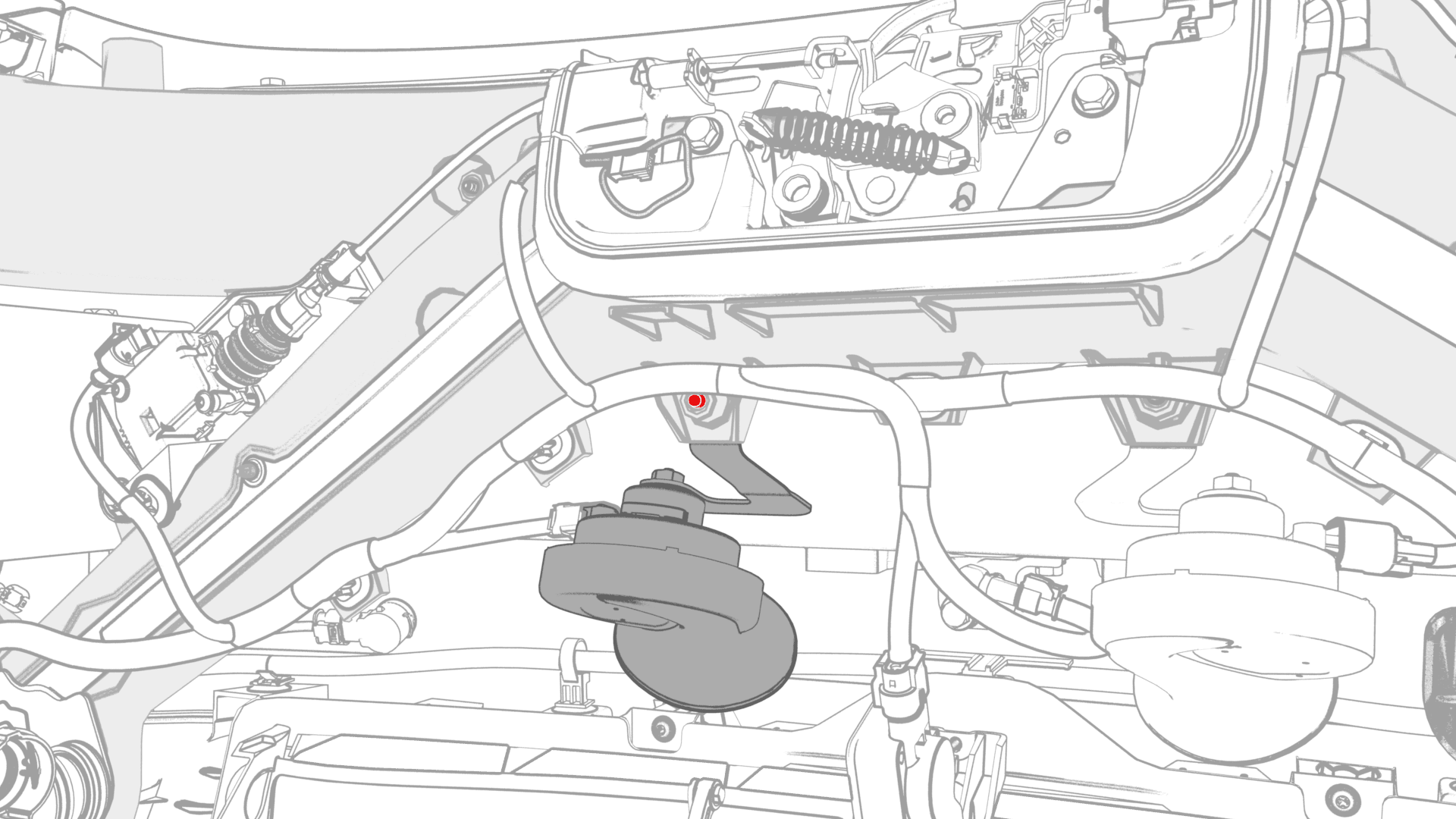

  3. Remove the bolt that attaches the horn to the carrier, and remove the horn from the vehicle.

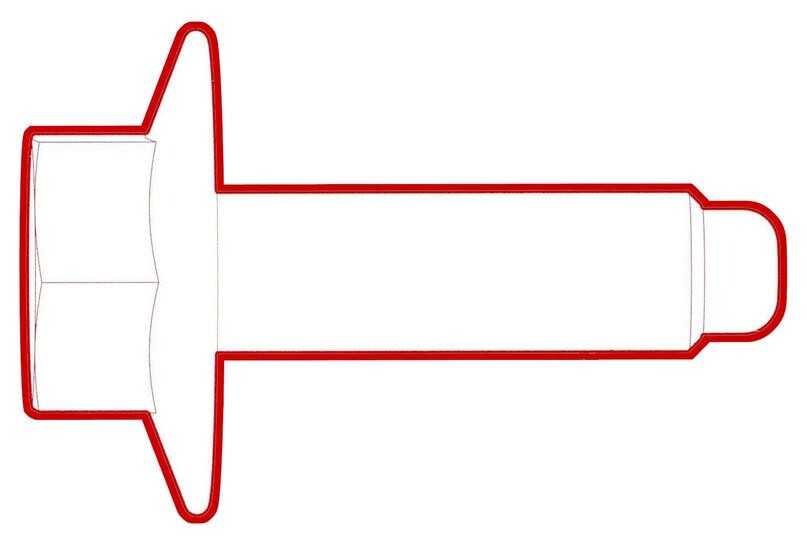

    9 Nm (6.6 lbs-ft)

    North America

    EMEA

Install

Installation procedure is the reverse of removal, except for the following:

  1. Connect a laptop with Toolbox 3 to the vehicle.
  2. In Toolbox, ensure "Actions" is selected then type "Horn" in the search field.
  3. Click the Play button next to TEST-SELF_VCFRONT_X_HORNvia Toolbox: (link), and then select Run.
